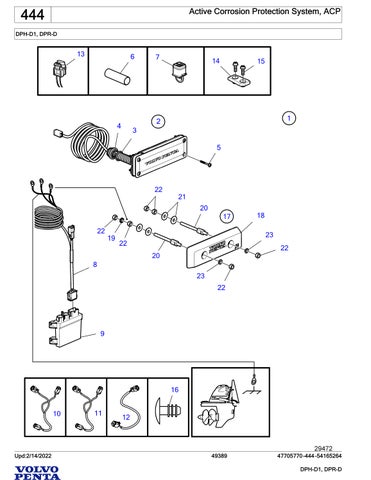

Active Corrosion Protection System, ACP

DPH-D1, DPR-D

Upd:2/14/2022

49389

47705770 -444 -54165264 DPH-D1, DPR-D

Active Corrosion Protection System, ACP

444

DPH-D1, DPR-D REF PART NO. QTY 1 23025862 1 Anode, complete 2 23025859 1 Anode 3 968011 1 O-ring 4 23024520 1 Nut 5 78467259 4 Six point socket scr 6 23137024 1 Heat-shrinkable tubi 7 3840433 1 Sealing plug 8 (23016635) 1 Wiring harness 9 23284132 1 Electronic unit 10 21825665 1 Cable 11 3588972 1 Cable kit 12 3889410 1 Extension cable 13 23345633 1 Fuse holder 14 23252235 1 Bracket 15 984257 2 Six point socket scr 16 995664 4 Plug 17 (23291525) 1 Anode kit 18 23291530 1 Anode 19 991660 1 Toothed washer 20 21211781 2 Rod 21 991659 4 Washer 22 991657 6 Hexagon nut 23 991658 2 Washer

47705770- 444- 54165264 DPH-D1, DPR-D

DESCRIPTION

NOTES

Obsolete part AUX Bus, CPM Y-split Y-split cable, DIAG L=1500mm, with 6 pol connection 5A

Obsolete part

49389

Upd:2/14/2022

444

Active Corrosion Protection System, ACP, Twin Installation

DPH-D1, DPR-D

Upd:2/14/2022

49390

47705770 -444 -54165449 DPH-D1, DPR-D

Active Corrosion Protection System, ACP, Twin Installation

444

DPH-D1, DPR-D REF PART NO. QTY 1 23254031 1 Anode, complete 2 23025859 1 Anode 3 968011 1 O-ring 4 23024520 1 Nut 5 78467259 4 Six point socket scr 6 23137024 1 Heat-shrinkable tubi 7 3840433 1 Sealing plug 8 (23016635) 1 Wiring harness 9 23284132 1 Electronic unit 10 21825665 1 Cable 11 3588972 1 Cable kit 12 3889410 1 Extension cable 13 23345633 1 Fuse holder 14 23252235 2 Bracket 15 984257 4 Six point socket scr 16 995664 8 Plug 17 993419 2 Washer 18 23140015 1 Wiring harness 19 23280708 1 Wiring harness 20 (23291525) 2 Anode kit 21 23291530 2 Anode 22 991660 2 Toothed washer 23 21211781 4 Rod 24 991659 8 Washer 25 991657 12 Hexagon nut 26 991658 4 Washer

47705770- 444- 54165449 DPH-D1, DPR-D

DESCRIPTION

NOTES

Obsolete part AUX Bus, CPM Y-split Y-split cable, DIAG L=1500mm, with 6 pol connection 5A

to connect the ground cable L=2500mm L=5000mm Obsolete part

49390

Upd:2/14/2022

Actuator

441

Upd:2/14/2022

49406

47705770 -441 -54171129 DPH-D1, DPR-D

Actuator

REF PART NO. QTY 1 22663814 1 Actuator 2 1 Actuator 3 3850941 1 Adapter 4 940191 1 Washer 5 17253 1 Split pin 6 819068 1 Washer 7 21471054 1 Bracket 8 973155 2 Six point socket scr

47705770- 441- 54171129 DPH-D1, DPR-D

441 DESCRIPTION

49406

Upd:2/14/2022

Actuator

441 DPH-D1, DPR-D

Upd:2/14/2022

49406

47705770 -441 -54163541 DPH-D1, DPR-D

Actuator

441

DPH-D1, DPR-D REF PART NO. QTY 1 22663814 1 Actuator 2 1 Actuator 3 3850941 1 Adapter 4 940191 1 Washer 5 17253 1 Split pin 6 819068 1 Washer 7 21471054 1 Bracket 8 973155 2 Six point socket scr

47705770- 441- 54163541 DPH-D1, DPR-D

DESCRIPTION

49406

Upd:2/14/2022

441

Drive Shaft and Bearing Housing

DPR-D

Upd:2/14/2022

55804

47705770 -441 -54163173 DPH-D1, DPR-D

Drive Shaft and Bearing Housing

441

DPR-D REF PART NO. QTY 1 3862821 1 Lower gear 3801131 1 Lower gear, exch 3843006 1 Lower gear 3801207 1 Lower gear, exch 2 3862755 1 Shaft 3 184654 1 Needle roller bushin 4 3862390 1 Nut 5 22123620 1 Gear set 22123619 1 Gear set 6 Pinion 7 Gear 8 Gear 9 3863063 X Adjusting washer 3863064 X Adjusting washer 3863065 X Adjusting washer 3863066 X Adjusting washer 10 183765 1 Roller bearing 11 983158 X Shim 983159 X Shim 983160 X Shim 12 21856223 1 Shaft 13 425784 1 Roller bearing 14 984222 1 Roller bearing 15 984225 1 Inner ring 17 184642 1 Needle roller bushin 16 184643 1 Inner ring 26 889500 X Shim 889501 X Shim 889502 X Shim 889503 X Shim 27 3863106 1 Bearing box 28 889455 1 Gasket 29 984450 1 Six point socket scr 30 925260 2 O-ring 31 984224 1 Needle roller bushin 32 21440870 1 Adapter 33 984258 2 Six point socket scr 34 984259 2 Six point socket scr 39 3862421 1 Splined sleeve 36 11065 1 Roller bearing 37 984223 1 Ball bearing 38 983152 X Shim 983153 X Shim 983154 X Shim 35 977910 X Shim 977911 X Shim 977912 X Shim 40 3863213 1 Propeller nut 41 3863211 1 Propeller nut 18 23553896 1 Sealing ring, kit 19 22876829 1 Sealing ring 20 22876831 2 Sealing ring 21 22484526 2 Spacer washer 22 22876833 1 Sealing ring 23 22484527 1 Spacer washer 24 22876835 1 Sealing ring 25 23407763 1 Grease

47705770- 441- 54163173 DPH-D1, DPR-D

DESCRIPTION

NOTES Ratio 1.46 Ratio 1.46 Ratio 1.36 Ratio 1.36

Ratio 1.46 Ratio 1.36 not sold separately not sold separately not sold separately TH=2.85mm TH=2.90mm TH=3.00mm TH=3.05mm TH=0.10mm TH=0.15mm TH=0.35mm

TH=0,10mm TH=0,16mm TH=0,25mm TH=0,40mm Oil drain plug Oil drain plug also included in Sealing Ring kit 23553896

L=40mm L=40mm

TH=0.10mm TH=0.15mm TH=0.35mm TH=0.10mm TH=0.15mm TH=0.35mm Rear Front

55804

Upd:2/14/2022

Drive Shaft and Bearing Housing SN-3020295797, DPH-D

441 DPH-D1

39

1 40

36

2

41

42

37

43 38

44 3 6 7

5

14 26

4

13

11 22

21

12

20

10

17 20 16

15

18

19

35

8 19 25 23 24

33

32

9

31 34 30

29

27

Upd:2/14/2022

49404

28

47705770 -441 -54163167 DPH-D1, DPR-D

Drive Shaft and Bearing Housing SN-3020295797, DPH-D

441

DPH-D1 REF 1

2 3 4 5

6 7 8 9 10

11 12

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 29 31 32

33 34 35 40 36 37 38

PART NO. QTY 22079938 1 Lower gear 22079940 1 Lower gear 22079941 1 Lower gear 22079942 1 Lower gear 22079943 1 Lower gear 22079944 1 Lower gear 3862389 1 Shaft 184654 1 Needle roller bushin 3862390 1 Nut 22123612 1 Gear set 22123618 1 Gear set 22123614 1 Gear set 22123615 1 Gear set 22123617 1 Gear set 22123616 1 Gear set 22123613 1 Gear set Pinion Gear Gear 21243935 1 Lock ring 3863063 X Adjusting washer 3863064 X Adjusting washer 3863065 X Adjusting washer 3863066 X Adjusting washer 183765 1 Roller bearing 983158 X Shim 983159 X Shim 983160 X Shim 21856223 1 Shaft 425784 1 Roller bearing 984222 1 Roller bearing 984225 1 Inner ring 184642 1 Needle roller bushin 184643 1 Inner ring 23553896 1 Sealing ring, Kit 22173733 4 Spacer washer 22484526 2 Spacer washer 22876829 1 Sealing ring 22876831 2 Sealing ring 22876833 1 Sealing ring 22484527 1 Spacer washer 22173790 1 Spacer washer 22876835 1 Sealing ring 23407763 1 Grease 22173381 1 Bearing box 984450 1 Six point socket scr 984224 1 Needle roller bushin 889455 1 Gasket 925260 2 O-ring 3875229 X Shim 3875230 X Shim 3875231 X Shim 3875232 X Shim 984259 2 Six point socket scr 21434619 1 Adapter 3863083 1 Sealing ring 984258 2 Six point socket scr 22098611 1 Splined sleeve 11065 1 Roller bearing 984223 1 Ball bearing 983152 X Shim 983153 X Shim 983154 X Shim

47705770- 441- 54163167 DPH-D1, DPR-D

DESCRIPTION

NOTES Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1

Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1 not sold separately not sold separately not sold separately TH=2.85mm TH=2.90mm TH=3.00mm TH=3.05mm TH=0.10mm TH=0.15mm TH=0.35mm

Replaced by 22484526 SN3020296716-

Replaced by 22484527

Oil drain plug Oil drain plug also included in Sealing Ring kit 23553896 TH=0.10mm TH=0,16mm TH=0,25mm TH=0,40mm L=40mm

L=40mm

TH=0.10mm TH=0.15mm TH=0.35mm 49404

Upd:2/14/2022

Drive Shaft and Bearing Housing SN-3020295797, DPH-D

441

DPH-D1 REF 39

41 42 43 44

PART NO. QTY 977910 X Shim 977911 X Shim 977912 X Shim 21829326 1 Spinner (21829324) 1 Spinner 991609 1 Flange screw 3863211 1 Propeller nut

47705770- 441- 54163167 DPH-D1, DPR-D

DESCRIPTION

NOTES TH=0.10mm TH=0.15mm TH=0.35mm Please, see Parts Bulletin P-44-7-21 Obsolete part Front

49404

Upd:2/14/2022

Drive Shaft and Bearing Housing SN3020295798-, DPH-D1

441 DPH-D1

39

1 40

36

2

41

42

37

43 38

44 3 6 7

5

14 26

4

13

11 22

21

12

20

10

17 20 16

15

18

19

35

8 19 25 23 24

33

32

9

31 34 30

29

27

Upd:2/14/2022

49404

28

47705770 -441 -54163542 DPH-D1, DPR-D

Drive Shaft and Bearing Housing SN3020295798-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 22079938 1 Lower gear 22079940 1 Lower gear 22079941 1 Lower gear 22079942 1 Lower gear 22079943 1 Lower gear 22079944 1 Lower gear 2 3862389 1 Shaft 3 184654 1 Needle roller bushin 4 3862390 1 Nut 5 22123612 1 Gear set 22123618 1 Gear set 22123614 1 Gear set 22123615 1 Gear set 22123617 1 Gear set 22123616 1 Gear set 22123613 1 Gear set 6 Pinion 7 Gear 8 Gear 9 21243935 1 Lock ring 10 3863063 X Adjusting washer 3863064 X Adjusting washer 3863065 X Adjusting washer 3863066 X Adjusting washer 11 183765 1 Roller bearing 12 983158 X Shim 983159 X Shim 983160 X Shim 13 21856223 1 Shaft 14 425784 1 Roller bearing 15 984222 1 Roller bearing 16 984225 1 Inner ring 17 184642 1 Needle roller bushin 18 184643 1 Inner ring 19 23553896 1 Sealing ring, Kit 20 22484526 2 Spacer washer 21 22876829 1 Sealing ring 22 22876831 2 Sealing ring 24 22484527 1 Spacer washer 23 22876833 1 Sealing ring 25 22876835 1 Sealing ring 26 23407763 1 Grease 27 22173381 1 Bearing box 28 984450 1 Six point socket scr 29 889455 1 Gasket 31 925260 2 O-ring 30 984224 1 Needle roller bushin 32 3875229 X Shim 3875230 X Shim 3875231 X Shim 3875232 X Shim 33 984259 2 Six point socket scr 34 21434619 1 Adapter 35 984258 2 Six point socket scr 36 11065 1 Roller bearing 37 984223 1 Ball bearing 38 983152 X Shim 983153 X Shim 983154 X Shim 39 977910 X Shim 38 977911 X Shim 39 977912 X Shim 41 21829326 1 Spinner 47705770- 441- 54163542 DPH-D1, DPR-D

DESCRIPTION

NOTES Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1

Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1 not sold separately not sold separately not sold separately TH=2.85mm TH=2.90mm TH=3.00mm TH=3.05mm TH=0.10mm TH=0.15mm TH=0.35mm

Oil drain plug Oil drain plug also included in Sealing Ring kit 23553896 TH=0.10mm TH=0,16mm TH=0,25mm TH=0,40mm L=40mm L=40mm

TH=0.10mm TH=0.15mm TH=0.35mm TH=0.10mm TH=0.15mm TH=0.35mm Please, see Parts Bulletin P-44-7-21 49404

Upd:2/14/2022

Drive Shaft and Bearing Housing SN3020295798-, DPH-D1

441

DPH-D1 REF PART NO. QTY 40 22098611 1 Splined sleeve 42 1 Spinner 43 991609 1 Flange screw 44 3863211 1 Propeller nut

47705770- 441- 54163542 DPH-D1, DPR-D

DESCRIPTION

NOTES

Front

49404

Upd:2/14/2022

Drive Unit, Complete

441 DPR-D

1

2

3

Upd:2/14/2022

49402

47705770 -441 -54162996 DPH-D1, DPR-D

Drive Unit, Complete

441

DPR-D REF PART NO. QTY 1 22273600 1 Aquamatic drive, complete 22273601 1 Aquamatic drive, complete 2 22113257 1 Upper gear, complete 3 21550239 1 Lower gear, complete 21550240 1 Lower gear, complete

DESCRIPTION

47705770- 441- 54162996

49402

DPH-D1, DPR-D

NOTES Ratio 1.36 Ratio 1.46 Ratio 1.36 Ratio 1.46

Upd:2/14/2022

441

Drive Unit, Complete SN-3020295797, DPH-D

DPH-D1

Upd:2/14/2022

49407

47705770 -441 -54162995 DPH-D1, DPR-D

Drive Unit, Complete SN-3020295797, DPH-D

441

DPH-D1 REF PART NO. QTY 1 22079436 1 Aquamatic drive, complete 22079437 1 Aquamatic drive, complete 22079438 1 Aquamatic drive, complete 22079439 1 Aquamatic drive, complete 22079440 1 Aquamatic drive, complete 22079441 1 Aquamatic drive, complete 22079442 1 Aquamatic drive, complete 2 22079926 1 Upper gear, complete 3 22079936 1 Lower gear, complete 22079938 1 Lower gear, complete 22079940 1 Lower gear, complete 22079941 1 Lower gear, complete 22079942 1 Lower gear, complete 22079943 1 Lower gear, complete 22079944 1 Lower gear, complete

47705770- 441- 54162995 DPH-D1, DPR-D

DESCRIPTION

NOTES Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1 Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1

49407

Upd:2/14/2022

441

Drive Unit, Complete SN3020295797-, DPH-D1

DPH-D1

Upd:2/14/2022

49407

47705770 -441 -54163555 DPH-D1, DPR-D

Drive Unit, Complete SN3020295797-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 22079436 1 Aquamatic drive, complete 22079437 1 Aquamatic drive, complete 22079438 1 Aquamatic drive, complete 22079439 1 Aquamatic drive, complete 22079440 1 Aquamatic drive, complete 22079441 1 Aquamatic drive, complete 22079442 1 Aquamatic drive, complete 2 22079926 1 Upper gear, complete 3 22079936 1 Lower gear, complete 22079938 1 Lower gear, complete 22079940 1 Lower gear, complete 22079941 1 Lower gear, complete 22079942 1 Lower gear, complete 22079943 1 Lower gear, complete 22079944 1 Lower gear, complete

47705770- 441- 54163555 DPH-D1, DPR-D

DESCRIPTION

NOTES Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1 Ratio 1.59:1 Ratio 1.63:1 Ratio 1.69:1 Ratio 1.76:1 Ratio 1.85:1 Ratio 1.96:1 Ratio 2.08:1

49407

Upd:2/14/2022

Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Uni

441 DPH-D1, DPR-D

20

8

9

7 23

22

4 3

5 6

10

21

1

2 11

18

19 15

14

16

13

17

12

Upd:2/14/2022

49421

47705770 -441 -54162146 DPH-D1, DPR-D

Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Uni

441

DPH-D1, DPR-D REF PART NO. QTY DESCRIPTION 1 23491646 1 Exhaust pipe 2 (21114146) 1 Exhaust pipe 3 21868040 1 Anode kit, Zink 21868042 1 Anode kit, Aluminium 21868041 1 Anode kit, Magnesium 4 1 Anode 5 976042 2 O-ring 6 981497 1 Flange screw 7 21700007 1 Cover 8 60114519 2 Flange screw 9 3584167 1 Exhaust hose 10 23227747 1 Hose clamp 11 21768904 1 Hose 12 961671 2 Hose clamp 13 60114373 1 Flange screw 14 984474 1 Clamp 15 984391 4 Washer 16 984367 2 Hexagon screw 17 984700 2 Hexagon screw 18 925259 1 O-ring 19 925068 1 O-ring 20 23316919 2 Hose clamp 21 961671 1 Hose clamp 22 828250 X Lubricating grease 23 23284158 1 Locking fluid

47705770- 441- 54162146 DPH-D1, DPR-D

NOTES For D4 engines.

Obsolete part, not sold separately For use in Saltwater For use in Salt and Brackish water, Not included in exhaust pipe For use in freshwater, Not included in exhaust pipe not sold separately

D4

L=70mm L=90mm

49421

Upd:2/14/2022

441

Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Unit, Extended

DPH-D1, DPR-D

Upd:2/14/2022

49379

47705770 -441 -54161831 DPH-D1, DPR-D

Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Unit, Extended

441

DPH-D1, DPR-D REF PART NO. QTY DESCRIPTION 1 23492685 1 Exhaust pipe 2 (21698559) 1 Exhaust pipe 3 21868040 1 Anode kit, Zink 21868042 1 Anode kit, Aluminium 21868041 1 Anode kit, Magnesium 4 1 Anode 5 976042 2 O-ring 6 981497 1 Flange screw 7 21700007 1 Cover 8 60114519 2 Flange screw 9 3584167 1 Exhaust hose 10 23227747 1 Hose clamp 11 21511542 1 Hose 12 961671 2 Hose clamp 13 60114373 1 Flange screw 14 984474 1 Clamp 15 984391 4 Washer 16 984367 2 Hexagon screw 17 984700 2 Hexagon screw 18 925259 1 O-ring 19 925068 1 O-ring 20 23316919 2 Hose clamp 21 961671 1 Hose clamp 22 1161053 1 Locking fluid 23 828250 X Lubricating grease

47705770- 441- 54161831 DPH-D1, DPR-D

NOTES For D4 engines.

Obsolete part For use in Saltwater For use in Salt and Brackish water, Not included in exhaust pipe For use in freshwater, Not included in exhaust pipe

For D4 engines.

108-130mm 48-55mm

L=70mm L=90mm

95-117mm 48-55mm

49379

Upd:2/14/2022

Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit

441 DPH-D1, DPR-D

20

8

9

7 23

22

4 3

5 6

10

21

1

2 11

18

19 15

14

16

13

17

12

Upd:2/14/2022

49383

47705770 -441 -54166357 DPH-D1, DPR-D

Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit

441

DPH-D1, DPR-D REF PART NO. QTY DESCRIPTION 1 23492653 1 Exhaust pipe 2 (21114146) 1 Exhaust pipe 3 21868040 1 Anode kit, Zink 21868042 1 Anode kit, Aluminium 21868041 1 Anode kit, Magnesium 4 1 Anode 5 976042 2 O-ring 6 981497 1 Flange screw 7 21700007 1 Cover 8 60114519 2 Flange screw 9 22876859 1 Bellows 10 23227747 1 Hose clamp 11 21768904 1 Hose 12 961671 2 Hose clamp 13 60114373 1 Flange screw 14 984474 1 Clamp 15 984391 4 Washer 16 984367 2 Hexagon screw 17 984700 2 Hexagon screw 18 925259 1 O-ring 19 925068 1 O-ring 20 23316921 2 Hose clamp 21 961671 1 Hose clamp 22 828250 X Lubricating grease 23 23284158 1 Locking fluid

47705770- 441- 54166357 DPH-D1, DPR-D

NOTES For D6 engines. not sold separately, Obsolete part For use in Saltwater For use in Salt and Brackish water, Not included in exhaust pipe For use in freshwater, Not included in exhaust pipe not sold separately

D6

L=70mm L=90mm

49383

Upd:2/14/2022

Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit, Extended

441 DPH-D1, DPR-D

20 23

22

9 8 21

7

1 5 10

4 3 6

2 11 18 19 15

13

14

16 12 15 17

Upd:2/14/2022

49381

47705770 -441 -54166356 DPH-D1, DPR-D

Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit, Extended

441

DPH-D1, DPR-D REF PART NO. QTY DESCRIPTION 1 23481091 1 Exhaust pipe 2 (21698559) 1 Exhaust pipe 3 21868040 1 Anode kit, Zinc 21868042 1 Anode kit, Aluminum 21868041 1 Anode kit, Magnesium 4 1 Anode 5 976042 2 O-ring 6 981497 1 Flange screw 7 21700007 1 Cover 8 60114519 2 Flange screw 9 22876859 1 Bellows 10 23227747 1 Hose clamp 11 21511542 1 Hose 12 961671 2 Hose clamp 13 60114373 1 Flange screw 14 984474 1 Clamp 15 984391 4 Washer 16 984367 2 Hexagon screw 17 984700 2 Hexagon screw 18 925259 1 O-ring 19 925068 1 O-ring 20 23316921 2 Hose clamp 21 961671 1 Hose clamp 22 1161053 1 Locking fluid 23 828250 X Lubricating grease

47705770- 441- 54166356 DPH-D1, DPR-D

NOTES For D6 engines.

Obsolete part For use in Saltwater For use in Salt and Brackish water, Not included in exhaust pipe For use in freshwater, Not included in exhaust pipe

For D6 engines.

108-130mm 48-55mm

L=70mm L=90mm

95-117mm 48-55mm

49381

Upd:2/14/2022

Extension Kit 1''

441 DPH-D1, DPR-D

7

1 5

6

3

4 2

8

11 10

9

Upd:2/14/2022

49405

47705770 -441 -54163168 DPH-D1, DPR-D

Extension Kit 1''

441

DPH-D1, DPR-D REF PART NO. QTY 1 22175328 1 Extension kit 2 1 Extension 3 925096 1 O-ring 4 3862245 2 Sealing ring 5 3862320 1 Spacer ring 6 977910 X Shim 977911 X Shim 977912 X Shim 7 984261 8 Six point socket scr 8 3588357 2 Screw 9 3587976 1 Spacer 10 22098612 1 Splined sleeve 11 3862249 1 Gasket

47705770- 441- 54163168 DPH-D1, DPR-D

DESCRIPTION

NOTES not sold separately

TH=0.10mm TH=0.15mm TH=0.35mm L=75mm L=65mm

49405

Upd:2/14/2022

Flywheel Housing and Primary Shaft

441 DPH-D1, DPR-D

3

1

2

4

13

2

5 6 7 8

9 10 11

13

12 14

15

Upd:2/14/2022

49431

47705770 -441 -54171772 DPH-D1, DPR-D

Flywheel Housing and Primary Shaft

441

DPH-D1, DPR-D REF PART NO. QTY 1 3589844 1 Flywheel housing 21201104 1 Bell housing 2 946752 18 Flange screw 3 3886887 1 Flexible coupling 4 888264 1 Bushing 5 21324794 1 Shaft 6 1306333 1 Sealing ring 6842273 1 Lip seal 7 184841 1 Ball bearing 8 914533 1 Snap ring 9 914462 1 Snap ring 10 888545 1 Bearing bushing 11 958860 1 Sealing ring 12 873048 1 Clamping ring 13 804190 2 Rubber ring 14 806624 3 Striker plate 15 191844 6 Hexagon screw

47705770- 441- 54171772 DPH-D1, DPR-D

DESCRIPTION

NOTES

L=35mm

For 3589844, Replaced by 6842273 For 21201104

49431

Upd:2/14/2022

Flywheel Housing and Primary Shaft SN3020295797-, DPH-D1

441 DPH-D1

3

1

4 2

17

16 13

2

5

6 7 8 9

1 10 11

13

12

14 15

Upd:2/14/2022

49398

47705770 -441 -54163533 DPH-D1, DPR-D

Flywheel Housing and Primary Shaft SN3020295797-, DPH-D1

441

DPH-D1 REF PART NO. QTY DESCRIPTION 1 21201104 1 Bell housing 22564984 1 Bell housing 2 946752 18 Flange screw 3 21882313 1 Flexible coupling 4 888264 1 Bushing 23522903 1 Bushing 5 21324794 1 Shaft 6 6842273 1 Lip seal 7 184841 1 Ball bearing 8 914533 1 Snap ring 9 914462 1 Snap ring 10 888545 1 Bearing bushing 11 958860 1 Sealing ring 12 873048 1 Clamping ring 13 804190 2 Rubber ring 14 806624 3 Striker plate 15 191844 6 Hexagon screw 16 23161494 1 Plug 17 991605 1 Flange screw

47705770- 441- 54163533 DPH-D1, DPR-D

NOTES Replaced by 22564984, 23161494, 991605, (3589844) L=35mm Replaced by 23522903

For Bell housing 22564984 For Bell housing 22564984

49398

Upd:2/14/2022

Flywheel Housing and Primary Shaft, Extended

441 DPH-D1, DPR-D

3

1

2 4

13 2

5 6 7 8

9 10 11

13

12 14

15

Upd:2/14/2022

49403

47705770 -441 -54162005 DPH-D1, DPR-D

Flywheel Housing and Primary Shaft, Extended

441

DPH-D1, DPR-D REF PART NO. QTY 1 21440998 1 Bell housing 2 946752 18 Flange screw 3 21424060 1 Flexible coupling 21581138 1 Flexible coupling 4 888264 1 Bushing 5 21511536 1 Shaft 6 6842273 1 Lip seal 7 184841 1 Ball bearing 8 914533 1 Snap ring 9 914462 1 Snap ring 10 888545 1 Bearing bushing 11 958860 1 Sealing ring 12 873048 1 Clamping ring 13 804190 2 Rubber ring 14 806624 3 Striker plate 15 191844 6 Hexagon screw

47705770- 441- 54162005 DPH-D1, DPR-D

DESCRIPTION

NOTES L=35mm SN-2006039886 SN2006039887-

49403

Upd:2/14/2022

441

Flywheel Housing and Primary Shaft, Extended SN3020295797-, DPH-D1

DPH-D1

Upd:2/14/2022

49420

47705770 -441 -54163544 DPH-D1, DPR-D

Flywheel Housing and Primary Shaft, Extended SN3020295797-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 21440998 1 Bell housing 22876823 1 Bell housing 2 946752 18 Flange screw 3 21882313 1 Flexible coupling 4 888264 1 Bushing 5 21511536 1 Shaft 6 6842273 1 Lip seal 7 184841 1 Ball bearing 8 914533 1 Snap ring 9 914462 1 Snap ring 10 888545 1 Bearing bushing 11 958860 1 Sealing ring 12 873048 1 Clamping ring 13 804190 2 Rubber ring 14 806624 3 Striker plate 15 191844 6 Hexagon screw 16 23161494 1 Plug 17 991605 1 Flange screw

47705770- 441- 54163544 DPH-D1, DPR-D

DESCRIPTION

NOTES Replaced by 22876823, 23161494, 991605 L=35mm

For Bell housing 22876823 For Bell housing 22876823

49420

Upd:2/14/2022

Gimbal Ring

441 DPH-D1, DPR-D

Upd:2/14/2022

49411

47705770 -441 -54163536 DPH-D1, DPR-D

Gimbal Ring

441

DPH-D1, DPR-D REF PART NO. QTY 1 21441011 1 Fork 2 3862217 2 Bushing 3 40005192 1 Hose connection 4 22274885 1 Hose clamp 5 990899 1 O-ring 6 984257 2 Six point socket scr 7 3862248 2 Thrust washer 8 21264883 4 Pin 9 967707 4 Split pin 10 3862246 1 Steering knuckle 11 955999 1 O-ring 12 3862247 1 Retainer 13 3862245 1 Sealing ring 14 3862903 2 Bushing

47705770- 441- 54163536 DPH-D1, DPR-D

DESCRIPTION

49411

Upd:2/14/2022

Gimbal Ring

441

Upd:2/14/2022

49397

47705770 -441 -54161832 DPH-D1, DPR-D

Gimbal Ring

REF PART NO. QTY 1 21441011 1 Fork 2 3862217 2 Bushing 3 40005192 1 Hose connection 4 22274885 1 Hose clamp 5 990899 1 O-ring 6 984257 2 Six point socket scr 7 3862248 2 Thrust washer 8 3862188 4 Pin 9 967707 4 Split pin 10 3862246 1 Steering knuckle 11 955999 1 O-ring 12 3862247 1 Retainer 13 3862245 1 Sealing ring 14 3862903 2 Bushing

47705770- 441- 54161832 DPH-D1, DPR-D

441 DESCRIPTION

49397

Upd:2/14/2022

Housing and Center Tube

441 DPR-D

Upd:2/14/2022

49423

47705770 -441 -54163178 DPH-D1, DPR-D

Housing and Center Tube

441

DPR-D REF PART NO. QTY DESCRIPTION 1 3862787 1 Housing 3809385 1 Housing 2 3862249 1 Gasket 3 984260 8 Six point socket scr 4 21550242 1 Gear housing 5 22064326 1 Cover 6 984258 4 Six point socket scr 7 3862252 1 Sealing ring 8 3808265 1 Cover 9 3887432 1 Decal 10 22210056 1 Plug 11 949656 1 O-ring 12 3862365 1 Retainer 13 955972 1 O-ring 14 3862365 1 Retainer 15 984298 2 Six point socket scr 16 3589875 1 Anode kit, zinc anode 3589877 1 Anode kit, magnesium anode 3589876 1 Anode kit, aluminum anode 17 984258 2 Six point socket scr 18 984298 6 Six point socket scr 19 8171169 1 Magnet 20 945719 1 Retainer

47705770- 441- 54163178 DPH-D1, DPR-D

49423

NOTES Upper, Replaced by 3809385 Upper L=50mm Lower

(3862364)

L=20mm L=20mm

L=40mm L=20mm

Upd:2/14/2022

Housing and Center Tube SN-3020295797, DPH-D

441 DPH-D1

6 5 7 14 1

15

11 10

8

12

21

9

13 3

18 21 17 16 2

19 20

22

4

23

Upd:2/14/2022

49418

47705770 -441 -54163164 DPH-D1, DPR-D

Housing and Center Tube SN-3020295797, DPH-D

441

DPH-D1 REF PART NO. QTY 1 22079926 1 Upper gear 2 925096 1 O-ring 3 984260 8 Six point socket scr 4 22075985 1 Gear housing 5 22064326 1 Cover 6 984258 4 Six point socket scr 7 3862252 1 Sealing ring 8 21293008 1 Cover 9 3887432 1 Decal 10 949656 1 O-ring 11 22210056 1 Plug 22210058 1 Plug 12 3887005 1 Magnetic plug 13 955972 1 O-ring 14 3862365 1 Retainer 15 984298 2 Six point socket scr 16 3863109 1 Baffle plate 17 3588746 1 Anode kit, Zinc 23520859 1 Anode kit, Aluminium 23520860 1 Anode kit, Magnesium 18 984258 2 Six point socket scr 19 3863104 1 Water inlet 3863105 1 Water inlet 20 984299 2 Six point socket scr 21 984298 8 Six point socket scr 22 8171169 1 Magnet 23 945719 1 Retainer

47705770- 441- 54163164 DPH-D1, DPR-D

DESCRIPTION

NOTES Upper L=50mm Lower

Ratio 1.59:1

L=20mm For use in Saltwater For use in Salt and Brackish water For use in Freshwater L=40mm

L=25mm L=20mm

49418

Upd:2/14/2022

Housing and Center Tube SN3020295797-, DPH-D1

441 DPH-D1

6 5 7 14 1

15

11 10

8

12

21

9

13 3

18 21 17 16 2

19 20

22

4

23

Upd:2/14/2022

49418

47705770 -441 -54163538 DPH-D1, DPR-D

Housing and Center Tube SN3020295797-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 22079926 1 Upper gear 2 925096 1 O-ring 3 984260 8 Six point socket scr 4 22075985 1 Gear housing 5 22064326 1 Cover 6 984258 4 Six point socket scr 7 3862252 1 Sealing ring 8 21293008 1 Cover 9 3887432 1 Decal 10 949656 1 O-ring 11 22210056 1 Plug 22210058 1 Plug 12 3887005 1 Magnetic plug 13 955972 1 O-ring 14 3862365 1 Retainer 15 984298 2 Six point socket scr 16 3863109 1 Baffle plate 17 3588746 1 Anode kit, Zinc 23520859 1 Anode kit, Aluminium 23520860 1 Anode kit, Magnesium 18 984258 2 Six point socket scr 19 3863104 1 Water inlet 3863105 1 Water inlet 20 984299 2 Six point socket scr 21 984298 8 Six point socket scr 22 8171169 1 Magnet 23 945719 1 Retainer

47705770- 441- 54163538 DPH-D1, DPR-D

DESCRIPTION

NOTES Upper L=50mm Lower

Ratio 1.59:1

L=20mm For use in Saltwater For use in Salt and Brackish water For use in Freshwater L=40mm

L=25mm L=20mm

49418

Upd:2/14/2022

Jack Shaft Kit

441 DPH-D1

17 4

2

11

7

9

5

1

8 13 3

6

11

10

12

18

32

20 31

14

15

16

13

19

25

27

30 29 28

24

26

21 22 23

Upd:2/14/2022

49430

47705770 -441 -54163545 DPH-D1, DPR-D

Jack Shaft Kit

441

DPH-D1 REF PART NO. QTY DESCRIPTION 1 1 Jack shaft 2 3862153 1 Flange 3 3807369 1 Intermediate housing 23247830 1 Intermediate housing 4 21736958 1 Shaft 5 183647 1 Roller bearing 6 11041 1 Roller bearing 7 914465 1 Snap ring 8 914533 1 Snap ring 9 968950 1 Support washer 10 969072 1 Round nut 11 958860 2 Sealing ring 12 804262 1 Plug 13 858464 2 Rubber ring 14 873048 1 Clamping ring 15 806624 3 Striker plate 16 191844 6 Hexagon screw 17 3842733 1 Extension cable 18 3588817 1 Cover 19 965192 6 Flange screw 20 990960 6 Flange lock nut 21 3807219 1 Flange 23072434 1 Flange 22 994894 4 Spring washer 23 984914 4 Hexagon screw 24 3588654 1 Mounting base 25 3588656 1 Bracket 23072436 1 Bracket 26 977938 1 Flange lock nut 27 3807366 1 Kit 28 Flange 29 3588898 1 Strap 30 946541 2 Hex. socket screw 31 23161494 1 Plug 32 991605 1 Flange screw

47705770- 441- 54163545 DPH-D1, DPR-D

SEE SEC. 54162047 54162047

NOTES

Replaced by 23247830, 23161494, 991605

3m

Replaced by 23072434

Replaced by 23072436

not sold separately

For Intermediate housing 23247830 For Intermediate housing 23247830

49430

Upd:2/14/2022

Jack Shaft Kit

441

Upd:2/14/2022

49409

47705770 -441 -54162048 DPH-D1, DPR-D

Jack Shaft Kit

REF PART NO. QTY 1 1 Jack shaft 2 3862153 1 Flange 3 3807369 1 Intermediate housing 4 21736958 1 Shaft 5 183647 1 Roller bearing 6 11041 1 Roller bearing 7 914465 1 Snap ring 8 914533 1 Snap ring 9 968950 1 Support washer 10 969072 1 Round nut 11 958860 2 Sealing ring 12 804262 1 Plug 13 858464 2 Rubber ring 14 873048 1 Clamping ring 15 806624 3 Striker plate 16 191844 6 Hexagon screw 17 3842733 1 Extension cable 18 3588817 1 Cover 19 965192 6 Flange screw 20 990960 6 Flange lock nut 21 (888216) 1 Kit 22 3807219 1 Flange 23072434 1 Flange 23 994894 4 Spring washer 24 984914 4 Hexagon screw 25 3588654 1 Mounting base 26 3588656 1 Bracket 23072436 1 Bracket 27 977938 1 Flange lock nut 28 3807366 1 Kit 29 1 Flange 30 3588898 1 Strap 31 946541 2 Hex. socket screw

47705770- 441- 54162048 DPH-D1, DPR-D

441 DESCRIPTION

SEE SEC. 54162047 54162047

NOTES

3m

Obsolete part Replaced by 23072434

Replaced by 23072436

not sold separately

49409

Upd:2/14/2022

Jack Shaft, Connecting Components

441 DPH-D1, DPR-D

23

15 17

19

21 12 14

18

13

22

20 16

2 1

3

10

4 6 8

9

7

5

11

4

Upd:2/14/2022

49428

47705770 -441 -54162047 DPH-D1, DPR-D

Jack Shaft, Connecting Components

441

DPH-D1, DPR-D REF PART NO. QTY 1 21393521 1 Flexible coupling 2 21509615 1 Roller kit 3 965186 8 Flange screw 4 465826 8 Flange screw 5 3861048 1 Propeller shaft 3818295 1 Propeller shaft 3818293 1 Propeller shaft 3818292 1 Propeller shaft 3818291 1 Propeller shaft 3818290 1 Propeller shaft 3818289 1 Propeller shaft 3818288 1 Propeller shaft 3817454 1 Propeller shaft 3817453 1 Propeller shaft 3817452 1 Propeller shaft 3817451 1 Propeller shaft 3817450 1 Propeller shaft 6 21657788 1 Protecting casing 7 946752 12 Flange screw 8 3862871 2 Protecting screen 9 968476 8 Flange screw 10 3817024 2 Decal 11 3862153 1 Flange 12 3808080 1 Hose 13 969354 1 Clamp 14 946440 1 Flange screw 15 961671 1 Hose clamp 16 961672 1 Hose clamp 17 3808510 1 Dummy 18 984474 2 Clamp 19 945444 2 Flange screw 20 861551 1 Plug 21 3588788 1 Hose 22 961672 1 Hose clamp 23 961671 1 Hose clamp

47705770- 441- 54162047 DPH-D1, DPR-D

DESCRIPTION

NOTES Kit includes 6 pcs rubber rollers

L=335-405mm L=570-650mm L=670-750mm L=770-850mm L=870-950mm L=970-1050mm L=1070-1150mm L=1170-1250mm L=1270-1350mm L=1370-1450mm L=1470-1550mm L=1570-1650mm L=1670-1750mm M10x35mm

49428

Upd:2/14/2022

Propeller

446 2 1

3

4 5

Upd:2/14/2022

45606

47705770 -446 -54170681 DPH-D1, DPR-D

Propeller

REF PART NO. QTY 1 3587375 X Propeller, Nibral 3587378 X Propeller, Nibral 3587379 X Propeller, Nibral 3587380 X Propeller, Nibral 3587381 X Propeller, Nibral 3587382 X Propeller, Nibral 3587383 X Propeller, Nibral 3587384 X Propeller, Nibral 3587385 X Propeller, Nibral 2 3587386 1 Propeller, Nibral 3587389 1 Propeller, Nibral 3587391 1 Propeller, Nibral 3587393 1 Propeller, Nibral 3587395 1 Propeller, Nibral 3587398 1 Propeller, Nibral 3587400 1 Propeller, Nibral 3587402 1 Propeller, Nibral 3587404 1 Propeller, Nibral 3 3862764 1 Hub, front 4 3587388 1 Propeller, Nibral 3587390 1 Propeller, Nibral 3587392 1 Propeller, Nibral 3587394 1 Propeller, Nibral 3587397 1 Propeller, Nibral 3587399 1 Propeller, Nibral 3587401 1 Propeller, Nibral 3587403 1 Propeller, Nibral 3587405 1 Propeller, Nibral 5 3862765 1 Hub, Rear

47705770- 446- 54170681 DPH-D1, DPR-D

446 DESCRIPTION

NOTES Set, G2 Set, G3 Set, G4 Set, G5 Set, G6 Set, G7 Set, G8 Set, G9 Set, G10 G2, Front G3, Front G4, Front G5, Front G6, Front G7, Front G8, Front G9, Front G10, Front G2, Rear G3, Rear G4, Rear G5, Rear G6, Rear G7, Rear G8, Rear G9, Rear G10, Rear

45606

Upd:2/14/2022

Propeller

446 DPR-D

1

2

3

4

5

Upd:2/14/2022

6

49393

47705770 -446 -54170680 DPH-D1, DPR-D

Propeller

446

DPR-D REF PART NO. QTY 1 3863492 1 Kit, stainless steel 3863493 1 Kit, stainless steel 3863494 1 Kit, stainless steel 2 3863501 1 Propeller, stainless steel 3863503 1 Propeller, stainless steel 3863505 1 Propeller, stainless steel 3 3862770 1 Hub, front 4 3851600 1 Ring 5 3863502 1 Propeller, stainless steel 3863504 1 Propeller, stainless steel 3863506 1 Propeller, stainless steel 6 3862771 1 Hub, Rear

47705770- 446- 54170680 DPH-D1, DPR-D

DESCRIPTION

NOTES Set, GR7 Set, GR8 Set, GR9 GR7, Front GR8, Front GR9, Front FH7, FH8, FH9 GR7, Rear GR8, Rear GR9, Rear

49393

Upd:2/14/2022

Propeller, G-series

446 DPH-D1

2 1

3

4 5

Upd:2/14/2022

45606

47705770 -446 -54163547 DPH-D1, DPR-D

Propeller, G-series

446

DPH-D1 REF PART NO. QTY 1 22548192 X Propeller kit, Nibral 22548193 X Propeller kit, Nibral 22548194 X Propeller kit, Nibral 22548195 X Propeller kit, Nibral 22548196 X Propeller kit, Nibral 22548197 X Propeller kit, Nibral 22548198 X Propeller kit, Nibral 22548199 X Propeller kit, Nibral 22548200 X Propeller kit, Nibral 2 22547302 1 Propeller, Nibral 22547303 1 Propeller, Nibral 22547304 1 Propeller, Nibral 22547305 1 Propeller, Nibral 22547306 1 Propeller, Nibral 22547307 1 Propeller, Nibral 22547308 1 Propeller, Nibral 22547309 1 Propeller, Nibral 22547310 1 Propeller, Nibral 3 22820893 1 Hub, front 4 22547322 1 Propeller, Nibral 22547323 1 Propeller, Nibral 22547324 1 Propeller, Nibral 22547325 1 Propeller, Nibral 22547326 1 Propeller, Nibral 22547327 1 Propeller, Nibral 22547328 1 Propeller, Nibral 22547329 1 Propeller, Nibral 22547330 1 Propeller, Nibral 5 22820909 1 Hub, Rear

47705770- 446- 54163547 DPH-D1, DPR-D

DESCRIPTION

NOTES Set, G2 Set, G3 Set, G4 Set, G5 Set, G6 Set, G7 Set, G8 Set, G9 Set, G10 G2, Front G3, Front G4, Front G5, Front G6, Front G7, Front G8, Front G9, Front G10, Front G2, Rear G3, Rear G4, Rear G5, Rear G6, Rear G7, Rear G8, Rear G9, Rear G10, Rear

45606

Upd:2/14/2022

Propeller, H-series

446

Upd:2/14/2022

49377

47705770 -446 -54165927 DPH-D1, DPR-D

Propeller, H-series

446

REF PART NO. QTY 1 22754002 1 Propeller kit 22754003 1 Propeller kit 22754004 1 Propeller kit 22754005 1 Propeller kit 22754006 1 Propeller kit 22754007 1 Propeller kit 22754008 1 Propeller kit 22754009 1 Propeller kit 22754010 1 Propeller kit 2 22753972 1 Propeller 22753973 1 Propeller 22753974 1 Propeller 22753975 1 Propeller 22753976 1 Propeller 22753977 1 Propeller 22753978 1 Propeller 22753979 1 Propeller 22753980 1 Propeller 3 22754753 1 Hub, front 4 22753982 1 Propeller 22753983 1 Propeller 22753984 1 Propeller 22753985 1 Propeller 22753986 1 Propeller 22753987 1 Propeller 22753988 1 Propeller 22753989 1 Propeller 22753990 1 Propeller 5 22754757 1 Hub, Rear 6 22827022 1 Line cutter 7 3863211 1 Propeller nut 8 23000185 1 Spinner 9 991609 1 Flange screw

DESCRIPTION

47705770- 446- 54165927

49377

DPH-D1, DPR-D

NOTES Set, H2 Set, H3 Set, H4 Set, H5 Set, H6 Set, H7 Set, H8 Set, H9 Set, H10 H2F H3F H4F H5F H6F H7F H8F H9F H10F Front H2R H3R H4R H5R H6R H7R H8R H9R H10R Rear

Upd:2/14/2022

441

Rudder Indicator Kit for Drive Units

DPH-D1

Upd:2/14/2022

49427

47705770 -441 -54163546 DPH-D1, DPR-D

Rudder Indicator Kit for Drive Units

441

DPH-D1 REF PART NO. QTY 1 3594073 1 Rudder indicator kit 2 3593951 1 Control cable 3 40005050 1 Guide 4 3594718 1 Bracket 5 3863426 1 Clamp attachment 6 963681 3 Hex. socket screw 7 984456 3 Lock nut 8 3863375 1 Clevis pin 9 3863512 1 Ball joint 60114497 1 Angle ball joint 10 3863388 1 Arm 11 946703 1 Ball socket 12 3863349 1 Bracket 13 3862365 1 Retainer 14 947107 2 Flange screw 15 959083 1 Ball stud 16 60114496 3 Hexagon nut 17 837772 1 Position sensor 18 967707 2 Split pin 19 1 Arm, autopilot

47705770- 441- 54163546 DPH-D1, DPR-D

DESCRIPTION

NOTES

Only used for installation of cable

Replaced by 60114497

49427

Upd:2/14/2022

441

Upd:2/14/2022

Rudder Indicator Kit for Drive Units

49427

47705770 -441 -54160773 DPH-D1, DPR-D

Rudder Indicator Kit for Drive Units

REF PART NO. QTY 1 3863387 1 Kit 3594073 1 Rudder indicator kit 2 3588616 1 Cable 3593951 1 Control cable 3 40005050 1 Guide 4 3863425 1 Bracket 3594718 1 Bracket 5 3863426 1 Clamp attachment 6 963681 3 Hex. socket screw 7 984456 3 Lock nut 8 3863375 1 Clevis pin 9 3863512 1 Ball joint 60114497 1 Angle ball joint 10 3863388 1 Arm 11 946703 1 Ball socket 12 3863349 1 Bracket 13 3862365 1 Retainer 14 947107 2 Flange screw 15 959083 1 Ball stud 16 60114496 3 Hexagon nut 17 837772 1 Position sensor 18 967707 2 Split pin 19 1 Arm, autopilot

47705770- 441- 54160773 DPH-D1, DPR-D

441

DESCRIPTION

NOTES Replaced by 3594073 Replaced by 3593951 and bracket 3594718 Only used for installation of cable Replaced by 3594718

Replaced by 60114497

49427

Upd:2/14/2022

Shift Mechanism SN-3020295797, DPH-D

441 DPH-D1

8

9

7 5

1 10 6 2 12

13

3 4 15 14 11 19

13

16

17 12

20

Upd:2/14/2022

18

49400

13

47705770 -441 -54163165 DPH-D1, DPR-D

Shift Mechanism SN-3020295797, DPH-D

441

DPH-D1 REF PART NO. QTY 1 22273952 1 Gear shifter 2 3862388 1 Piston 3 951936 1 Spring pin 4 3862867 1 Pin 5 814184 1 Spring 6 3863085 1 Sealing ring 7 1 Control housing 8 945624 1 O-ring 9 3862387 1 Dog 10 984257 4 Six point socket scr 11 3863214 1 Rod 12 943111 2 Washer 13 17276 3 Split pin 14 940191 1 Washer 15 3852329 1 Cube 16 1 Kit 17 941670 1 Washer 18 21707213 1 Yoke 19 995670 1 Hex. socket screw 20 21707228 1 Sleeve

47705770- 441- 54163165 DPH-D1, DPR-D

DESCRIPTION

49400

Upd:2/14/2022

Shift Mechanism SN3020295798-, DPH-D1

441 DPH-D1

8

9

7 5

1 10 6 2 12

13

3 4 15 14 11 19

13

16

17 12

20

Upd:2/14/2022

18

49400

13

47705770 -441 -54163540 DPH-D1, DPR-D

Shift Mechanism SN3020295798-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 22273952 1 Gear shifter 2 3862388 1 Piston 3 951936 1 Spring pin 4 3862867 1 Pin 5 814184 1 Spring 6 3863085 1 Sealing ring 7 1 Control housing 8 945624 1 O-ring 9 3862387 1 Dog 10 984257 4 Six point socket scr 11 3863214 1 Rod 12 943111 2 Washer 13 17276 3 Split pin 14 940191 1 Washer 15 22336734 1 Cube 16 1 Kit 17 941670 1 Washer 18 21707213 1 Yoke 19 995670 1 Hex. socket screw 20 21707228 1 Sleeve

47705770- 441- 54163540 DPH-D1, DPR-D

DESCRIPTION

49400

Upd:2/14/2022

Transom Shield

441 45

1

41

44

14

15

46

47 12 25

1 13 27

42

43

11 28 10 35 9

8 9 2

19 33

22

18

20

24

23

16 4

19

3

5 37 6

34 36

21

7 17

26

38

32 31 30

40

29

39

31 30 Upd:2/14/2022

49432

47705770 -441 -54170572 DPH-D1, DPR-D

Transom Shield

REF 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

27 28 29 30 31 32 33 34 35 36 37 38

39 40 41 42 43 44 45 46 47

441

PART NO. QTY DESCRIPTION 21857917 1 Transom shield (22475776) 1 Transom shield 21857918 1 Transom shield 22475777 1 Transom shield 21857919 1 Transom shield 22475778 1 Transom shield 21857921 1 Transom shield 3809881 1 Shield 873316 6 Stud 852866 6 Washer 963108 6 Lock nut 925259 1 O-ring 925068 1 O-ring 3862353 1 Seal 3852537 2 O-ring 3856800 2 Hose 3863303 1 Pipe 946541 2 Hex. socket screw 941670 1 Washer 3808170 1 Hose 961670 2 Hose clamp 3862810 2 Spindle 984257 2 Six point socket scr 3588753 1 Exhaust bellows 853012 2 Hose clamp 984258 2 Six point socket scr 975664 1 O-ring 3862809 1 Pivot pin 976107 1 O-ring 984390 1 Set screw 3863269 1 Ground cable 3588745 1 Anode kit, Zinc 3588770 1 Anode kit, aluminium 3588768 1 Anode kit, Magnesium 3850115 1 Retainer 3588767 1 Kit 3818189 1 Service kit, trim 940275 2 Washer 963675 2 Hex. socket screw 3809539 1 Wiring harness 941670 2 Washer 3809887 1 Pivot pin 22093448 1 Pivot pin 925092 1 O-ring 3863092 1 Bushing 3863093 1 Bushing 21119437 1 Plate 21119438 1 Plate 21119439 1 Plate 21119440 1 Plate 21119437 1 Plate 984258 2 Six point socket scr 23082832 1 Ground connection 23083904 1 Wire 23083906 1 Wire 984298 1 Six point socket scr 941670 1 Washer 963675 1 Hex. socket screw 940275 1 Washer

47705770- 441- 54170572 DPH-D1, DPR-D

NOTES Single, Replaced by 22475776 Single Port, Replaced by 22475777 Port Stbd, Replaced by 22475778 Stbd Joystick

For use in Saltwater For use in Salt and Brackish water For use in Freshwater

SN-A395816 SN A395817-

Dead rise angle 15-17 degrees and x measurement 348mm Dead rise angle 18-20 degrees and x measurement 348mm Dead rise angle 21-23 degrees and x measurement 348mm Dead rise angle 16,5 degrees and x measurement 364mm

Ground wires, for bellow clamps

49432

Upd:2/14/2022

Transom Shield

441 DPH-D1

45

1

41

44

14

15

46

47 12 25

1 13 27

42

43

11 28 10 35 9

8 9 2

19 33

22

18

20

24

23

16 4

19

3

5 37 6

34 36

21

7 17

26

38

32 31 30

40

29

39

31 30 Upd:2/14/2022

49432

47705770 -441 -54163543 DPH-D1, DPR-D

Transom Shield

441

DPH-D1 REF 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

27 28 29 30 31 32 33 34 35 36 37 38

39 40 41 42 43 44 45 46 47

PART NO. QTY DESCRIPTION 21857917 1 Transom shield (22475776) 1 Transom shield 21857918 1 Transom shield 22475777 1 Transom shield 21857919 1 Transom shield 22475778 1 Transom shield 21857921 1 Transom shield 21511532 1 Shield 21796363 6 Stud 852866 6 Washer 971084 6 Lock nut 925259 1 O-ring 925068 1 O-ring 3862353 1 Seal 3852537 2 O-ring 3856800 2 Hose 3863303 1 Pipe 946541 2 Hex. socket screw 941670 1 Washer 21651097 1 Hose 22274885 2 Hose clamp 3862810 2 Spindle 984257 2 Six point socket scr 3588753 1 Exhaust bellows 22274887 2 Hose clamp 984258 2 Six point socket scr 975664 1 O-ring 3862809 1 Pivot pin 976107 1 O-ring 984390 1 Set screw 3863269 1 Ground cable 3588745 1 Anode kit, Zinc 3588770 1 Anode kit, Aluminum 3588768 1 Anode kit, Magnesium 3850115 1 Retainer 3588767 1 Kit 3818189 1 Service kit, trim 940275 2 Washer 963675 2 Hex. socket screw 3809539 1 Wiring harness 941670 2 Washer 3809887 1 Pivot pin 22093448 1 Pivot pin 925092 1 O-ring 3863092 1 Bushing 3863093 1 Bushing 21119437 1 Plate 21119438 1 Plate 21119439 1 Plate 21119440 1 Plate 21119437 1 Plate 984258 2 Six point socket scr 23082832 1 Ground connection 23083904 1 Wire 23083906 1 Wire 984298 1 Six point socket scr 941670 1 Washer 963675 1 Hex. socket screw 940275 1 Washer

47705770- 441- 54163543 DPH-D1, DPR-D

NOTES Single, Replaced by 22475776 Single Port, Replaced by 22475777 Port Stbd, Replaced by 22475778 Stbd Joystick

For use in Saltwater For use in Salt and Brackish water For use in Freshwater

SN-A395816 SN A395817-

Dead rise angle 15-17 degrees and x measurement 348mm Dead rise angle 18-20 degrees and x measurement 348mm Dead rise angle 21-23 degrees and x measurement 348mm Dead rise angle 16,5 degrees and x measurement 364mm

Ground wires, for bellow clamps

49432

Upd:2/14/2022

Trim Cylinders

445 DPH-D1, DPR-D

9 12

7

11

3 4 10

7 9

5

7 7

7

8 8

8 13

14

6 1

2

Upd:2/14/2022

49386

47705770 -445 -54163194 DPH-D1, DPR-D

Trim Cylinders

445

DPH-D1, DPR-D REF PART NO. QTY DESCRIPTION 1 21840806 1 Trimming cylinder 2 21840807 1 Trimming cylinder 22121309 Trimming cylinder 3 21721548 1 Hose assembly 4 21721550 1 Hose assembly 5 3862857 1 Tube 6 3862858 1 Tube 7 963675 5 Hex. socket screw 8 3863060 3 Clamp 9 940275 2 Washer 10 3862961 1 Ground cable 11 960214 2 O-ring 12 984415 2 Hexagon nut 13 3863092 1 Bushing 14 3587308 1 Set screw

NOTES Starboard Port, Replaced by 22121309 and Pivot pin 22093448, SN-A395816 Port, SN A395817-

47705770- 445- 54163194

49386

DPH-D1, DPR-D

Rear Front

Upd:2/14/2022

Trim Pump

445 DPH-D1, DPR-D

2 1

3 4

5 11

14

6 10 15 8 9

7

13 13 12

Upd:2/14/2022

49384

47705770 -445 -54163191 DPH-D1, DPR-D

Trim Pump

445

DPH-D1, DPR-D REF PART NO. QTY 1 21831047 1 Pump, trim 2 3861575 1 Electric motor 3 3861577 1 Connector 4 3861578 1 O-ring 5 3861574 4 Screw 6 1 Valve body 7 (3861570) 1 Reservoir 8 3861572 1 Cap 9 3861573 1 O-ring 10 3858083 1 Bracket 11 971017 2 Hexagon screw 12 21857958 1 Wiring harness 13 21767816 2 Relay 14 21721548 1 Hose assembly 15 21721550 1 Hose assembly

47705770- 445- 54163191 DPH-D1, DPR-D

DESCRIPTION

NOTES

not sold separately Obsolete part

49384

Upd:2/14/2022

U-Joint and Bearing Carrier

441 DPR-D

18

15 16 17

5

2 1

3

3

11 10 8

7

6

9

14

4

12

13

Upd:2/14/2022

49410

47705770 -441 -54163179 DPH-D1, DPR-D

U-Joint and Bearing Carrier

441

DPR-D REF PART NO. QTY 1 3887297 1 Universal joint, complete 2 1 Universal joint 3 3843136 2 U-joint kit 4 3860364 1 Screw 5 984290 X Shim 984291 X Shim 984292 X Shim 984293 X Shim 6 3863084 1 Sealing ring 7 11043 1 Roller bearing 8 22050706 1 Bearing box 9 984258 4 Six point socket scr 10 21522416 X Shim 21522417 X Shim 21522419 X Shim 21522420 X Shim 11 925260 1 O-ring 12 184595 1 Roller bearing 13 1 Gear set 14 3862378 1 Washer 15 3594509 1 Bellows kit 16 3808898 1 Bellows 17 853012 1 Hose clamp 18 22274888 1 Hose clamp

47705770- 441- 54163179 DPH-D1, DPR-D

DESCRIPTION

SEE SEC.

NOTES not sold separately

TH=0,10mm TH=0,15mm TH=0,225mm TH=0,50mm

L=40mm TH=0.10mm TH=0.15mm TH=0,225mm TH=0,25mm

54163180

49410

Upd:2/14/2022

U-Joint and Bearing Carrier SN-3020295797, DPH-D

441 DPH-D1

18

15 16 17

5

2 1

3

3

11 10 8

7

6

9

14

4

12

13

Upd:2/14/2022

49410

47705770 -441 -54163242 DPH-D1, DPR-D

U-Joint and Bearing Carrier SN-3020295797, DPH-D

441

DPH-D1 REF PART NO. QTY 1 3887297 1 Universal joint, complete 2 1 Universal joint 3 3843136 2 U-joint kit 4 3860364 1 Screw 5 984290 X Shim 984291 X Shim 984292 X Shim 984293 X Shim 6 3863084 1 Sealing ring 7 11043 1 Roller bearing 8 22050706 1 Bearing box 9 984258 4 Six point socket scr 10 21522416 X Shim 21522417 X Shim 21522419 X Shim 21522420 X Shim 11 925260 1 O-ring 12 184595 1 Roller bearing 13 1 Gear set 14 3862378 1 Washer 15 3594509 1 Bellows kit 16 3808898 1 Bellows 17 22274887 1 Hose clamp 18 22274888 1 Hose clamp

47705770- 441- 54163242 DPH-D1, DPR-D

DESCRIPTION

SEE SEC.

NOTES not sold separately

TH=0,10mm TH=0,15mm TH=0,225mm TH=0,50mm

L=40mm TH=0.10mm TH=0.15mm TH=0,225mm TH=0,25mm

54161868

49410

Upd:2/14/2022

441

U-Joint and Bearing Carrier SN3020295798-, DPH-D1

DPH-D1

Upd:2/14/2022

49412

47705770 -441 -54163539 DPH-D1, DPR-D

U-Joint and Bearing Carrier SN3020295798-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 3887297 1 Universal joint, complete 2 1 Universal joint 3 3843136 2 U-joint kit 4 3860364 1 Screw 5 984290 X Shim 984291 X Shim 984292 X Shim 984293 X Shim 6 3863084 1 Sealing ring 7 11043 1 Roller bearing 8 22050706 1 Bearing box 9 984258 4 Six point socket scr 10 21522416 X Shim 21522417 X Shim 21522419 X Shim 21522420 X Shim 11 925260 1 O-ring 12 184595 1 Roller bearing 13 1 Gear set 14 3862378 1 Washer 15 3594509 1 Bellows kit 16 3808898 1 Bellows 17 22274887 1 Hose clamp 18 22274888 1 Hose clamp 19 22130782 1 Sleeve

47705770- 441- 54163539 DPH-D1, DPR-D

DESCRIPTION

SEE SEC.

NOTES not sold separately

TH=0,10mm TH=0,15mm TH=0,225mm TH=0,50mm

L=40mm TH=0.10mm TH=0.15mm TH=0,225mm TH=0,25mm

54163552

49412

Upd:2/14/2022

Upper Vertical Shaft

441 DPR-D

Upd:2/14/2022

49395

47705770 -441 -54163180 DPH-D1, DPR-D

Upper Vertical Shaft

441

DPR-D REF PART NO. QTY 1 3852301 1 Nut 2 889122 1 Spacer sleeve 3 3887255 1 Washer 4 181804 1 Ball bearing 5 21511566 1 Washer 6 21511582 X Shim 21511584 X Shim 21511586 X Shim 7 184778 1 Needle roller bearin 8 21821908 1 Gear set 9 22050739 1 Spacer tube 10 3849006 1 Sliding sleeve 11 184654 1 Needle roller bushin 12 3862382 1 Washer 13 993430 1 Ball bearing 14 120615 X Shim 190836 X Shim 120616 X Shim 15 3842213 1 Washer 16 3862368 1 Shaft 17 983161 X Shim 983162 X Shim 983163 X Shim

47705770- 441- 54163180 DPH-D1, DPR-D

DESCRIPTION

NOTES

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

49395

Upd:2/14/2022

441

Upper Vertical Shaft SN-3020295797, DPH-D

DPH-D1

Upd:2/14/2022

49395

47705770 -441 -54161868 DPH-D1, DPR-D

Upper Vertical Shaft SN-3020295797, DPH-D

441

DPH-D1 REF PART NO. QTY 1 3852301 1 Nut 2 889122 1 Spacer sleeve 3 22224949 1 Washer 4 181804 1 Ball bearing 5 21511566 1 Washer 6 21511582 X Shim 21511584 X Shim 21511586 X Shim 7 184778 1 Needle roller bearin 8 21821906 1 Gear set 9 22050739 1 Spacer tube 10 3849006 1 Sliding sleeve 11 184654 1 Needle roller bushin 12 3862382 1 Washer 13 993430 1 Ball bearing 14 120615 X Shim 190836 X Shim 120616 X Shim 15 3842213 1 Washer 16 3862368 1 Shaft 17 983161 X Shim 983162 X Shim 983163 X Shim

47705770- 441- 54161868 DPH-D1, DPR-D

DESCRIPTION

NOTES

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

49395

Upd:2/14/2022

441

Upper Vertical Shaft SN3020295798-, DPH-D1

DPH-D1

Upd:2/14/2022

49425

47705770 -441 -54163552 DPH-D1, DPR-D

Upper Vertical Shaft SN3020295798-, DPH-D1

441

DPH-D1 REF PART NO. QTY 1 3852301 1 Nut 2 889122 1 Spacer sleeve 3 22224949 1 Washer 4 11018 1 Ball bearing 5 21511566 1 Washer 6 983161 X Shim 983162 X Shim 983163 X Shim 7 184778 1 Needle roller bearin 8 21821906 1 Gear set 9 22050739 1 Spacer tube 10 3849006 1 Sliding sleeve 11 184654 1 Needle roller bushin 12 3862382 1 Washer 13 996820 1 Ball bearing 14 120615 X Shim 190836 X Shim 120616 X Shim 15 3842213 1 Washer 16 3862368 1 Shaft 17 21511582 X Shim 21511584 X Shim 21511586 X Shim

47705770- 441- 54163552 DPH-D1, DPR-D

DESCRIPTION

NOTES

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

TH=0.10mm TH=0.15mm TH=0.35mm

49425

Upd:2/14/2022

441

Water and Exhaust Block off Kits

DPH-D1, DPR-D

Upd:2/14/2022

49426

47705770 -441 -54169363 DPH-D1, DPR-D

Water and Exhaust Block off Kits

441

DPH-D1, DPR-D REF PART NO. QTY 1 (888216) 1 Kit 2 3807219 1 Flange 23072434 1 Flange 3 984914 4 Hexagon screw 4 941908 4 Spring washer 5 3807366 1 Kit 6 1 Flange

47705770- 441- 54169363 DPH-D1, DPR-D

DESCRIPTION

NOTES Obsolete part Replaced by 23072434 L=30mm

not sold separately

49426

Upd:2/14/2022

Steering Cylinder. Electronic Steering Installation

645 DPH-D1

9 13 17

11 16 12 14

12

10 19

11 10

21

22

18

11

15

20 24

20

28 23

20

27

29 25

20

20

26

7 8 30

7

31

8

7 8 31 7 8

6

2

5 4

3

1

4 3 Upd:2/14/2022

49442

47705770 -645 -54163204 DPH-D1, DPR-D

Steering Cylinder. Electronic Steering Installation

645

DPH-D1 REF PART NO. QTY 1 21375753 1 Sensor assembly port 23285256 1 Sensor assembly port 2 21375754 1 Sensor assembly star 23285257 1 Sensor assembly star 3 21423263 1 Clevis pin 4 3852052 1 Split pin 5 874401 1 Housing 6 874403 1 Wedge 7 21388920 4 Bushing 8 3589516 4 Wear washer 9 889726 1 Ground cable 10 984329 4 Clamp 11 963675 3 Hex. socket screw 12 944456 2 Hexagon nut 13 940275 1 Washer 14 3809104 1 Manifold 15 22001102 1 Disc 16 21254107 1 Hydraulic hose 17 21254108 1 Hydraulic hose 18 21249877 1 Hydraulic hose 19 21254102 1 Hydraulic hose 20 21548739 1 Hydraulic hose, kit 21 925053 4 O-ring 22 946541 1 Hex. socket screw 23 963677 1 Hex. socket screw 24 21233764 1 Chassis ground cable 25 21200067 2 Cable 26 993453 2 Hex. socket screw 27 941670 1 Washer 28 984298 1 Six point socket scr 29 948211 1 Cable tie 30 3594036 2 Bellows 31 22452003 2 Steering cylinder 22997141 2 Steering cylinder

47705770- 645- 54163204 DPH-D1, DPR-D

DESCRIPTION

NOTES Port, for steering cylinder 22452003 Port, for steering cylinder 22997141 Starboard, for steering cylinder 22452003 Starboard, for steering cylinder 22997141

TSK SN -A1013850 TSK SN A1013851

49442

Upd:2/14/2022

645

Steering Cylinder. Port Side. Twin Installation

DPH-D1, DPR-D

Upd:2/14/2022

49453

47705770 -645 -54163203 DPH-D1, DPR-D

Steering Cylinder. Port Side. Twin Installation

645

DPH-D1, DPR-D REF PART NO. QTY 1 22452005 1 Steering cylinder 2 21388920 2 Bushing 3 3589516 2 Wear washer 4 889730 1 Ground cable 5 984329 2 Clamp 6 963675 2 Hex. socket screw 7 944456 1 Hexagon nut 8 940275 1 Washer 9 21548739 1 Hydraulic hose, kit 10 946541 2 Hex. socket screw 11 3863236 1 Manifold 12 888636 1 Hydraulic hose 13 3863235 1 Hydraulic hose 14 21132674 1 Bellows kit 15 2 Bellows 16 948211 2 Cable tie 17 2 Adhesive 18 21233764 1 Chassis ground cable 19 21200067 2 Cable 20 993453 2 Hex. socket screw 21 941670 1 Washer 22 984298 1 Six point socket scr 23 948211 1 Cable tie 24 3594036 2 Bellows

47705770- 645- 54163203 DPH-D1, DPR-D

DESCRIPTION

NOTES

(3863172)

Please, see Parts Bulletin P-44-1-15

49453

Upd:2/14/2022

Steering Cylinder. Single Installation

645 DPH-D1, DPR-D

4 8 6 17 13

7

16

7

5

6 5

15 18

6

14

14

19 9

14

14

24

11 28

27

29 25

10

12 26 2 3 1

2

2 3

1

3

2 3 30

20 21 22 23 Upd:2/14/2022

49443

47705770 -645 -54163198 DPH-D1, DPR-D

Steering Cylinder. Single Installation

645

DPH-D1, DPR-D REF PART NO. QTY 1 22452005 2 Steering cylinder 2 21388920 4 Bushing 3 3589516 4 Wear washer 4 889726 1 Ground cable 5 984329 4 Clamp 6 963675 3 Hex. socket screw 7 944456 2 Hexagon nut 8 940275 1 Washer 9 3863222 1 Hose 10 984379 1 Nipple 11 3863223 1 Hydraulic hose 12 984378 1 Nipple 13 984376 2 Plug 14 21548739 1 Hydraulic hose, kit 15 925053 4 O-ring 16 3862321 1 Valve 17 946541 2 Hex. socket screw 18 22001102 1 Disc 19 963677 2 Hex. socket screw 20 21132674 1 Bellows kit 21 2 Bellows 22 948211 2 Cable tie 23 2 Adhesive 24 21233764 1 Chassis ground cable 25 21200067 2 Cable 26 993453 2 Hex. socket screw 27 941670 1 Washer 28 984298 1 Six point socket scr 29 948211 1 Cable tie 30 3594036 2 Bellows

47705770- 645- 54163198 DPH-D1, DPR-D

DESCRIPTION

NOTES

(3863172)

Please, see Parts Bulletin P-44-1-15

49443

Upd:2/14/2022

645

Steering Cylinder. Starboard. Twin Installation

DPH-D1, DPR-D

Upd:2/14/2022

49452

47705770 -645 -54163201 DPH-D1, DPR-D

Steering Cylinder. Starboard. Twin Installation

645

DPH-D1, DPR-D REF PART NO. QTY 1 22452005 1 Steering cylinder 2 21388920 2 Bushing 3 3589516 2 Wear washer 4 889728 1 Ground cable 5 984329 2 Clamp 6 963675 2 Hex. socket screw 7 944456 1 Hexagon nut 8 940275 1 Washer 9 3863222 1 Hose 10 984379 1 Nipple 11 3863223 1 Hydraulic hose 12 984378 1 Nipple 13 984376 2 Plug 14 21548739 1 Hydraulic hose, kit 15 925053 4 O-ring 16 3862321 1 Valve 17 946541 2 Hex. socket screw 18 22001104 1 Disc 19 963677 2 Hex. socket screw 20 21132674 1 Bellows kit 21 2 Bellows 22 948211 2 Cable tie 23 2 Adhesive 24 21233764 1 Chassis ground cable 25 21200067 2 Cable 26 993453 2 Hex. socket screw 27 941670 1 Washer 28 984298 1 Six point socket scr 29 948211 1 Cable tie 30 3594036 2 Bellows

47705770- 645- 54163201 DPH-D1, DPR-D

DESCRIPTION

NOTES

(3863172)

Please, see Parts Bulletin P-44-1-15

49452

Upd:2/14/2022

Sterndrive Joystick System

645 DPH-D1

1 17

16 18 21

13

23 14 19 20

22

15 30 29 28

30

26

25

1

4 24

2 27

11 2 10 31

7

3

32

9

12

5

11

7 8

2

6 9 Upd:2/14/2022

49445

47705770 -645 -54163548 DPH-D1, DPR-D

Sterndrive Joystick System

645

DPH-D1 REF PART NO. QTY 1 21914259 1 Valve 2 21199274 2 Nipple 2 O-ring 3 3859043 2 Fitting 3859042 1 O-ring 4 21314058 1 Filter 1 Nut 2 O-ring 5 22141359 1 Valve 6 21314061 1 Solenoid 7 21314064 2 Solenoid 8 1 Washer 9 2 Nut 10 3850397 1 Switch, temperature 11 21199274 2 Nipple 2 O-ring 12 22141353 1 Valve 13 21198760 1 Cover 14 3841608 2 Wing nut 15 21199454 1 Decal 16 21469067 1 Control unit 17 21453160 1 Bracket 18 21280607 4 Flange screw 19 60113378 3 Flange screw 20 21453317 1 Hose 21 21453315 1 Hose 22 21453313 1 Hose 23 21453311 1 Hose 24 22001317 1 Hose, return 25 21453319 1 Hose, pressure 26 984379 1 Nipple 27 984378 1 Nipple 28 21348985 1 Sleeve 29 3588972 1 Cable kit, t 30 21292450 1 Wiring harness 31 21292472 1 Wiring harness 32 1 Breaker, circuit

47705770- 645- 54163548 DPH-D1, DPR-D

DESCRIPTION

NOTES

not sold separately

changed from earlier design not sold separately not sold separately

not sold separately not sold separately

SCU

SCU Power 10A, not sold separately

49445

Upd:2/14/2022

Sterndrive Joystick System. SNA164230-

645 DPH-D1

1 17

16 18 21

13

23 14 19 20

22

30

15

29

28

30

26

25

4 1 2

24 27 3 11

12

31 32

5 10

11

3 7

2

8 6

7 9 9 Upd:2/14/2022

49450

47705770 -645 -54163195 DPH-D1, DPR-D

Sterndrive Joystick System. SNA164230-

645

DPH-D1 REF PART NO. QTY 1 21914259 1 Valve 2 21199274 2 Nipple 2 O-ring 3 3859043 2 Fitting 3859042 1 O-ring 4 21584276 1 Filter 1 Nut 2 O-ring 5 22141359 1 Valve 6 21314061 1 Solenoid 7 21314064 2 Solenoid 8 1 Washer 9 2 Nut 10 3850397 1 Switch, temperature 11 21199274 2 Nipple 2 O-ring 12 22141353 1 Valve 13 21198760 1 Cover 14 3841608 2 Wing nut 15 21199454 1 Decal 16 21469067 1 Control unit 17 21453160 1 Bracket 18 21280607 4 Flange screw 19 60113378 3 Flange screw 20 21453317 1 Hose 21 21453315 1 Hose 22 21453313 1 Hose 23 21453311 1 Hose 24 21453321 1 Hose, return 25 21453319 1 Hose, pressure 26 984379 1 Nipple 27 984378 1 Nipple 28 21348985 1 Sleeve 29 3588972 1 Cable kit, t 30 21292450 1 Wiring harness 31 21292472 1 Wiring harness 32 1 Breaker, circuit

47705770- 645- 54163195 DPH-D1, DPR-D

DESCRIPTION

NOTES

not sold separately

changed from earlier design not sold separately not sold separately

not sold separately not sold separately

SCU SNA164230-

SNA164230SNA164230SNA164230SNA164230SNA164230SNA164230-

SCU Power 10A, not sold separately

49450

Upd:2/14/2022

Tie Bar Kit

645 DPR-D

Upd:2/14/2022

49444

47705770 -645 -54169407 DPH-D1, DPR-D

Tie Bar Kit

645

DPR-D REF PART NO. QTY DESCRIPTION 1 3594638 1 Kit 3594639 1 Kit 2 1 Tie rod 3 3863381 1 Split pin 4 1 Collar 5 1 Adjusting bar 6 (3863383) 1 Collar 7 1 Tie rod 8 3863381 1 Split pin 9 3863385 4 Bushing 10 3863393 2 Pin 11 943194 2 Washer 12 967707 2 Split pin 13 3807400 1 Anode 14 2 Anode 15 2 Screw 16 2 Washer 17 2 Lock washer 18 2 Nut 19 3889691 2 Bushing 20 3862188 2 Pin 21 967707 2 Split pin

47705770- 645- 54169407 DPH-D1, DPR-D

NOTES CC engine 950-1030, (3863427) CC engine 1050-1240 Part is not servicable and can not be re-used if disassembled.

Part is not servicable and can not be re-used if disassembled.

Part is not servicable and can not be re-used if disassembled.

Obsolete part Part is not servicable and can not be re-used if disassembled.

not sold separately not sold separately not sold separately not sold separately not sold separately

49444

Upd:2/14/2022

Tie Bar Kit

645 DPH-D1

Upd:2/14/2022

49444

47705770 -645 -54163550 DPH-D1, DPR-D

Tie Bar Kit

645

DPH-D1 REF PART NO. QTY DESCRIPTION 1 3594638 1 Kit 3594639 1 Kit 2 1 Tie rod 3 3863381 1 Split pin 4 1 Collar 5 1 Adjusting bar 6 (3863383) 1 Collar 7 1 Tie rod 8 3863381 1 Split pin 9 3863385 4 Bushing 10 3863393 2 Pin 11 943194 2 Washer 12 967707 2 Split pin 13 3807400 1 Anode 14 2 Anode 15 2 Screw 16 2 Washer 17 2 Lock washer 18 2 Nut 19 3889691 2 Bushing 20 21264883 2 Pin 21 967707 2 Split pin

47705770- 645- 54163550 DPH-D1, DPR-D

NOTES CC engine 950-1030, (3863427) CC engine 1050-1240 Part is not servicable and can not be re-used if disassembled.

Part is not servicable and can not be re-used if disassembled.

Part is not servicable and can not be re-used if disassembled.

Obsolete part Part is not servicable and can not be re-used if disassembled.

not sold separately not sold separately not sold separately not sold separately not sold separately

49444

Upd:2/14/2022

Tie Bar Kit

645 DPH-D1

Upd:2/14/2022

55474

47705770 -645 -54163549 DPH-D1, DPR-D

Tie Bar Kit

645

DPH-D1 REF PART NO. QTY 1 3818255 1 Kit 2 3818253 1 Valve housing 3 3809102 Valve housing 4 3817920 3 Plug 5 968559 3 O-ring 6 3809935 2 Hexagon screw 7 980933 2 Washer 8 3809104 2 Manifold 9 946541 4 Hex. socket screw 10 925053 8 O-ring 11 3809272 4 Hydraulic hose 12 3809273 4 Hydraulic hose 13 22001102 1 Disc 14 963677 2 Hex. socket screw 15 21548739 1 Hydraulic hose, kit 16 925053 4 O-ring 17 21536994 1 Hydraulic hose 18 21536996 1 Hydraulic hose 19 21536998 1 Hydraulic hose 20 21537000 1 Hydraulic hose 21 984329 2 Clamp 22 963675 1 Hex. socket screw 23 944456 1 Hexagon nut 24 889726 1 Ground cable 25 22452005 1 Steering cylinder 26 3589516 2 Wear washer 27 21264883 2 Pin 28 967707 2 Split pin 29 993453 1 Hex. socket screw 30 21200067 1 Cable 31 982408 1 Washer 32 984298 1 Six point socket scr 33 948211 1 Cable tie

47705770- 645- 54163549 DPH-D1, DPR-D

DESCRIPTION

NOTES

Port side, Front Stbd, Front Stbd, Rear Port side, Rear

55474

Upd:2/14/2022

Tie Bar Kit

645

Upd:2/14/2022

55474

47705770 -645 -54162011 DPH-D1, DPR-D

Tie Bar Kit

REF PART NO. QTY 1 3818255 1 Kit 2 3818253 1 Valve housing 3 3809102 1 Valve housing 4 3817920 3 Plug 5 968559 3 O-ring 6 3809935 2 Hexagon screw 7 980933 2 Washer 8 3809104 2 Manifold 9 946541 4 Hex. socket screw 10 925053 8 O-ring 11 3809272 4 Hydraulic hose 12 3809273 4 Hydraulic hose 13 3586766 1 Disc 14 963677 2 Hex. socket screw 15 21548739 1 Hydraulic hose, kit 16 925053 4 O-ring 17 21536994 1 Hydraulic hose 18 21536996 1 Hydraulic hose 19 21536998 1 Hydraulic hose 20 21537000 1 Hydraulic hose 21 984329 2 Clamp 22 963675 1 Hex. socket screw 23 944456 1 Hexagon nut 24 889726 1 Ground cable 25 21745119 1 Steering cylinder 26 3589516 2 Wear washer 27 21264883 2 Pin 28 967707 2 Split pin 29 993453 1 Hex. socket screw 30 21200067 1 Cable 31 982408 1 Washer 32 984298 1 Six point socket scr 33 948211 1 Cable tie

47705770- 645- 54162011 DPH-D1, DPR-D

645 DESCRIPTION

NOTES

Port side, Front Stbd, Front Stbd, Rear Port side, Rear

55474

Upd:2/14/2022

Repair Kits

990

DPR-D REF PART NO. QTY 1 21929775 1 Repair kit 2 17276 3 Split pin 3 945624 1 O-ring 4 990899 1 O-ring 5 925259 1 O-ring 6 951936 1 Spring pin 7 955999 1 O-ring 8 964114 1 O-ring 9 967707 4 Split pin 10 949656 1 O-ring 11 3860364 1 Screw 12 3862217 2 Bushing 13 3862245 1 Sealing ring 14 3862247 1 Retainer 15 3862248 1 Thrust washer 16 3862252 1 Sealing ring 17 3862365 1 Retainer 18 3862378 1 Washer 19 3862903 2 Bushing 20 3863084 1 Sealing ring 21 3863085 1 Sealing ring 22 21264883 4 Pin 23 925260 1 O-ring 24 25 22087941 1 Service kit 26 963675 1 Hex. socket screw 27 944456 1 Hexagon nut 28 3862961 1 Ground cable 29 22001102 1 Disc 30 925053 4 O-ring 31 996842 1 Clamp 32 33 22087942 1 Service kit 34 963675 2 Hex. socket screw 35 944456 2 Hexagon nut 36 3862961 2 Ground cable 37 22001104 1 Disc 38 925053 4 O-ring 39 996842 2 Clamp 40 42 23307655 1 Drive maintenance ki 43 949656 1 O-ring 44 3862903 2 Bushing 45 828250 1 Lubricating grease 46 3594509 1 Bellows kit 47 3808898 1 Bellows 48 1 Locking wire 49 1 Rubber bellows 50 22274888 1 Hose clamp 51 22274887 1 Hose clamp 52 3588745 1 Anode kit 54 3588746 1 Anode kit 56 889455 1 Gasket

47705770- 990- 54169930 DPH-D1, DPR-D

DESCRIPTION

NOTES Upper gear housing

Zinc, Transom shield, Use in salt water only Zinc, Lower gear unit, Use in salt water only

Upd:2/14/2022

Repair Kits SN3020295798-, DPH-D1

990

DPH-D1 REF PART NO. QTY 1 21929775 1 Repair kit 2 17276 3 Split pin 3 945624 1 O-ring 4 990899 1 O-ring 5 925259 1 O-ring 6 951936 1 Spring pin 7 955999 1 O-ring 8 964114 1 O-ring 9 967707 4 Split pin 10 949656 1 O-ring 11 3860364 1 Screw 12 3862217 2 Bushing 13 3862245 1 Sealing ring 14 3862247 1 Retainer 15 3862248 1 Thrust washer 16 3862252 1 Sealing ring 17 3862365 1 Retainer 18 3862378 1 Washer 19 3862903 2 Bushing 20 3863084 1 Sealing ring 21 3863085 1 Sealing ring 22 21264883 4 Pin 23 925260 1 O-ring 24 25 21948393 1 Service kit 26 20885497 1 Retainer 27 21972007 1 Wiring harness 28 29 22087941 1 Service kit 30 963675 1 Hex. socket screw 31 944456 1 Hexagon nut 32 3862961 1 Ground cable 33 22001102 1 Disc 34 925053 4 O-ring 35 996842 1 Clamp 36 37 22087942 1 Service kit 38 963675 2 Hex. socket screw 39 944456 2 Hexagon nut 40 3862961 2 Ground cable 41 22001104 1 Disc 42 925053 4 O-ring 43 996842 2 Clamp 44 45 23307655 1 Drive maintenance ki 46 949656 1 O-ring 47 3862903 2 Bushing 48 828250 1 Lubricating grease 49 3594509 1 Bellows kit 50 3808898 1 Bellows 51 1 Locking wire 52 1 Rubber bellows 53 22274888 1 Hose clamp 22274887 1 Hose clamp 54 3588745 1 Anode kit 56 3588746 1 Anode kit 58 889455 1 Gasket

47705770- 990- 54163551 DPH-D1, DPR-D

DESCRIPTION

NOTES Upper gear housing

Zinc, Transom shield, Use in salt water only Zinc, Lower gear unit, Use in salt water only

Upd:2/14/2022

Marine Propulsion

DESCRIPTION Active Corrosion Protection System, ACP Active Corrosion Protection System, ACP, Twin Installation Actuator Actuator Drive Shaft and Bearing Housing Drive Shaft and Bearing Housing SN-3020295797, DPH-D Drive Shaft and Bearing Housing SN3020295798-, DPH-D1 Drive Unit, Complete Drive Unit, Complete SN-3020295797, DPH-D Drive Unit, Complete SN3020295797-, DPH-D1 Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Uni Exhaust Pipe and Cooling Water Pipe, D4, DPH/DPR Drive Unit, Extended Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit Exhaust Pipe and Cooling Water Pipe, D6, DPH/DPR Drive Unit, Extended Extension Kit 1'' Flywheel Housing and Primary Shaft Flywheel Housing and Primary Shaft SN3020295797-, DPH-D1 Flywheel Housing and Primary Shaft, Extended Flywheel Housing and Primary Shaft, Extended SN3020295797-, DPH-D1 Gimbal Ring Gimbal Ring Housing and Center Tube Housing and Center Tube SN-3020295797, DPH-D Housing and Center Tube SN3020295797-, DPH-D1 Jack Shaft Kit Jack Shaft Kit Jack Shaft, Connecting Components Propeller Propeller Propeller, G-series Propeller, H-series Rudder Indicator Kit for Drive Units Rudder Indicator Kit for Drive Units Shift Mechanism SN-3020295797, DPH-D Shift Mechanism SN3020295798-, DPH-D1 Transom Shield Transom Shield Trim Cylinders Trim Pump U-Joint and Bearing Carrier U-Joint and Bearing Carrier SN-3020295797, DPH-D U-Joint and Bearing Carrier SN3020295798-, DPH-D1 Upper Vertical Shaft Upper Vertical Shaft SN-3020295797, DPH-D Upper Vertical Shaft SN3020295798-, DPH-D1 Water and Exhaust Block off Kits

47705770- 44- 44 DPH-D1, DPR-D

44 SEE SEC. 54165264 54165449 54171129 54163541 54163173 54163167 54163542 54162996 54162995 54163555 54162146 54161831 54166357 54166356 54163168 54171772 54163533 54162005 54163544 54163536 54161832 54163178 54163164 54163538 54163545 54162048 54162047 54170681 54170680 54163547 54165927 54163546 54160773 54163165 54163540 54170572 54163543 54163194 54163191 54163179 54163242 54163539 54163180 54161868 54163552 54169363

NOTES DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D DPH-D1 DPH-D1 DPR-D DPH-D1 DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPH-D1 DPR-D, DPH-D1 DPH-D1 DPR-D, DPH-D1 DPR-D DPH-D1 DPH-D1 DPH-D1 DPR-D, DPH-D1 DPR-D DPH-D1 DPH-D1 DPH-D1 DPH-D1 DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D DPH-D1 DPH-D1 DPR-D DPH-D1 DPH-D1 DPR-D, DPH-D1

Upd:2/14/2022

Steering

DESCRIPTION Steering Cylinder. Electronic Steering Installation Steering Cylinder. Port Side. Twin Installation Steering Cylinder. Single Installation Steering Cylinder. Starboard. Twin Installation Sterndrive Joystick System Sterndrive Joystick System. SNA164230Tie Bar Kit Tie Bar Kit Tie Bar Kit Tie Bar Kit

47705770- 64- 64 DPH-D1, DPR-D

64 SEE SEC. 54163204 54163203 54163198 54163201 54163548 54163195 54169407 54163550 54163549 54162011

NOTES DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPR-D, DPH-D1 DPH-D1 DPH-D1 DPR-D DPH-D1 DPH-D1

Upd:2/14/2022

Miscellaneous, Repair Kits

99 DESCRIPTION

Repair Kits Repair Kits SN3020295798-, DPH-D1

47705770- 99- 99 DPH-D1, DPR-D

SEE SEC. NOTES 54169930 DPR-D 54163551 DPH-D1

Upd:2/14/2022

DPH-D1, DPR-D

REF 44 Marine Propulsion 64 Steering 99 Miscellaneous, Repair Kits

47705770- - TOC DPH-D1, DPR-D

DESCRIPTION

SEE SEC. 44 64 99

Upd:2/14/2022
