Camshaft and Valve Mechanism

740A, BB740A

Upd:7/18/2022

44635

7745660 -210 -54155830 740A, BB740A

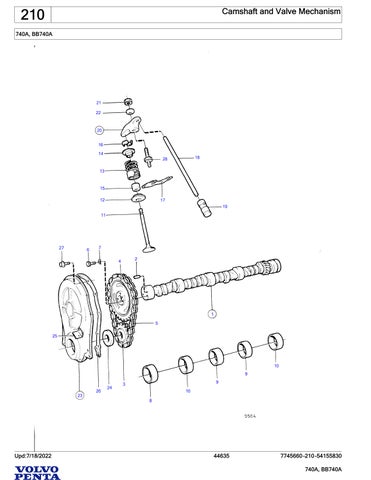

Camshaft and Valve Mechanism

210

740A, BB740A REF PART NO. QTY 1 856617 1 Camshaft 2 835040 1 Pin 3 (856618) 1 Chain gear 4 (856619) 1 Chain gear 5 (856620) 1 Chain 6 940135 3 Hexagon screw 7 941907 3 Spring washer 8 856552 1 Bearing 9 856553 2 Bearing 10 856554 2 Bearing 11 856566 8 Valve 856567 8 Valve 856640 8 Valve 856563 8 Valve (856564) 8 Valve (856565) 8 Valve 12 856569 16 Valve spring washer 13 856570 16 Valve spring 14 856568 16 Valve spring washer 15 856572 16 Valve stem seal 16 856571 32 Valve collet 17 (856574) 8 Guide 18 856621 8 Push rod 856622 8 Push rod 19 835089 16 Tappet 20 (856627) 16 Rocker arm 21 (856629) 16 Nut 22 (856628) 16 Ball 23 (856605) 1 Timing gear casing 24 856606 1 Sealing ring 25 (856607) 1 Setting indicator 26 856608 1 Gasket 27 943629 10 Flange screw 28 (856573) 16 Screw

7745660- 210- 54155830 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708

Incl.in cylinderblock.

Incl.in cylinderblock.

Incl.in cylinderblock.

Std Over size 0,015'' Over size 0,030'' Std Over size 0,015'' Over size 0,030'' Lower

Upper

Inlet Exhaust

54155824

44635

Upd:7/18/2022

210

Camshaft and Valve Mechanism

740A, BB740A

Upd:7/18/2022

44635

7745660 -210 -54155831 740A, BB740A

Camshaft and Valve Mechanism

210

740A, BB740A REF PART NO. QTY 1 856617 1 Camshaft 2 835040 1 Pin 3 (856618) 1 Chain gear 4 (856619) 1 Chain gear 5 (856620) 1 Chain 6 940135 3 Hexagon screw 7 941907 3 Spring washer 8 856552 1 Bearing 9 856553 2 Bearing 10 856554 2 Bearing 11 856566 8 Valve 856567 8 Valve 856640 8 Valve 856563 8 Valve (856564) 8 Valve (856565) 8 Valve 12 856569 16 Valve spring washer 13 856570 16 Valve spring 14 856568 16 Valve spring washer 15 856572 16 Valve stem seal 16 856571 32 Valve collet 17 (856574) 8 Guide 18 856621 8 Push rod 856622 8 Push rod 19 835089 16 Tappet 20 (856627) 16 Rocker arm 21 (856629) 16 Nut 22 (856628) 16 Ball 23 (856605) 1 Timing gear casing 24 856606 1 Sealing ring 25 (856607) 1 Setting indicator 26 856608 1 Gasket 27 943629 10 Flange screw 28 (856573) 16 Screw

7745660- 210- 54155831 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708

Incl.in cylinderblock.

Incl.in cylinderblock.

Incl.in cylinderblock.

Std Over size 0,015'' Over size 0,030'' Std Over size 0,015'' Over size 0,030'' Lower

Upper

Inlet Exhaust

54155825

44635

Upd:7/18/2022

Crankshaft and Related Parts

210 740A, BB740A

Upd:7/18/2022

44644

7745660 -210 -54155829 740A, BB740A

Crankshaft and Related Parts

210

740A, BB740A REF PART NO. QTY 1 (856579) 1 Crankshaft 2 835057 1 Pin 3 (856557) 1 Bearing (856559) 1 Bearing (856561) 1 Bearing 4 (856556) 4 Bearing (856558) 4 Bearing (856560) 4 Bearing 5 1 sprocket 6 835059 2 Key 7 856586 8 Connecting rod 8 856587 16 Screw 9 856588 16 Nut 10 (856593) 8 Bearing shell (856594) 8 Bearing shell (856595) 8 Bearing shell 11 (856630) 1 Flywheel 12 835439 6 Screw 13 941909 6 Spring washer 14 854185 1 Vibration damper 15 940097 6 Washer 16 942336 6 Spring washer 17 835482 6 Screw 18 (856589) 8 Piston (856590) 8 Piston 19 8 gudgeon pin 20 (856591) 8 Piston ring kit (856592) 8 Piston ring kit 21 856580 1 Crankshaft seal 22 856581 1 Vibration damper 23 856304 1 Pulley 24 (856582) 1 Screw 25 856584 1 Washer 26 856583 1 Lock washer 27 976644 3 Hex. socket screw 28 942336 3 Spring washer 29 1 sea water pump

7745660- 210- 54155829 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708 Incl.in cylinderblock., Std Under size 0,010'' Under size 0,020'' Incl.in cylinderblock., Std Under size 0,010'' Under size 0,020''

54155831

Std Under size 0,010'' Under size 0,020''

Incl.in cylinderblock., Std Over size 0,030'' Incl.in cylinderblock., Std Over size 0,030''

See group 2B See group 2B See group 2B

44644

Upd:7/18/2022

Crankshaft and Related Parts

210 740A, BB740A

Upd:7/18/2022

44637

7745660 -210 -54155828 740A, BB740A

Crankshaft and Related Parts

210

740A, BB740A REF PART NO. QTY 1 (856579) 1 Crankshaft 2 835057 1 Pin 3 (856557) 1 Bearing (856559) 1 Bearing (856561) 1 Bearing 4 (856556) 4 Bearing (856558) 4 Bearing (856560) 4 Bearing 5 1 sprocket 6 835059 2 Key 7 856586 8 Connecting rod 8 856587 16 Screw 9 856588 16 Nut 10 (856593) 8 Bearing shell (856594) 8 Bearing shell (856595) 8 Bearing shell 11 (856585) 1 Flywheel 12 835439 6 Screw 13 941909 6 Spring washer 14 (856346) 1 Vibration damper 15 1 sea water pump 16 942336 3 Spring washer 17 835482 3 Screw 18 (856589) 8 Piston (856590) 8 Piston 19 8 gudgeon pin 20 (856591) 8 Piston ring kit (856592) 8 Piston ring kit 21 856580 1 Crankshaft seal 22 856581 1 Vibration damper 23 856304 1 Pulley 24 (856582) 1 Screw 25 856584 1 Washer 26 856583 1 Lock washer 27 976644 3 Hex. socket screw 28 942336 3 Spring washer

7745660- 210- 54155828 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708 Incl.in cylinderblock., Std Under size 0,010'' Under size 0,020'' Incl.in cylinderblock., Std Under size 0,010'' Under size 0,020''

54155830

Std Under size 0,010'' Under size 0,020''

See group 2B

Incl.in cylinderblock., Std Over size 0,030'' Incl.in cylinderblock., Std Over size 0,030''

See group 2B See group 2B

44637

Upd:7/18/2022

Cylinder Block and Flywheel Cover

210 740A, BB740A

18

1

17 12

3

3

4 7 13 6 9

5

3 19

8

24

23

2 10

11

15 14

15

16

16

20 21 22

Upd:7/18/2022

44636

7745660 -210 -54155827 740A, BB740A

Cylinder Block and Flywheel Cover

210

740A, BB740A REF PART NO. QTY 1 1 cylinder block 2 5 bearing cap 3 (856544) 8 Expansion plug 4 952075 4 Plug 5 192134 4 Plug 6 (856546) 3 Plug 7 856547 2 Plug 8 835040 2 Pin 9 835040 2 Pin 10 (856548) 6 Bolt (856549) 10 Screw 11 (856550) 4 Ball screw 12 856551 4 Locating pin 13 (818989) 2 Locating pin 14 856552 1 Bearing 15 856553 2 Bearing 16 856554 2 Bearing 17 856555 1 Expansion plug 18 8 piston 19 X main bearing kit 20 841056 1 Flywheel housing 21 855909 1 Cover plate 22 947224 4 Hexagon screw 23 955541 2 Hexagon screw 955535 3 Hexagon screw 24 942336 5 Spring washer

7745660- 210- 54155827 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708

Short Long

54155829 54155829

L=76mm L=32mm

44636

Upd:7/18/2022

210

Cylinder Block and Flywheel Cover

740A, BB740A

Upd:7/18/2022

44638

7745660 -210 -54155826 740A, BB740A

Cylinder Block and Flywheel Cover

210

740A, BB740A REF PART NO. QTY 1 1 cylinder block 2 5 bearing cap 3 (856544) 8 Expansion plug 4 952075 4 Plug 5 192134 4 Plug 6 (856546) 3 Plug 7 856547 2 Plug 8 835040 2 Pin 9 835040 2 Pin 10 (856548) 6 Bolt (856549) 10 Screw 11 (856550) 4 Ball screw 12 856551 4 Locating pin 13 (818989) 2 Locating pin 14 856552 1 Bearing 15 856553 2 Bearing 16 856554 2 Bearing 17 856555 1 Expansion plug 18 8 piston 19 X main bearing kit 20 841967 1 Flywheel housing 21 826448 1 Cover plate 22 947224 5 Hexagon screw 23 941939 6 Screw 24 942336 6 Spring washer 25 914167 1 Lubricating nipple 26 (944738) 1 Plug

7745660- 210- 54155826 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Included in basic engine 856708

Short Long

54155828 54155828

44638

Upd:7/18/2022

Cylinder Head

210 740A, BB740A

Upd:7/18/2022

44641

7745660 -210 -54155825 740A, BB740A

Cylinder Head

210

740A, BB740A REF PART NO. QTY 1 856562 2 Cylinder head 2 (856573) 16 Screw 3 (856575) 2 Cylinder head gasket 4 856576 25 Screw 5 841113 9 Flange screw 6 (856623) 2 Valve cover 7 856604 1 Oil filler cap 8 856626 2 Gasket 9 (855591) 14 Stud 10 955825 14 Hexagon nut 11 955893 14 Washer 12 (856624) 8 Reinforcement (856625) 6 Reinforcement

DESCRIPTION

7745660- 210- 54155825

44641

740A, BB740A

NOTES

Outer Inner

Upd:7/18/2022

Cylinder Head

210 740A, BB740A

Upd:7/18/2022

44641

7745660 -210 -54155824 740A, BB740A

Cylinder Head

210

740A, BB740A REF PART NO. QTY 1 856562 2 Cylinder head 2 (856573) 16 Screw 3 (856575) 2 Cylinder head gasket 4 856576 25 Screw 5 841113 9 Flange screw 6 (856623) 2 Valve cover 7 856604 1 Oil filler cap 8 856626 2 Gasket 9 (855591) 14 Stud 10 955825 14 Hexagon nut 11 955893 14 Washer 12 (856624) 8 Reinforcement (856625) 6 Reinforcement

DESCRIPTION

7745660- 210- 54155824

44641

740A, BB740A

NOTES

Outer Inner

Upd:7/18/2022

Engine and Installation Components

210 740A, BB740A

4

3

1

2

6

5

Upd:7/18/2022

44229

7745660 -210 -54155822 740A, BB740A

Engine and Installation Components

210

740A, BB740A REF QTY 1

DESCRIPTION

1 cylinder block and flywheel housing 2

1 crankshaft and related parts

3

1 camshaft and valve mechanism

4 5 6

1 cylinder head 1 lubricating system 1 engine mounts

7745660- 210- 54155822 740A, BB740A

44229

SEE SEC. 54155826 54155826 54155826 54155826 54155828 54155828 54155830 54155830 54155824 54155833 54155819

Upd:7/18/2022

Engine and Installation Components

210 740A, BB740A

4

3

1

2

6

5

Upd:7/18/2022

44229

7745660 -210 -54155823 740A, BB740A

Engine and Installation Components

210

740A, BB740A REF QTY 1

DESCRIPTION

1 cylinder block and flywheel housing 2

1 crankshaft and related parts

3

1 camshaft and valve mechanism

4 5

1 cylinder head 1 lubricating system 1 lubricating system

6

1 engine mounts

7745660- 210- 54155823 740A, BB740A

44229

SEE SEC. NOTES 54155827 54155827 54155827 54155827 54155827 54155827 54155829 54155829 54155831 54155831 54155825 54155835 54155835 Early type 54155835 54155835 Late type 54155820

Upd:7/18/2022

Engine Suspension

210 740A, BB740A

Upd:7/18/2022

44640

7745660 -210 -54155819 740A, BB740A

Engine Suspension

210

740A, BB740A REF PART NO. QTY 1 835449 2 Rubber cushion 2 944236 4 Lock nut 3 955900 2 Washer 4 941912 2 Spring washer 5 835459 2 Engine mounting 6 955535 6 Hexagon screw

7745660- 210- 54155819 740A, BB740A

DESCRIPTION

44640

Upd:7/18/2022

Engine Suspension

210 740A, BB740A

6 10 5 7

3 7

8

8

6

4

9

5 2 11 12 2

1

Upd:7/18/2022

44642

7745660 -210 -54155820 740A, BB740A

Engine Suspension

210

740A, BB740A REF PART NO. QTY 1 841355 4 Rubber cushion 2 (955860) 8 Hexagon nut 3 (841316) 2 Engine mounting 4 941939 6 Screw 5 (841247) 4 Dowel 6 955551 4 Hexagon screw 7 941909 4 Spring washer 8 950355 4 Lock nut 9 (955548) 8 Hexagon screw 10 (841580) 1 Engine bracket (841581) 1 Bracket 11 941914 4 Spring washer 12 955902 4 Washer

DESCRIPTION

7745660- 210- 54155820

44642

740A, BB740A

NOTES

S.B P

Upd:7/18/2022

Lubricating System

210 740A, BB740A

37

40

36

41

29 32 42

31 38

35 39

34

32

28

23

27

24

22 5 29

26 33

6

25

33 43 11 12

31

7 30

3

4 1 21 2 14

18 8 17 16

9 10

15

20A 13

20 14

Upd:7/18/2022

19

44639

7745660 -210 -54155833 740A, BB740A

Lubricating System

210

740A, BB740A REF PART NO. QTY DESCRIPTION 1 856890 1 Oil pump 2 1 oil strainer 3 856602 1 Shaft 4 835374 1 Sleeve 5 (856264) 1 Oil dipstick 6 949187 1 O-ring 7 856212 1 Pipe 8 856295 1 Gasket 9 841953 1 Gasket 10 954393 1 Hollow screw 11 940098 1 Hexagon screw 12 942336 1 Spring washer 13 (856293) 1 Sump 14 856294 1 Gasket kit 15 (856598) 2 Reinforcement 16 946420 5 Lock nut 17 940097 5 Washer 18 (856597) 1 Baffle plate 19 856599 20 Screw 20 940100 2 Hexagon screw 20A 955893 2 Washer 21 856603 1 Stud 22 (841339) 1 Connector 23 856007 1 Gasket 24 948882 1 O-ring 25 955527 2 Hexagon screw 26 941907 2 Spring washer 27 (856851) 1 Oil cooler kit 28 856791 1 Oil cooler 29 856793 4 Nipple 30 (856785) 1 Hose assembly 31 (856786) 1 Hose assembly 32 (856787) 1 Hose assembly 33 cooling water conn.

34 856266 1 Hose 35 943480 1 Hose clamp 36 (856265) 1 Cap 37 945444 2 Flange screw 38 841174 1 Filter retainer 39 835440 1 Oil filter 40 1378985 1 Filler cap 41 940096 1 Gasket 42 856479 1 Bracket 43 (949246) 1 Plug

7745660- 210- 54155833 740A, BB740A

NOTES Oil pump 856890 is only stocked complete with strainer.

See group 2B

44639

Upd:7/18/2022

Lubricating System

210 740A, BB740A

37

40

36

41

29 27 34

28 38

35 42

39

48

43

44

46 47 45

28 32

27

23 24

22 26

5

33 25

33

6

29 7

11

31

30

12

3

4

8

21

1

18

2 14

17 16

9 10

15

20A 14

20

13 19

Upd:7/18/2022

44643

7745660 -210 -54155834 740A, BB740A

Lubricating System

210

740A, BB740A REF PART NO. QTY DESCRIPTION 1 856890 1 Oil pump 2 1 oil strainer 3 856602 1 Shaft 4 835374 1 Sleeve 5 (856264) 1 Oil dipstick 6 949187 1 O-ring 7 856212 1 Pipe 8 856295 1 Gasket 9 841953 1 Gasket 10 954393 1 Hollow screw 11 940098 1 Hexagon screw 12 942336 1 Spring washer 13 (856293) 1 Sump 14 856294 1 Gasket kit 15 (856598) 2 Reinforcement 16 946420 5 Lock nut 17 940097 5 Washer 18 (856597) 1 Baffle plate 19 856599 20 Screw 20 940100 2 Hexagon screw 20A 955893 2 Washer 21 856603 1 Stud 22 (841339) 1 Connector 23 856007 1 Gasket 24 948882 1 O-ring 25 955527 2 Hexagon screw 26 941907 2 Spring washer 27 (856253) 1 Hose assembly 28 (856254) 1 Hose assembly 29 941750 3 Nipple 30 (856252) 1 Hose assembly 31 941757 1 Elbow nipple 32 856351 1 Oil cooler (856851) 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

856479 943480 (856265) 945444 841174 835440 1378985 940096 856266 965537 955547 942421 955896 946544 945407

1 Oil cooler kit cooling water conn.

1 Bracket 1 Hose clamp 1 Cap 2 Flange screw 1 Filter retainer 1 Oil filter 1 Filler cap 1 Gasket 1 Hose 1 Bracket 1 Hexagon screw 1 Clamp 1 Washer 1 Flange screw 1 Flange nut

7745660- 210- 54155834 740A, BB740A

SEE SEC.

NOTES Oil pump 856890 is only stocked complete with strainer.

Early type Early type Early type Early type Early type Early type Repl by 856851 54155835 See group 2B

Early type Early type Early type Early type Early type Early type

44643

Upd:7/18/2022

Lubricating System

210 740A, BB740A

37

40

36

41

29 32 42

31 38

35 39

34

32

28

23

27

24

22 5 29

26 33

6

25

33 43 11 12

31

7 30

3

4 1 21 2 14

18 8 17 16

9 10

15

20A 13

20 14

Upd:7/18/2022

19

44639

7745660 -210 -54155835 740A, BB740A

Lubricating System

210

740A, BB740A REF PART NO. QTY DESCRIPTION 1 856890 1 Oil pump 2 1 oil strainer 3 856602 1 Shaft 4 835374 1 Sleeve 5 (856264) 1 Oil dipstick 6 949187 1 O-ring 7 856212 1 Pipe 8 856295 1 Gasket 9 841953 1 Gasket 10 954393 1 Hollow screw 11 940098 1 Hexagon screw 12 942336 1 Spring washer 13 (856293) 1 Sump 14 856294 1 Gasket kit 15 (856598) 2 Reinforcement 16 946420 5 Lock nut 17 940097 5 Washer 18 (856597) 1 Baffle plate 19 856599 20 Screw 20 940100 2 Hexagon screw 20A 955893 2 Washer 21 856603 1 Stud 22 (841339) 1 Connector 23 856007 1 Gasket 24 948882 1 O-ring 25 955527 2 Hexagon screw 26 941907 2 Spring washer 27 (856851) 1 Oil cooler kit 28 856791 1 Oil cooler 29 856793 4 Nipple 30 (856785) 1 Hose assembly 31 (856786) 1 Hose assembly 32 (856787) 1 Hose assembly 33 cooling water conn.

34 856266 1 Hose 35 943480 1 Hose clamp 36 (856265) 1 Cap 37 945444 2 Flange screw 38 841174 1 Filter retainer 39 835440 1 Oil filter 40 1378985 1 Filler cap 41 940096 1 Gasket 42 1 bracket 43 (949246) 1 Plug

7745660- 210- 54155835 740A, BB740A

NOTES Oil pump 856890 is only stocked complete with strainer.

Late type Late type Late type Late type Late type Late type See group 2B

See group 2D

44639

Upd:7/18/2022

Carburetor

23

30

1

49 77 48 76

31

28

29

35 75 6A

53 50 20

68 38 59 16 15

18 17

47 19

39 69

14

51 78

65

60 32

43 73

66

27 44 74

64 6

44 74

3

2 21

4

23

46 2

6 64

22 36

25 55

40 70

58

40 70 57

26 37

62

5

24

63

57 52 79 61

56 10 13 41 71 33

45

9

13A 8 12

42 72 80

11 11

34

7 11 11

Upd:7/18/2022

52996

7745660 -23 -54155849 740A, BB740A

Carburetor

23

REF PART NO. QTY DESCRIPTION 1 (856236) 1 Carburetor 2 (856748) 2 Idle jet 3 (856749) 2 Main jet 4 856750 2 Main jet 5 (856751) 1 Spring 6 (856752) 2 Spring 6A (856948) 1 Fuel pipe 7 (856741) 1 Repair kit, repair kit accelerator pump 8 1 diaphragm 9 1 spring 10 1 valve 11 12 screw 12 2 gasket 13 2 gasket 13A valve 14 856742 1 Repair kit, repair kit choke 15 1 thermostat housing 16 1 gasket 17 3 screw 18 (856743) 1 Repair kit, repair kit float 19 1 float 20 1 shaft 21 (856744) 1 Repair kit, repair kit secondary 22 1 diaphragm 23 1 spring 24 1 Retainer 25 1 ball 26 1 gasket 27 4 screw 28 (856745) 1 Repair kit, repair kit fuel needle, inlet 29 1 fuel needle 30 1 gasket 31 1 gasket 32 (856746) 1 Repair kit, repair kit reconditioning 33 2 valve 34 1 diaphragm 35 2 fuel needle 36 1 diaphragm 37 1 gasket 38 1 gasket 39 1 gasket 40 2 gasket 41 2 gasket 42 4 gasket 43 2 gasket 44 2 gasket 45 2 valve 46 1 weight 47 2 gasket 48 2 gasket 49 2 gasket 50 1 seal 51 1 gasket 52 1 gasket 53 1 Retainer 54 1 Retainer 55 1 ball 56 1 cotter pin 57 2 Retainer 58 1 ball 59 1 thermostat housing 60 1 spring 61 1 spring 7745660- 23- 54155849 740A, BB740A

52996

NOTES

Not for SOLAS version.

Upd:7/18/2022

Carburetor

REF PART NO. QTY 62 1 spring 63 1 spring 64 1 spring 65 1 spring 66 (856747) 1 Gasket kit 67 1 gasket 68 1 gasket 69 1 gasket 70 2 gasket 71 2 gasket 72 4 gasket 73 2 gasket 74 2 gasket 75 2 gasket 76 2 gasket 77 2 gasket 78 1 gasket 79 1 gasket 80 2 gasket

7745660- 23- 54155849 740A, BB740A

23 DESCRIPTION

52996

NOTES

Upd:7/18/2022

Fuel System

230 740A, BB740A

34 9 10

13 8

12

6

11

7

5A

13 3 12 5

4 11 1

28

32

22

23 2

21 31 19

33

25

24

32

16 20

5 17 19

26

30 29 18

27

14

Upd:7/18/2022

44558

15

7745660 -230 -54155847 740A, BB740A

Fuel System

230

740A, BB740A REF PART NO. QTY 1

2 3 4 5 5A 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

DESCRIPTION

(856236)

1 Carburetor

856345 956570 941907 856216 (856948) 856677 856684 955512 (856525) 965175 856335 855902 941522 (856214) 856031 955535 942336 835422 (180303) 834781 (856217) 940115 942336 940116 941909 855569 855686 955295 955782 941907 856215 941149 948210 (856232)

1 4 4 1 1 1 1 1 1 4 2 2 X 1 1 2 2 1 3 1 1 1 1 1 1 1 1 3 3 3 1 X X 1

7745660- 230- 54155847 740A, BB740A

Gasket Hex. socket screw Spring washer Fuel pipe Fuel pipe Flame shield Gasket Hexagon screw Cap Flange screw Rubber bushing Hose attachment Hose Fuel pump Gasket Hexagon screw Spring washer Push rod Nipple Nipple Bracket Hexagon screw Spring washer Hexagon screw Spring washer Cap Fuel filter Hexagon screw Hexagon nut Spring washer Fuel pipe Hose Cable tie Decal

SEE SEC. 54155849 54155849 54155849 54155849

NOTES

L=2X240mm

L=700mm 740

44558

Upd:7/18/2022

Fuel System

230 740A, BB740A

34 9 10

13 8

12

6

11

7

5A

13 3 12 5

4 11 1

28

32

22

23 2

21 31 19

33

25

24

32

16 20

5 17 19

26

30 29 18

27

14

Upd:7/18/2022

44558

15

7745660 -230 -54155848 740A, BB740A

Fuel System

230

740A, BB740A REF PART NO. QTY 1

2 3 4 5 5A 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

DESCRIPTION

(856236)

1 Carburetor

856345 956570 941907 856216 (856948) 856677 856684 955512 (856525) 965175 856335 855902 941522 (856214) 856031 955535 942336 835422 (180303) 834781 (856217) 940115 942336 940116 941909 855569 855686 955295 955782 941907 856215 941149 948210 (856232)

1 4 4 1 1 1 1 1 1 4 2 2 X 1 1 2 2 1 3 1 1 1 1 1 1 1 1 3 3 3 1 X X 1

7745660- 230- 54155848 740A, BB740A

Gasket Hex. socket screw Spring washer Fuel pipe Fuel pipe Flame shield Gasket Hexagon screw Cap Flange screw Rubber bushing Hose attachment Hose Fuel pump Gasket Hexagon screw Spring washer Push rod Nipple Nipple Bracket Hexagon screw Spring washer Hexagon screw Spring washer Cap Fuel filter Hexagon screw Hexagon nut Spring washer Fuel pipe Hose Cable tie Decal

SEE SEC. 54155849 54155849 54155849 54155849

NOTES

L=2X240mm

L=700mm 740

44558

Upd:7/18/2022

Cooling System

260 740A, BB740A

43 48

46

44 47

20

26B 26A

46

27 28

47

48 24

42

26

38

22

25

21 42

23 4

1

7

57

6 5

39

5

40 2

3 8

9

56

50 55

31 42 30 10

42 42 42

11

12

42

30

14

15

42

29

42

45

49

42

42 41

16 18 19 17

13 33

34 52 32

37

36 54

53 51

35

Upd:7/18/2022

44628

7745660 -260 -54155836 740A, BB740A

Cooling System

260

740A, BB740A REF PART NO. QTY DESCRIPTION 1 856609 1 Water pump components 2 856610 2 Gasket 3 955536 4 Hexagon screw 4 856611 1 Hose 5 (856612) 2 Hose attachment 6 961666 2 Hose clamp 7 (855283) 1 Pulley 8 955656 4 Hexagon screw 9 941907 4 Spring washer 10 856513 1 Seawater pump 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 26A 26B 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

956594 942336 856155 940134 941909 826422 955523 960141 941907 (855993) 876305 416033 835417 856262 961671 (856310) 943717 946440 940115 942336 (856222) 952973 856268 857051 (858587) 940133 942336 943717 946544 945407 952973

3 3 1 2 2 1 1 1 1 1 1 1 1 1 2 1 1 1 2 2 1 X 1 1 1 1 1 2 2 2 X

Hex. socket screw Spring washer Bracket Hexagon screw Spring washer Rubber bushing Hexagon screw Washer Spring washer Housing Thermostat kit Sealing ring Gasket Hose Hose clamp Coolant pipe Clamp Flange screw Hexagon screw Spring washer Coolant pipe Hose Coolant pipe Hose Bracket Hexagon screw Spring washer Clamp Flange screw Flange nut Hose hoses and oil cooler for power steering

856505 (854489) (857048) 961669 (855987) (855986) 952973 858986 842913 965175

1 1 1 20 1 1 X 2 2 4 1 1 1 1 1 2 1 1

Hose Hose Hose Hose clamp Coolant pipe Coolant pipe Hose Sealing ring Sealing ring Flange screw oil cooler connection Bracket Clamp Flange screw Hexagon screw connection V-belt, drive belt kit

(856263) (856314) 946440 955526 967191

7745660- 260- 54155836 740A, BB740A

SEE SEC.

NOTES

54155846 54155846

62°C

See group 3

L=2X70mm Early type Late type

L=100mm See group 6 Engine with drive unit without power steering.

For shield kit 876150., See group 4A For shield 876506., For shield 876510., See group 4A

L=100mm

See group 2A See group 2A

See group 2A See group 3 44628

Upd:7/18/2022

Cooling System

260

740A, BB740A REF PART NO. QTY

DESCRIPTION

SEE SEC.

NOTES L=2x1275mm

57

2 exhaust manifold servo pump

7745660- 260- 54155836 740A, BB740A

54155841 54155841

44628

See group 6

Upd:7/18/2022

Cooling System with Heat Exchanger

260 740A, BB740A

20

23 24

27 29

25

50

30

31

32 50

28 29 25

33

27 48

50

28 21 47

22

45A 50

26

46

34

27

44

46

27

26

46

61

4

1

7

6 5

5

60 52 2

3 8

9

37

58 36 10

57

46

46 59 46

46 11

14

12

36

46

45

46

51

35 46

49

46

15

16 54

18 19 17

13 39

56

40

55 53

38 43

42

41

Upd:7/18/2022

44634

7745660 -260 -54155838 740A, BB740A

Cooling System with Heat Exchanger

260

740A, BB740A REF PART NO. QTY 1 856609 1 Water pump components 2 856610 2 Gasket 3 955536 4 Hexagon screw 4 856611 1 Hose 5 (856612) 2 Hose attachment 6 961666 4 Hose clamp 7 (855283) 1 Pulley 8 955656 4 Hexagon screw 9 941907 4 Spring washer 10 856513 1 Seawater pump 11 12 13 14 15 16 17 18 19 20 21

956594 942336 856155 940116 941909 826422 955523 960141 941907 952077

22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 45A 46 47 48 49 50 51 52 53 54 55 56 57 58

DESCRIPTION

SEE SEC.

54155846 54155846

3 3 1 2 2 1 1 1 1 1 1

Hex. socket screw Spring washer Bracket Hexagon screw Spring washer Rubber bushing Hexagon screw Washer Spring washer Plug thermostat housing

835417 955538 942336 (855983) 855984 842913 858986 847108 (856452) 965175 (856529) 943479

1 2 2 2 2 4 4 2 2 2 1 2 1

Gasket Hexagon screw Spring washer Coolant pipe Coolant pipe Sealing ring Sealing ring Pipe retainer Brace Flange screw Hose Hose clamp heat exchanger and installation components

(856222) 952973 856268 (858587) 940133 942336 943717 946544 945407 952973 952973 856306 961669 (855987) (855986) 952973 965175

1 X 1 1 1 1 2 2 2 X X 1 18 1 1 X 8 1 1 1 1 1 2 1 1

Coolant pipe Hose Coolant pipe Bracket Hexagon screw Spring washer Clamp Flange screw Flange nut Hose Hose Hose Hose clamp Coolant pipe Coolant pipe Hose Flange screw oil cooler connection Bracket Clamp Flange screw Hexagon screw connection V-belt, drive belt kit

(856263) (856314) 946440 955526 967191

7745660- 260- 54155838 740A, BB740A

NOTES

Installed on the inlet manifold.

54155840 54155840

54155839

54155839 54155839 54155839 54155839 L=2X70mm

L=100mm L=1X100mm 54155839

L=100mm See group 2A See group 2A

See group 2A See group 3 44634

Upd:7/18/2022

Cooling System with Heat Exchanger

260

740A, BB740A REF PART NO. QTY 59 60 61

(856223) (856224)

SEE SEC.

1 Coolant pipe 1 Coolant pipe 2 exhaust manifold

7745660- 260- 54155838 740A, BB740A

DESCRIPTION

NOTES L=2x1250mm See group 4A See group 4A

54155843

44634

Upd:7/18/2022

260

Cooling System without Heat Exchanger

740A, BB740A

Upd:7/18/2022

44633

7745660 -260 -54155837 740A, BB740A

Cooling System without Heat Exchanger

260

740A, BB740A REF PART NO. QTY 1 856609 1 Water pump components 2 856610 2 Gasket 3 955536 4 Hexagon screw 4 856611 1 Hose 5 (856612) 2 Hose attachment 6 961666 2 Hose clamp 7 (855283) 1 Pulley 8 955656 4 Hexagon screw 9 941907 4 Spring washer 10 856513 1 Seawater pump 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 26A 26B 27 28 29 30 31 32 33 34 35 36 37 38 38A 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

956594 942336 856155 940116 941909 826422 955523 960141 941907 (855993) 876305 416033 835417 856262 961671 (856310) 943717 946440 940115 942336 (856222) 952973 856268 (858587) 940133 942336 943717 946544 945407 952973 856306 961669 (855987) (855986) 952973 858986 842913 965175

54 55 56

(856223) (856224)

(856263) (856314) 946440 955526 967191

3 3 1 2 2 1 1 1 1 1 1 1 1 1 2 1 1 1 2 2 1 X 1 1 1 1 2 2 2 X 1 18 1 1 X 2 2 4 1 1 1 1 1 2 1 1

SEE SEC.

NOTES

54155846 54155846

Hex. socket screw Spring washer Bracket Hexagon screw Spring washer Rubber bushing Hexagon screw Washer Spring washer Housing Thermostat kit Sealing ring Gasket Hose Hose clamp Coolant pipe Clamp Flange screw Hexagon screw Spring washer Coolant pipe Hose Coolant pipe Bracket Hexagon screw Spring washer Clamp Flange screw Flange nut Hose Hose Hose clamp Coolant pipe Coolant pipe Hose Sealing ring Sealing ring Flange screw oil cooler connection Bracket Clamp Flange screw Hexagon screw connection V-belt, drive belt kit

62°C

See group 3

L=2X70mm

L=100mm

L=100mm

See group 2A See group 2A

See group 2A See group 3 L=2x1275mm See group 4A See group 4A

1 Coolant pipe 1 Coolant pipe 2 exhaust manifold

7745660- 260- 54155837 740A, BB740A

DESCRIPTION

54155841

44633

Upd:7/18/2022

Exhaust Manifold for Cooling System with Heat Exchanger

260 740A, BB740A

21

18 17 19

20

14

15

16

16

2

4 3

9

13 12

10

11

1

6

5 8 7

Upd:7/18/2022

44630

7745660 -260 -54155843 740A, BB740A

Exhaust Manifold for Cooling System with Heat Exchanger

260

740A, BB740A REF PART NO. QTY 1 856904 2 Exhaust manifold 2 859002 8 Gasket 3 965175 16 Flange screw 4 844093 8 Flange 5 192134 2 Plug 6 855972 2 Gasket 7 955536 16 Hexagon screw 8 942336 16 Spring washer 9 856910 2 Exhaust riser 10 859002 2 Gasket 11 965175 4 Flange screw 12 844093 2 Flange 13 855997 2 Gasket 14 970888 4 Hexagon screw 15 970891 4 Hexagon screw 16 840210 8 Washer 17 (856911) 2 Exhaust outlet 18 856429 2 Gasket 19 953067 8 Stud 20 971095 8 Flange nut 21 1 muffler

7745660- 260- 54155843 740A, BB740A

DESCRIPTION

NOTES

(856639)

(970887)

(856435)

See group 9

44630

Upd:7/18/2022

Exhaust Manifold for Cooling System without Heat Exchanger: 740A/MS5

260 740A, BB740A

21

18 17 19

20

14

15

16

16

2

4 3

9

13 12

10

11

1

6

5 8 7

Upd:7/18/2022

44626

7745660 -260 -54155841 740A, BB740A

Exhaust Manifold for Cooling System without Heat Exchanger: 740A/MS5

260

740A, BB740A REF PART NO. QTY 1 856904 2 Exhaust manifold 2 859002 8 Gasket 3 965175 16 Flange screw 4 844093 8 Flange 5 192134 2 Plug 6 855972 2 Gasket 7 955536 16 Hexagon screw 8 942336 16 Spring washer 9 856910 2 Exhaust riser 10 859002 2 Gasket 11 965175 4 Flange screw 12 844093 2 Flange 13 855998 2 Gasket 14 970888 4 Hexagon screw 15 970891 4 Hexagon screw 16 840210 8 Washer 17 (856911) 2 Exhaust outlet 18 856429 2 Gasket 19 953067 8 Stud 20 971095 8 Flange nut 21 1 muffler

7745660- 260- 54155841 740A, BB740A

DESCRIPTION

NOTES

(856639)

(970887)

(856435)

See group 9

44626

Upd:7/18/2022

260

Heat Exchanger and Installation Components

740A, BB740A

Upd:7/18/2022

44632

7745660 -260 -54155839 740A, BB740A

Heat Exchanger and Installation Components

260

740A, BB740A REF PART NO. QTY 1 (856675) 1 Heat exchanger 2 841912 2 Gasket 3 925054 2 O-ring 4 841911 2 Cap 5 (841068) 2 Bolt 6 (841917) 1 Pressure cap 7 (856661) 1 Bracket 8 (856662) 1 Bracket 9 853012 2 Hose clamp 10 940116 1 Hexagon screw 11 941909 1 Spring washer 12 940115 1 Hexagon screw 13 942336 1 Spring washer 14 955536 2 Hexagon screw 15 942336 2 Spring washer 16 (856227) 1 Hose 17 961671 2 Hose clamp 18 (856311) 1 Coolant pipe 19 943717 1 Clamp 20 946440 1 Flange screw 21 944386 X Rubber hose 22 969149 X Rubber hose 23 853548 6 Hose clamp 24 855984 2 Coolant pipe 25 842913 2 Sealing ring 26 965175 4 Flange screw 27 (856529) 1 Hose 28 943479 2 Hose clamp 29 856306 1 Hose 30 961669 2 Hose clamp 31 (856224) 1 Coolant pipe

7745660- 260- 54155839 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

See group 2C See group 2C See group 2C See group 2C See group 3 See group 3

See group 3 L=2X100mm L=100mm 54155838

54155838 54155838 54155838 54155838 See group 4A

44632

Upd:7/18/2022

Inlet Manifold

260 740A, BB740A

4

9

7

8

2 3

5

1

5

7

6

Upd:7/18/2022

44631

7745660 -260 -54155844 740A, BB740A

Inlet Manifold

260

740A, BB740A REF PART NO. QTY 1 856613 1 Inlet pipe 2 945767 14 Flange screw 3 941907 14 Spring washer 4 (856615) 2 Bolt 5 (856616) 1 Gasket 6 841261 X Sealant 7 952077 2 Plug 8 835630 1 Temperature sensor 9 1 lift eye

7745660- 260- 54155844 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

For the front lift eye.

See group 9 54155838 See group 3

44631

Upd:7/18/2022

Sea Water Pump

26

1

7

6

2 14

11

8 9 4

12

3

5

10 13

Upd:7/18/2022

45128

7745660 -26 -54155845 740A, BB740A

Sea Water Pump

REF PART NO. QTY 1 855722 1 Seawater pump 2 1 housing 3 855724 1 Cap 4 855728 6 Screw 5 1 shaft and bearing housing 6 834792 1 Cam 7 801566 1 Screw 8 876120 1 Impeller kit 9 6611452 1 Gasket 10 181355 1 Ball bearing 11 806917 1 Rubber washer 12 804781 1 Sealing washer 13 (945497) 1 Snap ring 14 809441 1 Seal

7745660- 26- 54155845 740A, BB740A

26 DESCRIPTION

45128

Upd:7/18/2022

Sea Water Pump

26

1

7

6

2 14

11

8 9 4

12

3

5

10 13

Upd:7/18/2022

45128

7745660 -26 -54155846 740A, BB740A

Sea Water Pump

REF PART NO. QTY 1 856513 1 Seawater pump 2 1 housing 3 855724 1 Cap 4 855728 6 Screw 5 1 shaft and bearing housing 6 (856531) 1 Cam 7 (808285) 1 Screw 8 876120 1 Impeller kit 9 6611452 1 Gasket 10 181355 1 Ball bearing 11 806917 1 Rubber washer 12 804781 1 Sealing washer 13 (945497) 1 Snap ring 14 809441 1 Seal

7745660- 26- 54155846 740A, BB740A

26 DESCRIPTION

45128

Upd:7/18/2022

Thermostat Housing for Cooling System with Heat Exchanger

260 740A, BB740A

10 9

13 12

8

7

5

1 6

4

3

11

2

Upd:7/18/2022

44567

7745660 -260 -54155840 740A, BB740A

Thermostat Housing for Cooling System with Heat Exchanger

260

740A, BB740A REF PART NO. QTY 1 1 thermostat housing 2 856172 1 Thermostat housing 3 856321 1 Gasket 4 856173 1 Thermostat housing 5 875788 1 Thermostat kit 6 416033 1 Sealing ring 7 835417 1 Gasket 8 855991 1 Housing 9 965181 1 Flange screw 10 946671 1 Flange screw 11 950542 2 Pin 12 957171 1 Gasket 13 (960627) 1 Plug

DESCRIPTION

7745660- 260- 54155840

44567

740A, BB740A

NOTES

70°C

L=70mm L=30mm

Upd:7/18/2022

Engine Speed Control

270 740A, BB740A

Upd:7/18/2022

44557

7745660 -270 -54155850 740A, BB740A

Engine Speed Control

270

740A, BB740A REF PART NO. QTY DESCRIPTION 1 X engine speed control 2 856479 1 Bracket (856856) 1 Bracket 3 X control cable 4 (804274) 1 Tension spring 5 (856770) 1 Intermediate lever (856839) 1 Intermediate lever 6 955844 2 Hexagon nut

7745660- 270- 54155850 740A, BB740A

NOTES See group 9 Replaced by bracket 856856 + lever 856839., SN-4100124255 SN 4100124256See group 9 SN-4100124255 SN 4100124256-

44557

Upd:7/18/2022

Alternator

30

21

1

2

3

6

6 7 5

4

10

9 15 16

18

17

14 11 8

19 20

12 13

Upd:7/18/2022

45669

7745660 -30 -54155855 740A, BB740A

Alternator

30

REF PART NO. QTY DESCRIPTION 1 858838 1 Alternator 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21

(840625) 840626 1696944 (840629) 864351 (840631) 858840

1 1 1 1 1 1 1 1 1 1 1 1 1 1

(859312) 840632 (859312) 955779 965483 945407 941904 840634

6 1 2 1 2 1 1 1

(859421) 6212688 840621 860432

7745660- 30- 54155855 740A, BB740A

rotor Stator Mounting kit Fan housing Ball bearing housing Mounting kit Screw kit Diode bridge Bearing race Ball bearing Protecting casing Governor, governor with brush holder Screw Brush retainer Screw Hexagon nut Flange nut Flange nut Spring washer Guide

NOTES For 12 voltage electric system., Also available as an exchange part., 14V 50A

(848402)

(859419)

(M4) w (M5) d+, B(M6) b+ (For M4) w

45669

Upd:7/18/2022

300

Alternator with Installation Components

740A, BB740A

Upd:7/18/2022

44553

7745660 -300 -54155853 740A, BB740A

Alternator with Installation Components

300

740A, BB740A REF PART NO. QTY 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

DESCRIPTION

858838

1 Alternator

(856150) 955536 942336 955700 (856225) 847956 (856151) 946173 466735 955298 941907 856220 955781 941906 955780 941905 967191 858968

1 2 2 1 1 1 1 2 1 1 1 1 2 2 1 1 1 1

7745660- 300- 54155853 740A, BB740A

Bracket Hexagon screw Spring washer Hexagon screw Bracket Tensioner Tensioning arm Flange screw Tensioner Hexagon screw Spring washer Pulley Hexagon nut Spring washer Hexagon nut Spring washer V-belt Junction block

SEE SEC. NOTES 54155855 54155855 54155855 54155855 For 12 voltage electric system., Also available as an exchange part.

54155855 L=45mm L=83mm

L=2x1250mm

44553

Upd:7/18/2022

Cables and Terminals

300 740A, BB740A

Upd:7/18/2022

44197

7745660 -300 -54155860 740A, BB740A

Cables and Terminals

300

740A, BB740A REF PART NO. QTY DESCRIPTION 1 (964131) X Electric cable, cable

2

3

(964132)

X Electric cable, cable

(964135)

X Electric cable, cable

(964136)

X Electric cable, cable

954443 954444 954445 (965754) (954446) (954447) (954448) (954449) (954450) (961792)

X X X X X X X X X X

(961795)

X Electric cable, cable

(961794)

X Electric cable, cable

(961798)

X Electric cable, cable

(961800)

X Electric cable, cable

(964142)

X Electric cable, cable

954451 (954452) (954453) (954455) (954456) (954458) 954461 (954464) (954465) (954463) 954467 954469 (954471) 954485 (954500) 954502 862989 862991 (863657) (842092) 846273 (842093) (843084) 846639 842091 844578 (842090) (843085) (846345) 846346 (185501) (949988) (185506) (185507)

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

7745660- 300- 54155860 740A, BB740A

NOTES Ivory/black RK 0,75mm² Ivory/red RK 0,75mm² Green/black RK 0,75mm² Green/red RK 1,5mm², black RK 1,5mm², brown RK 1,5mm², red RK 1,5mm², purple RK 1,5mm², yellow RK 1,5mm², green RK 1,5mm², blue RK 1,5mm², grey RK 1,5mm², ivory RK 1,5mm² Ivory/black RK 1,5mm² Ivory/blue RK 1,5mm² Ivory/green RK 1,5mm² Green/blue RK 1,5mm² Blue/yellow RK 1,5mm² Green/yellow RK 2,5mm², black RK 2,5mm², brown RK 2,5mm², red RK 2,5mm², green RK 2,5mm², blue RK 2,5mm², ivory RK 4mm², red RK 4mm², blue RK 4mm², grey RK 4mm², green RK 6mm², black RK 6mm², red RK 6mm², green RK 16mm², red RK 25mm², red RK 35mm², red 2X1,5mm² class 19X1,5mm² class Armoured, 2X1,5mm² class 3X1,5mm² class 4X1,5mm² class 7X1,5mm² class 12X1,5mm² class 16X1,5mm² class 2X2,5mm² class 4X2,5mm² class 3X6mm² class 3X16mm² class 2X6+2X1,5mm² class 2X16+2X1,5mm² class D=9mm, i.d=8mm D=11,5mm, i.d=8mm D=6mm, i.d=5mm D=11mm, i.d=10mm

Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable, cable

Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Electric cable Cable Cable Cable Cable Cable Cable Cable Electric cable Cable Cable Cable Cable Cable Cable Hose Hose Hose Hose 44197

Upd:7/18/2022

Cables and Terminals

300

740A, BB740A REF PART NO. QTY (185509) X Outer casing 4 (899751) X Cable mark 5 948210 X Cable tie (335146) X Cable tie 6 942659 X Terminal block 942660 X Terminal block (942558) X Terminal block (942661) X Terminal block (942662) X Terminal block 7 182010 X Coupling piece 190128 X Coupling piece (926219) X Coupling piece

8

9

10 11

12

13 14 15 16

17

18 19 20

(941412) (956924) 956927 956928 (881516) (881519) (949591) 881492 881506 881493 881495 881512

X X X X X X X X X X X X

Coupling piece Terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal

940331 940335 881508 881496

X X X X

Terminal Terminal Terminal Terminal

881494 (881497) 940333 881502 940336 881498 940337 (11426) 949404 949210 881483 881484 (949204) 881485 881486 853015 941730 881491

Terminal Terminal Terminal Terminal Terminal Terminal Terminal Cable terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal Cable terminal Terminal Terminal

881489 (881511) (881509) (881505) (943799) 881487 881488 881518 839328 (941449) (941090)

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

944485

X Terminal, flat pin

7745660- 300- 54155860 740A, BB740A

DESCRIPTION

NOTES D=19mm, i.d=15mm For ground wire, For cable area 1-2,5mm² Nylon Al 4-way.

6-Way 8-way.

10-WAY. 12-way.

2-way., Max 15mm² 5-way., Max 15mm² 6-Way, (182008) Max 20mm² 3-way., Max 20mm² For cable area 0,5-1,5 mm², I.d=3,7mm D=5,6mm For cable area 1,5-2,5mm²., I.d=3,7mm D=17mm For cable area 1,5-2,5mm²., I.d=4,3mm D=18mm For cable area 0,5-1,5 mm², I.d=3,5mm D=5,5mm For cable area 2,7-6,6mm², I.d=3,7mm D=7,1mm For cable area 6,5-10,5mm²., I.d=4,3mm D=8mm For cable area 0,75-2,0mm²., I.d=4,3mm D=8,7mm For cable area 3,0-6,0mm²., I.d=4,3mm D=9,5mm For cable area 1,5-2,5mm²., I.d=5,2mm D=8,7mm For cable area 3,0-6,0mm²., I.d=5,2mm D=9,5mm For cable area 10,5-16,5mm², (958235) I.d=5,2mm D=15,9 For cable area 6,1-10mm², I.d=5,3mm D=10mm For cable area 16mm², I.d=6,5mm D=16mm For cable area 1,5-2,5mm²., I.d=6,7mm D=11,9mm For cable area 3,0-6,0mm²., I.d=6,7mm D=12,7mm I.d=6,7mm D=15,9mm For cable area 1,5-2,5mm²., I.d=8,3mm D=11,9mm For cable area 3,0-6,0mm²., I.d=8,3mm D=12,7mm For cable area 6,5-10,5mm²., I.d=8,3mm D=15,1mm For cable area 10,5-16,0mm²., I.d=8,3mm D=15,9mm For cable area 16mm², I.d=8,4mm D=14mm For cable area 3,0-6,0mm²., I.d=10,5mm D=15,4mm For cable area 10,5-16,0mm²., I.d=10,5mm D=15,9mm For cable area 0,75-2,5mm², I.d=4,5mm D=8mm For cable area 1-2,5mm², L=6,4mm b=5,6mm For cable area 0,75-1mm², L=7,4mm b=6,5mm For cable area 1,5-2,5mm²., L=7,7mm b=7,6mm For cable area 3,0-6,0mm²., L=7,7mm b=7,6mm For cable area 1-2,5mm², L=7,7mm b=7,4mm For cable area 1,5-2,5mm²., L=7,7mm b=7,6mm For cable area 3,0-6,0mm²., L=7,7mm b=7,6mm For trim instrument.

For cable area 1,5-2,5mm²., L=7,7mm b=6,4mm For cable area 1,5-2,5mm²., L=7,7mm b=7,6mm For cable area 0,5-1,5 mm², L=6,2mm b=5,6mm For cable area 1-2,5mm², L=7,6mm b=7,6mm For cable area 3,0-6,0mm²., I.d=4,4mm D=8mm For cable area 1,5-2,5mm²., I.d=4,4mm D=9,8mm For cable area 1,5-2,5mm²., I.d=5,2mm D=8,7mm For cable area 16mm²., L=8mm b=6,3mm For cable area 1,5-2,5mm²., L=15,7mm b=6,3mm For cable area 3,0-6,0mm²., L=15,7mm b=6,3mm For cable area 1,5-2,5mm²., L=10mm b=6,3mm L=16,3mm b=6,3mm I.d=3,7mm b=6,3mm 9 I.d=4,1mm b=6,3mm Straight I.d=5,2mm b=6,3mm

Terminal Terminal Terminal Terminal Terminal Terminal Terminal Terminal Tab Terminal Terminal, flat pin

44197

Upd:7/18/2022

Cables and Terminals

300

740A, BB740A REF PART NO. QTY

DESCRIPTION

21 22

942888 829311 942429 847041

X X X X

23

849959 847040

X Terminal X Terminal, pin

24

849958 948291

X Terminal X Terminal

965824 844280 954505 954506 (956956) 956958 956960 944221 858283 949371 944306 940336

X Terminal X Clip X Terminal Terminal X Splice X Splice X Splice X Housing X Tape X Terminal X Connector X Terminal

25 26 27

28 29 30 31 32

7745660- 300- 54155860 740A, BB740A

NOTES Straight I.d=5,2mm b=6,3mm45 I.d=5,2mm b=6,35mm4 For cable area 1,5-2,5mm²., I.d=1,8mm L=14,4mm For 846612 Repl by 849959 For 846612 For 846647 Repl by 849958 For 846647 For cable area 2,5-4,5mm², D=3,56mm L=12,5mm Repl by 965824 For 1608765 L=61mm Marked Marked + For cable area 0,5-1,5 mm², L=26mm For cable area 1,5-2,5mm²., L=26mm For cable area 3,0-6,0mm²., L=28mm For 881489

Terminal Terminal Terminal Terminal, Sleeve

For 1598753 For cable area 16mm²., I.d=8,4mm D=14mm

44197

Upd:7/18/2022

Distributor

30

1 2

3

4

5

Upd:7/18/2022

46869

7745660 -30 -54155854 740A, BB740A

Distributor

REF PART NO. QTY 1 (855932) 1 Distributor 2 841070 1 Cover 3 855845 1 Rotor 4 855910 1 Sensor 5 841295 1 Overhaul kit

7745660- 30- 54155854 740A, BB740A

30 DESCRIPTION

46869

Upd:7/18/2022

Electrical Equipment and Instruments

300 740A, BB740A

4

17

1

5

7

23

16

19

24

20

18

8 9 8 9 39B

23

21

25

6 3

2

15 15A 14

12

13 22

38

35

45

42 44

34

47

41

46

36

31

37

37 40

26A

28

29 43

30 26

25

33

32

39 27

10

Upd:7/18/2022

11

44555

7745660 -300 -54155852 740A, BB740A

Electrical Equipment and Instruments

300

740A, BB740A REF PART NO. QTY DESCRIPTION 1 855334 1 Starter motor components not spec.

2 940134 2 Hexagon screw 3 941909 2 Spring washer 4 855798 1 Protecting sleeve 5 855330 1 Spacer nut 6 948210 2 Cable tie 7 970943 1 Hexagon screw 8 955780 2 Hexagon nut 9 941905 2 Spring washer 10 1 alternator with installation components

SEE SEC.

NOTES Also available as an exchange part.

54155853 54155853 54155853

11 12

834784 (855932)

1 Resistor 1 Distributor

13 14 15 15A 16 17 18 19 20 21 22 23

835154 841530 940114 942336

1 1 1 1 1 4 1 1 1 1 2 X

Gasket Retainer Hexagon screw Spring washer bracket Flange screw Flange screw Attaching clamp Screw Ignition coil Spark plug kit Ignition cable

(856881) 856882 (856673)

2 1 1 X X 1

Retainer Cable trunk extension Extension cable Extension cable Instrument panel

(856672)

1 Instrument panel

28 29 30 31 32 33 34 35 36 37 38 39 39B 40 41 42 43 44

946934 945407 942810 841177 834920 809109 835630 (856327) 856337 950013 841890 841599 948210 856317 (856524) 965175 946440 (852049)

4 4 2 1 1 1 1 1 2 6 1 1 X 1 1 4 4 1

45 46 47

(853220) (956052) 955890

24 25 26 26A 26 27

946440 942624 (856440) (834371) 855706 876047 856771 (835429) (856336)

Flange screw Flange nut Clamp Relay Oil pressure sensor Elbow nipple Temperature sensor Nipple Automatic fuse Cross recessed screw Switch Pressure monitor Cable tie Distribution box Cap Flange screw Flange screw Cable trunk cables and terminals 1 Washer 2 Cross recessed screw 2 Washer

7745660- 300- 54155852 740A, BB740A

54155854 54155854

See group 2D

All ignition cables partno 856771 which are 1000mm and should be cut off in suitable lengths., L=1000mm

54155857 54155857 54155857 54155857

L=3000mm L=6000mm Eur USA

50A

54155860 54155860

44555

Upd:7/18/2022

Electrical Equipment and Instruments

300 740A, BB740A

9A 9F 9C

17

9D 9E

19

9

39B 5 7

2

23

21

25

4 3

24

20

18 8

1

23

16

9B

6 15 15A 14

12

13 22

38

35

42 44 34

41 36 37

31

37 40

26A

28

30

29 43 26

25

33

10

Upd:7/18/2022

32

39

27

11

44554

7745660 -300 -54155851 740A, BB740A

Electrical Equipment and Instruments

300

740A, BB740A REF PART NO. QTY DESCRIPTION 1 855326 1 Starter motor 2 3 4 5 6 7 8 9 9A 9B 9C 9D 9E 9F 10

835424 835425 942336 (856432) 955825 941906 940113 941907 855330 970943 940109 941905 955780 855798

2 2 1 1 2 1 2 2 1 1 1 2 2 1 1

Screw Screw Spring washer Anchorage Hexagon nut Spring washer Hexagon screw Spring washer Spacer nut Hexagon screw Toothed washer Spring washer Hexagon nut Protecting sleeve alternator with installation components

SEE SEC. NOTES 54155856 Also available as an exchange part.

54155856

54155853 54155853 54155853

11 12

834784 (855932)

1 Resistor 1 Distributor

13 14 15 15A 16 17 18 19 20 21 22 23

835154 841530 940114 942336 856479 946440 942624 (856440) (834371) 855706 876047 856771

1 1 1 1 1 4 1 1 1 1 2 X

Gasket Retainer Hexagon screw Spring washer Bracket Flange screw Flange screw Attaching clamp Screw Ignition coil Spark plug kit Ignition cable

24 25 26 26A 26 27

(835429) (856336) (856881) 856882 (856673)

2 1 1 X X 1

Retainer Cable trunk extension Extension cable Extension cable Instrument panel

(856672)

1 Instrument panel

946934 945407 942810 841177 834920 809109 835630 (856327) 856337 950013 841890 841599 948210 856317 (856524) 965175 946440 (856424)

4 4 2 1 1 1 1 1 2 6 1 1 X 1 1 4 4 1

28 29 30 31 32 33 34 35 36 37 38 39 39B 40 41 42 43 44

7745660- 300- 54155851 740A, BB740A

54155854 54155854

See group 2D

All ignition cables partno 856771 which are 1000mm and should be cut off in suitable lengths., L=1000mm

54155857 54155857 54155857 54155857

Flange screw Flange nut Clamp Relay Oil pressure sensor Elbow nipple Temperature sensor Nipple Automatic fuse Cross recessed screw Switch Pressure monitor Cable tie Distribution box Cap Flange screw Flange screw Overspeed protection

L=3000mm L=6000mm Eur USA

50A

To be attached in the engine room.

44554

Upd:7/18/2022

Electrical Materials

300 740A, BB740A

Upd:7/18/2022

44195

7745660 -300 -54155861 740A, BB740A

Electrical Materials

300

740A, BB740A REF PART NO. QTY 1 959046 X Housing 2 (855281) X Protecting sleeve, rubber cap

947848

X X X X X X X X X X X X X X X

(949181)

X Receptacle housing, receptacle housing

958208

X Housing, receptacle housing

949597

X Housing

943511

X Housing, protecting sleeve

13 14 15

1578937 958210 945469 (963374)

X X X X

Housing Housing Housing Housing, receptacle housing

16 17 18 19 20 21 22 23 24

(948854) 1214948 958213 958212 (941104) (941105) 945830 945831 944077 (853014) 948294

X X X X X X X X X X X

Receptacle housing Housing Housing Housing Housing Housing Socket housing Tab housing Housing Receptacle housing Housing, insulator

25 26 27 28 29 30 31 32 33 34 35 36 37

948995 846615 846612 846613 846647 846613 1608765 1608766 1598753 1307048 1307049 846611 (853498)

X X X X X X X X X X X X

Housing Sealing ring Housing Unloading cable Block Unloading cable Insulator Seal Insulator Housing Housing Housing Anode kit, insulator

3 4 5 6 7 8 9 10 11 12

829200 76614 673580 941269 821053 (823759) (1576005) (1573077) (831966) (844278) (844279) 847005 847005

DESCRIPTION

7745660- 300- 54155861 740A, BB740A

NOTES (841234) D=16mm D=14mm D=16mm D=6mm

Protective cap Protective cap Terminal cover Plug Protecting bushing Rubber bushing Rubber cover Casing Protective cap Insulation Insulation Sealing collar Sealing collar Housing Housing, receptacle housing

D=25mm D=35mm

L=88mm b=32,5mm Black, for (844280) Red, for (844280) L=4,6mm D=3,0mm L=100mm D=20mm 1-way., For958208 1-way., L=20mm H=6mm B=7,8mm 1-way., L=24mm H=7mm B=10,2mm 1-way., For958207 L=24mm H=8,2mm b= 1-way., L=24,5mm H=6,1mm B=8,8mm 1-way., L=24mm H=7,4mm, B=10mm 2-way 2-way 3-way., L=23mm 3-way., L=24mm For881485 3-way.

5-way.

4-way.

4-way.

8-way.

8-way.

11-way.

11-way.

8-way.

For trim instrument., 9-pole 9-pol Incl.in 853032 2-way.

16-way 16-way For 965824 For 1608765 For 949371

3-pol Incl.in 853032

44195

Upd:7/18/2022

Instrument Panel

30

1 12

14

13

18

17 6

6A 6B

5 5A 5B 8

3A 3B 3 2

15

4A

16

4B

7A 7B

10 11 9

4 7

Upd:7/18/2022

44192

7745660 -30 -54155857 740A, BB740A

Instrument Panel

30

REF PART NO. QTY DESCRIPTION 1 (856672) 1 Instrument panel 2 (856530) 1 Instrument plate 3 (835655) 1 Oil pressure gauge 3A 841954 1 Bulb socket 3B 942571 1 Bulb 4 (835654) 1 Thermometer 4A 841954 1 Bulb socket 4B 942571 1 Bulb 5 841938 1 Tachometer 5A (841955) 1 Bulb socket 5B 182055 1 Bulb 6 835656 1 Voltmeter 6A 841954 1 Bulb socket 6B 942571 1 Bulb 7 (841250) 1 Fuel gauge 7A (841994) 1 Overhaul kit 7B 942571 1 Bulb 8 856659 1 Starter switch 9 (3814511) 2 Key 10 1 nut 11 1 front nut 12 841073 2 Fuse holder 13 (841518) 2 Fuse 14 (875819) 1 Switch 15 843002 1 Nut 16 (837726) 1 Knob 17 (944540) 4 Screw 18 X cables and cable terminals

7745660- 30- 54155857 740A, BB740A

SEE SEC.

NOTES

(192451)

(192451)

(192451)

State key code when ordering

54155860 54155860

44192

Upd:7/18/2022

Instrument Panel

30

1 12

14

18

13 17 6

6A 6B

5 5A 5B

8

3A 3B 3 2

4A

15 4B

16

10 7 11 9

4

Upd:7/18/2022

44198

7745660 -30 -54155859 740A, BB740A

Instrument Panel

REF PART NO. QTY 1 (856671) 1 Instrument panel 2 (841075) 1 Instrument plate 3 (835655) 1 Oil pressure gauge 3A 841954 1 Bulb socket 3B 942571 1 Bulb 4 (835654) 1 Thermometer 4A 841954 1 Bulb socket 4B 942571 1 Bulb 5 841938 1 Tachometer 5A (841955) 1 Bulb socket 5B 182055 1 Bulb 6 835656 1 Voltmeter 6A 841954 1 Bulb socket 6B 942571 1 Bulb 7 (856348) 1 Cap 8 856659 1 Starter switch 9 (3814511) 2 Key 10 1 nut 11 1 front nut 12 841073 2 Fuse holder 13 (841518) 2 Fuse 14 (875819) 1 Switch 15 843002 1 Nut 16 (837726) 1 Knob 17 (944540) 4 Screw 18 X cables and terminals

7745660- 30- 54155859 740A, BB740A

30 DESCRIPTION

SEE SEC.

NOTES

(192451)

(192451)

(192451)

State key code when ordering

54155860

44198

Upd:7/18/2022

Instrument Panel

30

1 12

14

18

13 17 6

6A 6B

5 5A 5B

8

3A 3B 3 2

4A

15 4B

16

10 7 11 9

4

Upd:7/18/2022

44198

7745660 -30 -54155858 740A, BB740A

Instrument Panel

REF PART NO. QTY 1 (856673) 1 Instrument panel 2 (841075) 1 Instrument plate 3 (835655) 1 Oil pressure gauge 3A 841954 1 Bulb socket 3B 942571 1 Bulb 4 (835654) 1 Thermometer 4A 841954 1 Bulb socket 4B 942571 1 Bulb 5 841938 1 Tachometer 5A (841955) 1 Bulb socket 5B 182055 1 Bulb 6 835656 1 Voltmeter 6A 841954 1 Bulb socket 6B 942571 1 Bulb 7 (856348) 1 Cap 8 856659 1 Starter switch 9 (3814511) 2 Key 10 1 nut 11 1 front nut 12 841073 2 Fuse holder 13 (841518) 2 Fuse 14 (875819) 1 Switch 15 843002 1 Nut 16 (837726) 1 Knob 17 (944540) 4 Screw 18 X cables and terminals

7745660- 30- 54155858 740A, BB740A

30 DESCRIPTION

SEE SEC.

NOTES

(192451)

(192451)

(192451)

State key code when ordering

54155860

44198

Upd:7/18/2022

Starter Motor

30

15

14

9 7 6A

10

10

6

8

2

1 11

5 13 12

3

4

Upd:7/18/2022

44193

7745660 -30 -54155856 740A, BB740A

Starter Motor

REF PART NO. QTY 1 855326 1 Starter motor 2 1 housing 3 855361 1 Starter pinion 4 1 rotor 5 1 bearing 6 872979 1 Solenoid 6A 855359 1 Spring 7 826032 2 Spring 8 (818948) 2 Carbon brush 9 818720 2 Carbon holder kit 10 818718 2 Carbon holder 11 1 cover 12 1 nut 13 1 washer 14 2 washer 15 2 screw

7745660- 30- 54155856 740A, BB740A

30 DESCRIPTION

44193

NOTES Also available as an exchange part.

Upd:7/18/2022

Connecting Components Reverse Gear MS5A, MS5B

44

5

6 7 8

4

8

6 7

3 2 1 9

Upd:7/18/2022

44543

7745660 -44 -54155870 740A, BB740A

Connecting Components Reverse Gear MS5A, MS5B

REF PART NO. QTY 1 854905 1 Transmission components 854906 1 Transmission components 854907 1 Transmission components 2 940160 6 Hexagon screw 3 941909 6 Spring washer 4 (856223) 1 Coolant pipe 5 (856224) 1 Coolant pipe 6 854184 2 Flange 7 925062 2 O-ring 8 942001 4 Hex. socket screw 9 946544 X Flange screw

7745660- 44- 54155870 740A, BB740A

DESCRIPTION

44 NOTES Ratio 1,55:1 See group 4B Ratio 1.94:1 See group 4B Ratio 2.40:1

See group 9

44543

Upd:7/18/2022

Connecting Components Reverse Gear MS5A, MS5B

440 740A, BB740A

5

6 7 8

4

8

6 7

3 2 1 9

Upd:7/18/2022

44543

7745660 -440 -54155869 740A, BB740A

Connecting Components Reverse Gear MS5A, MS5B

440

740A, BB740A REF PART NO. QTY 1 853953 1 Reversing gear components 853954 1 Reversing gear components 853955 1 Reversing gear components 2 940160 6 Hexagon screw 3 941909 6 Spring washer 4 (856223) 1 Coolant pipe 5 (856224) 1 Coolant pipe 6 854184 2 Flange 7 925062 2 O-ring 8 942001 4 Hex. socket screw 9 946544 X Flange screw

7745660- 440- 54155869 740A, BB740A

DESCRIPTION

NOTES Ratio 1,55:1 See group 4B Ratio 1.94:1 See group 4B Ratio 2.40:1 See group 4B

See group 9

44543

Upd:7/18/2022

440

Connecting Components with Exhaust Pipe, Drive DP-B, DP-B1

740A, BB740A

Upd:7/18/2022

44544

7745660 -440 -54155865 740A, BB740A

Connecting Components with Exhaust Pipe, Drive DP-B, DP-B1

440

740A, BB740A REF PART NO. QTY DESCRIPTION 1 (876506) 1 Shield 2 853864 1 Bushing 3 853863 1 Bushing 4 853595 6 Stud 5 853706 1 Type plate 6 804269 2 Drive screw 7 854066 1 Steering yoke 8 853048 1 Bushing 9 854063 1 Gear segment 10 853759 1 Screw 11 853760 1 Rivet nut 12 852984 1 Driving wheel 13 966207 1 Sealing ring 14 851430 1 Bushing 15 925050 1 O-ring 16 955991 1 O-ring 17 828726 1 Sensor 18 853039 1 Bracket 19 941907 1 Spring washer 20 940199 1 Hexagon screw 21 948210 1 Cable tie 22 853017 1 Steering arm 23 949368 1 Bushing 24 914169 1 Lubricating nipple 25 959241 1 Hex. socket screw 26 942336 1 Spring washer 27 839195 1 Ring 28 854133 1 Rubber cushion 29 960148 2 Washer 30 971089 2 Lock nut 31 852775 1 Cable attachment 32 941908 2 Spring washer 33 970950 2 Hexagon screw 34 852868 X Sealing strip 35 852866 6 Washer 36 963108 6 Lock nut 37 (852786) 1 Link rod 38 913158 1 Clevis pin 39 853160 1 Lock washer 40 (852788) 1 Bolt 41 (907856) 1 Split pin 42 839091 1 Protecting hose 43 952635 1 Clamp 44 897745 1 Gasket 45 X control cable 46 853175 2 Pivot pin 47 853215 2 Plug 48 963699 2 Hex. socket screw 49 941670 2 Washer 50 852835 1 Zinc electrode, Zinc 3588770 1 Anode kit, Aluminium 3588768 1 Anode kit, Magnesium 51 946541 2 Hex. socket screw 52 (872228) 2 Check valve 53 854315 1 Clamping ring kit 54 804190 2 Rubber ring 55 191844 6 Hexagon screw 56 806624 3 Striker plate 57 872234 1 Pressure hose 58 925064 1 O-ring 59 872338 1 Hose connection 60 955516 2 Hexagon screw 61 955893 2 Washer

SEE SEC.

7745660- 440- 54155865

44544

740A, BB740A

NOTES

L=1750mm

See group 9

For use in Saltwater For use in Salt and Brackish water For use in Freshwater

Upd:7/18/2022

Connecting Components with Exhaust Pipe, Drive DP-B, DP-B1

440

740A, BB740A REF PART NO. QTY DESCRIPTION 62 (857048) 1 Hose 63 961669 2 Hose clamp 64 875847 1 Hose kit 65 853548 1 Hose clamp 66 1 hose connection 67 854610 2 Hydraulic cylinder

68 69 70 71 72

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104

872612 872598 852830 854696 852832 854697 852879 854752 854710 872595 854711 872596 925053 852879 852748 853060 853100 853059 854625 854627 854628 872207 944456 963545 872093 (857028) 925256 970958 960148 872048 853012 875848 961675 841967 941939 942336 914167 853809 958860 11013 914533 914462 181105 852839

1 2 1 1 1 1 2 1 1 1 1 1 4 2 2 2 2 2 1 1 2 1 1 2 1 1 4 4 2 8 1 2 1 6 6 1 1 2 1 3 1 1 2 1

Trimming cylinder ki Cylinder Tube Tube Tube Tube Plug Set Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose O-ring Plug Pin Flange screw Lock nut Washer Set Ground cable Clamp Nipple Hexagon nut Hexagon screw Exhaust pipe Exhaust pipe O-ring Hexagon screw Washer Exhaust hose Hose clamp Bellows kit Hose clamp Flywheel housing Screw Spring washer Lubricating nipple Spindle Sealing ring Ball bearing Snap ring Snap ring Ball bearing Hose hydraulic pump and trim instrument with installation components

SEE SEC.

NOTES Intake-sea water pump

See group 4C Trimming cylinder kit 872612 consists of 2ea 872598 + 854696 + 854697 + 872595 + 872596 + 2ea 852879 + 854627 + 872207 + 2ea 854628 + 944456 + 2ea 872382 + 2ea 963545 + 2ea 925053., Repl by 872612 Included in trimming cylinder kit 872612.

Front Included in trimming cylinder kit 872612., Front Rear Included in trimming cylinder kit 872612., Rear

Front Included in trimming cylinder kit 872612., Front Rear Included in trimming cylinder kit 872612., Rear

See group 9

54155866 54155866 54155866 54155866

105

1 power steering

7745660- 440- 54155865 740A, BB740A

See group 6

44544

Upd:7/18/2022

Connecting Components without Exhaust Pipe, Drive DP-B, DP-B1

440 740A, BB740A

58

29

30 31

78

27

59 76

77 28 17 80 82

15 16

81 79 96

10 46

75 38

35

45

36 37

20

39 19 18

2 21

6

33

12

44

11

66

3

68

13

1

83 88

65

7

8

26 25 24 9

84 87

34

32

14

22

80 4 71

82

5 74 85

73

72

86 23 42 41

68 67

53 55

43

54 52

56 57

40 39A

64

60 62

52 60 51

39B

63

69

70

61 48 89

50

49

51 97 47

90

94 92

49A 91 47

Upd:7/18/2022

93

44542

95

7745660 -440 -54155864 740A, BB740A

Connecting Components without Exhaust Pipe, Drive DP-B, DP-B1

440

740A, BB740A REF PART NO. QTY DESCRIPTION 1 876150 1 Transom shield 2 853864 1 Bushing 3 853863 1 Bushing 4 854066 1 Steering yoke 5 853048 1 Bushing 6 854063 1 Gear segment 7 853759 1 Screw 8 853760 1 Rivet nut 9 (852827) 1 Sign, VP 10 852984 1 Driving wheel 11 853017 1 Steering arm 12 949368 1 Bushing 13 914169 1 Lubricating nipple 14 839195 1 Ring 15 851430 1 Bushing 16 966207 1 Sealing ring 17 925050 1 O-ring 18 959241 1 Hex. socket screw 19 942336 1 Spring washer 20 1 number plate 21 804269 2 Drive screw 22 853982 6 Stud 853595 6 Stud 23 852868 X Sealing strip 24 854133 1 Rubber cushion 25 960148 2 Washer 26 971089 2 Lock nut 27 828726 1 Sensor 28 955991 1 O-ring 29 853039 1 Bracket 30 940199 1 Hexagon screw 31 941907 1 Spring washer 32 852775 1 Cable attachment 33 941908 2 Spring washer 34 970950 2 Hexagon screw 35 (852786) 1 Link rod 36 913158 1 Clevis pin 37 853160 1 Lock washer 38 (852788) 1 Bolt 39 (907856) 1 Split pin 39A 875847 1 Hose kit 39B 853548 1 Hose clamp 40 854555 1 Hose 41 (854487) 1 Coolant pipe 42 940100 2 Hexagon screw 43 941906 2 Spring washer 44 897745 1 Gasket 45 839091 1 Protecting hose 46 952635 1 Clamp 47 853439 2 Hydraulic cylinder 854610 2 Hydraulic cylinder

48 49 49A 50 51

872612 872598 852830 854696 852832 854697 852879 854752 854710

1 2 1 1 1 1 2 1 1

7745660- 440- 54155864 740A, BB740A

SEE SEC.

NOTES

SN-1101591851 Note, SN 1101591652L=1750mm

Repl by 875847

Repl by 854610 Trimming cylinder kit 872612 consists of 2ea 872598 + 854696 + 854697 + 872595 + 872596 + 2ea 852879 + 854627 + 872207 + 2ea 854628 + 944456 + 2ea 872382 + 2ea 963545 + 2ea 925053., Repl by 872612 Shield kit, SN 1101611401 - 1101612600.

Included in trimming cylinder kit 872612.

Front Included in trimming cylinder kit 872612., Front Rear Included in trimming cylinder kit 872612., Rear

Trimming cylinder ki Cylinder Tube Tube Tube Tube Plug Set Hydraulic hose

SN 1101592794Front 44542

Upd:7/18/2022

Connecting Components without Exhaust Pipe, Drive DP-B, DP-B1

440

740A, BB740A REF PART NO. QTY DESCRIPTION 872595 1 Hydraulic hose 854711 1 Hydraulic hose 872596 1 Hydraulic hose 52 925053 4 O-ring 53 852879 2 Plug 54 852748 2 Pin 55 853060 2 Flange screw 56 853100 2 Lock nut 57 853059 2 Washer 58 852839 2 Hose 59 1 hydraulic pump and trim instrument with installation components

SEE SEC.

NOTES Included in trimming cylinder kit 872612., Front Rear Included in trimming cylinder kit 872612., Rear

54155866 54155866 54155866 54155866

60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97

852835 963701 854486 (854489) 961669 852866 963108 854315 804190 191844 806624 853175 853215 963699 941670 841967 942336 941939 914167 853809 958860 11013 914533 914462 181105 (854584) 925260 970945 941908 854031 854625 854627 854628 872207 944456 963545

2 2 2 1 4 6 6 1 2 6 3 2 2 2 2 1 6 6 1 1 2 1 3 1 1 1 1 4 4 1 1 1 2 1 1 2 X X

7745660- 440- 54155864 740A, BB740A

Zinc electrode Hex. socket screw Spacer tube Hose Hose clamp Washer Lock nut Clamping ring kit Rubber ring Hexagon screw Striker plate Pivot pin Plug Hex. socket screw Washer Flywheel housing Spring washer Screw Lubricating nipple Spindle Sealing ring Ball bearing Snap ring Snap ring Ball bearing Seal flange O-ring Hexagon screw Spring washer Hose connection Set Ground cable Clamp Nipple Hexagon nut Hexagon screw control cable power steering

See group 9 See group 6

44542

Upd:7/18/2022

Duoprop Drive Unit

44

Upd:7/18/2022

44216

7745660 -44 -54155883 740A, BB740A

Duoprop Drive Unit

44

REF PART NO. QTY DESCRIPTION 1 (872204) 1 Drive 2 872013 1 Gear, upper gear unit 3 4

1 1

854485

SEE SEC. 54155890 54155890 54155891 54155892 54155892 54155892

interm housing Lower gear, lower gear unit

X gasket kits

7745660- 44- 54155883 740A, BB740A

44216

NOTES Also available as an exchange part., Ratio 1,78:1 Also available as an exchange part., ,

Also available as an exchange part., Ratio 1,78:1 See group 10A

Upd:7/18/2022

Duoprop Drive Unit: 872012

440

Upd:7/18/2022

44216

7745660 -440 -54155882 740A, BB740A

Duoprop Drive Unit: 872012

REF PART NO. QTY DESCRIPTION 1 872012 1 Aquamatic drive 2 872013 1 Gear 3 4

854485

1 1

interm housing Lower gear

X DP-A DP-B1

7745660- 440- 54155882 740A, BB740A

440 SEE SEC. 54155885 54155885 54155887 54155889 54155889 54155889

44216

NOTES Also available as an exchange part., Ratio 1,78:1 Also available as an exchange part.

Also available as an exchange part., , See group 10A

Upd:7/18/2022

Duoprop Drive Unit: 854298

440

Upd:7/18/2022

44216

7745660 -440 -54155881 740A, BB740A

Duoprop Drive Unit: 854298

REF PART NO. QTY DESCRIPTION 1 854298 1 Aquamatic drive 2

854270

1

Upper gear

3 4

854485

1 1

interm housing Lower gear

X DP-A DP-B1

7745660- 440- 54155881 740A, BB740A

440 SEE SEC.

54155884 54155884 54155887 54155889 54155889 54155889

44216

NOTES Also available as an exchange part., Ratio 1,78:1 SN 3102082101Also available as an exchange part., ,

Also available as an exchange part., , See group 10A

Upd:7/18/2022

Exhaust Pipe and Cooling Water Pipe

44

5 13 14

11

15

16

10

12

6

1

17 18 19 2 3

4

8 9 7

Upd:7/18/2022

52997

7745660 -44 -54155874 740A, BB740A

Exhaust Pipe and Cooling Water Pipe

44

REF PART NO. QTY DESCRIPTION 1 1 exhaust pipe 2 4 screw 3 4 washer 4 1 o-ring 5 2 exhaust hose 6 8 hose clamp 7 1 bellow kit 8 2 hose clamp 9 2 rubber bend 10 872334 1 Nipple 11 925064 1 O-ring 12 872338 1 Hose connection 13 955516 2 Hexagon screw 14 955893 2 Washer 15 (857048) 1 Hose 16 961669 2 Hose clamp 17 875847 1 Hose kit 18 853548 1 Hose clamp 19 1 hose connection

7745660- 44- 54155874 740A, BB740A

NOTES Included in exhaust grommet kit 872461., See group 9 Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Included in exhaust grommet kit 872461.

Intake-sea water pump, See group 2B

See group 4C

52997

Upd:7/18/2022

44

Upd:7/18/2022

Flywheel Cover, Primary Shaft and Clamping Ring Kit

52998

7745660 -44 -54155868 740A, BB740A

Flywheel Cover, Primary Shaft and Clamping Ring Kit

REF PART NO. QTY 1 841967 1 Flywheel housing 2 942336 6 Spring washer 3 941939 6 Screw 4 853809 1 Spindle 5 958860 2 Sealing ring 6 11013 1 Ball bearing 7 181105 1 Ball bearing 8 914533 3 Snap ring 9 914462 1 Snap ring 10 854315 1 Clamping ring kit 11 804190 2 Rubber ring 12 191844 6 Hexagon screw 13 806624 3 Striker plate 14 914167 1 Lubricating nipple

7745660- 44- 54155868 740A, BB740A

44

DESCRIPTION

52998

Upd:7/18/2022

Hydraulic Cylinders and Ground Cable Kit

44

2

9

10 8

7 3 6

4 1

5

6 1

17

15

13

16 14

11

Upd:7/18/2022

12

18

45657

7745660 -44 -54155862 740A, BB740A

Hydraulic Cylinders and Ground Cable Kit

REF PART NO. QTY 1 854695 2 Hydraulic cylinder 2 854696 1 Tube 3 854697 1 Tube 4 854700 1 Hydraulic hose 5 854701 1 Hydraulic hose 6 852879 2 Plug 7 872382 2 Spindle 8 925053 2 O-ring 9 853060 2 Flange screw 10 853059 2 Washer 11 872126 2 Clevis pin 12 967707 2 Split pin 13 854625 1 Set 14 854627 1 Ground cable 15 854628 2 Clamp 16 872207 1 Nipple 17 944456 1 Hexagon nut 18 963545 2 Hexagon screw

7745660- 44- 54155862 740A, BB740A

44

DESCRIPTION

SEE SEC.

NOTES

54155863 54155863

See group 4C See group 4C

45657

Upd:7/18/2022

Hydraulic Pump, Trim Instrument and Installation Components

44

25 26

27

32

30

31

35 34

1 29

28

2 33

3 4 14

17

19

20

5 23

24

18

11 13 12

6

15 16

8 9 21 7

22 10

Upd:7/18/2022

53000

7745660 -44 -54155863 740A, BB740A

Hydraulic Pump, Trim Instrument and Installation Components

REF PART NO. QTY 1 872449 1 Hydraulic pump 2 (854525) 1 Electric motor 3 854526 1 Clutch 4 854527 1 O-ring 5 (854528) 1 Valve housing 6 854530 2 Filter 7 (854531) 1 Reservoir 8 854532 1 O-ring 9 854533 1 Cover 10 854534 1 Small parts kit 11 854535 1 Hydraulic pump 12 854536 1 High-pressure unit 13 854537 1 Pressure box 14 854438 1 Bracket 15 970945 2 Hexagon screw 16 941908 2 Spring washer 17 854357 2 Relay 18 948663 2 Flange screw 19 941905 2 Spring washer 20 955780 2 Hexagon nut 21 X cables and terminals 22 948210 1 Cable tie 23 952630 4 Clamp 24 955138 4 Cross recessed screw 25 856813 1 Trimmer 26 858643 1 Front ring 27 (856821) 1 Cable kit 28 1 cable unit 29 X cables and terminals 30 872300 2 Relay 31 949666 X Cable tie 32 853846 1 Control panel 33 853032 1 Cable trunk 948294 X Housing 965822 X Terminal (853498) X Anode kit 853521 X Terminal 34 854700 1 Hydraulic hose 35 854701 1 Hydraulic hose

7745660- 44- 54155863 740A, BB740A

DESCRIPTION

44 SEE SEC.

NOTES

See group 3

For dual station.

See group 3 12V 30A

9-pol 3,5X1X2,5 3-pol For853498 54155862 54155862

53000

Upd:7/18/2022

Hydraulic Pump, Trim Instrument and Installation Components

44

35

23 26

28

29

34

36

32 33 30

27

31

38

39

25

1

24 41

2 37 3 4 40 5

11 20

13

19 6

17

12

18 14

8 9 21

7

16 15 22 10

Upd:7/18/2022

45645

7745660 -44 -54155866 740A, BB740A

Hydraulic Pump, Trim Instrument and Installation Components

REF PART NO. QTY 1 854346 1 Hydraulic pump 2 (854525) 1 Electric motor 3 854526 1 Clutch 4 854527 1 O-ring 5 (854528) 1 Valve housing 6 854530 2 Filter 7 (854531) 1 Reservoir 8 854532 1 O-ring 9 854533 1 Cover 10 854534 1 Small parts kit 11 854535 1 Hydraulic pump 12 854536 1 High-pressure unit 13 854537 1 Pressure box 14 854438 1 Bracket 15 970945 2 Hexagon screw 16 941908 2 Spring washer 17 854357 2 Relay 18 948663 2 Flange screw 19 941905 2 Spring washer 20 955780 2 Hexagon nut 21 X cables and terminals 22 948210 1 Cable tie 23 (853067) 1 Instrument panel 24 1 cable unit 25 X cables and terminals 26 828731 1 Trimmer 27 853866 1 Control panel 28 828647 4 Screw 29 853865 1 Control panel 30 X cables and terminals 31 853545 1 Relay kit 32 828584 1 Toggle switch 33 828586 1 Nut 34 828743 1 Blind nut 35 828742 1 Toggle switch 36 828740 2 Spacer washer 37 853032 1 Cable trunk 948294 X Housing 965822 X Terminal (853498) X Anode kit 853521 X Terminal 38 949666 X Cable tie 39 852839 2 Hose 40 87698 2 Fitting screw 41 954320 2 Fitting nut

7745660- 44- 54155866 740A, BB740A

DESCRIPTION

44 NOTES

See group 3 For dual station.

See group 3

See group 3

9-pol 3,5X1X2,5 3-pol For853498

45645

Upd:7/18/2022

Intermediate Housing

44

Upd:7/18/2022

45658

7745660 -44 -54155891 740A, BB740A

Intermediate Housing

REF PART NO. QTY 1 854937 1 Intermediate housing 2 897829 1 Gear yoke 3 897447 1 Shaft 4 897511 2 Washer 5 17253 1 Split pin 6 872034 1 Fork 7 853062 1 Bearing bushing 8 940194 1 Lubricating nipple 9 183391 1 Needle roller bearin 10 181620 2 Sealing ring 11 814386 1 Steering knuckle 12 897696 2 Washer 13 854031 1 Hose connection 14 814356 1 Seal 15 941813 2 Hex. socket screw 16 853078 1 Cable attachment 17 940168 2 Hexagon screw 18 940191 2 Washer 19 897644 1 Tube 20 125017 2 O-ring 21 804312 1 Cube 22 17276 1 Split pin 23 940191 2 Washer 24 897448 1 Control rod 25 813954 1 Fork 26 940190 1 Hexagon nut 27 17253 2 Split pin 28 192662 1 Split pin 29 925259 1 O-ring 30 941826 X Shim 941827 X Shim 948230 X Shim 31 925256 1 O-ring 32 941820 1 O-ring 33 876507 1 Bushing kit 34 872126 2 Clevis pin 35 967707 2 Split pin 36 941808 2 Hex. socket screw 37 941809 1 Hex. socket screw 38 959456 2 Hex. socket screw 39 853095 2 Washer 40 2 stud 41 941885 2 Lock nut 42 X control cable

7745660- 44- 54155891 740A, BB740A

44 DESCRIPTION

NOTES

TH=0,05mm TH=0.20mm TH=0.35mm

Included in upper gear unit.

See group 9

45658

Upd:7/18/2022

Intermediate Housing: DPB-1

440 18

17

68

30

29 35 26

71 72 28

10

16

25

11

27 67 36

20

65

19

1 42 31 34

40

33

32

41 43

69

22

21

7

6

8 12 9

39 38

5 4

37

40

15

38

24

66

2 60 13

45

53

61

62

3

52

64

55

52

59

54

61

56 47 46

44

49

63

14 64

47 57 58 56 51

48

23

50

70

Upd:7/18/2022

45646

7745660 -440 -54155887 740A, BB740A

Intermediate Housing: DPB-1

REF PART NO. QTY DESCRIPTION 1 854937 1 Intermediate housing 2 897829 1 Gear yoke 3 897447 1 Shaft 4 897511 2 Washer 5 17253 1 Split pin 6 851412 1 Reverse locking rod 7 967556 1 Spring pin 8 854100 1 Suspension fork 9 940194 1 Lubricating nipple 10 852912 2 Bushing 11 853062 1 Bearing bushing 12 X control cable 13 853967 1 Guide washer 14 183391 1 Needle roller bearin 15 941809 1 Hex. socket screw 16 854550 1 Cylinder anchorage 17 853717 1 Decal 18 (853716) 1 Decal 19 853071 2 Washer 20 946672 2 Lock nut 21 853309 2 Clevis pin 22 967707 2 Split pin 23 814386 1 Steering knuckle 24 897696 2 Washer 25 854031 1 Hose connection 26 853308 2 Shoulder screw 27 941813 2 Hex. socket screw 28 853078 1 Cable attachment 29 940168 2 Hexagon screw 30 897644 1 Tube 31 853095 2 Washer 32 959456 2 Hex. socket screw 33 941808 2 Hex. socket screw 34 2 stud bolt 35 940191 2 Washer 36 941826 X Shim 941827 X Shim 948230 X Shim 37 804312 1 Cube 38 940191 2 Washer 39 17276 1 Split pin 40 17253 2 Split pin 41 813954 1 Fork 42 192662 1 Split pin 43 940190 1 Hexagon nut 44 897448 1 Control rod 45 854035 1 Catch 46 851402 1 Bearing sleeve 47 814391 2 Catch 48 851403 1 Lock brace 49 851423 1 Spindle 50 854344 1 Spindle 51 940194 1 Lubricating nipple 52 943197 2 Lock nut 53 851424 1 Stop arm 54 832534 1 Spring 55 814399 1 Shaft 56 943194 2 Washer 57 814396 1 Spring 58 814332 2 Spring 59 814392 1 Snap hook 60 814419 1 Shaft 61 814422 2 Spacer washer 7745660- 440- 54155887 740A, BB740A

440 NOTES

See group 9

Included in upper gear unit.

TH=0,05mm TH=0.20mm TH=0.35mm

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

45646

Upd:7/18/2022

Intermediate Housing: DPB-1

REF PART NO. QTY DESCRIPTION 62 814393 1 Snap hook 63 925256 1 O-ring 64 181620 2 Sealing ring 65 814356 1 Seal 66 814390 1 Plastic washer 67 925259 1 O-ring 68 125017 2 O-ring 69 941885 2 Lock nut 70 941820 1 O-ring 71 876279 1 Bushing kit 72 853223 2 Bushing, bushing 876265 1 Repair kit, astern lever

7745660- 440- 54155887 740A, BB740A

440 NOTES Included in repair kit 876265 for astern lever.

Included in complete drive unit, Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever., Repl by 876279 (876075)

45646

Upd:7/18/2022

Intermediate Housing: DPB

440 18

17

68

30

29 35 26

71 72 28

10

16

25

11

27 67 36

20

65

19

1 42 31 34

40

33

32

41 43

69

22

21

7

6

8 12 9

39 38

5 4

37

40

15

38

24

66

2 60 13

45

53

61

62

3

52

64

55

52

59

54

61

56 47 46

44

49

63

14 64

47 57 58 56 51

48

23

50

70

Upd:7/18/2022

45646

7745660 -440 -54155886 740A, BB740A

Intermediate Housing: DPB

REF PART NO. QTY DESCRIPTION 1 854033 1 Intermediate housing 2 897829 1 Gear yoke 3 897447 1 Shaft 4 897511 2 Washer 5 17253 1 Split pin 6 851412 1 Reverse locking rod 7 967556 1 Spring pin 8 854100 1 Suspension fork 9 940194 1 Lubricating nipple 10 852912 2 Bushing 11 853062 1 Bearing bushing 12 X control cable 13 853967 1 Guide washer 14 183391 1 Needle roller bearin 15 941809 1 Hex. socket screw 16 854550 1 Cylinder anchorage 17 853717 1 Decal 18 (853716) 1 Decal 19 853071 2 Washer 20 946672 2 Lock nut 21 853309 2 Clevis pin 22 967707 2 Split pin 23 814386 1 Steering knuckle 24 897696 2 Washer 25 854031 1 Hose connection 26 853308 2 Shoulder screw 27 941813 2 Hex. socket screw 28 853078 1 Cable attachment 29 940168 2 Hexagon screw 30 897644 1 Tube 31 853095 2 Washer 32 959456 2 Hex. socket screw 33 941808 2 Hex. socket screw 34 2 stud bolt 35 940191 2 Washer 36 943252 X Shim 943866 X Shim 943867 X Shim 967557 X Shim 943868 X Shim 37 804312 1 Cube 38 940191 2 Washer 39 17276 1 Split pin 40 17253 2 Split pin 41 813954 1 Fork 42 192662 1 Split pin 43 940190 1 Hexagon nut 44 897448 1 Control rod 45 854035 1 Catch 46 851402 1 Bearing sleeve 47 814391 2 Catch 48 851403 1 Lock brace 49 851423 1 Spindle 50 854344 1 Spindle 51 940194 1 Lubricating nipple 52 943197 2 Lock nut 53 851424 1 Stop arm 54 832534 1 Spring 55 814399 1 Shaft 56 943194 2 Washer 57 814396 1 Spring 58 814332 2 Spring 59 814392 1 Snap hook 7745660- 440- 54155886 740A, BB740A

440 NOTES

See group 9

Included in upper gear unit.

TH=0,05mm TH=0,10mm TH=0.20mm TH=0.30mm TH=0.40mm

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

45646

Upd:7/18/2022

Intermediate Housing: DPB

REF PART NO. QTY DESCRIPTION 60 814419 1 Shaft 61 814422 2 Spacer washer 62 814393 1 Snap hook 63 925256 1 O-ring 64 181620 2 Sealing ring 65 814356 1 Seal 66 814390 1 Plastic washer 67 925259 1 O-ring 68 125017 2 O-ring 69 941885 2 Lock nut 70 941820 1 O-ring 71 876279 1 Bushing kit 72 853223 2 Bushing, bushing 876265 1 Repair kit, astern lever

7745660- 440- 54155886 740A, BB740A

440 NOTES Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in complete drive unit, Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever.

Included in repair kit 876265 for astern lever., Repl by 876279 (876075)

45646

Upd:7/18/2022

Lower Gear Unit

44

Upd:7/18/2022

49240

7745660 -44 -54155892 740A, BB740A

Lower Gear Unit

44

REF PART NO. QTY DESCRIPTION 1 854485 1 Lower gear 2 854051 1 Housing 3 854053 1 Bearing housing 4 852643 2 Attaching plate 5 948338 6 Blind rivet 6 852644 1 Check valve 7 853531 1 Anode kit 8 959437 1 Hex. socket screw 9 854611 1 Countershaft 10 969071 1 Round nut 11 184682 1 Inner ring 12 854553 1 Splined sleeve 13 852212 1 Nut 14 941832 X Shim 941833 X Shim 15 183374 1 Ball bearing 16 944970 X Shim 17 11072 1 Roller bearing 18 944522 X Shim 42981 X Shim 968057 X Shim 42980 X Shim 19 897387 1 Clamping ring 20 11044 1 Roller bearing 21 184654 1 Needle roller bushin 22 814482 1 Oil strainer 23 852904 1 Magnetic plug 24 955974 1 O-ring 25 852181 1 Propeller shaft 26 184765 1 Roller bearing 27 854464 1 Gear set 28 967352 X Shim 941823 X Shim 967351 X Shim 941824 X Shim 941825 X Shim 29 184691 1 Roller bearing 30 191834 X Shim 191835 X Shim 191837 X Shim 31 925258 2 O-ring 32 941812 2 Hex. socket screw 33 875821 1 Zinc ring kit, Zinc 34 966808 2 Screw 35 183859 1 Needle roller bushin 36 184683 1 Inner ring 37 851407 2 Sealing ring 38 853440 1 Thrust ring 39 183272 1 Needle roller bearin 40 853871 1 Sealing ring 41 853869 1 Lock washer 42 852196 1 Propeller nut 43 853441 1 Thrust ring 44 854666 1 Propeller cone kit 45 1 propeller cone 46 941670 1 Washer 47 852216 1 Hexagon screw 48 853676 1 Spacer ring 49 854294 1 Plastic washer 50 1 pressure washer 51 854667 1 Spare parts kit 52 854294 1 Plastic washer

7745660- 44- 54155892 740A, BB740A

NOTES Also available as an exchange part., Ratio 1,78:1

TH=0,05mm TH=0.20mm

TH=0,05mm TH=0,10mm TH=0.20mm TH=0.35mm

Ratio 1,78:1 TH=0,05mm TH=0,10mm TH=0.15mm TH=0.20mm TH=0.40mm TH=0,10mm TH=0.15mm TH=0.25mm

Fore use in saltwater

Front

Rear (854243)

Rear

Rear Repl by 854667 49240

Upd:7/18/2022

Lower Gear Unit

44

REF PART NO. QTY DESCRIPTION 53 1 pressure washer 53A 854669 1 Tool kit 54 925256 1 O-ring 55 941810 4 Hex. socket screw 56 853095 4 Washer 57 23974010 1 Anode kit, Aluminium 876138 1 Anode kit, Magnesium 58 966808 2 Screw

7745660- 44- 54155892 740A, BB740A

NOTES See group 9 Included in complete Duoprop drive unit.

Included in complete Duoprop drive unit.

Included in complete Duoprop drive unit.

For use in Salt and Brackish water For use in freshwater.

49240

Upd:7/18/2022

440

Upd:7/18/2022

Lower Gear Unit: DRIVE DP-B

49240

7745660 -440 -54155889 740A, BB740A

Lower Gear Unit: DRIVE DP-B

REF PART NO. QTY 1 854485 1 Lower gear 2 854051 1 Housing 3 854053 1 Bearing housing 4 852643 2 Attaching plate 5 948338 6 Blind rivet 6 852644 1 Check valve 7 853531 1 Anode kit 8 959437 1 Hex. socket screw 9 854611 1 Countershaft 10 969071 1 Round nut 11 184682 1 Inner ring 12 854553 1 Splined sleeve 13 852212 1 Nut 14 941832 X Shim 941833 X Shim 15 183374 1 Ball bearing 16 944970 X Shim 17 11072 1 Roller bearing 18 944522 X Shim 42981 X Shim 968057 X Shim 42980 X Shim 19 897387 1 Clamping ring 20 11044 1 Roller bearing 21 184654 1 Needle roller bushin 22 814482 1 Oil strainer 23 852904 1 Magnetic plug 24 955974 1 O-ring 25 852181 1 Propeller shaft 26 184765 1 Roller bearing 27 854464 1 Gear set 28 967352 X Shim 941823 X Shim 967351 X Shim 941824 X Shim 941825 X Shim 29 184691 1 Roller bearing 30 191834 X Shim 191835 X Shim 191837 X Shim 31 925258 2 O-ring 32 941812 2 Hex. socket screw 33 875821 1 Zinc ring kit, Zinc 34 966808 2 Screw 35 183859 1 Needle roller bushin 36 184683 1 Inner ring 37 851407 2 Sealing ring 38 853440 1 Thrust ring 39 183272 1 Needle roller bearin 40 853871 1 Sealing ring 41 853869 1 Lock washer 42 852196 1 Propeller nut 43 853441 1 Thrust ring 44 854666 1 Propeller cone kit 45 1 propeller cone 46 941670 1 Washer 47 852216 1 Hexagon screw 48 854294 1 Plastic washer 49 1 pressure washer 50 853584 1 Plastic washer 51 52

854667 854294

1 1

7745660- 440- 54155889 740A, BB740A

440 DESCRIPTION

NOTES Also available as an exchange part.

Steering fin 854054 repl by plug 853531.

Screw 941817 replaced by screw 959437.

TH=0,05mm TH=0.20mm

TH=0,05mm TH=0,10mm TH=0.20mm TH=0.35mm

Ratio 1,78:1 TH=0,05mm TH=0,10mm TH=0.15mm TH=0.20mm TH=0.40mm TH=0,10mm TH=0.15mm TH=0.25mm

For use in Saltwater

Front

Rear (854243)

Rear Front Repl by 854667 SN 3102092922Rear

Spare parts kit Plastic washer 49240

Upd:7/18/2022

Lower Gear Unit: DRIVE DP-B

REF PART NO. QTY

440 DESCRIPTION

NOTES Repl by 854667

53 53A 54 55 56 57 58

1 854669 925256 941810 853095 23974010 876138 966808

1 4 4 1 1 2

7745660- 440- 54155889 740A, BB740A

pressure washer Tool kit O-ring Hex. socket screw Washer Anode kit, Aluminium Anode kit, Magnesium Screw

See group 9 Included in complete Duoprop drive unit.

Included in complete Duoprop drive unit.

Included in complete Duoprop drive unit.

For use in Salt and Brackish water For use in Freshwater

49240

Upd:7/18/2022

Reverse Gear MS5A: 853955

440

Upd:7/18/2022

52999

7745660 -440 -54155877 740A, BB740A

Reverse Gear MS5A: 853955

REF PART NO. QTY 1 853955 1 Reversing gear 2 (853374) 1 Gear housing 3 832667 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 853542 2 Ball bearing 26 832644 1 Bearing sleeve 27 943870 X Shim 946179 X Shim 943869 X Shim 28 943866 X Shim 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 49 942871 1 Clevis pin 50 951924 1 Spring pin 51 965215 2 Flange screw 7745660- 440- 54155877 740A, BB740A

440 DESCRIPTION

NOTES Ratio 2.40:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

52999

Upd:7/18/2022

Reverse Gear MS5A: 853955

REF PART NO. QTY 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853911) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 101 850471 1 102 853481 1 103 21471054 1 7745660- 440- 54155877 740A, BB740A

440 DESCRIPTION

Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut Washer Propeller shaft flan Bracket

NOTES

Ratio 2.40:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

For twin control stations.

52999

Upd:7/18/2022

Reverse Gear MS5A: 853955

REF PART NO. QTY 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 440- 54155877 740A, BB740A

440 DESCRIPTION

NOTES For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

52999

Upd:7/18/2022

Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

Reverse Gear MS5A: 853953

440

Upd:7/18/2022

52999

7745660 -440 -54155875 740A, BB740A

Reverse Gear MS5A: 853953

REF PART NO. QTY 1 853953 1 Reversing gear 2 (853374) 1 Gear housing 3 832667 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 853542 2 Ball bearing 26 832644 1 Bearing sleeve 27 943870 X Shim 946179 X Shim 943869 X Shim 28 943866 X Shim 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 49 942871 1 Clevis pin 50 951924 1 Spring pin 51 965215 2 Flange screw 7745660- 440- 54155875 740A, BB740A

440 DESCRIPTION

NOTES Ratio 1,55:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

52999

Upd:7/18/2022

Reverse Gear MS5A: 853953

REF PART NO. QTY 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853903) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 101 850471 1 102 853481 1 103 21471054 1 7745660- 440- 54155875 740A, BB740A

440 DESCRIPTION

Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut Washer Propeller shaft flan Bracket

NOTES

Ratio 1,55:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

For twin control stations.

52999

Upd:7/18/2022

Reverse Gear MS5A: 853953

REF PART NO. QTY 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 440- 54155875 740A, BB740A

440 DESCRIPTION

NOTES For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

52999

Upd:7/18/2022

Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

Reverse Gear MS5A: 853954

440

Upd:7/18/2022

52999

7745660 -440 -54155876 740A, BB740A

Reverse Gear MS5A: 853954

REF PART NO. QTY 1 853954 1 Reversing gear 2 (853374) 1 Gear housing 3 832667 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 853542 2 Ball bearing 26 832644 1 Bearing sleeve 27 943870 X Shim 946179 X Shim 943869 X Shim 28 943866 X Shim 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 49 942871 1 Clevis pin 50 951924 1 Spring pin 51 965215 2 Flange screw 7745660- 440- 54155876 740A, BB740A

440 DESCRIPTION

NOTES Ratio 1.94:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

52999

Upd:7/18/2022

Reverse Gear MS5A: 853954

REF PART NO. QTY 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853907) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 101 850471 1 102 853481 1 103 21471054 1 7745660- 440- 54155876 740A, BB740A

440 DESCRIPTION

Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut Washer Propeller shaft flan Bracket

NOTES

Ratio 1.94:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

For twin control stations.

52999

Upd:7/18/2022

Reverse Gear MS5A: 853954

REF PART NO. QTY 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 440- 54155876 740A, BB740A

440 DESCRIPTION

NOTES For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

52999

Upd:7/18/2022

Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

Reverse Gear MS5B: 854905

442

1 28 39

96

30

7 8

25 27

6

97

31 32 34

98 86

87

102

36

101 100

10

9 10

69

3

36 37 38 29 26

33

84

77

79

28A

85 4 5 89 90

15

95

80 81 80A

91 88

82 78

92

18

17

91 99

94 93 83

2 66

22

57 58

35

11

20 19

16

14

67 68

43 45

5554 44

66

41 48

66A 13 12

21

80

5049

70 71 73

42 47 46

40 51

72 60

63

74 10

24

23

74A

56

53 52

76 75

65

62 64 107 105104 106 103

59

61

110 109 108

Upd:7/18/2022

45276

7745660 -442 -54155878 740A, BB740A

Reverse Gear MS5B: 854905

REF PART NO. QTY 1 854905 1 Transmission 2 (853374) 1 Gear housing 3 (854676) 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 854670 1 Ball bearing 26 853542 1 Ball bearing 27 943870 X Shim 946179 X Shim 943869 X Shim 28 941826 X Shim 941827 X Shim 948230 X Shim 28A 943866 X Shim 28 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 7745660- 442- 54155878 740A, BB740A

442 DESCRIPTION

NOTES Ratio 1,55:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,05mm TH=0.20mm TH=0.35mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854905

REF PART NO. QTY 49 942871 1 50 951924 1 51 965215 2 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853903) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 7745660- 442- 54155878 740A, BB740A

442 DESCRIPTION

Clevis pin Spring pin Flange screw Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut

NOTES

Ratio 1,55:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854905

REF PART NO. QTY 101 850471 1 102 853481 1 103 21471054 1 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 442- 54155878 740A, BB740A

442 DESCRIPTION

Washer Propeller shaft flan Bracket Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

NOTES

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

45276

Upd:7/18/2022

Reverse Gear MS5B: 854906

442

1 28 39

96

30

7 8

25 27

6

97

31 32 34

98 86

87

102

36

101 100

10

9 10

69

3

36 37 38 29 26

33

84

77

79

28A

85 4 5 89 90

15

95

80 81 80A

91 88

82 78

92

18

17

91 99

94 93 83

2 66

22

57 58

35

11

20 19

16

14

67 68

43 45

5554 44

66

41 48

66A 13 12

21

80

5049

70 71 73

42 47 46

40 51

72 60

63

74 10

24

23

74A

56

53 52

76 75

65

62 64 107 105104 106 103

59

61

110 109 108

Upd:7/18/2022

45276

7745660 -442 -54155879 740A, BB740A

Reverse Gear MS5B: 854906

REF PART NO. QTY 1 854906 1 Transmission 2 (853374) 1 Gear housing 3 (854676) 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 854670 1 Ball bearing 26 853542 1 Ball bearing 27 943870 X Shim 946179 X Shim 943869 X Shim 28 941826 X Shim 941827 X Shim 948230 X Shim 28A 943866 X Shim 28 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 7745660- 442- 54155879 740A, BB740A

442 DESCRIPTION

NOTES Ratio 1.94:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,05mm TH=0.20mm TH=0.35mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854906

REF PART NO. QTY 49 942871 1 50 951924 1 51 965215 2 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853907) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 7745660- 442- 54155879 740A, BB740A

442 DESCRIPTION

Clevis pin Spring pin Flange screw Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut

NOTES

Ratio 1.94:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854906

REF PART NO. QTY 101 850471 1 102 853481 1 103 21471054 1 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 442- 54155879 740A, BB740A

442 DESCRIPTION

Washer Propeller shaft flan Bracket Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

NOTES

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

45276

Upd:7/18/2022

Reverse Gear MS5B: 854907

442

1 28 39

96

30

7 8

25 27

6

97

31 32 34

98 86

87

102

36

101 100

10

9 10

69

3

36 37 38 29 26

33

84

77

79

28A

85 4 5 89 90

15

95

80 81 80A

91 88

82 78

92

18

17

91 99

94 93 83

2 66

22

57 58

35

11

20 19

16

14

67 68

43 45

5554 44

66

41 48

66A 13 12

21

80

5049

70 71 73

42 47 46

40 51

72 60

63

74 10

24

23

74A

56

53 52

76 75

65

62 64 107 105104 106 103

59

61

110 109 108

Upd:7/18/2022

45276

7745660 -442 -54155880 740A, BB740A

Reverse Gear MS5B: 854907

REF PART NO. QTY 1 854907 1 Transmission 2 (853374) 1 Gear housing 3 (854676) 1 Gear housing cover 4 814179 1 Plug 5 897682 1 Gasket 6 956585 3 Hex. socket screw 7 814643 1 Hollow screw 8 955989 1 O-ring 9 832669 1 Gasket 10 1 Gear set 11 925095 1 O-ring 12 183247 1 Roller bearing 13 853063 X Adjusting washer 853064 X Adjusting washer (853065) X Adjusting washer 14 853670 1 Sealing ring 15 853161 1 Bearing housing 16 914538 1 Snap ring 17 967636 6 Hex. socket screw 18 949523 6 Washer 19 832675 1 Washer 20 956000 1 O-ring 21 853484 1 Pretensioning sleeve 22 850275 1 Axle shaft 23 854201 1 Screw 24 853026 1 Washer 25 854670 1 Ball bearing 26 853542 1 Ball bearing 27 943870 X Shim 946179 X Shim 943869 X Shim 28 941826 X Shim 941827 X Shim 948230 X Shim 28A 943866 X Shim 28 943867 X Shim 967557 X Shim 943868 X Shim 29 850433 1 Retaining ring 30 854222 1 Sliding sleeve 31 813970 1 Spring 32 854126 1 Washer 33 (853900) 1 Shaft 34 951078 1 Snap ring 35 42980 X Shim 42981 X Shim 944522 X Shim 36 853819 2 Needle bearing 37 854192 1 Spacer ring 38 853888 2 Lock ring 39 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 40 853198 1 Shift mechanism 41 851662 1 Bearing housing 42 897816 1 Eccentric piston 43 839646 1 Dog 44 925065 1 O-ring 45 814184 1 Spring 46 897711 1 Hexagon screw 47 897871 X Shim 48 958838 1 Sealing ring 7745660- 442- 54155880 740A, BB740A

442 DESCRIPTION

NOTES Ratio 2.40:1

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0.20mm TH=0,10mm TH=0,05mm TH=0,05mm TH=0.20mm TH=0.35mm TH=0,10mm TH=0.20mm TH=0,30mm TH=0.40mm

TH=0.35mm TH=0,10mm TH=0,05mm

Alt, std Alt, TH=0,2mm Alt, TH=0,4mm Alt, TH=0,6mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854907

REF PART NO. QTY 49 942871 1 50 951924 1 51 965215 2 52 853180 1 53 955294 2 54 21471054 1 55 819068 1 56 955246 2 57 946577 2 58 940090 2 59 853922 2 60 955276 2 61 946035 2 62 853921 2 63 804312 1 64 955892 1 65 17276 1 66 (853911) 1 66A 1 67 181301 1 68 181302 1 69 949071 X 949073 X 949072 X 70 184649 1 71 967352 X 967351 X 941823 X 941824 X 941825 X 72 (854097) 1 73 925257 1 74 946472 4 74A 941906 4 75 960629 1 76 947084 1 77 (853366) 1 78 943244 1 79 963220 6 80 853949 2 80A (854165) 2 81 (854166) 2 82 183327 1 83 183328 1 84 853370 X 853369 X 853368 X 85 852696 1 86 853757 1 87 944530 1 88 (853394) 1 89 959187 4 90 853361 2 91 (854268) 2 92 969497 2 93 (854116) 1 94 961665 2 95 965213 4 96 839351 1 97 955974 1 98 925063 1 99 960169 4 100 947855 1 7745660- 442- 54155880 740A, BB740A

442 DESCRIPTION

Clevis pin Spring pin Flange screw Bracket Hexagon screw Bracket Washer Hexagon screw Lock nut Washer Intermediate lever Hexagon screw Lock nut Spacer sleeve Cube Washer Split pin Drive gear set sliding clutch Inner ring Cup Shim Shim Shim Roller bearing Shim Shim Shim Shim Shim Bearing cover O-ring Flange screw Spring washer Plug Gasket Bearing housing O-ring Hexagon screw Roller bearing Roller bearing Inner ring Inner ring Cup Anode Shim Anode Pretensioning sleeve Sealing ring Sealing ring Oil cooler Hex. socket screw Retainer Connector Hose nipple Hose Hose clamp Flange screw Oil dipstick O-ring O-ring O-ring Flange lock nut

NOTES

Ratio 2.40:1

TH=0,10mm TH=0.35mm TH=0.15mm TH=0,05mm TH=0.15mm TH=0,10mm TH=0.20mm TH=0.40mm

Repl by 853949 Repl by 853949

TH=0,10mm TH=0.15mm TH=0.35mm

45276

Upd:7/18/2022

Reverse Gear MS5B: 854907

REF PART NO. QTY 101 850471 1 102 853481 1 103 21471054 1 104 819068 1 105 853921 2 106 956083 2 107 965483 2 108 804312 1 109 955892 1 110 17276 1

7745660- 442- 54155880 740A, BB740A

442 DESCRIPTION

Washer Propeller shaft flan Bracket Washer Spacer sleeve Cross recessed screw Flange nut Cube Washer Split pin

NOTES

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

For twin control stations.

45276

Upd:7/18/2022

44

Upd:7/18/2022

Shield with Mounting Components

45653

7745660 -44 -54155867 740A, BB740A

Shield with Mounting Components

44

REF PART NO. QTY 1 876510 1 Shield 2 853706 1 Type plate 3 804269 2 Drive screw 4 853595 6 Stud 5 852868 X Sealing strip 6 854133 1 Rubber cushion 7 960148 2 Washer 8 971089 2 Lock nut 9 852835 1 Zinc electrode 9A 872562 1 Support plate 10 946541 2 Hex. socket screw 11 941670 2 Washer 12 963699 2 Hex. socket screw 13 852866 6 Washer 14 963108 6 Lock nut 15 872095 2 Pin 16 854705 1 Bushing 17 854704 1 Bushing 18 977313 1 Sealing ring 19 854707 1 Steering yoke 20 853048 1 Bushing 21 854706 1 Steering arm 22 947904 1 Set screw 23 914169 1 Lubricating nipple 24 828726 1 Sensor 25 955991 1 O-ring 26 853039 1 Bracket 27 955298 1 Hexagon screw 28 872355 1 Spacer sleeve 29 851430 1 Bushing 30 852984 1 Driving wheel 31 966207 1 Sealing ring 32 925050 1 O-ring 33 854063 1 Gear segment 34 853759 1 Screw 35 853760 1 Rivet nut 36 948210 1 Cable tie 37 853215 2 Plug 38 897745 1 Gasket 39 839091 1 Protecting hose 40 952635 1 Clamp 41 955512 1 Hexagon screw 42 X control cable

DESCRIPTION

7745660- 44- 54155867

45653

740A, BB740A

NOTES

L=1750mm

See group 9

Upd:7/18/2022

Upper Gear Unit

44 8

7 59

1

9

4A

4 1 70

34 43

60

35 64

32

64A

33 68 11

62

61

66

40 10

1 1 1 1

11 2

67

6

5

1 1

31 30

63

36

1

23 37

69

22

64A

21 3

65

38

55

20 14

47

16 16A

39

51

52

53

46

54 48

12

45 19

15

18

15A

11

50 49

44 40 17 41

13 42

33 32

58

25

56

27

24

57

28

26

29 29

Upd:7/18/2022

46884

7745660 -44 -54155890 740A, BB740A

Upper Gear Unit

REF PART NO. QTY 1 872013 1 Gear 2 854571 1 Gear housing 3 977241 2 Stud 4 854677 1 Cover 4A (854198) 1 Plastic plug 5 814179 1 Plug 6 897682 1 Gasket 7 941807 3 Hex. socket screw 8 814643 1 Hollow screw 9 955989 1 O-ring 10 832669 1 Gasket 11 1 Gear set 12 854025 1 Bearing box 13 853949 1 Roller bearing 14 183247 1 Roller bearing 15 852705 1 Pivot pin 15A 941807 2 Hex. socket screw 16 956591 4 Hex. socket screw 16A 942598 4 Washer 17 853484 1 Pretensioning sleeve 18 925095 1 O-ring 19 853034 X Shim 853035 X Shim 853036 X Shim 20 839253 1 Sealing ring 21 832675 1 Washer 22 956000 1 O-ring 23 914538 1 Snap ring 24 872089 1 Universal joint 25 854616 1 Fork 26 854617 1 Fork 27 872088 1 Double joint 28 854619 2 Spider 29 24383 8 Lock ring 30 854201 1 Screw 31 853026 1 Washer 32 854670 2 Ball bearing 33 943869 X Shim 946179 X Shim 943870 X Shim 34 941826 X Shim 941827 X Shim 948230 X Shim 35 853916 1 Shaft 36 854222 1 Sliding sleeve 37 813970 1 Spring 38 854126 1 Washer 39 951078 1 Snap ring 40 853819 2 Needle bearing 41 854192 1 Spacer ring 42 853888 2 Lock ring 43 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 44 850309 1 Shift mechanism 45 839505 1 Bearing housing 46 897816 1 Eccentric piston 47 839646 1 Dog 48 814184 1 Spring 49 897711 1 Hexagon screw 50 897871 X Shim 51 853868 1 Sealing ring 7745660- 44- 54155890 740A, BB740A

44 DESCRIPTION

NOTES Also available as an exchange part.

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0,05mm TH=0,10mm TH=0.20mm TH=0,05mm TH=0.20mm TH=0.35mm

0mm 0,20mm 0,40mm 0,60mm

46884

Upd:7/18/2022

Upper Gear Unit

REF PART NO. QTY 52 951924 1 Spring pin 53 942871 1 Clevis pin 54 925093 1 O-ring 55 940169 4 Hexagon screw 56 876294 1 Bellows kit 57 853013 1 Hose clamp 58 853012 1 Hose clamp 59 839351 1 Oil dipstick 60 955974 1 O-ring 61 853706 1 Type plate 62 804269 2 Drive screw 63 854713 1 Anchorage 64 854604 1 Protecting cover 64A 925052 2 O-ring 65 872027 1 Screw 66 854661 1 Screw 67 876509 1 Decal set 68 872222 1 Decal 69 872236 1 Decal 872237 1 Decal 70 854144 1 Sign

7745660- 44- 54155890 740A, BB740A

44 DESCRIPTION

NOTES

Included in complete drive unit Included in complete drive unit Included in complete drive unit Included in complete drive unit Included in complete drive unit Included in complete drive unit, P Included in complete drive unit, S.B Included in complete drive unit

46884

Upd:7/18/2022

Upper Gear Unit

44

8

7 59

1

9

4A

4 69

34 43

60

65 35 64

32 33

67 11

40

62

61

10 11 2

63

6

5 36

31 30 23 37

68

22 21

66

3

38

55

20 14

47

16 16A

39

51

52

53

46

54 48

12

45 19 18 15

11

50 49

44

15A

40 17 41

13 42

33 32

58

25

56

27

24

57

28

26

29 29

Upd:7/18/2022

45652

7745660 -44 -54155885 740A, BB740A

Upper Gear Unit

REF PART NO. QTY 1 872013 1 Gear 2 854571 1 Gear housing 3 977241 2 Stud 4 854677 1 Cover 4A (854198) 1 Plastic plug 5 814179 1 Plug 6 897682 1 Gasket 7 941807 3 Hex. socket screw 8 814643 1 Hollow screw 9 955989 1 O-ring 10 832669 1 Gasket 11 1 Gear set 12 854025 1 Bearing box 13 853949 1 Roller bearing 14 183247 1 Roller bearing 15 852705 1 Pivot pin 15A 941807 2 Hex. socket screw 16 956591 4 Hex. socket screw 16A 942598 4 Washer 17 853484 1 Pretensioning sleeve 18 925095 1 O-ring 19 853034 X Shim 853035 X Shim 853036 X Shim 20 839253 1 Sealing ring 21 832675 1 Washer 22 956000 1 O-ring 23 914538 1 Snap ring 24 872089 1 Universal joint 25 854616 1 Fork 26 854617 1 Fork 27 872088 1 Double joint 28 854619 2 Spider 29 24383 8 Lock ring 30 854201 1 Screw 31 853026 1 Washer 32 854670 2 Ball bearing 33 943869 X Shim 946179 X Shim 943870 X Shim 34 941826 X Shim 941827 X Shim 948230 X Shim 35 853916 1 Shaft 36 854222 1 Sliding sleeve 37 813970 1 Spring 38 854126 1 Washer 39 951078 1 Snap ring 40 853819 2 Needle bearing 41 854192 1 Spacer ring 42 853888 2 Lock ring 43 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 44 850309 1 Shift mechanism 45 839505 1 Bearing housing 46 897816 1 Eccentric piston 47 839646 1 Dog 48 814184 1 Spring 49 897711 1 Hexagon screw 50 897871 X Shim 51 853868 1 Sealing ring 7745660- 44- 54155885 740A, BB740A

44 DESCRIPTION

NOTES Also available as an exchange part.

TH=0,10mm TH=0.15mm TH=0.35mm

TH=0,05mm TH=0,10mm TH=0.20mm TH=0,05mm TH=0.20mm TH=0.35mm

0mm 0,20mm 0,40mm 0,60mm

45652

Upd:7/18/2022

Upper Gear Unit

REF PART NO. QTY 52 951924 1 Spring pin 53 942871 1 Clevis pin 54 925093 1 O-ring 55 940169 4 Hexagon screw 56 876294 1 Bellows kit 57 853013 1 Hose clamp 58 853012 1 Hose clamp 59 839351 1 Oil dipstick 60 955974 1 O-ring 61 853706 1 Type plate 62 804269 2 Drive screw 63 854179 1 Anchorage 64 854036 1 Protecting cover 65 (854180) 1 Locating pin 66 854661 1 Screw 67 854137 1 Sign 68 854142 1 Sign 854143 1 Sign 69 854144 1 Sign

7745660- 44- 54155885 740A, BB740A

44 DESCRIPTION

NOTES

Included in complete drive unit Included in complete drive unit Included in complete drive unit Included in complete drive unit, P Included in complete drive unit, S.B Included in complete drive unit

45652

Upd:7/18/2022

Upper Gear Unit

44

Upd:7/18/2022

46897

7745660 -44 -54155884 740A, BB740A

Upper Gear Unit

REF PART NO. QTY 1 854270 1 Upper gear 2 854571 1 Gear housing 3 941814 2 Stud 4 854024 1 Cover 4A (854198) 1 Plastic plug 5 814179 1 Plug 6 897682 1 Gasket 7 941807 3 Hex. socket screw 8 814643 1 Hollow screw 9 955989 1 O-ring 10 832669 1 Gasket 11 1 Gear set 12 854025 1 Bearing box 13 853949 1 Roller bearing 14 183247 1 Roller bearing 15 852705 1 Pivot pin 15A 941807 2 Hex. socket screw 16 956591 4 Hex. socket screw 16A 942598 4 Washer 17 853484 1 Pretensioning sleeve 18 925095 1 O-ring 19 853034 X Shim 853035 X Shim 853036 X Shim 20 839253 1 Sealing ring 21 832675 1 Washer 22 956000 1 O-ring 23 914538 1 Snap ring 24 854303 1 Universal joint 25 853561 1 Joint fork kit 26 (853331) 2 Lock ring 27 897706 1 Universal joint 28 854302 1 Fork 29 853255 2 Spider 29A (853331) 8 Lock ring 30 8 needle bearing 31 8 protector ring 32 8 cork ring 32A 872089 1 Universal joint 32B 854616 1 Fork 32C 854617 1 Fork 32D 872088 1 Double joint 32E 854619 2 Spider 32 24383 8 Lock ring 33 854201 1 Screw 34 853026 1 Washer 35 853542 2 Ball bearing 36 832644 2 Bearing sleeve 37 943869 X Shim 946179 X Shim 943870 X Shim 38 943252 X Shim 943866 X Shim 943867 X Shim 967557 X Shim 943868 X Shim 39 853916 1 Shaft 40 854222 1 Sliding sleeve 41 813970 1 Spring 42 854126 1 Washer 43 951078 1 Snap ring 44 853819 2 Needle bearing 45 854192 1 Spacer ring 7745660- 44- 54155884 740A, BB740A

44 DESCRIPTION

NOTES Also available as an exchange part.

TH=0,10mm TH=0.15mm TH=0.35mm

Early type

Late type

TH=0,05mm TH=0,10mm TH=0.20mm TH=0,05mm TH=0,10mm TH=0.20mm TH=0.30mm TH=0.40mm

46897

Upd:7/18/2022

Upper Gear Unit

REF PART NO. QTY 46 853888 2 Lock ring 47 854228 1 Nut 854229 1 Nut 854230 1 Nut 854265 1 Nut 48 850309 1 Shift mechanism 49 839505 1 Bearing housing 50 897816 1 Eccentric piston 51 839646 1 Dog 52 814184 1 Spring 53 897711 1 Hexagon screw 54 897871 X Shim 55 853868 1 Sealing ring 56 951924 1 Spring pin 57 942871 1 Clevis pin 58 925093 1 O-ring 59 940169 4 Hexagon screw 60 876294 1 Bellows kit 61 853013 1 Hose clamp 62 853012 1 Hose clamp 63 839351 1 Oil dipstick 64 955974 1 O-ring 65 853706 1 Type plate 66 804269 2 Drive screw 67 854179 1 Anchorage 68 854036 1 Protecting cover 68A (854180) Locating pin 69 854661 1 Screw 70 854137 1 Sign 71 854142 1 Sign 854143 1 Sign 72 854144 1 Sign

7745660- 44- 54155884 740A, BB740A

44 DESCRIPTION

NOTES 0mm 0,20mm 0,40mm 0,60mm

(875826)

Included in complete drive unit Included in complete drive unit Included in complete drive unit Included in complete drive unit, P Included in complete drive unit, S.B Included in complete drive unit

46897

Upd:7/18/2022

DS Unit for Power Steering

64

1

8 12 9 10 11 15

5

2

19

22

13 3 18 16

8

6 7

17

4 21 20

14 20 21

Upd:7/18/2022

44279

7745660 -64 -54155895 740A, BB740A

DS Unit for Power Steering

REF PART NO. QTY 1 (828963) 1 Ds kit 2 1 bolt 3 1 nut 4 1 lock unit 5 807183 1 Spacer sleeve 6 955272 1 Hexagon screw 7 963105 1 Lock nut 8 967707 2 Split pin 9 1 DS unit 10 1 attachment 11 1 attachment 12 1 attachment pipe 13 1 bracket 14 1 control rod 15 853306 1 Nut 16 940101 2 Hexagon screw 17 940199 1 Hexagon screw 18 949607 2 Spring washer 19 951739 1 Lubricating nipple 20 955782 2 Hexagon nut 21 959080 2 Angle ball joint 22 963105 2 Lock nut

7745660- 64- 54155895 740A, BB740A

64 DESCRIPTION

44279

Upd:7/18/2022

Installation Kit for Steering Cable without Power Steering

64

8 6

5

9

7

1

3

3 4

10 2

Upd:7/18/2022

45710

7745660 -64 -54155894 740A, BB740A

Installation Kit for Steering Cable without Power Steering

REF PART NO. QTY 1 872388 1 Steering cable attac 2 1140568 1 Pipe 3 970971 2 Hexagon screw 4 872311 1 Tab washer 5 1140567 1 Link rod 6 1140566 1 Clevis pin 7 944149 1 Split pin 8 1140565 1 Bolt 9 1140579 1 Lock washer 10 X steering cable

DESCRIPTION

7745660- 64- 54155894

45710

740A, BB740A

64 SEE SEC.

54155893

Upd:7/18/2022

Power Steering Drive Unit DP-B, DP-B1

640 740A, BB740A

51

44 35

34

38

45 46

48

50 47

49 40 39

53

34 35A 42

41

52

37

35B 29

36

37

27

28

32

30

31

34

34

33

55

35B 35A

25

26

37 10

13

54 11

15

3

16 9 8

6 9

12

43

7 24

5

23 1

14

2 6

4 22

22A

19 17 18 37 53

21 20 10

Upd:7/18/2022

44549

7745660 -640 -54155896 740A, BB740A

Power Steering Drive Unit DP-B, DP-B1

640

740A, BB740A REF PART NO. QTY 1 856476 1 Power steering pump 2 856162 1 Hub 3 (856320) 1 Bracket 4 856152 1 Bracket 5 (856153) 1 Bracket 6 955295 5 Hexagon screw 7 940134 1 Hexagon screw 8 (955548) 1 Hexagon screw 9 941909 2 Spring washer 10 941995 X Hose 11 856154 1 Tensioning arm 12 1346183 1 Screw 13 1336961 1 Screw 14 955555 1 Hexagon screw 15 940157 1 Hexagon nut 16 941909 1 Spring washer 17 941907 1 Spring washer 18 955782 1 Hexagon nut 19 1219961 1 V-belt pulley 20 955293 4 Hexagon screw 21 941907 4 Spring washer 22 (856487) 1 Adapter 22A 955656 4 Hexagon screw 23 1219961 1 V-belt pulley 24 966387 1 V-belt 25 1359621 1 Oil reservoir 26 856768 1 Bracket 27 (856313) 1 Clamp 28 856319 1 Bracket 29 858541 1 Oil cooler 30 949918 1 Shut-off cock 31 (955548) 1 Hexagon screw 32 941909 1 Spring washer 33 856269 1 Hose 34 961669 4 Hose clamp 35 856306 1 Hose 35A 838311 X Return hose 35B 961664 2 Hose clamp 36 838311 X Return hose 37 961664 2 Hose clamp 38 (852741) 1 Steering cylinder (853307) 1 Repair kit 39 957031 1 Nipple 40 958226 1 O-ring 41 946152 1 Nipple 42 958226 1 O-ring 43 853531 1 Anode kit 44 968247 2 Hexagon screw 45 853254 2 Striker plate 46 941908 2 Spring washer 47 (852787) 1 Link rod 48 852789 1 Clevis pin 49 (907856) 2 Split pin 50 853160 1 Lock washer 51 913158 1 Clevis pin 52 184700 1 Roller 53 (856486) 1 Pressure hose 54 959437 1 Hex. socket screw 55 steering mechanism

7745660- 640- 54155896 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

L=650mm

L=1050mm

Repl by 856505 Repl by 856505 L=1850mm L=500mm

sts 330 with installation components

44549

54155893 54155893 54155893

Upd:7/18/2022

Power Steering Drive Unit DP-C

640 740A, BB740A

1

3

5 4 5

48

47

9 10

6 12

2 49 11

48

11

10 9

8

14

7

13

50 41 50

44

43

42

46 45

11

48 51

48

47

52 39

50 11

40

38

25 24

28 26

31

17

30

23 22 20 23 27

21 37

19

36 29

15

20

18 34

35

16 32 33

25

49 24

Upd:7/18/2022

44548

7745660 -640 -54155897 740A, BB740A

Power Steering Drive Unit DP-C

640

740A, BB740A REF PART NO. QTY 1 (872229) 1 Power steering kit 2 (872215) 1 Steering cylinder 3 872491 1 Clevis pin 4 872490 1 Clevis pin 5 949791 2 Split pin 6 977625 2 Hexagon screw 7 941908 2 Spring washer 8 970950 2 Hexagon screw 9 872103 2 Pivot pin 10 (872104) 2 Lock washer 11 872217 1 Return hose 12 872311 1 Tab washer 13 872369 1 Tab washer 14 872443 1 Bracket 15 1359649 1 Power steering pump 16 (1378643) 1 Pulley 17 (856320) 1 Bracket 18 856152 1 Bracket 19 (856153) 1 Bracket 20 955295 5 Hexagon screw 21 940134 1 Hexagon screw 22 (955548) 1 Hexagon screw 23 941909 2 Spring washer 24 941995 X Hose 25 961664 2 Hose clamp 26 856154 1 Tensioning arm 27 1346183 1 Screw 28 1336961 1 Screw 29 955555 1 Hexagon screw 30 941909 1 Spring washer 31 940157 1 Hexagon nut 32 941907 1 Spring washer 33 955782 1 Hexagon nut 34 (856487) 1 Adapter 35 955656 4 Hexagon screw 36 1219961 1 V-belt pulley 37 975093 1 V-belt 38 1359621 1 Oil reservoir 39 1359625 1 Cover 40 856768 1 Bracket 41 858541 1 Oil cooler 42 949918 1 Shut-off cock 43 856319 1 Bracket 44 (856313) 1 Clamp 45 (955548) 1 Hexagon screw 46 941909 1 Spring washer 47 856505 1 Hose 48 961669 4 Hose clamp 49 (872216) 1 Pressure hose 50 961663 3 Hose clamp 51 948210 X Cable tie 52 steering mechanism

7745660- 640- 54155897 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

L=3560mm

L=650mm

sts 330 with installation components

44548

54155893 54155893 54155893

Upd:7/18/2022

Steering Mechanism Roto Pilot STS 330

640 740A, BB740A

2 8

6

11 10 12

5 1

9

4 7 3

1A

1B 1C

27 24

25 31 32 26 29

30

14 28

17

13

15

18 2322

21 18 17 16

20

19 12

Upd:7/18/2022

44240

7745660 -640 -54155893 740A, BB740A

Steering Mechanism Roto Pilot STS 330

640

740A, BB740A REF PART NO. QTY 1 (850936) 1 Steering wheel 1A 1 Steering wheel hub 1B (828943) 1 Steering wheel pad 1C (850938) 1 Emblem 2 853182 1 Mounting kit 1140023 1 Mounting kit 853183 1 Mounting kit 1140024 1 Mounting kit 3 1 washer 4 1 nut 5 2 screw 6 1 cover 7 1 brake screw 8 1 brake 9 4 screw and nut 10 1 key 11 853181 1 Steering gear 12 828886 X Steering cable 828887 X Steering cable 828888 X Steering cable 828889 X Steering cable 853185 X Steering cable 853186 X Steering cable 853187 X Steering cable 853188 X Steering cable 853189 X Steering cable 853190 X Steering cable 853191 X Steering cable 853192 X Steering cable 853193 X Steering cable 828863 X Steering cable 853194 X Steering cable 828864 X Steering cable 853195 X Steering cable 828865 X Steering cable 853196 X Steering cable 828866 X Steering cable 853197 X Steering cable 853286 X Steering cable 853287 X Steering cable 853288 X Steering cable 853289 X Steering cable (828867) X Steering cable (828868) X Steering cable (828869) X Steering cable (828874) X Steering cable 13 (853291) 1 Ds unit 14 (851059) 1 Steering cylinder (851147) 1 Steering cylinder 15 (853290) 1 Stern attachment 16 850771 1 Anchorage 17 850778 2 Nut 18 853306 2 Nut 19 851093 1 Bracket 20 (851077) 2 Anchorage, attachment 21 22 23 24 25 26 27

940101 941906 955781 851122 (851121) (851117)

4 4 4 1 1 1 1

7745660- 640- 54155893 740A, BB740A

DESCRIPTION

NOTES

90° 90° black 70° 70° black

L=2000mm L=2250mm L=2500mm L=2750mm L=3000mm L=3250mm L=3500mm L=3750mm L=4000mm L=4250mm L=4500mm L=4750mm L=5000mm L=5250mm L=5500mm L=5750mm L=6000mm L=6250mm L=6500mm L=6750mm L=7000mm L=7500mm L=8000mm L=8500mm L=9000mm L=9750mm L=1050mm L=1125mm L=1200mm Only for fly bridge.

For port mounting.

For starboard mounting.

Repl by 828854 + 828857 + 951739

Hexagon screw Spring washer Hexagon nut Ball joint kit bracket Sleeve Shoulder screw

Repl by 828924

44240

Upd:7/18/2022

Steering Mechanism Roto Pilot STS 330

640

740A, BB740A REF PART NO. QTY 28 942551 2 29 (966172) 1 30 (851118) 1 31 941670 1 32 (966171) 1

7745660- 640- 54155893 740A, BB740A

DESCRIPTION

NOTES

Washer Lock nut Shoulder screw Washer Lock nut

44240

Upd:7/18/2022

900

Bilge Pump. Engine Room Fan

740A, BB740A

Upd:7/18/2022

44605

7745660 -900 -54155907 740A, BB740A

Bilge Pump. Engine Room Fan

900

740A, BB740A REF PART NO. QTY 1 828763 1 Bilge pump 2 (843141) 1 Decal 3 952969 X Hose 4 (828797) 1 Fan 5 828798 1 Mounting kit 6 828807 1 Ventilation hose

7745660- 900- 54155907 740A, BB740A

DESCRIPTION

NOTES 12V L=50000mm 12V L=5000mm

44605

Upd:7/18/2022

90

Upd:7/18/2022

Blind Flange Kit Exhaust Outlet

46856

7745660 -90 -54155938 740A, BB740A

Blind Flange Kit Exhaust Outlet

REF PART NO. QTY 1 (1140003) 1 Blind plate 3 (854584) 1 Seal flange 5 925260 1 O-ring 8 941908 4 Spring washer 9 970945 4 Hexagon screw

7745660- 90- 54155938 740A, BB740A

90 DESCRIPTION

46856

NOTES Early type Repl by 1140003

Upd:7/18/2022

90

Upd:7/18/2022

Blind Flange Kit Exhaust Outlet

46856

7745660 -90 -54155939 740A, BB740A

Blind Flange Kit Exhaust Outlet

90

REF PART NO. QTY 2 (872238) 1 Seal flange kit 4 (854651) 1 Seal flange 6 925256 1 O-ring 7 814473 2 Closure 8 941908 4 Spring washer 9 970945 4 Hexagon screw

DESCRIPTION

7745660- 90- 54155939

46856

740A, BB740A

NOTES Late type

Upd:7/18/2022

Charging Relay

900 740A, BB740A

Upd:7/18/2022

44586

7745660 -900 -54155923 740A, BB740A

Charging Relay

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 858968 1 Junction block 2 1 charging relay 3 941906 2 Spring washer 4 955781 2 Hexagon nut

NOTES For charging of 2 batteries., For alternators 12V, 50A and 24V, 55A.

7745660- 900- 54155923

44586

740A, BB740A

Upd:7/18/2022

900

Charging Relay Separate Mounted: 859499

740A, BB740A

Upd:7/18/2022

44250

7745660 -900 -54155925 740A, BB740A

Charging Relay Separate Mounted: 859499

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 859499 1 Junction block 2 (858842) 1 Junction block 3 842150 3 Protective cap 4 842150 1 Protective cap 9 859492 1 Spring nut 10 859493 1 Protecting casing 11 955126 1 Cross recessed screw 12 X strip clamp 13 X cables and terminals

7745660- 900- 54155925 740A, BB740A

NOTES For charging of 2 batteries., For alternator 12V, 50A.

See group 3 See group 3

44250

Upd:7/18/2022

900

Charging Relay Separate Mounted: 858841

740A, BB740A

Upd:7/18/2022

44250

7745660 -900 -54155924 740A, BB740A

Charging Relay Separate Mounted: 858841

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 858841 1 Junction block 2 (858842) 1 Junction block 3 842150 3 Protective cap 5 828647 4 Screw 6 945407 2 Flange nut 7 862330 1 Rubber cushion 8 (862345) 1 Protective cap 12 X strip clamp 13 X cables and terminals

NOTES For charging of 2 batteries., For alternator 12V, 50A., Repl by 859499

7745660- 900- 54155924

44250

740A, BB740A

Not included in later version of kit 858841 Not included in later version of kit 858841

See group 3 See group 3

Upd:7/18/2022

Clutch Plate Control Cable

90

Upd:7/18/2022

44265

7745660 -90 -54155958 740A, BB740A

Clutch Plate Control Cable

REF PART NO. QTY 1 (1140081) 1 Plate 2 21471054 1 Bracket 3 819068 2 Washer 4 4 screw 5 1 bracket 6 1 Nipple 7 6853782 1 Cable clamp

7745660- 90- 54155958 740A, BB740A

90 DESCRIPTION

44265

Upd:7/18/2022

Connecting Kit for Dual Station

900 740A, BB740A

13

1

14 10

9 7

10

8

9 12

6 16

11

15

7 8 6 16

5 2 3

4 2

Upd:7/18/2022

44574

7745660 -900 -54155940 740A, BB740A

Connecting Kit for Dual Station

900

740A, BB740A REF PART NO. QTY 1 (854293) 1 Connector kit 2 853922 2 Intermediate lever 3 853921 2 Spacer sleeve 4 955276 2 Hexagon screw 5 946035 2 Lock nut 6 804312 2 Cube 7 955892 2 Washer 8 17276 2 Split pin 9 21471054 2 Bracket 10 819068 2 Washer 11 830674 2 Spacer sleeve 12 955250 2 Hexagon screw 13 965483 2 Flange nut 14 1 bracket 15 X control cable 16 951674 2 Lock nut

7745660- 900- 54155940 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

See group 4B 54155945

44574

Upd:7/18/2022

Control Cables

90

2

1

Upd:7/18/2022

44577

7745660 -90 -54155945 740A, BB740A

Control Cables

REF PART NO. QTY 1 1140171 X Control cable 1140172 X Control cable 1140173 X Control cable 1140174 X Control cable 1140175 X Control cable 1140176 X Control cable 1140177 X Control cable 1140178 X Control cable 1140179 X Control cable 1140180 X Control cable 1140181 X Control cable 1140182 X Control cable 1140183 X Control cable 1140184 X Control cable 1140185 X Control cable 1140186 X Control cable 1140187 X Control cable 1140188 X Control cable 1140189 X Control cable 1140190 X Control cable 1140191 X Control cable 1140192 X Control cable 1140193 X Control cable 1140194 X Control cable 1140195 X Control cable 1140196 X Control cable 1140197 X Control cable 1140198 X Control cable 1140199 X Control cable 1140200 X Control cable 1140201 X Control cable 1140202 X Control cable 1140203 X Control cable 1140204 X Control cable 1140205 X Control cable 1140206 X Control cable 1140207 X Control cable 1140208 X Control cable 1140209 X Control cable 2 (1140101) X Control cable (1140102) X Control cable (1140103) X Control cable (1140104) X Control cable (1140105) X Control cable (1140106) X Control cable (1140107) X Control cable (1140108) X Control cable (1140109) X Control cable (1140110) X Control cable (1140111) X Control cable (1140112) X Control cable (1140113) X Control cable (1140114) X Control cable (1140115) X Control cable (1140116) X Control cable (1140117) X Control cable (1140118) X Control cable (1140119) X Control cable (1140120) X Control cable (1140121) X Control cable (1140122) X Control cable

7745660- 90- 54155945 740A, BB740A

90 DESCRIPTION

NOTES Type 333 L=1,25M Type 333 L=1,50M Type 333 L=1,75M Type 333 L=2,00M Type 333 L=2,25M Type 333 L=2,50M Type 333 L=2,75M Type 333 L=3,00M Type 333 L=3,25M Type 333 L=3,50M Type 333 L=3,75M Type 333 L=4,00M Type 333 L=4,25M Type 333 L=4,50M Type 333 L=4,75M Type 333 L=5,00M Type 333 L=5,25M Type 333 L=5,25M Type 333 L=5,75M Type 333 L=6,00M Type 333 L=6,25M Type 333 L=6,50M Type 333 L=6,75M Type 333 L=7,00M Type 333 L=7,25M Type 333 L=7,50M Type 333 L=7,75M Type 333 L=8,00M Type 333 L=8,50M Type 333 L=9,00M Type 333 L=9,50M Type 333 L=10,00M Type 333 L=10,50M Type 333 L=11,00M Type 333 L=11,50M Type 333 L=12,00M Type 333 L=12,50M Type 333 L=13,00M Type 443 L=2,00M Type 443 L=2,00M Type 443 L=3,00M Type 443 L=3,50M Type 443 L=4,00M Type 443 L=4,50M Type 443 L=5,00M Type 443 L=5,50M Type 443 L=6,00M Type 443 L=6,50M Type 443 L=7,00M Type 443 L=7,50M Type 443 L=8,00M Type 443 L=8,50M Type 443 L=9,00M Type 443 L=9,50M Type 443 L=10,00M Type 443 L=11,00M Type 443 L=12,00M Type 443 L=13,00M Type 443 L=14,00M Type 443 L=15,00M

44577

Upd:7/18/2022

900

Control for Top Installation: SINGLE-ALT

740A, BB740A

Upd:7/18/2022

44259

7745660 -900 -54155920 740A, BB740A

Control for Top Installation: SINGLE-ALT

900

740A, BB740A REF PART NO. QTY 1 (1140043) 1 Mounting kit 2 (1140046) 1 Cover 6 1 fuse 1 o-ring 7 1140041 1 Hand lever 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

841073 853004 963678 851600

947671 960138 955780 940090 839474 853423 852924 839664 839638 17253 855352 (839619) 850200 876037 946177 947536 948210

4 1 1 1

Fuse holder Push button Hex. socket screw Control

1 4 4 4 4 1 1 1 1 1 1 1 1 1 X 1 2 2 X

Screw kit Hex. socket screw Washer Hexagon nut Washer Plate Retainer Locking pin Screw Cube Split pin Neutral position con Cable kit Toggle switch cables and terminals Relay kit Cross recessed screw Hexagon nut Cable tie

7745660- 900- 54155920 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Single PT

54155928 54155928

54155932 54155932

(839641)

(1501832)

44259

Upd:7/18/2022

Control for Top Installation

900 740A, BB740A

1 3

2

5

14 17 7

13

6

9

18

21

20

8 19

22

17A

10 11

4

12 13

15 16

Upd:7/18/2022

44244

7745660 -900 -54155911 740A, BB740A

Control for Top Installation

900

740A, BB740A REF PART NO. QTY 1 (851602) 1 Mounting kit 2 839472 1 Cover 3 1 Decal 4 839474 1 Plate 5 839475 1 Hand lever 6 839693 1 Lock screw 10 947671 2 Hex. socket screw 11 940090 2 Washer 12 960138 2 Washer 13 955780 2 Hexagon nut 14 947671 2 Hex. socket screw 15 960138 2 Washer 16 955780 2 Hexagon nut 17 851600 1 Control 17A 18 19 20 21 22

852924 855352 850200 946177 947536

SEE SEC.

NOTES

M8

54155932 54155932

1 Locking pin 1 Neutral position con 1 Toggle switch X cables and terminals 2 Cross recessed screw 2 Hexagon nut

7745660- 900- 54155911 740A, BB740A

DESCRIPTION

Main station., (841165) See group 3

44244

Upd:7/18/2022

Control for Top Installation

900 740A, BB740A

1 3

2

5

14 17 7

13

6

9

18

21

20

8 19

22

17A

10 11

4

12 13

15 16

Upd:7/18/2022

44244

7745660 -900 -54155909 740A, BB740A

Control for Top Installation

900

740A, BB740A REF PART NO. QTY 1 839470 1 Mounting kit 2 839472 1 Cover 4 839474 1 Plate 5 839475 1 Hand lever 6 (946786) 1 Set screw 839693 1 Lock screw 7 (839480) 1 Bracket (839481) 1 Bracket 8 955244 4 Hexagon screw 9 (955946) 4 Toothed washer 10 947671 2 Hex. socket screw 12 960138 2 Washer 13 955780 6 Hexagon nut 14 947672 2 Hex. socket screw 15 960139 2 Washer 16 955781 2 Hexagon nut 17 839469 1 Control mechanism 18 19 20 21 22

855352 850200 946177 947536

SEE SEC.

NOTES Repl by 851602

M5 M8 Marked 839480 Marked 839481

54155932 54155932

1 Neutral position con 1 Toggle switch X cables and terminals 2 Cross recessed screw 2 Hexagon nut

7745660- 900- 54155909 740A, BB740A

DESCRIPTION

Repl by 851600 Main station., (841165) See group 3

44244

Upd:7/18/2022

Control for Top Installation

900 740A, BB740A

1 3

2

5

14 17 7

13

6

9

18

21

20

8 19

22

17A

10 11

4

12 13

15 16

Upd:7/18/2022

44244

7745660 -900 -54155910 740A, BB740A

Control for Top Installation

900

740A, BB740A REF PART NO. QTY 1 839470 2 Mounting kit 2 839472 2 Cover 4 839474 2 Plate 5 839475 2 Hand lever 6 (946786) 2 Set screw 839693 2 Lock screw 7 (839480) 2 Bracket (839481) 2 Bracket 8 955244 8 Hexagon screw 9 (955946) 8 Toothed washer 10 947671 4 Hex. socket screw 12 960138 4 Washer 13 955780 12 Hexagon nut 14 947672 4 Hex. socket screw 15 960139 4 Washer 16 955781 4 Hexagon nut 17 839469 2 Control mechanism 18 19 20 21 22

855352 850200 946177 947536

SEE SEC.

NOTES Repl by 851602

M5 M8 Marked 839480 Marked 839481

54155932 54155932

1 Neutral position con 2 Toggle switch X cables and terminals 4 Cross recessed screw 4 Hexagon nut

7745660- 900- 54155910 740A, BB740A

DESCRIPTION

Repl by 851600 Main station., (841165) See group 3

44244

Upd:7/18/2022

900

Control for Top Installation: 851602

740A, BB740A

Upd:7/18/2022

44257

7745660 -900 -54155913 740A, BB740A

Control for Top Installation: 851602

900

740A, BB740A REF PART NO. QTY 1 (851602) 1 Mounting kit 2 839472 1 Cover 3 1 Decal 4 839474 1 Plate 5 1 Hand lever 6A 853004 Push button 6 839693 1 Lock screw 7 947671 4 Hex. socket screw 8 960138 4 Washer 9 955780 4 Hexagon nut 10 851600 1 Control 11 853423 1 Retainer 12 852924 1 Locking pin 13 839638 1 Cube 14 17253 1 Split pin 15 839664 1 Screw 16 855352 1 Neutral position con 17 (839619) 1 Cable kit 18 876037 1 Relay kit 19 946177 2 Cross recessed screw 20 947536 2 Hexagon nut 21 948210 X Cable tie 22 850200 1 Toggle switch 23 X cables and terminals

7745660- 900- 54155913 740A, BB740A

DESCRIPTION

NOTES Single

(839641) (1501832)

See group 3

44257

Upd:7/18/2022

900

Control for Top Installation: 851603

740A, BB740A

Upd:7/18/2022

44257

7745660 -900 -54155914 740A, BB740A

Control for Top Installation: 851603

900

740A, BB740A REF PART NO. QTY 1 (851603) 1 Mounting kit 2 839477 1 Cover 3 1 Decal 4 839479 1 Plate 5 2 Hand lever 6A 853004 Push button 6 839693 2 Lock screw 7 947671 4 Hex. socket screw 8 960138 4 Washer 9 955780 4 Hexagon nut 10 851600 2 Control 11 853423 2 Retainer 12 852924 2 Locking pin 13 839638 2 Cube 14 17253 2 Split pin 15 839664 2 Screw 16 855352 2 Neutral position con 17 (839619) 2 Cable kit 18 876037 2 Relay kit 19 946177 4 Cross recessed screw 20 947536 4 Hexagon nut 21 948210 X Cable tie 22 850200 2 Toggle switch 23 X cables and terminals

7745660- 900- 54155914 740A, BB740A

DESCRIPTION

NOTES Twin

(839641) (1501832)

See group 3

44257

Upd:7/18/2022

900

Control for Top Installation: SINGLE

740A, BB740A

Upd:7/18/2022

44259

7745660 -900 -54155918 740A, BB740A

Control for Top Installation: SINGLE

900

740A, BB740A REF PART NO. QTY 1 (853168) 1 Mounting kit 2 851882 1 Cover 3 (851896) 2 Decal 4 (851892) 1 Crossbar 5 (851898) 1 Decal 7 852347 1 Hand lever 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

853004 963678 851600

947671 960138 955780 940090 839474 853423 852924 839664 839638 17253 855352 (839619) 850200 876037 946177 947536 948210

1 1 1

Push button Hex. socket screw Control

1 4 4 4 4 1 1 1 1 1 1 1 1 1 X 1 2 2 X

Screw kit Hex. socket screw Washer Hexagon nut Washer Plate Retainer Locking pin Screw Cube Split pin Neutral position con Cable kit Toggle switch cables and terminals Relay kit Cross recessed screw Hexagon nut Cable tie

7745660- 900- 54155918 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Single

54155926 54155926

54155932 54155932

(839641)

(1501832)

44259

Upd:7/18/2022

900

Control for Top Installation: TWIN

740A, BB740A

Upd:7/18/2022

44259

7745660 -900 -54155919 740A, BB740A

Control for Top Installation: TWIN

900

740A, BB740A REF PART NO. QTY 1 (853169) 1 Mounting kit 2 (851881) 1 Cover 3 (851895) 2 Decal 4 1 Crossbar 5 (851897) 1 Decal 7 852347 2 Hand lever 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

853004 963678 851600

947671 960138 955780 940090 839479 853423 852924 839664 839638 17253 855352 (839619) 850200 876037 946177 947536 948210

2 2 2

Push button Hex. socket screw Control

1 4 4 4 4 1 2 2 2 2 2 2 2 2 X 2 4 4 X

Screw kit Hex. socket screw Washer Hexagon nut Washer Plate Retainer Locking pin Screw Cube Split pin Neutral position con Cable kit Toggle switch cables and terminals Relay kit Cross recessed screw Hexagon nut Cable tie

7745660- 900- 54155919 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES Twin

54155926 54155926

54155932 54155932

(839641)

(1501832)

44259

Upd:7/18/2022

Control for Top Installation

900 740A, BB740A

1 3

2

5

14 17 7

13

6

9

18

21

20

8 19

22

17A

10 11

4

12 13

15 16

Upd:7/18/2022

44244

7745660 -900 -54155912 740A, BB740A

Control for Top Installation

900

740A, BB740A REF PART NO. QTY 1 (851602) 2 Mounting kit 2 839472 2 Cover 3 2 Decal 4 839474 2 Plate 5 839475 2 Hand lever 6 839693 2 Lock screw 10 947671 4 Hex. socket screw 11 940090 4 Washer 12 960138 4 Washer 13 955780 4 Hexagon nut 14 947671 4 Hex. socket screw 15 960138 4 Washer 16 955780 4 Hexagon nut 17 851600 2 Control 17A 18 19 20 21 22

852924 855352 850200 946177 947536

SEE SEC.

NOTES

M8

54155932 54155932

1 Locking pin 1 Neutral position con 2 Toggle switch X cables and terminals 4 Cross recessed screw 4 Hexagon nut

7745660- 900- 54155912 740A, BB740A

DESCRIPTION

Main station., (841165) See group 3

44244

Upd:7/18/2022

Control Mechanism

90

Upd:7/18/2022

44256

7745660 -90 -54155929 740A, BB740A

Control Mechanism

REF PART NO. QTY 1 1140095 1 Control mechanism 2 (851712) 1 Connector kit 3 17253 2 Split pin 4 839638 2 Cube 5 852924 1 Locking pin 6 1 Mechanism 7 1 8 4 9 (851665) 1 Control mechanism 10 963548 4 Hexagon screw

7745660- 90- 54155929 740A, BB740A

90 DESCRIPTION

44256

Upd:7/18/2022

Control Mechanism

90

1

11 5

12

4

2

23 3 19 18 17

18

17 16 15

13

6 9

7 10

14

7A

21

22

20 8

Upd:7/18/2022

44246

7745660 -90 -54155932 740A, BB740A

Control Mechanism

REF PART NO. QTY 1 851601 1 Control 7 853423 1 Retainer 7A 852924 1 Locking pin 17 839638 2 Cube 18 17253 2 Split pin

7745660- 90- 54155932 740A, BB740A

90 DESCRIPTION

44246

NOTES Side-mounted replaced by 1140095.

Upd:7/18/2022

Control Mechanism

90

1

11 5

12

4

2

23 3 19 18 17

18

17 16 15

13

6 9

7 10

14

7A

21

22

20 8

Upd:7/18/2022

44246

7745660 -90 -54155930 740A, BB740A

Control Mechanism

REF PART NO. QTY DESCRIPTION 1 839469 1 Control mechanism 2 1 housing 3 1 shaft 4 (839635) 1 Washer 5 (839637) 1 Screw 6 (839668) 1 Link arm 7 853423 1 Retainer 7A 852924 1 Locking pin 8 (839667) 1 Washer 9 839664 1 Screw 10 1 11 (839636) 1 Eccentric 12 (851713) 1 Spare parts kit 13 (839633) 1 Engagement lever 14 (839639) 1 Breaker arm 15 (839635) 1 Washer 16 (839637) 1 Screw 17 839638 2 Cube 18 17253 2 Split pin 19 839632 1 Button 20 839640 1 Vibration damper 21 (839666) 1 Washer 22 963104 1 Lock nut 23 (839701) 1 Bushing

7745660- 90- 54155930 740A, BB740A

90 NOTES Top-mounted replaced by 851600., Side-mounted replaced by 851601.

44246

Upd:7/18/2022

Control Mechanism

90

1

11 5

12

4

2

23 3 19 18 17

18

17 16 15

13

6 9

7 10

14

7A

21

22

20 8

Upd:7/18/2022

44246

7745660 -90 -54155931 740A, BB740A

Control Mechanism

REF PART NO. QTY 1 851600 1 Control 7 853423 1 Retainer 7A 852924 1 Locking pin 17 839638 2 Cube 18 17253 2 Split pin

7745660- 90- 54155931 740A, BB740A

90 DESCRIPTION

44246

Upd:7/18/2022

Control, Side Mount

90

Upd:7/18/2022

44284

7745660 -90 -54155908 740A, BB740A

Control, Side Mount

REF PART NO. QTY 1 1140092 1 Mounting kit 2 853713 1 Cover 3 839520 1 Hand lever 4 839693 1 Lock screw 5 955142 4 Cross recessed screw 961330 4 Cross recessed screw 6 1140094 1 Washer 7 1140095 1 Control mechanism 7A 8 9 10 11 12

852924 855352 850200 946177 947536

DESCRIPTION

SEE SEC.

NOTES

54155929 54155929

1 Locking pin 1 Neutral position con 1 Toggle switch X cables and terminals 2 Cross recessed screw 2 Hexagon nut

7745660- 90- 54155908 740A, BB740A

90

(841165) See group 3

44284

Upd:7/18/2022

Control, Side Mount

90

Upd:7/18/2022

44277

7745660 -90 -54155921 740A, BB740A

Control, Side Mount

REF PART NO. QTY 1 1140090 1 Mounting kit 2 853713 1 Cover 3 852347 1 Hand lever 4 5 6 7 8

961330 925058 853004 955142 1140095

1 Cross recessed screw 1 O-ring 1 Push button 4 Cross recessed screw 1 Control mechanism

9 10 11 12 13 14 15

855352 (839619) 850200

1 Neutral position con 1 Cable kit 1 Toggle switch X cables and terminals 1 Relay kit 2 Cross recessed screw 2 Hexagon nut

876037 946177 947536

7745660- 90- 54155921 740A, BB740A

90 DESCRIPTION

SEE SEC.

NOTES

54155926 54155926

54155929 54155929

See group 3 (1501832)

44277

Upd:7/18/2022

Coupling Flange

90

Upd:7/18/2022

44578

7745660 -90 -54155975 740A, BB740A

Coupling Flange

REF PART NO. QTY 1 828147 1 Clamp coupling flang 2 955693 4 Hexagon screw 955691 4 Hexagon screw 3 941909 4 Spring washer 4 950375 4 Lock nut 5 948670 8 Hex. socket screw 6 947345 8 Washer

7745660- 90- 54155975 740A, BB740A

90 DESCRIPTION

NOTES 45mm hole for propeller shaft.

44578

Upd:7/18/2022

Coupling Flange

90

Upd:7/18/2022

44578

7745660 -90 -54155973 740A, BB740A

Coupling Flange

REF PART NO. QTY 1 827957 1 Clamp coupling 2 955693 4 Hexagon screw 955691 4 Hexagon screw 3 941909 4 Spring washer 4 950375 4 Lock nut 5 948670 8 Hex. socket screw 6 947345 8 Washer

7745660- 90- 54155973 740A, BB740A

90 DESCRIPTION

NOTES 35mm hole for propeller shaft.

44578

Upd:7/18/2022

Coupling Flange

90

Upd:7/18/2022

44578

7745660 -90 -54155974 740A, BB740A

Coupling Flange

REF PART NO. QTY 1 828145 1 Clamp coupling flang 2 955693 4 Hexagon screw 955691 4 Hexagon screw 3 941909 4 Spring washer 4 950375 4 Lock nut 5 948670 8 Hex. socket screw 6 947345 8 Washer

7745660- 90- 54155974 740A, BB740A

90 DESCRIPTION

NOTES 40mm hole for propeller shaft.

44578

Upd:7/18/2022

Coupling Flange

90

Upd:7/18/2022

44578

7745660 -90 -54155972 740A, BB740A

Coupling Flange

REF PART NO. QTY 1 828390 1 Clamp coupling 2 955693 4 Hexagon screw 955691 4 Hexagon screw 3 941909 4 Spring washer 4 950375 4 Lock nut 5 948670 8 Hex. socket screw 6 947345 8 Washer

7745660- 90- 54155972 740A, BB740A

90 DESCRIPTION

NOTES 30mm hole for propeller shaft.

44578

Upd:7/18/2022

Electrical Oil Bilge Pump: 843114

900 740A, BB740A

1

3

2

13

12

11

18 4 19 9

6 8

7

5

15

17

14 10 16

Upd:7/18/2022

44280

7745660 -900 -54155933 740A, BB740A

Electrical Oil Bilge Pump: 843114

900

740A, BB740A REF PART NO. QTY 1 843114 1 Oil bilge pump 2 1 el motor 3 (844014) 2 Carbon brush 4 (844015) 1 Pump housing 5 844022 1 Impeller kit 6 844017 1 Wear washer 7 844016 1 Wear washer 8 1 o-ring 9 (844018) 1 Cap 10 (844021) 4 Screw 11 1 seal ring 12 1 lock washer 13 (844019) 1 Deflector ring 14 844020 2 Screw 15 843113 1 Cable trunk 16 1 battery terminal 1 battery terminal 844280 2 Clip 17 (844279) 1 Insulation (844278) 1 Insulation 18 943707 X Hose 19 943471 3 Hose clamp

7745660- 900- 54155933 740A, BB740A

DESCRIPTION

NOTES 12V 12V

Replaced by 1ea 844280,1ea 844278, + Replaced by 1ea 844280,1ea 844279 Late type Late type black Late type red L=3000mm

44280

Upd:7/18/2022

900

Exhaust Grommet Kit Drive Unit DP-C

740A, BB740A

Upd:7/18/2022

44571

7745660 -900 -54155955 740A, BB740A

Exhaust Grommet Kit Drive Unit DP-C

900

740A, BB740A REF PART NO. QTY 1 (872461) 1 Exhaust grommet 1A 872462 1 Exhaust pipe 2 970958 4 Hexagon screw 3 960148 4 Washer 4 925256 1 O-ring 5 872048 2 Exhaust hose 6 853012 8 Hose clamp 7 875848 1 Bellows kit 8 872531 2 Hose clamp 9 843235 2 Exhaust pipe

7745660- 900- 54155955 740A, BB740A

DESCRIPTION

44571

Upd:7/18/2022

Exhaust Grommet Kit for Shield 876506

900 740A, BB740A

1

6

7

2

3

5 4

9 10

Upd:7/18/2022

44624

8

7745660 -900 -54155956 740A, BB740A

Exhaust Grommet Kit for Shield 876506

900

740A, BB740A REF PART NO. QTY 1 (857028) 1 Exhaust pipe 2 872462 1 Exhaust pipe 3 970958 4 Hexagon screw 4 960148 4 Washer 5 925256 1 O-ring 6 872048 2 Exhaust hose 7 853012 8 Hose clamp 8 875848 1 Bellows kit 9 872531 2 Hose clamp 10 (872228) 2 Check valve

DESCRIPTION

7745660- 900- 54155956

44624

740A, BB740A

NOTES (872093)

Upd:7/18/2022

Exhaust Outlet and Exhaust Line: 854513

900 740A, BB740A

3 2

5

4 3 2

4 1

5

2 10

8 7

Upd:7/18/2022

44566

9 6

7745660 -900 -54155954 740A, BB740A

Exhaust Outlet and Exhaust Line: 854513

900

740A, BB740A REF PART NO. QTY 6 (854513) 1 Exhaust pipe 7 (854363) 2 Exhaust pipe 8 854490 2 Gasket 9 (975284) 2 O-ring 10 961348 8 Cross recessed screw

7745660- 900- 54155954 740A, BB740A

DESCRIPTION

44566

Upd:7/18/2022

Exhaust Outlet and Exhaust Line: 854516

900 740A, BB740A

3 2

5

4 3 2

4 1

5

2 10

8 7

Upd:7/18/2022

44566

9 6

7745660 -900 -54155953 740A, BB740A

Exhaust Outlet and Exhaust Line: 854516

900

740A, BB740A REF PART NO. QTY 1 (854516) 1 Exhaust outlet 2 (856912) 2 Exhaust outlet 3 856429 2 Gasket 4 924077 8 Stud 5 971095 8 Flange nut

DESCRIPTION

7745660- 900- 54155953

44566

740A, BB740A

NOTES (856436)

Upd:7/18/2022

Extension Kit 1''

90

5

3

4

9 8 2

10

1

6 11

Upd:7/18/2022

7

53001

7745660 -90 -54155983 740A, BB740A

Extension Kit 1''

REF PART NO. QTY 1 854686 1 Extension kit 2 1 adapter 3 854684 1 Splined sleeve 4 941873 1 Hex. socket screw 5 959448 2 Hex. socket screw 6 943762 4 Stud 7 832939 4 Nut 8 925256 1 O-ring 9 125017 1 O-ring 10 941820 1 O-ring 11 897823 1 Oil pipe

7745660- 90- 54155983 740A, BB740A

90 DESCRIPTION

53001

Upd:7/18/2022

900

Extension Kit, Exhaust Manifold: 856504

740A, BB740A

Upd:7/18/2022

44584

7745660 -900 -54155941 740A, BB740A

Extension Kit, Exhaust Manifold: 856504

900

740A, BB740A REF PART NO. QTY 1 856504 1 Extension 2 856434 2 Spacer flange 3 844093 1 Flange 4 859002 1 Gasket 5 965175 2 Flange screw 6 (973448) 4 Stud 7 971098 8 Flange lock nut 8 (973449) 4 Stud 9 855998 4 Gasket 10 855997 2 Gasket

7745660- 900- 54155941 740A, BB740A

DESCRIPTION

NOTES 6''

For engine with heat exchanger.

44584

Upd:7/18/2022

900

Extension Kit, Exhaust Manifold: 856503

740A, BB740A

Upd:7/18/2022

44584

7745660 -900 -54155942 740A, BB740A

Extension Kit, Exhaust Manifold: 856503

900

740A, BB740A REF PART NO. QTY 1 856503 1 Extension 2 856433 2 Spacer flange 3 844093 1 Flange 4 859002 1 Gasket 5 965175 2 Flange screw 6 948932 4 Stud 7 971098 8 Flange lock nut 8 17371 4 Stud 9 855998 4 Gasket 10 855997 2 Gasket

7745660- 900- 54155942 740A, BB740A

DESCRIPTION

NOTES 3''

For engine with heat exchanger.

44584

Upd:7/18/2022

Extra Instrument Panel: 843604

900 740A, BB740A

1

2

5

4 3

Upd:7/18/2022

44262

7745660 -900 -54155963 740A, BB740A

Extra Instrument Panel: 843604

900

740A, BB740A REF PART NO. QTY 1 (843604) 1 Instrument panel 2 (837539) 1 Instrument plate 3 (842659) 1 Cover washer 4 (944540) 4 Screw 5 845071 2 Plug

7745660- 900- 54155963 740A, BB740A

DESCRIPTION

44262

Upd:7/18/2022

Freshwater Cooling

900 740A, BB740A 13 25

8

25

23

15

14

1

15 25

23

8

25

13

20 24

25

19

22

25

16

21 21 26

17 18

2

13

7 13

9

5

12

6 4 9

12

7

1 3

13 12

13

10

Upd:7/18/2022

11

44617

7745660 -900 -54155904 740A, BB740A

Freshwater Cooling

900

740A, BB740A REF PART NO. QTY 1 (856480) 1 Freshwater cool kit 2 952077 1 Plug 3 1 thermostat housing 4 5 6 7 8 9 10 11 12 13 14 15 16

835417 955538 942336 (855983) 855984 847108 (856452) 965175 858986 842913 (856529) 943479 (856675)

1 2 2 2 2 2 2 4 4 6 1 2 1

17 18 19 20 21 22 23 24 25 26

(856661) (856662) (856227) 961671 853012 (856311) 944386 969149 853548 855997

1 1 1 2 2 1 X X 6 2

7745660- 900- 54155904 740A, BB740A

DESCRIPTION

SEE SEC.

NOTES

54155905 54155905

Gasket Hexagon screw Spring washer Coolant pipe Coolant pipe Pipe retainer Brace Flange screw Sealing ring Sealing ring Hose Hose clamp Heat exchanger components Bracket Bracket Hose Hose clamp Hose clamp Coolant pipe Rubber hose Rubber hose Hose clamp Gasket

See group 2B

L=2X100mm L=100mm (961668)

44617

Upd:7/18/2022

900

Fuel Filter and Connecting Components

740A, BB740A

Upd:7/18/2022

44274

7745660 -900 -54155957 740A, BB740A

Fuel Filter and Connecting Components

900

740A, BB740A REF PART NO. QTY 1 855117 1 Nipple 855207 1 Nipple 2 (829744) 1 Hose connection 855129 1 Hose connection 3 (1141555) 1 Fuel hose (1141554) 1 Fuel hose 1140062 Copper tube 4 845109 1 Fuel filter 5 821094 1 Fuel filter 6 18817 2 Gasket 7 (191397) 2 Nipple 941438 2 Nipple 8 954322 2 Fitting nut 954323 2 Fitting nut 9 (833972) 1 Water separator 10 (833971) 1 Water separator 11 957177 2 Gasket 12 (191397) 2 Nipple 941438 2 Nipple 13 954322 2 Fitting nut 954323 2 Fitting nut 14 841071 1 Fuel filter 15 841054 1 Fuel filter 16 17 18 19 20 21 22 23 24 25 26 27 28 29

841162 190962 954337 954322 954323 (827912) 943847 954322 954336 (954343) 824599 951189 955139 838418

SEE SEC.

NOTES 1/8''-27 nptf 1/4''-18 NPTF 5/16'' 5/16''

5/16'', 3/8''

5/16'' 3/8'' 5/16'' 3/8'' 5/16'', 3/8''

54155959 54155959

1 housing 1 Filter 1 cover 2 Nipple 2 Nipple 2 Fitting nut 2 Fitting nut 1 Fuel pipe 1 Tube 3 Fitting nut 2 Nipple 1 Elbow nipple 1 Fuel tap 15 Clamp 15 Cross recessed screw X Fuel tap

7745660- 900- 54155957 740A, BB740A

DESCRIPTION

(957176) 5/16'' 3/8'' 5/16'' 3/8'' Repl by 855952 Repl by 855952

5/16'' 3/8'' 5/16'' 3/8'' 5/16'' 5/16'', L=5000mm

44274

Upd:7/18/2022

Fuel Filter Kit

90

Upd:7/18/2022

44282

7745660 -90 -54155959 740A, BB740A

Fuel Filter Kit

REF PART NO. QTY 1 855952 1 Fuel filter kit 2 834781 2 Nipple 3 855569 1 Cap 4 855686 1 Fuel filter 5 941110 3 Hexagon screw 6 (960147) 3 Washer

7745660- 90- 54155959 740A, BB740A

90 DESCRIPTION

44282

Upd:7/18/2022

Fuel Gauge Kit 12V: 1140461

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155962 740A, BB740A

Fuel Gauge Kit 12V: 1140461

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 1140461 1 Fuel gauge kit 2 858643 1 Front ring 3 863940 1 Fuel gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

837999 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155962 740A, BB740A

Bulb

NOTES

(828632) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Fuel Gauge Kit 12V: 828714

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155960 740A, BB740A

Fuel Gauge Kit 12V: 828714

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 828714 1 Fuel gauge kit 2 858643 1 Front ring 3 863940 1 Fuel gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

837999 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155960 740A, BB740A

Bulb

NOTES Gold coloured decor stripe., 12V repl by 858879 (828542) (828632) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Fuel Gauge Kit 12V: 858879

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155961 740A, BB740A

Fuel Gauge Kit 12V: 858879

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 858879 1 Tank gauge kit 2 858643 1 Front ring 3 863940 1 Fuel gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

837999 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155961 740A, BB740A

Bulb

NOTES White coloured decor stripe., 12V repl by 1140461 (828632) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Handle for Control

90

Upd:7/18/2022

44260

7745660 -90 -54155926 740A, BB740A

Handle for Control

REF PART NO. QTY 1 852347 1 Hand lever 2 1 handle 3 1 ring 4 1 support ring 5 1 bar 6 1 lock plate 7 1 knob 8 1 cover 9 853003 2 Nail 10 963678 1 Hex. socket screw

7745660- 90- 54155926 740A, BB740A

90 DESCRIPTION

44260

Upd:7/18/2022

Handle Pt top/side for Control

90

1

6

8 10

9

2

3 7

4

5

11

Upd:7/18/2022

44271

7745660 -90 -54155928 740A, BB740A

Handle Pt top/side for Control

REF PART NO. QTY 1 (1140042) 1 Hand lever 2 1 handle 3 852991 1 Rail 4 852995 1 Ring 5 963678 1 Hex. socket screw 6 1 handle 7 853000 1 Striker plate 8 852993 1 Connector cap 9 853003 2 Nail 10 853311 1 Switch 11 1 cable unit

7745660- 90- 54155928 740A, BB740A

90 DESCRIPTION

44271

Upd:7/18/2022

Handle Pt top/side for Control

90

1

6

8 10

9

2

3 7

4

5

11

Upd:7/18/2022

44271

7745660 -90 -54155927 740A, BB740A

Handle Pt top/side for Control

REF PART NO. QTY 1 1140041 1 Hand lever 2 1 handle 3 852991 1 Rail 4 852995 1 Ring 5 963678 1 Hex. socket screw 6 1 handle 7 853000 1 Striker plate 8 852993 1 Connector cap 9 853003 2 Nail 10 853311 1 Switch 11 1 cable unit

7745660- 90- 54155927 740A, BB740A

90 DESCRIPTION

44271

Upd:7/18/2022

Hour Meter Kit. Voltmeter Kit

90

Upd:7/18/2022

44247

7745660 -90 -54155982 740A, BB740A

Hour Meter Kit. Voltmeter Kit

90

REF PART NO. QTY 1 (1140464) 1 Hour recorder 2 828615 1 Hour recorder 3 858643 1 Front ring 4 808175 1 Bulb socket 5 19923 1 Bulb

DESCRIPTION

7745660- 90- 54155982

44247

740A, BB740A

NOTES

(828542)

Upd:7/18/2022

Hour Meter Kit. Voltmeter Kit

90

Upd:7/18/2022

44247

7745660 -90 -54155980 740A, BB740A

Hour Meter Kit. Voltmeter Kit

REF PART NO. QTY 1 828711 1 Hour counter kit 2 828615 1 Hour recorder 3 858643 1 Front ring 4 808175 1 Bulb socket 5 19923 1 Bulb 182059 1 Bulb 6 X cables and terminals 7 (858878) 1 Voltmeter kit 8 863930 Voltmeter 9 858643 1 Front ring 10 (828718) 1 Toggle switch (828719) 1 Toggle switch 11 828584 1 Toggle switch 828585 1 Toggle switch 12 828586 1 Nut

7745660- 90- 54155980 740A, BB740A

90 DESCRIPTION

NOTES Repl by 858877 (828542)

See group 3 (828628) (828542)

44247

Upd:7/18/2022

Hour Meter Kit. Voltmeter Kit

90

Upd:7/18/2022

44247

7745660 -90 -54155981 740A, BB740A

Hour Meter Kit. Voltmeter Kit

REF PART NO. QTY 1 858877 1 Hour counter kit 2 828615 1 Hour recorder 3 858643 1 Front ring 4 808175 1 Bulb socket 5 19923 1 Bulb 182059 1 Bulb

7745660- 90- 54155981 740A, BB740A

90 DESCRIPTION

NOTES White coloured decor stripe., Repl by 1140464 (828542)

44247

Upd:7/18/2022

Installation Kit for Muffler

90

7

3

5 1

2 4

4

6

Upd:7/18/2022

46865

7745660 -90 -54155952 740A, BB740A

Installation Kit for Muffler

REF PART NO. QTY 1 (854515) 1 Mounting kit 2 (854519) 2 Bracket 3 940142 4 Hexagon screw 4 963106 8 Lock nut 5 842767 2 Bracket 6 955295 4 Hexagon screw 7 (854551) 2 Exhaust hose

7745660- 90- 54155952 740A, BB740A

90 DESCRIPTION

46865

Upd:7/18/2022

Main Switch

900 740A, BB740A

Upd:7/18/2022

44591

7745660 -900 -54155922 740A, BB740A

Main Switch

900

740A, BB740A REF PART NO. QTY 1 870980 1 Main switch 2 1 switch 3 243700 1 Handle 4 955783 2 Hexagon nut 5 1140319 1 Battery main switch 6 1 switch 7 1140427 1 Cock handle 8 1140428 2 Washer 9 17602 4 Hexagon nut

7745660- 900- 54155922 740A, BB740A

DESCRIPTION

44591

Upd:7/18/2022

900

Muffler and Exhaust Line Early Type: 854513

740A, BB740A

Upd:7/18/2022

44594

7745660 -900 -54155944 740A, BB740A

Muffler and Exhaust Line Early Type: 854513

900

740A, BB740A REF PART NO. QTY 9 (854513) 1 Exhaust pipe 10 (854363) 2 Exhaust pipe 11 854490 2 Gasket 12 (975284) 2 O-ring 13 961348 8 Cross recessed screw

7745660- 900- 54155944 740A, BB740A

DESCRIPTION

44594

Upd:7/18/2022

900

Muffler and Exhaust Line Early Type: 854511

740A, BB740A

Upd:7/18/2022

44594

7745660 -900 -54155943 740A, BB740A

Muffler and Exhaust Line Early Type: 854511

900

740A, BB740A REF PART NO. QTY 1 (854511) 1 Muffler 2 1 gable 3 1 gable 4 (854517) 2 Retainer 5 854484 1 Exhaust hose 6 949000 4 Hose clamp 7 854483 2 Exhaust hose 8 853012 8 Hose clamp

7745660- 900- 54155943 740A, BB740A

DESCRIPTION

NOTES Repl by 872244

44594

Upd:7/18/2022

Muffler, Blind Flange, Exhaust Line, Late Type: 854513

900 740A, BB740A

1

8 3

7 6

8

6 2

5

4 8 7 8

4

18

14 16

17

15

10

10 11 9 13 12

Upd:7/18/2022

44618

7745660 -900 -54155947 740A, BB740A

Muffler, Blind Flange, Exhaust Line, Late Type: 854513

900

740A, BB740A REF PART NO. QTY 14 (854513) 1 Exhaust pipe 15 (854363) 2 Exhaust pipe 16 854490 2 Gasket 17 (975284) 2 O-ring 18 961348 8 Cross recessed screw

7745660- 900- 54155947 740A, BB740A

DESCRIPTION

44618

Upd:7/18/2022

Muffler, Blind Flange, Exhaust Line, Late Type: 872244

900 740A, BB740A

1

8 3

7 6

8

6 2

5

4 8 7 8

4

18

14 16

17

15

10

10 11 9 13 12

Upd:7/18/2022

44618

7745660 -900 -54155946 740A, BB740A

Muffler, Blind Flange, Exhaust Line, Late Type: 872244

900

740A, BB740A REF PART NO. QTY 1 (872244) 1 Muffler 2 1 gable 3 1 gable 4 (854517) 2 Retainer 5 854484 1 Exhaust hose 6 949000 4 Hose clamp 7 854483 2 Exhaust hose 8 853012 8 Hose clamp 9 (854651) 1 Seal flange 10 814473 2 Closure 11 925256 1 O-ring 12 970945 4 Hexagon screw 13 941908 4 Spring washer

7745660- 900- 54155946 740A, BB740A

DESCRIPTION

44618

Upd:7/18/2022

Muffler, Early Type

900 740A, BB740A

Upd:7/18/2022

44619

7745660 -900 -54155948 740A, BB740A

Muffler, Early Type

900

740A, BB740A REF PART NO. QTY 1 (854512) 1 Muffler 2 (854366) 2 Flange 3 854481 2 Exhaust flap 4 853012 2 Hose clamp 5 854490 2 Gasket 6 961348 8 Cross recessed screw 7 1 gable 8 1 gable 9 854484 1 Exhaust hose 10 949000 4 Hose clamp 11 (975284) 2 O-ring 12 854483 2 Exhaust hose 13 853012 8 Hose clamp

7745660- 900- 54155948 740A, BB740A

DESCRIPTION

44619

Upd:7/18/2022

Muffler, Late Type

900 740A, BB740A

Upd:7/18/2022

44625

7745660 -900 -54155951 740A, BB740A

Muffler, Late Type

900

740A, BB740A REF PART NO. QTY 1 (872245) 1 Muffler 2 (854366) 2 Flange 3 854481 2 Exhaust flap 4 853012 2 Hose clamp 5 854490 2 Gasket 6 961348 8 Cross recessed screw 7 (854444) 1 End plate, gable 8 (854445) 1 End plate, gable 9 854484 1 Exhaust hose 10 949000 4 Hose clamp 11 (975284) 2 O-ring 12 854483 2 Exhaust hose 13 853012 8 Hose clamp 14 (854651) 1 Seal flange 15 814473 2 Closure 16 925256 1 O-ring 17 970945 4 Hexagon screw 18 941908 4 Spring washer

7745660- 900- 54155951 740A, BB740A

DESCRIPTION

44625

Upd:7/18/2022

900

Power Trim Panel Fly Bridge: 853067

740A, BB740A

Upd:7/18/2022

44281

7745660 -900 -54155900 740A, BB740A

Power Trim Panel Fly Bridge: 853067

900

740A, BB740A REF PART NO. QTY 1 (853067) 1 Instrument panel 2 828731 1 Trimmer 3 853866 1 Control panel 4 876040 1 Relay kit 5 828584 1 Toggle switch 6 828586 1 Nut 7 828743 1 Blind nut 8 828742 1 Toggle switch 9 828740 2 Spacer washer 10 828647 4 Screw 11 X cables and terminals 12 853052 X Extension cable 13 1140317 X Distributing contact

7745660- 900- 54155900 740A, BB740A

DESCRIPTION

NOTES

(828739)

See group 3 L=3000mm

44281

Upd:7/18/2022

Propeller Cone Kit. tool, Cone Tightening. Duoprop.

90

1

6

8 7 5 2 3 4

9

Upd:7/18/2022

46859

7745660 -90 -54155979 740A, BB740A

Propeller Cone Kit. tool, Cone Tightening. Duoprop.

REF PART NO. QTY 1 854666 1 Propeller cone kit 2 1 propeller cone 3 941670 1 Washer 4 852216 1 Hexagon screw 5 853676 1 Spacer ring 6 854667 1 Spare parts kit 7 854294 1 Plastic washer 8 1 pressure washer 9 854669 1 Tool kit

7745660- 90- 54155979 740A, BB740A

DESCRIPTION

90 NOTES (854243) (853825) Black

Repl by 854667

46859

Upd:7/18/2022

Propeller Shaft Coupling

90

2

1

4

5 3

6

Upd:7/18/2022

44590

7745660 -90 -54155969 740A, BB740A

Propeller Shaft Coupling

REF PART NO. QTY 1 (829279) 1 Clutch flange 2 955692 4 Hexagon screw 955691 4 Hexagon screw 3 955883 4 Castle nut 4 907834 4 Split pin 5 941909 4 Spring washer 6 907617 1 Taper pin

7745660- 90- 54155969 740A, BB740A

90 DESCRIPTION

NOTES 35mm hole for propeller shaft.

L=32mm L=25mm

44590

Upd:7/18/2022

Propeller Shaft Coupling

90

2

1

4

5 3

6

Upd:7/18/2022

44590

7745660 -90 -54155971 740A, BB740A

Propeller Shaft Coupling

REF PART NO. QTY 1 (819105) 1 Clutch flange 2 955692 4 Hexagon screw 955691 4 Hexagon screw 3 955883 4 Castle nut 4 907834 4 Split pin 5 941909 4 Spring washer 6 907617 1 Taper pin

7745660- 90- 54155971 740A, BB740A

90 DESCRIPTION

44590

NOTES Center drilled.

L=32mm L=25mm

Upd:7/18/2022

Propeller Shaft Coupling

90

2

1

4

5 3

6

Upd:7/18/2022

44590

7745660 -90 -54155970 740A, BB740A

Propeller Shaft Coupling

REF PART NO. QTY 1 (829281) 1 Clutch half 2 955692 4 Hexagon screw 955691 4 Hexagon screw 3 955883 4 Castle nut 4 907834 4 Split pin 5 941909 4 Spring washer 6 907617 1 Taper pin

7745660- 90- 54155970 740A, BB740A

90 DESCRIPTION

NOTES 40mm hole for propeller shaft.

L=32mm L=25mm

44590

Upd:7/18/2022

Propeller Shaft Coupling

90

2

1

4

5 3

6

Upd:7/18/2022

44590

7745660 -90 -54155968 740A, BB740A

Propeller Shaft Coupling

REF PART NO. QTY 1 (828388) 1 Shaft flange 2 955692 4 Hexagon screw 3 955883 4 Castle nut 4 907834 4 Split pin 5 941909 4 Spring washer 6 907617 1 Taper pin

7745660- 90- 54155968 740A, BB740A

90 DESCRIPTION

NOTES 30mm hole for propeller shaft.

L=32mm

44590

Upd:7/18/2022

Propeller, Bronze Zinc Anode

900 740A, BB740A

1

3

2

Upd:7/18/2022

44587

7745660 -900 -54155976 740A, BB740A

Propeller, Bronze Zinc Anode

900

740A, BB740A REF PART NO. QTY 1 (817461) 1 Propeller (817424) 1 Propeller (871507) 1 Propeller (816878) 1 Propeller 871509 1 Propeller (871512) 1 Propeller (871181) 1 Propeller (871518) 1 Propeller 871186 1 Propeller 871185 1 Propeller 2 (871616) 1 Propeller (871600) 1 Propeller (871617) 1 Propeller (871618) 1 Propeller (871037) 1 Propeller (871043) 1 Propeller (871045) 1 Propeller (871048) 1 Propeller (871049) 1 Propeller (871619) 1 Propeller (871052) 1 Propeller (871620) 1 Propeller (871056) 1 Propeller (871069) 1 Propeller (871072) 1 Propeller (871075) 1 Propeller (871078) 1 Propeller 871217 1 Propeller 871218 1 Propeller (871092) 1 Propeller 871219 1 Propeller 871220 1 Propeller (871109) 1 Propeller (871096) 1 Propeller 871221 1 Propeller (871098) 1 Propeller 871222 1 Propeller 871223 1 Propeller 871224 1 Propeller (871128) 1 Propeller (871227) 1 Propeller 871228 1 Propeller 871229 1 Propeller 871226 1 Propeller (871171) 1 Propeller 871232 1 Propeller (871190) 1 Propeller (871195) 1 Propeller 3 833913 1 Zinc anode 833915 1 Zinc anode 828140 1 Zinc anode

7745660- 900- 54155976 740A, BB740A

DESCRIPTION

44587

NOTES 13X10X25 13X13X25 14X9X25 14X11X25 15X9X25 15X15X25 16X13X25 (817126) 18x12x30 18X13X35 (871502) 18x15x30 13X9X25 14X9X25 (871022) 14X10X25 (871025) 14X13X25 14X14X30 15x10x30 15X11X25 15X12X25 15X12X30 15X13X25 15X13X30 15X14X25 15X14X30 16X9X30 16X11X25 16x12x25 16x13x25 16X13X35 16X15X35 17X11X30 17X11X35 (871107) 17X12X35 (871115) 17x13x25 17X13X30 17X13X35 (871090) 17X14X30 17X14X35 (871099) 17X15X35 (871102) 17X16X35 (871117) 19X13X35 19X13X40 19X15X40 19X17X40 (871148) 21X13X35 21X17X35 23X15X40 (871193) 23X15X45 23X17X35 For shaft diam. 25mm.

For shaft diam. 35mm.

For shaft diam. 40mm.

Upd:7/18/2022

Propeller, Bronze Zinc Anode

900 740A, BB740A

1

3

2

Upd:7/18/2022

44587

7745660 -900 -54155977 740A, BB740A

Propeller, Bronze Zinc Anode

900

740A, BB740A REF PART NO. QTY 2 (871210) 1 Propeller (871116) 1 Propeller (871335) 1 Propeller (871213) 1 Propeller (871188) 1 Propeller 3 833913 1 Zinc anode 833915 1 Zinc anode 828140 1 Zinc anode

7745660- 900- 54155977 740A, BB740A

DESCRIPTION

44587

NOTES 16X13X30 17X15X35 19X12X35 19X15X40 23X13X40 For shaft diam. 25mm.

For shaft diam. 35mm.

For shaft diam. 40mm.

Upd:7/18/2022

Propeller, Duoprop

900 740A, BB740A

Upd:7/18/2022

44283

7745660 -900 -54155978 740A, BB740A

Propeller, Duoprop

900

740A, BB740A REF PART NO. QTY 1 853631 1 Propeller 2 853611 1 Propeller 3 853621 1 Propeller 853632 1 Propeller 853612 1 Propeller 853622 1 Propeller 853633 1 Propeller 853613 1 Propeller 853623 1 Propeller 853634 1 Propeller 853614 1 Propeller 853624 1 Propeller 853635 1 Propeller 853615 1 Propeller 853625 1 Propeller 853636 1 Propeller 853616 1 Propeller 853626 1 Propeller 853637 1 Propeller 853617 1 Propeller 853627 1 Propeller 853638 1 Propeller 853618 1 Propeller 853628 1 Propeller

7745660- 900- 54155978 740A, BB740A

DESCRIPTION

NOTES Type no B1, colour marked=light blue.

Type no B2, colour marked=yellow.

Type no B3, colour marked=red.

Type no B4, colour marked=dark green.

Type no B5, colour marked=light brown.

Type no B6, colour marked=orange.

Type no B7, colour marked=light green.

Type no B9, colour marked=purple.

44283

Upd:7/18/2022

Rudder Indicator Kit: 1140465

900 740A, BB740A

Upd:7/18/2022

44607

7745660 -900 -54155903 740A, BB740A

Rudder Indicator Kit: 1140465

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 1140465 1 Rudder indicator kit 2 863944 1 Rudder indicator 3 863945 1 Bulb socket 4

863946

1

5 6 12

858643 837772

1 1 X

7745660- 900- 54155903 740A, BB740A

Bulb

NOTES For engine with reverse gear.

For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed, Red

Front ring Position sensor cables and terminals

44607

Upd:7/18/2022

Rudder Indicator Kit: 858886

900 740A, BB740A

Upd:7/18/2022

44607

7745660 -900 -54155901 740A, BB740A

Rudder Indicator Kit: 858886

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 858886 1 Rudder indicator kit 2 828698 1 Rudder indicator 863944 1 Rudder indicator 3 863945 1 Bulb socket 4

863946

1

5 6 7 8 9

858643 837772 853176 853177 946704 946703 943549 942836 955780

1 Front ring 1 Position sensor 1 Bracket 1 Intermediate lever 1 Ball socket 1 Ball socket 1 Control rod 1 Hexagon nut 1 Hexagon nut X cables and terminals 1 Hexagon screw

10 11 12 13

940199

7745660- 900- 54155901 740A, BB740A

Bulb

NOTES Repl by 1140463 Repl by 863944 For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed, Red

Left hand threads Right hand threads Left hand threads Right hand threads

44607

Upd:7/18/2022

Rudder Indicator Kit: 1140463

900 740A, BB740A

Upd:7/18/2022

44607

7745660 -900 -54155902 740A, BB740A

Rudder Indicator Kit: 1140463

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 1140463 1 Rudder indicator kit 2 828698 Rudder indicator 863944 1 Rudder indicator 3 863945 1 Bulb socket 4

863946

1

5 6 7 8 9

858643 837772 853176 853177 946704 946703 943549 942836 955780

1 Front ring 1 Position sensor 1 Bracket 1 Intermediate lever 1 Ball socket 1 Ball socket 1 Control rod 1 Hexagon nut 1 Hexagon nut X cables and terminals 1 Hexagon screw

10 11 12 13

940199

7745660- 900- 54155902 740A, BB740A

Bulb

NOTES Repl by 863944 For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175 be installed, Red

Left hand threads Right hand threads Left hand threads Right hand threads

44607

Upd:7/18/2022

Thermostat Housing

900 740A, BB740A

10 9

13 12

8

7

5

1 6

4

3

11

2

Upd:7/18/2022

44567

7745660 -900 -54155905 740A, BB740A

Thermostat Housing

900

740A, BB740A REF PART NO. QTY 1 1 thermostat housing 2 856172 1 Thermostat housing 3 856321 1 Gasket 4 856173 1 Thermostat housing 5 875788 1 Thermostat kit 6 416033 1 Sealing ring 7 835417 1 Gasket 8 855991 1 Housing 9 965181 1 Flange screw 10 946671 1 Flange screw 11 950542 2 Pin 12 957171 1 Gasket 13 (960627) 1 Plug

DESCRIPTION

7745660- 900- 54155905

44567

740A, BB740A

NOTES

70°C

Upd:7/18/2022

Tool Kit

900 740A, BB740A

7

12

10

8

13

4

9

14 6 16

3

5 15

1

17

2 11

Upd:7/18/2022

44278

7745660 -900 -54155936 740A, BB740A

Tool Kit

900

740A, BB740A REF PART NO. QTY 1 (834895) 1 Tool kit 2 844642 1 Tool bag 3 (841044) 1 Screwdriver 4 (963929) 1 Combination screwdri 5 (841252) 1 Open-end wrench (841253) 1 Open-end wrench (962054) 1 Open-end wrench 6 884953 1 Spark plug spanner 7 841045 1 Tool kit 8 (834980) 1 Screwdriver 9 914675 1 Allen wrench 914677 1 Allen wrench 10 875117 1 Oil bilge pump 11 844642 1 Tool bag 12 1 oil bilge pump 13 806282 1 Plastic hose 14 1 plastic hose 15 (841527) 1 Oil scavenging pipe 16 (841046) 1 Rubber hose 17 835964 1 Oil scavenging pipe

7745660- 900- 54155936 740A, BB740A

DESCRIPTION

NOTES (809863)

13-16mm 1/2-11/16mm 19-22mm Drive unit 1/4'' 3/8''

L=1000mm L=100mm L=700mm L=711mm

44278

Upd:7/18/2022

Tool Kit, Extra: 855878

900 740A, BB740A

1

3

2

9 5

6

4

7 8

Upd:7/18/2022

44273

7745660 -900 -54155937 740A, BB740A

Tool Kit, Extra: 855878

900

740A, BB740A REF PART NO. QTY 1 (855878) 1 Tool kit 2 806282 1 Plastic hose 3 (833757) 1 Bilge pump 4 835964 1 Oil scavenging pipe 5 (841046) 1 Rubber hose 6 (841527) 1 Oil scavenging pipe 7 1 tool bag 8 (858280) 1 Sheath knife 9 1 plastic hose

7745660- 900- 54155937 740A, BB740A

DESCRIPTION

44273

Upd:7/18/2022

Water Gauge Kit 12V: 828716

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155965 740A, BB740A

Water Gauge Kit 12V: 828716

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 828716 1 Water level gauge 2 858643 1 Front ring 3 (863942) 1 Water level gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

834389 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155965 740A, BB740A

Bulb

NOTES Gold coloured decor stripe., 12V repl by 858881 (828542) (828635) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Tank sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Water Gauge Kit 12V: 858881

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155966 740A, BB740A

Water Gauge Kit 12V: 858881

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 858881 1 Tank gauge kit 2 858643 1 Front ring 3 (863942) 1 Water level gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

834389 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155966 740A, BB740A

Bulb

NOTES White coloured decor stripe., 12V repl by 1140462 (828635) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Tank sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Water Gauge Kit 12V: 1140462

900 740A, BB740A

10

1

11

7

5

4

3 8 9

6 2

Upd:7/18/2022

44585

7745660 -900 -54155967 740A, BB740A

Water Gauge Kit 12V: 1140462

900

740A, BB740A REF PART NO. QTY DESCRIPTION 1 (1140462) 1 Water level gauge ki 2 858643 1 Front ring 3 (863942) 1 Water level gauge 4 863945 2 Bulb socket 5 6 7 8 9 10 11

863946

2

834389 89865 (834480) 956078 956081 834481

X 1 1 1 4 1 5

7745660- 900- 54155967 740A, BB740A

Bulb

NOTES

(828635) For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed.

For instruments with partno 828632,828635 should white bulb 19923 and bulb holder 808175 be installed., Red See group 3

cables and terminals Tank sensor Gasket Flange Cross recessed screw L=16mm Cross recessed screw L=25mm Gasket

44585

Upd:7/18/2022

Water Heater and Installation Components

90

1

2

5 3

4

6

Upd:7/18/2022

44267

7745660 -90 -54155906 740A, BB740A

Water Heater and Installation Components

REF PART NO. QTY 1 (1144069) 1 Water heater 2 1 container 3 (827259) 1 Decal 4 842767 2 Bracket 5 (1144071) 2 Hose clamp 6 (1144070) 2 Spacer

7745660- 90- 54155906 740A, BB740A

90 DESCRIPTION

44267

Upd:7/18/2022

Base Engine: 856902

990

740A, BB740A REF PART NO. QTY 1 (856902) 1 Base engine 192134 2 Plug 955897 2 Washer 955535 6 Hexagon screw (856886) 2 Engine mounting 856562 2 Cylinder head (856575) 2 Cylinder head gasket 856576 25 Screw 841113 9 Flange screw (856623) 2 Valve cover 856604 2 Oil filler cap 856626 2 Gasket (855591) 14 Stud 955825 14 Hexagon nut 955893 14 Washer (856624) 8 Reinforcement (856625) 6 Reinforcement 1 cylinder block 856563 8 Valve 856566 8 Valve 856570 16 Valve spring 856568 16 Valve spring washer 856569 16 Valve spring washer 856572 16 Valve stem seal 856571 32 Valve collet (856574) 8 Guide 856621 8 Push rod 856622 8 Push rod 835089 16 Tappet (856627) 16 Rocker arm (856605) 1 Timing gear casing (856607) 1 Setting indicator 841426 10 Screw 856608 1 Gasket 856617 1 Camshaft (856618) 1 Chain gear (856619) 1 Chain gear (856620) 1 Chain 940135 3 Hexagon screw 941907 3 Spring washer (856579) 1 Crankshaft (856888) 1 Vibration damper 976644 3 Hex. socket screw 835059 2 Key (856582) 2 Screw 856583 2 Lock washer 856584 1 Washer (856585) 1 Flywheel 835439 6 Screw 941909 6 Spring washer 856586 8 Connecting rod (856593) 8 Bearing shell (856293) 1 Sump (856598) 2 Reinforcement 946420 5 Lock nut 940097 5 Washer (856597) 1 Baffle plate 856599 20 Screw 940100 2 Hexagon screw 856890 1 Oil pump 856602 1 Shaft 856603 1 Stud 835374 1 Sleeve 7745660- 990- 54155990 740A, BB740A

DESCRIPTION

NOTES Replaced by cylinder block 856887.

Std Std

(943629)

Std

Upd:7/18/2022

Base Engine: 856902

990

740A, BB740A REF PART NO. QTY 856613 1 945767 14 (856615) 2 841261 1 (856616) 1 856609 1 856610 2 955536 4 856611 1 (856612) 2 961666 4 876047 2

7745660- 990- 54155990 740A, BB740A

DESCRIPTION

NOTES

Inlet pipe Flange screw Bolt Sealant Gasket Water pump Gasket Hexagon screw Hose Hose attachment Hose clamp Spark plug kit

Upd:7/18/2022

Base Engine: 856708

990

740A, BB740A REF PART NO. QTY DESCRIPTION 1 (856708) 1 Base engine 192134 955897 955535 856562 (856575) 856576 841113 (856623) 856604 856626 (855591) 955825 955893 (856624) (856625) 856563 856566 856570 856568 856569 856572 856571 (856574) 856621 856622 835089 (856627) (856605) (856607) 841426 856608 856617 (856618) (856619) (856620) 940135 941907 (856579) 856581 835059 (856582) 856583 856584 (856585) 835439 941909 856586 (856593) (856293) (856598) 946420 940097 (856597) 856599 940100 856600 856601 856602 856603 835374

2 2 6 2 2 25 9 2 2 2 14 14 14 8 6 1 8 8 16 16 16 16 32 8 8 8 16 16 1 1 10 1 1 1 1 1 3 3 1 1 2 2 2 1 1 6 6 8 8 1 2 5 5 1 20 2 1 1 1 1 1

7745660- 990- 54155989 740A, BB740A

Plug Washer Hexagon screw Cylinder head Cylinder head gasket Screw Flange screw Valve cover Oil filler cap Gasket Stud Hexagon nut Washer Reinforcement Reinforcement cylinder block Valve Valve Valve spring Valve spring washer Valve spring washer Valve stem seal Valve collet Guide Push rod Push rod Tappet Rocker arm Timing gear casing Setting indicator Screw Gasket Camshaft Chain gear Chain gear Chain Hexagon screw Spring washer Crankshaft Vibration damper Key Screw Lock washer Washer Flywheel Screw Spring washer Connecting rod Bearing shell Sump Reinforcement Lock nut Washer Baffle plate Screw Hexagon screw Oil pump Oil strainer Shaft Stud Sleeve

NOTES In order to use basic engine 740A with a 740A/MS5A,the original flywheel has to be transferred to the new engine., Repl by 856902

Std Std

(943629)

Std

Repl by 856890 Repl by 856890

Upd:7/18/2022

Base Engine: 856708

990

740A, BB740A REF PART NO. QTY 856613 1 945767 14 (856615) 2 841261 1 (856616) 1 856609 1 856610 2 955536 4 856611 1 (856612) 2 961666 2 876047 2

7745660- 990- 54155989 740A, BB740A

DESCRIPTION Inlet pipe Flange screw Bolt Sealant Gasket Water pump Gasket Hexagon screw Hose Hose attachment Hose clamp Spark plug kit

NOTES

Upd:7/18/2022

Repair Kit, Astern Lever

990

740A, BB740A REF PART NO. QTY 1 876265 1 Repair kit 125017 2 O-ring 181620 2 Sealing ring 814332 2 Spring 814356 1 Seal 814390 1 Plastic washer 814392 1 Snap hook 814393 1 Snap hook 814396 1 Spring 814399 1 Shaft 814419 1 Shaft 814422 2 Spacer washer 832534 1 Spring 851424 1 Stop arm 876279 2 Bushing kit 925256 1 O-ring 925259 1 O-ring 941820 1 O-ring 941885 2 Lock nut 943194 2 Washer 943197 2 Lock nut

7745660- 990- 54155987 740A, BB740A

DESCRIPTION

NOTES

(853223)

Upd:7/18/2022

Repair Kits

990

740A, BB740A REF PART NO. QTY DESCRIPTION 1 (876213) 1 De-carbonizing kit (856575) 2 Cylinder head gasket, cylinder head

NOTES

856345

1

Gasket, carburetor

856684

1

Gasket, flame arrestor

835417

1

Gasket, thermostat housing

842913

2

Sealing ring, cooling water pipe

858986

2

Sealing ring, cooling water pipe

835154

1

Gasket, distributor

416033

1

Sealing ring, thermostat housing

855972

2

Gasket, exhaust manifold

856572 856626

16 2

Valve stem seal Gasket, valve cover

(856616)

1

Gasket, induction manifold

(876214)

1 Overhaul gasket kit, reconditioning

856580 841953

1 1

Crankshaft seal, crankshaft Gasket, oil dipstick

856295

1

Gasket, oil dipstick

856007

1

Gasket, oil filter

940096

1

Gasket, oil filter

948882

1

O-ring, oil filter

856031 859002

2 8

Gasket, fuel pump Gasket, exhaust manifold

855998

2

Gasket, exhaust manifold

856294 856606

1 1

Gasket kit, oil pan Sealing ring, timing gear cover

856608

1

Gasket, timing gear cover

856610

2

Gasket, water pump

856429

2

Gasket, exhaust outlet

876120 6611452 841610 (856593) (856594) (856595)

1 1 1 1 8 8 8

Impeller kit impeller Gasket Gasket Bearing shell Bearing shell Bearing shell

Std Under size 0,010'' Under size 0,020''

(856556) (856558) (856560) (856557)

4 4 4 1

Bearing Bearing Bearing Bearing

Std Under size 0,010'' Under size 0,020'' Std

7745660- 990- 54155984 740A, BB740A

Upd:7/18/2022

Repair Kits

990

740A, BB740A REF PART NO. QTY (856559) 1 Bearing (856561) 1 Bearing

DESCRIPTION

NOTES Under size 0,010'' Under size 0,020''

(856589) (856590)

8 Piston 8 Piston

Std Over size 0,030''

(856591) (856592)

8 Piston ring kit 8 Piston ring kit

Std Over size 0,030''

7745660- 990- 54155984 740A, BB740A

Upd:7/18/2022

Repair Kits Duoprop Drive Unit

990

740A, BB740A REF PART NO. QTY DESCRIPTION 1 875741 1 Gasket kit, compl. drive unit 876266

1 Gasket kit, upper gear unit

17253 17276 125017 181620 804344 814168 814356 876278 832669 853223 853670 853868 897682 925093 925095 925256 925259 942615 955974 955989 956000

2 1 1 1 1 1 1 2 1 2 1 1 1 1 1 2 1 1 1 1 1

876267

1 Gasket kit, lower gear unit

851407 852212 853871 906633 907023 925258 941820 969071

2 1 1 1 1 2 1 1

7745660- 990- 54155986 740A, BB740A

Split pin Split pin O-ring Sealing ring Gasket Gasket Seal Bushing kit Gasket Bushing Sealing ring Sealing ring Gasket O-ring O-ring O-ring O-ring Sealing ring O-ring O-ring O-ring, o-ring

NOTES

Not for drive unitS DP-A, DP-B. Not for drive unitS DP-A, DP-B. Not for drive unitS DP-A, DP-B., Replaced by 876278 Repl by 876279

Not for drive unitS DP-A, DP-B. Not for drive unitS DP-A, DP-B.

Sealing ring Nut Sealing ring Round nut Lock washer O-ring O-ring Round nut

Upd:7/18/2022

Repair Kits Reverse Gear

REF PART NO. QTY 1 876073 1 Gasket kit 832669 1 Gasket 853670 1 Sealing ring 853757 1 Sealing ring 897682 1 Gasket 925063 1 O-ring 925065 1 O-ring 925257 1 O-ring 943244 1 O-ring 944530 1 Sealing ring 955974 1 O-ring 955989 1 O-ring 956000 1 O-ring 958838 1 Sealing ring 960169 1 O-ring

7745660- 990- 54155988 740A, BB740A

990 DESCRIPTION

Upd:7/18/2022

Engine

21 DESCRIPTION

Camshaft and Valve Mechanism Camshaft and Valve Mechanism Crankshaft and Related Parts Crankshaft and Related Parts Cylinder Block and Flywheel Cover Cylinder Block and Flywheel Cover Cylinder Head Cylinder Head Engine and Installation Components Engine and Installation Components Engine Suspension Engine Suspension Lubricating System Lubricating System Lubricating System

7745660- 21- 21 740A, BB740A

SEE SEC. 54155830 54155831 54155829 54155828 54155827 54155826 54155825 54155824 54155822 54155823 54155819 54155820 54155833 54155834 54155835

NOTES 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

Upd:7/18/2022

Fuel System

23 DESCRIPTION

Carburetor Fuel System Fuel System

7745660- 23- 23 740A, BB740A

SEE SEC. NOTES 54155849 54155847 740A, BB740A 54155848 740A, BB740A

Upd:7/18/2022

Cooling System

DESCRIPTION Cooling System Cooling System with Heat Exchanger Cooling System without Heat Exchanger Exhaust Manifold for Cooling System with Heat Exchanger Exhaust Manifold for Cooling System without Heat Exchanger: 740A/MS5 Heat Exchanger and Installation Components Inlet Manifold Sea Water Pump Sea Water Pump Thermostat Housing for Cooling System with Heat Exchanger

7745660- 26- 26 740A, BB740A

26 SEE SEC. 54155836 54155838 54155837 54155843 54155841 54155839 54155844 54155845 54155846 54155840

NOTES 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

740A, BB740A

Upd:7/18/2022

Engine Controls

27 DESCRIPTION

Engine Speed Control

7745660- 27- 27 740A, BB740A

SEE SEC. NOTES 54155850 740A, BB740A

Upd:7/18/2022

General, Electrical System

30 DESCRIPTION

Alternator Alternator with Installation Components Cables and Terminals Distributor Electrical Equipment and Instruments Electrical Equipment and Instruments Electrical Materials Instrument Panel Instrument Panel Instrument Panel Starter Motor

7745660- 30- 30 740A, BB740A

SEE SEC. 54155855 54155853 54155860 54155854 54155852 54155851 54155861 54155857 54155859 54155858 54155856

NOTES 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

Upd:7/18/2022

Marine Propulsion

DESCRIPTION Connecting Components Reverse Gear MS5A, MS5B Connecting Components Reverse Gear MS5A, MS5B Connecting Components with Exhaust Pipe, Drive DP-B, DP-B1 Connecting Components without Exhaust Pipe, Drive DP-B, DP-B1 Duoprop Drive Unit Duoprop Drive Unit: 872012 Duoprop Drive Unit: 854298 Exhaust Pipe and Cooling Water Pipe Flywheel Cover, Primary Shaft and Clamping Ring Kit Hydraulic Cylinders and Ground Cable Kit Hydraulic Pump, Trim Instrument and Installation Components Hydraulic Pump, Trim Instrument and Installation Components Intermediate Housing Intermediate Housing: DPB-1 Intermediate Housing: DPB Lower Gear Unit Lower Gear Unit: DRIVE DP-B Reverse Gear MS5A: 853955 Reverse Gear MS5A: 853953 Reverse Gear MS5A: 853954 Reverse Gear MS5B: 854905 Reverse Gear MS5B: 854906 Reverse Gear MS5B: 854907 Shield with Mounting Components Upper Gear Unit Upper Gear Unit Upper Gear Unit

7745660- 44- 44 740A, BB740A

44 SEE SEC. NOTES 54155870 54155869 740A, BB740A 54155865 740A, BB740A 54155864 740A, BB740A 54155883 54155882 54155881 54155874 54155868 54155862 54155863 54155866 54155891 54155887 54155886 54155892 54155889 54155877 54155875 54155876 54155878 54155879 54155880 54155867 54155890 54155885 54155884

Upd:7/18/2022

Steering

DESCRIPTION DS Unit for Power Steering Installation Kit for Steering Cable without Power Steering Power Steering Drive Unit DP-B, DP-B1 Power Steering Drive Unit DP-C Steering Mechanism Roto Pilot STS 330

7745660- 64- 64 740A, BB740A

64 SEE SEC. NOTES 54155895 54155894 54155896 740A, BB740A 54155897 740A, BB740A 54155893 740A, BB740A

Upd:7/18/2022

General, Hydraulic System, Special Functions, Miscellaneous

DESCRIPTION Bilge Pump. Engine Room Fan Blind Flange Kit Exhaust Outlet Blind Flange Kit Exhaust Outlet Charging Relay Charging Relay Separate Mounted: 859499 Charging Relay Separate Mounted: 858841 Clutch Plate Control Cable Connecting Kit for Dual Station Control Cables Control for Top Installation: SINGLE-ALT Control for Top Installation Control for Top Installation Control for Top Installation Control for Top Installation: 851602 Control for Top Installation: 851603 Control for Top Installation: SINGLE Control for Top Installation: TWIN Control for Top Installation Control Mechanism Control Mechanism Control Mechanism Control Mechanism Control, Side Mount Control, Side Mount Coupling Flange Coupling Flange Coupling Flange Coupling Flange Electrical Oil Bilge Pump: 843114 Exhaust Grommet Kit Drive Unit DP-C Exhaust Grommet Kit for Shield 876506 Exhaust Outlet and Exhaust Line: 854513 Exhaust Outlet and Exhaust Line: 854516 Extension Kit 1'' Extension Kit, Exhaust Manifold: 856504 Extension Kit, Exhaust Manifold: 856503 Extra Instrument Panel: 843604 Freshwater Cooling Fuel Filter and Connecting Components Fuel Filter Kit Fuel Gauge Kit 12V: 1140461 Fuel Gauge Kit 12V: 828714 Fuel Gauge Kit 12V: 858879 Handle for Control Handle Pt top/side for Control Handle Pt top/side for Control Hour Meter Kit. Voltmeter Kit Hour Meter Kit. Voltmeter Kit Hour Meter Kit. Voltmeter Kit Installation Kit for Muffler Main Switch Muffler and Exhaust Line Early Type: 854513 Muffler and Exhaust Line Early Type: 854511 Muffler, Blind Flange, Exhaust Line, Late Type: 854513 Muffler, Blind Flange, Exhaust Line, Late Type: 872244 Muffler, Early Type Muffler, Late Type Power Trim Panel Fly Bridge: 853067 Propeller Cone Kit. tool, Cone Tightening. Duoprop.

Propeller Shaft Coupling Propeller Shaft Coupling Propeller Shaft Coupling Propeller Shaft Coupling 7745660- 90- 90 740A, BB740A

90 SEE SEC. 54155907 54155938 54155939 54155923 54155925 54155924 54155958 54155940 54155945 54155920 54155911 54155909 54155910 54155913 54155914 54155918 54155919 54155912 54155929 54155932 54155930 54155931 54155908 54155921 54155975 54155973 54155974 54155972 54155933 54155955 54155956 54155954 54155953 54155983 54155941 54155942 54155963 54155904 54155957 54155959 54155962 54155960 54155961 54155926 54155928 54155927 54155982 54155980 54155981 54155952 54155922 54155944 54155943 54155947 54155946 54155948 54155951 54155900 54155979 54155969 54155971 54155970 54155968

NOTES 740A, BB740A

740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

Upd:7/18/2022

General, Hydraulic System, Special Functions, Miscellaneous

DESCRIPTION Propeller, Bronze Zinc Anode Propeller, Bronze Zinc Anode Propeller, Duoprop Rudder Indicator Kit: 1140465 Rudder Indicator Kit: 858886 Rudder Indicator Kit: 1140463 Thermostat Housing Tool Kit Tool Kit, Extra: 855878 Water Gauge Kit 12V: 828716 Water Gauge Kit 12V: 858881 Water Gauge Kit 12V: 1140462 Water Heater and Installation Components

7745660- 90- 90 740A, BB740A

90 SEE SEC. 54155976 54155977 54155978 54155903 54155901 54155902 54155905 54155936 54155937 54155965 54155966 54155967 54155906

NOTES 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

Upd:7/18/2022

Miscellaneous, Repair Kits

99 DESCRIPTION

Base Engine: 856902 Base Engine: 856708 Repair Kit, Astern Lever Repair Kits Repair Kits Duoprop Drive Unit Repair Kits Reverse Gear

7745660- 99- 99 740A, BB740A

SEE SEC. 54155990 54155989 54155987 54155984 54155986 54155988

NOTES 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A 740A, BB740A

Upd:7/18/2022

740A, BB740A

REF 21 23 26 27 30 44 64 90 99

DESCRIPTION Engine Fuel System Cooling System Engine Controls General, Electrical System Marine Propulsion Steering General, Hydraulic System, Special Functions, Miscellaneous Miscellaneous, Repair Kits

7745660- - TOC 740A, BB740A

SEE SEC. 21 23 26 27 30 44 64 90 99

Upd:7/18/2022
