Section 3. Systems Overview Toyota Orderpicker Model 7BPUE15 Service Manual

Special Tools

Special Tools

Pro rammable Maintenance Toof

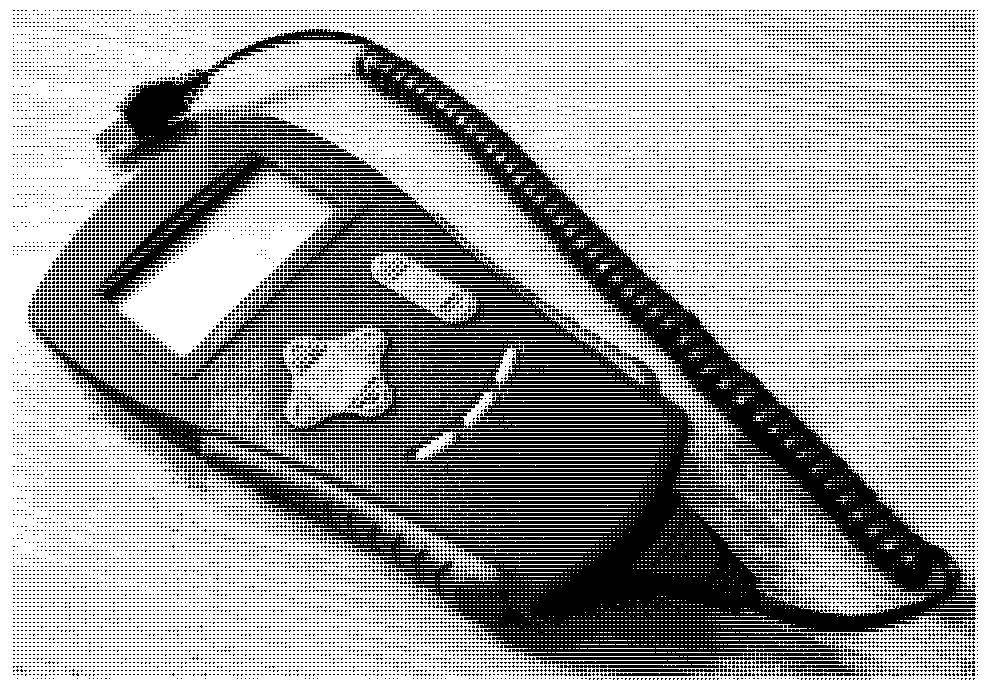

The optional programmable maintenance tool (PMT) (P/N 00590 - 49981 - 71) allows you to test, program (or configure) and diagnose the traction power amplifier in this truck.

The PMT is powered by the host amplifier

BDI (Battery Discharge Indicator) cutout threshold

Options

Learn throttle

Diagnostics

For operating instructions, See "PC Loader Program" on page 10 - 2.

Ram Service Tools

Use these tools when repacking the side cylinders or center cylinder.

Tool

Side Cylinder Service Guide

Side Cylinder Service Driver

Center Cylinder Service Guide

Center Cylinder Service Driver

Lift/Lower Pendant

The lift/lower pendant (P/N 00590 - 46325 - 71) is through the four - pin connector at the top a tool that allows you to use the hydraulic corner of the traction power amplifier. See system independent of the lift and lower Figure 3 - 4. switches. This pendant connects to the steer/tractor manager at JT1.

See "Programmable Maintenance Tool" on page 5 - 20.

Pin Extractor

Use the pin extractor (P/N 00590 - 04672 - 71) when removing wires from any connectors.

FlashWare

The FlashWare software allows you to update truck software, configure options and troubleshoot electrical components on this lift truck. Selections include:

Flash memory program

Clear primary memory
