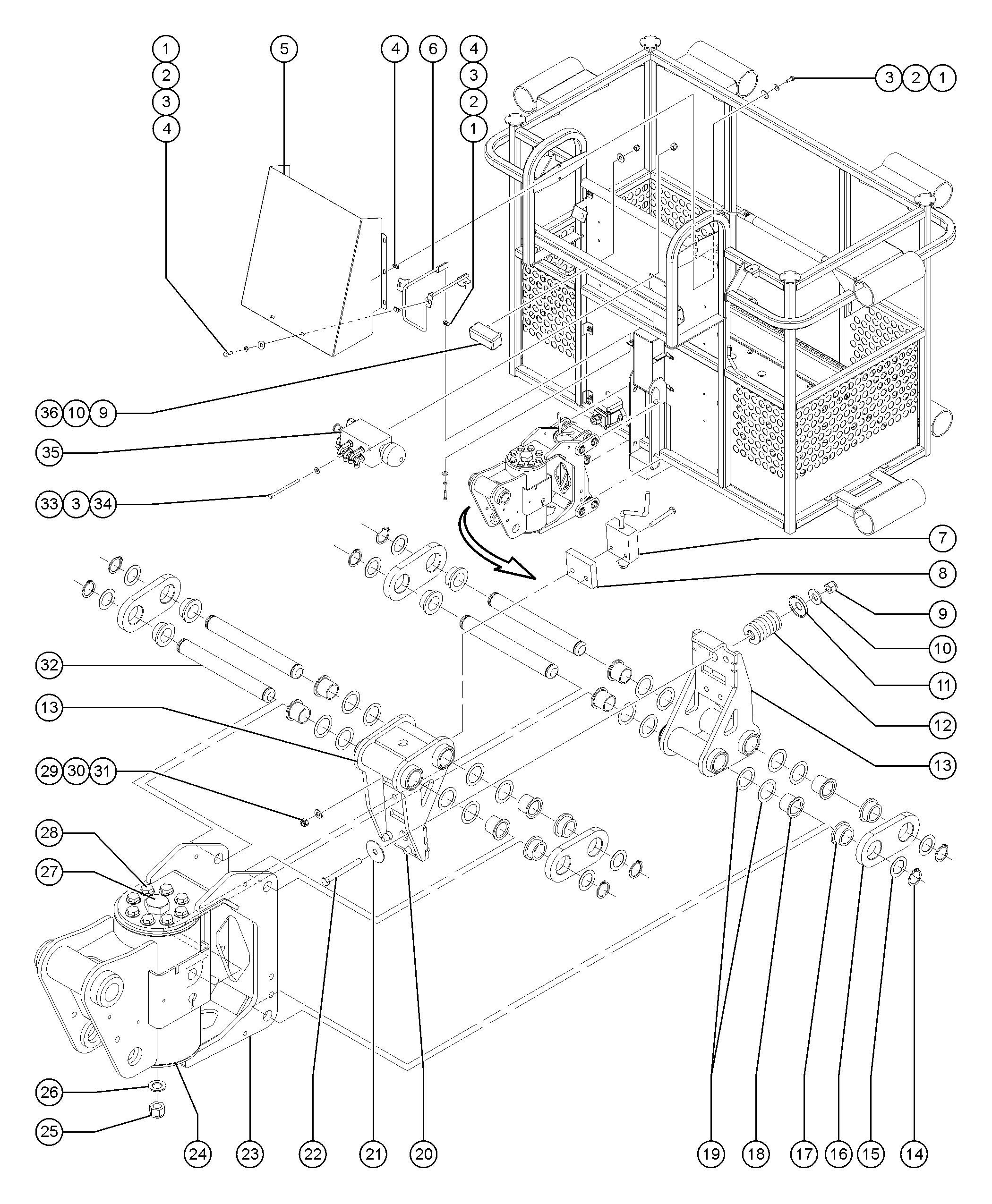

602.1 Platform Installation - View 2

Item

1 2 3 4 5 6 7

8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 26 27 28 29 30 31 32 33 34 35

36

Part No.

149128GT 6090GT 6356GT 6638GT 56912GT 149086GT T107369GT 146399GT

99183GT 61972GT 4828GT 6097GT 61977GT 61976GT 61809GT 10262GT 6563GT 110784GT 47548GT 25685GT 110789GT 34619GT 80605GT 21604GT 107564GT

29764GT 122079GT 36129GT 149122GT 6178GT 6146GT 51063GT 110785GT 11413GT 6091GT 50171GT

56927GT

Description Qty.

KIT,LOAD SENSE MECH,IND,LGR SCREW,HHC,1/4-20 X .75 WASHER,LOCK,.25 WASHER,FLAT,USS,1/4"Y SPRING CLIP,1/4-20,.025-.15X.54,ZAG FORMING,COVER,MANIFOLD..............1 WELDMENT, PLAT. HOSE GUIDE ASSY, LS, LOAD SENSE, ALC1000 includes switch part 99183 SWITCH, ROLLER PLUNGER LIMIT.....1 MOUNT,SWITCH....................................1 NUT,NYLOCK,3/8-16 WASHER,FLAT,USS,3/8",Y RETAINER,SPRING,1.46 X .375............1 SPRING,COMP,1-1/4"OD 352 LB/IN......1 WELDMENT,LOAD SUPPORT...............2 SNAP RING,EXTERNAL,.75 DIA...........4 WASHER,SHIM,.75 X 1.125 X.030.........4 MACHINED,LOAD CELL LINK...............2 BEARING,FL,0.75ID X 1 OD X .49.........8 BEARING,GARLOCK,12FDU12.............8 WASHER,SHIM .0151 THK....................8 BUMPER,RUBBER***.............................2 WASHER,FLAT,3/8X1.5X.06...................1 SCREW,HHC,3/8-16 X 3.25....................1 WELDMENT,ROTATOR MOUNT............1 Ref. Platform Rotator (refer to 513.1) NUT,NYLOCK,1-8 WASHER,FLAT,1.000,HARDENED SCREW,HHC,1-8 X 13 GRD.2 SCREW, HHF,1/2-13 X 1.00 Gr8............8 NUT,NYLOCK,10-32 WASHER,FLAT,MS,#10,Y SCREW,PHILLIPS,RHM,10-32 X 1.5 PIN,.75DIA X 6.38 LG,2RING.................4 SCREW,HHC,1/4-20 X 4.........................2 NUT,NYLOCK,1/4-20 MANIFOLD,PLAT CONTROL NON-JIB*................................................1 PAD,REST,2"THICK,W/STUDS*.............1
