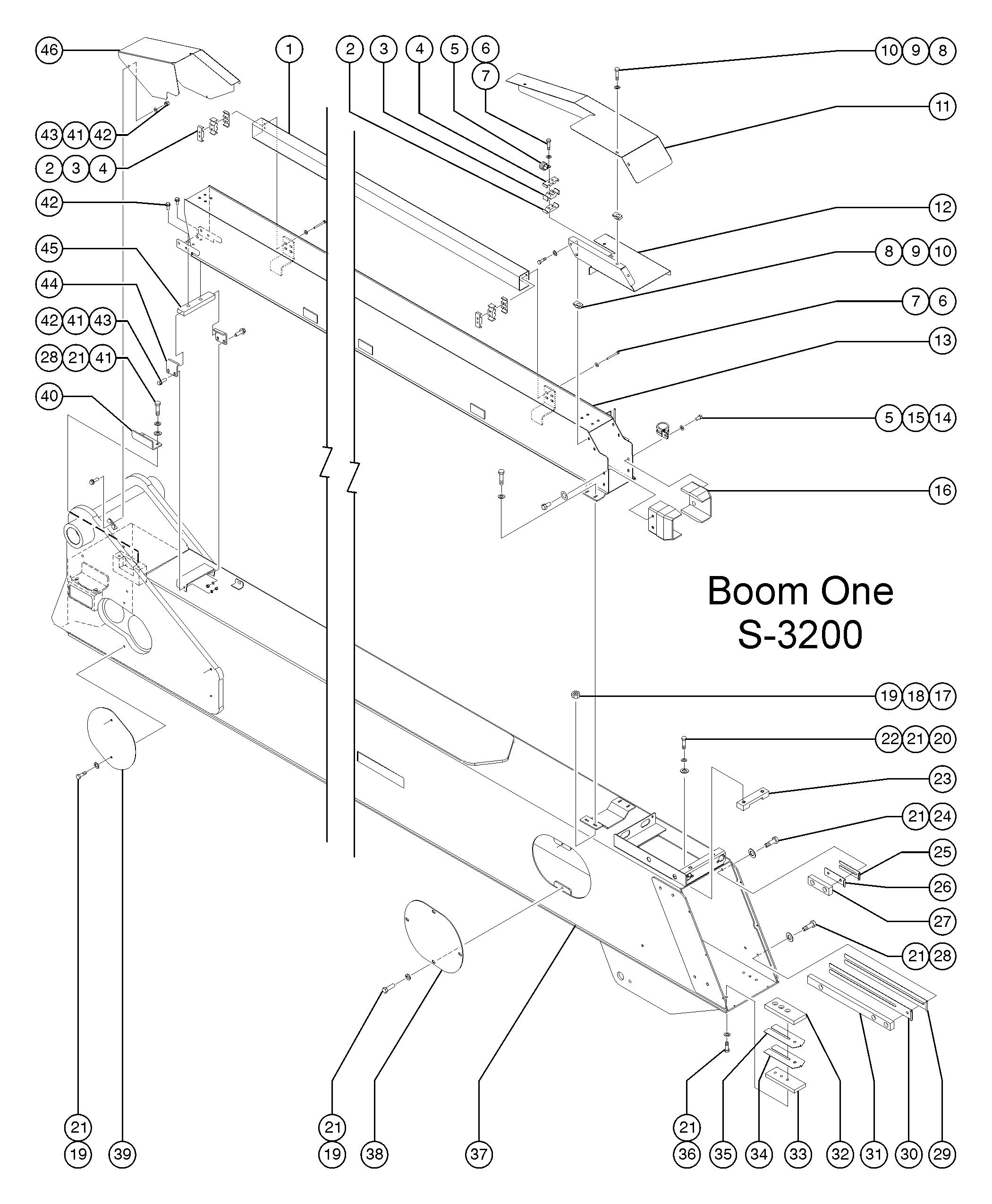

507.1 Boom Tube One, S-3200 - View 2

Item

1 2 3 4 5 6 7 8 9 10 11

12

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

38 39 40

Part No.

149314GT 149250GT 149249GT 149248GT 18666GT 6884GT 6638GT 6888GT 6638GT 56912GT T109440GT

T109439GT

149328GT 7339GT 6356GT 149254GT 7713GT 5397GT 8255GT 6175GT 6021GT 5397GT 61164GT 57072GT 29080GT 38620GT 73461GT 6019GT 89847GT 89846GT 89845GT 50245GT 60222GT 60304GT 60840GT 13918GT

60177GT 60256GT 60335GT

Description Qty.

TUBE, PT1 SIDE TUBE..........................1 TUBE END CLAMP-3.............................2 TUBE END CLAMP-2.............................3 TUBE END CLAMP-1.............................3 CLAMP,1.00,#16 X 1/4,RUB CUSH SCREW,HHC,1/4-20 X 2.5 WASHER,FLAT,USS,1/4"Y SCREW,HHC,1/4-20 X 1 WASHER,FLAT,USS,1/4"Y SPRING CLIP,1/4-20,.025-.15X.54,ZAG FORMING,SY PT1 HOSE SHIELD TOP.........................................................1 FORMING,SY PT1 HOSE SHIELD BTM........................................................1 WELDMENT, PULL TUBE 1...................1 SCREW, HHC, 1/4-20 X .5 WASHER,LOCK,.25 SCRAPER, PULL TUBE 1......................2 NUT, LP NYLOCK, 3/8-16 WASHER,FLAT,USS,5/16",Y SCREW, HHC, 3/8-16 X .75 SCREW,HHC,3/8-16 X 1 WASHER, LOCK, .375 WASHER,FLAT,USS,5/16",Y WEAR PAD,BOOM #2 TOP SCREW,BHHS,3/8-16 X 1.25 SHIM,WEAR PAD,5X 1.5 16GA SHIM,WEAR PAD,5 X 1.5,14GA WEAR PAD,5 X 1.5 X .875 W/NUTS.....14 SCREW,HHC,3/8-16 X 1.25 GRD 5 SHIM,SIDE WEAR PAD,20X2,16GA**.....2 SHIM,SIDE WEAR PAD,20X2,14GA**.....2 WEAR PAD,20X 1.5X.875 W/INST**......2 WEAR PAD,7 X 3 X.75 W/NUTS.............2 SPACER,WEAR PAD..............................2 SHIM,WEAR PAD,7 X 3,12GA SHIM,WEAR PAD,7 X 3,16GA SCREW,HHC,3/8-16 X 1.75,GRD.8 Ref. BOOM TUBE ASSY #1 /W SYM DECAL (refer to 506.1) COVER,BOOM SIDE***..........................2 COVER,BOOM SIDE..............................2 FORMING,CYLINDER RETAINER.........2

Item

41 42 43 44 45 46

Part No.

6097GT 122202GT 4828GT T110521GT T110523GT T107037GT

Description Qty.

WASHER,FLAT,USS,3/8",Y SCREW,FLANGE,HHC,3/8-16X1.25 NUT,NYLOCK,3/8-16 FORMING, SY PT LOCK PLATE WEAR PAD, 7.63 X 1.5 X .75 FORMING, REAR CABLE COVER.........1
