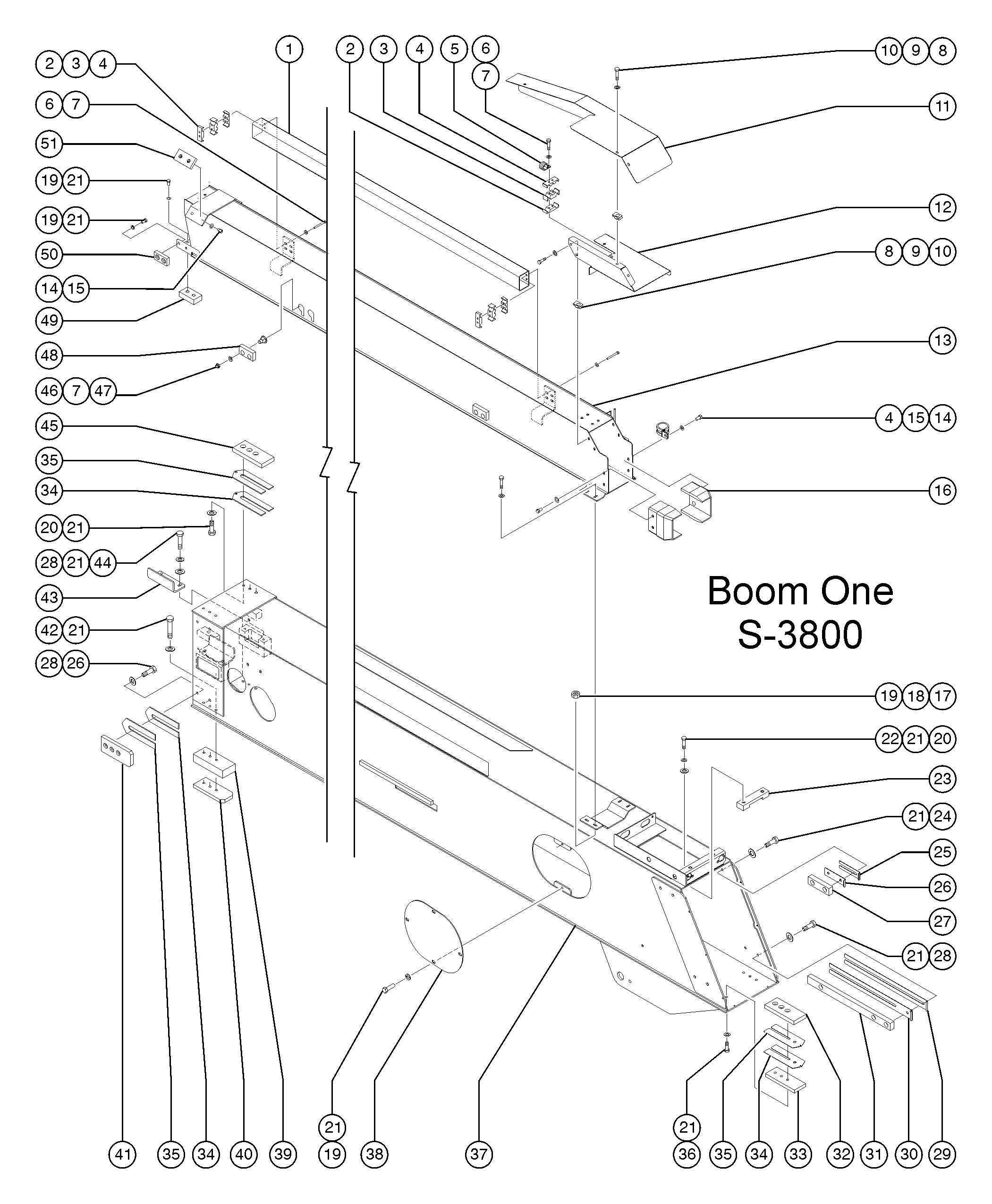

505.1 Boom Tube One, S-3800

Item

1 2 3 4 5 6 7 8 9 10 11

12

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

Part No.

149314GT 149250GT 149249GT 149248GT 18666GT 6884GT 6638GT 6888GT 6638GT 56912GT T109440GT

T109439GT

149318GT 7339GT 6356GT 149254GT 7713GT 5397GT 8255GT 6175GT 6021GT 5397GT 1281478GT 57072GT 29080GT 38620GT 73461GT 6019GT 89847GT 89846GT 89845GT 50245GT 60222GT 60304GT 60840GT 13918GT 149315GT 60177GT 60691GT 1281475GT 60239GT 6708GT

Description Qty.

TUBE, PT1 SIDE TUBE..........................1 TUBE END CLAMP-3.............................2 TUBE END CLAMP-2.............................3 TUBE END CLAMP-1.............................3 CLAMP,1.00,#16 X 1/4,RUB CUSH SCREW,HHC,1/4-20 X 2.5 WASHER,FLAT,USS,1/4"Y SCREW,HHC,1/4-20 X 1 WASHER,FLAT,USS,1/4"Y SPRING CLIP,1/4-20,.025-.15X.54,ZAG FORMING,SY PT1 HOSE SHIELD TOP.........................................................1 FORMING,SY PT1 HOSE SHIELD BTM........................................................1 WELDMENT, PULL TUBE 1...................1 SCREW, HHC, 1/4-20 X .5 WASHER,LOCK,.25 SCRAPER, PULL TUBE 1......................2 NUT, LP NYLOCK, 3/8-16 WASHER,FLAT,USS,5/16",Y SCREW, HHC, 3/8-16 X .75 SCREW,HHC,3/8-16 X 1 WASHER, LOCK, .375 WASHER,FLAT,USS,5/16",Y WEAR PAD,BOOM #2 TOP SCREW,BHHS,3/8-16 X 1.25 SHIM,WEAR PAD,5X 1.5 16GA SHIM,WEAR PAD,5 X 1.5,14GA WEAR PAD,5 X 1.5 X .875 W/NUTS.....14 SCREW,HHC,3/8-16 X 1.25 GRD 5 SHIM,SIDE WEAR PAD,20X2,16GA**.....2 SHIM,SIDE WEAR PAD,20X2,14GA**.....2 WEAR PAD,20X 1.5X.875 W/INST**......2 WEAR PAD,7 X 3 X.75 W/NUTS.............2 SPACER,WEAR PAD..............................2 SHIM,WEAR PAD,7 X 3,12GA SHIM,WEAR PAD,7 X 3,16GA SCREW,HHC,3/8-16 X 1.75,GRD.8 WELDMENT, EXTENSION BOOM #1 COVER,BOOM SIDE***..........................2 SPACER,WEAR PAD..............................2 WEAR PAD,7 X 3 X.75 W/NUTS.............2 WEAR PAD,7 X 3 X.625 W/INSERT.......4 SCREW,HHC,3/8-16 X 2.25

Item

43 44 45 46 47 48 49 50 51

Part No.

60335GT 6097GT 50245GT 6889GT 80149GT T106678GT 61379GT 81640GT 45209GT

Description Qty.

FORMING,CYLINDER RETAINER.........2 WASHER,FLAT,USS,3/8",Y WEAR PAD,7 X 3 X.75 W/NUTS NUT,LP NYLOCK,1/4-20 BOLT,CARRIAGE,1/4-20 X .5,G2 WEAR PAD, 3 X 1.5 X .63.......................8 WEAR PAD,3.5 X 2 X .625 W/INST........2 WEAR PAD,3 X 1.5 X.625 W/NUTS........2 WEAR PAD,4X2X.5 W/INSERT***..........2
