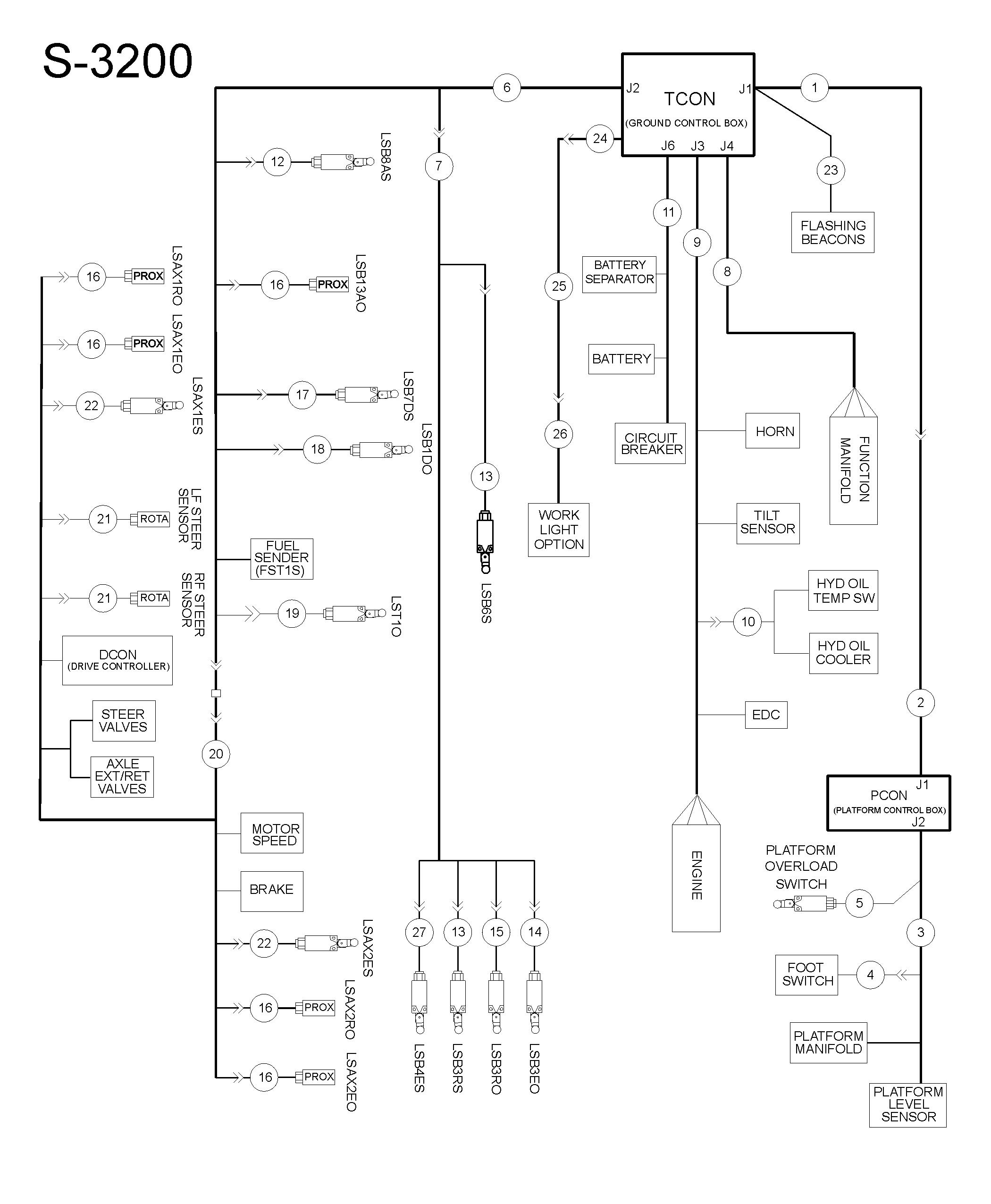

311.1 Wire Harness Diagram, S-3200

Item

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23

24 25 26 27

Part No.

T106483GT T106485GT 60950GT T107004GT 146399GT 146195GT T106486GT 146193GT 122875GT 122877GT T106491GT 101888GT 146198GT 75031GT 89110GT 89109GT 60987GT 75032GT 75033GT 75037GT 102705GT 107830GT 75036GT 75641GT

75527GT 149124GT 149123GT 146199GT

Description Qty.

HARNESS, S30CC BOOM CABLE #1 HARNESS,SHIPYARD BOOM CABLE #2 HARNESS,PCON J2,(MANIFOLD) FOOT SWITCH ASSY, HEAVY DUTY ASSY, LS, LOAD SENSE, ALC1000 HARNESS, TCON J2 LS 2009 HARNESS, S30CC J2 UPPER HARNESS, TCON J4 MANIFOLD 2009 HARN,ENGINE T3,DEUTZ BF4L2011 HARNESS,CUMMINS ENGINE T3 HARNESS, SHIPYARD OIL COOLER HARNESS,TCON J5 POWER LIMIT SWITCH,SAFETY.........................1 LIMIT SWITCH,SAFETY.........................2 LIMIT SWITCH,OPERATIONAL.............1 LIMIT SWITCH,OPERATIONAL.............1 SWITCH,LIMIT,PROX(OPERATIONAL)...5 LIMIT SWITCH,SAFETY.........................1 LIMIT SWITCH,OPERATIONAL.............1 LIMIT SWITCH,OPERATIONAL.............1 HARNESS,DRIVE,2WS,SB SUBASSY,STEER SENSOR***..............2 LIMIT SWITCH,SAFETY.........................2 HARNESS,FLASH BEACON SUB ASSY......................................................1 HARNESS,WORKLIGHT OPT................1 HARNESS,BOOM,WORK LIGHT 12V.....1 HARNESS,PLAT,WORK LIGHT, 12V......1 LIMIT SWITCH,SAFETY.........................1
