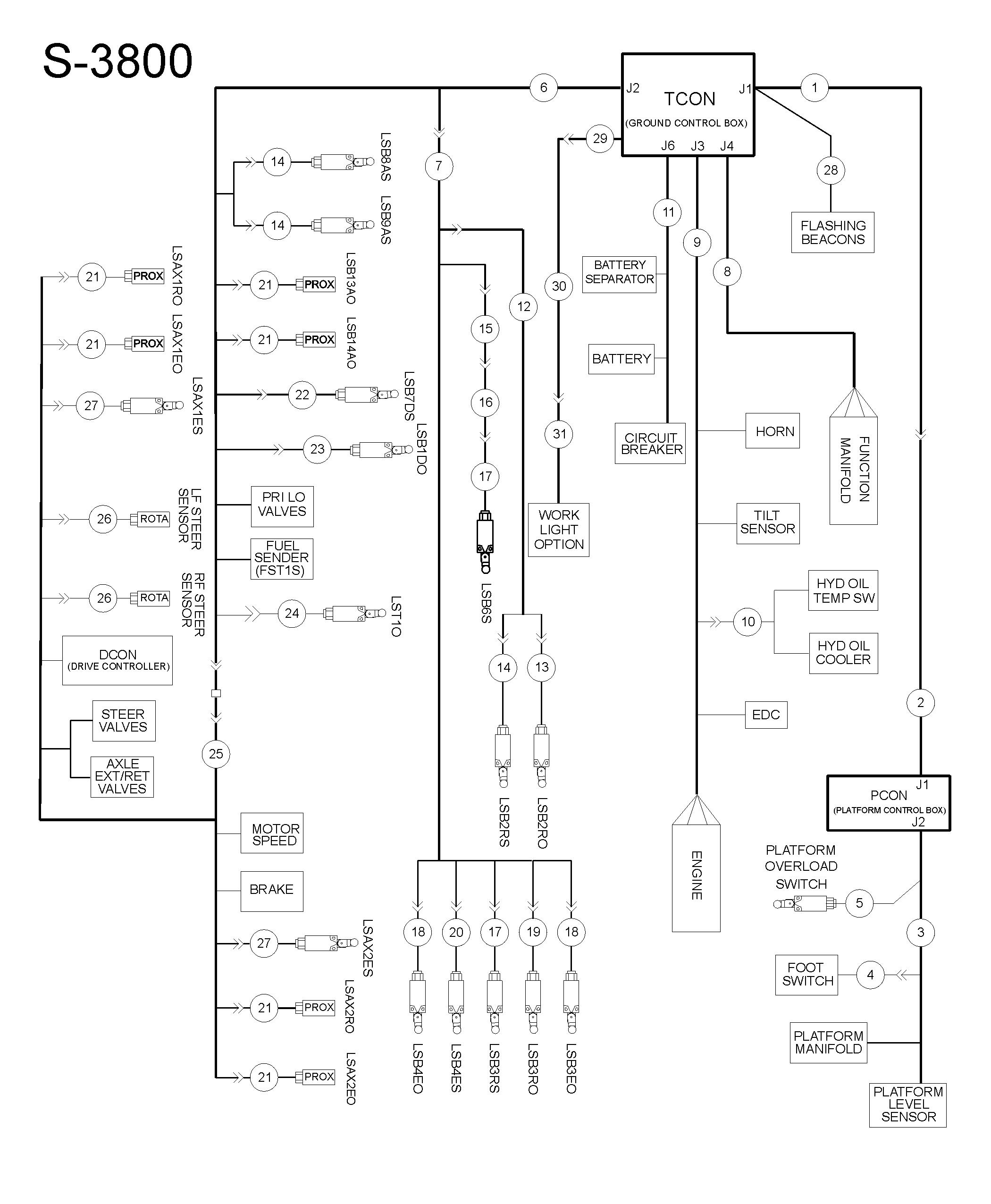

310.1 Wire Harness Diagram, S-3800

Item

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

29 30 31

Part No.

T106484GT T106485GT 60950GT T107004GT 146399GT 146191GT T106487GT 146193GT 122875GT 122877GT T106491GT 101888GT T106488GT 75769GT 146198GT T106489GT T106490GT 75031GT 89110GT 89109GT 146199GT 60987GT 75032GT 75033GT 75037GT 102705GT 107830GT 75036GT 75641GT

75527GT 149124GT 149123GT

Description Qty.
