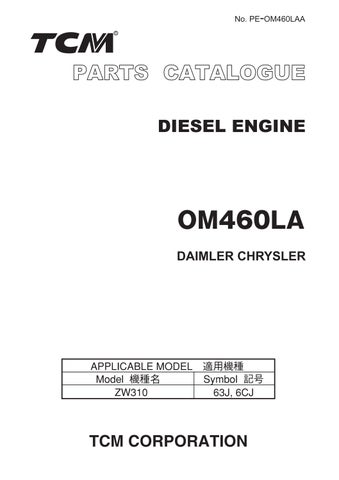

TCM DIESEL ENGINE ZW310 OM460LA PARTS CATALOG MANUAL PE-OM460LAA

No. PE-OM460LAA R

OM460LA DAIMLER CHRYSLER

APPLICABLE MODEL Model 機種名 ZW310

適用機種 Symbol 記号 63J, 6CJ

ご使用 のまえに このパーツカタログは，

のエンジンの構成部品を収録しています。

部品ご注文について 部品ご注文の際は，必ず車両の形式・製造番号（号車），エンジンの形式・製造年月・製 造番号（号機），部品番号および注文数を明示してください。車両の製造番号（号車）は車 両銘板に，エンジンの製造番号（号機）は，シリンダブロックに取付いている銘板に打刻し ています。 エンジン製造番号

製造番号 （号車）

車両銘板

ご使用について 部品名称はわかっ ているが，部品番号 を知りたいときは， ……

目次を見て，部番リスト の図番号（FIG. No.）を 見付けます。

イラストの確認，部 品番号の検索，号車 （号機）の確認をし ます。

組付け位置はわかっ ているが，部品番号 を知りたいときは， ……

目次を見て，部番リスト の図番号（FIG. No.）を 見付けます。

正確な部品番号，形 状，名称や履歴がわ かります。

略語および記号 ＡＳＳＹ

組立品を示します。

＊

セットおよびキットの販売部品を示します。

ＳＴＤ

標準部品を示します。

♯

単体販売しません。

Ｄ

直径を示します。

I.D.

内径を示します。

O.D.

外径を示します。

ＯＰ

選択装備品を示します。

ｔ

厚みを示します。

ＦＲＯＮＴ

ファン側が前方であることを示します。

部品は，品質向上のため予告なく変更することがありますので，あらかじめご了承ください。

INTRODUCTION This Parts Catalogue contains the component parts of the engine mounted on

How to order parts When ordering, be sure to specify the model name and serial number (machine number), engine type and engine manufacture yearts and serial number (engine number) of your machine, as well as the part number and desired quantity for each part. The machine serial number (machine number) is indicated on the machine name plate, the engine serial number (engine number) is punched on the name plate on the cylinder block.

Serial number (engine number)

Serial number (machine number)

How to use the Parts Catalogue To find a part number after understanding the part name.

Search the section from Contents, find the FIG. number of the parts number list.

Confirm illustration part number and machine number.

To find a part number after understanding the location of assembly

Search the Contents, find the FIG. number of illustration.

The part number, shape, name and record are clear.

Abbreviations and symbols ASSY ････ ＊ ･･･････ STD ･････ ♯ ･･･････ D ････････ I.D. ･･････ O.D. ･････ OP ･･････ t ････････ FRONT･･･

Assembled unit.

The marketable part set or kit.

Standard parts.

Not sold separately.

Diameter.

Inside Diameter.

Outside Diameter.

Optional parts.

Thickness.

It is shown that a fan side is the front.

Materals and specifications subject to change without notice.

.

APPLICABLE MODEL OM460LA Model 機種名

Symbol 記号

ZW310

63J, 6CJ

CONTENTS 目 次 SECTION

部

門

ENGINE BODY

エンジン本体

FIG.No. 図番号

ENGINE KIT

エンジンキット

1

ENGINE FOOT & HOOK

エンジンフット＆フック

2

OIL PAN

オイルパン

3

CRANKCASE

クランクケース

4

CRANKSHAFT & FLYWHEEL

クランクシャフト＆フライホイール

5

PISTON & CONNECTING ROD

ピストン＆コネクティングロッド

6

TIMING CASE

タイミングケース

7

ＰＴＯ

8

P.T.O. HEAD &VALVE MECHANISM

ヘッド＆バルブメカニズム

CYLINDER HEAD

シリンダヘッド

9

CAMSHAFT

カムシャフト

10

INLET & EXHAUST SYSTEM

インレット＆エキゾーストシステム

INTAKE MANIFOLD

インテークマニホールド

11

EXHAUST MANIFOLD

エキゾーストマニホールド

12

TURBO CHARGER

ターボチャージャ

13

LUBRICATION SYSTEM

潤滑装置

OIL PIPING

オイルパイピング

OIL PUMP

オイルポンプ

15

OIL FILTER & OIL COOLER

オイルフィルタ＆オイルクーラ

16

COOLING SYSTEM WATER PUMP FUEL SYSTEM INJECTION PUMP & FUEL PUMP

14

冷却装置 ウォータポンプ

17

燃料装置 インジェクションポンプ＆フューエルポンプ

18

FUEL PIPING

フューエルパイピング

19

FUEL FILTER & SEPARATOR

フューエルフィルタ＆セパレータ

20

ELECTRICAL PARTS

エレクトリカルパーツ

ALTERNATOR (FITTING PARTS)

オルタネータ（フィッティングパーツ）

21

ALTERNATOR INNER PARTS)

オルタネータ（インナパーツ）

22

STARTER (FITTING PARTS)

スタータ（フィッティングパーツ）

23

ELECTRICAL PARTS

エレクトリカルパーツ

24

PARTS NUMBER INDEX

部品番号順索引表

1〜2

FIG. 1

ENGINE KIT ｴﾝｼﾞﾝｷｯﾄ

FIG. 1 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A0020106500

ENGINE

ｴﾝｼﾞﾝ

1

-

CR-A0000100250

SHORT BLOCK,ENGINE

ｼｮｰﾄﾌﾞﾛｯｸ

1

Remarks : serial No. 備考：実施号車

FIG. 2

ENGINE FOOT & HOOK ｴﾝｼﾞﾝﾌｯﾄ&ﾌｯｸ

FIG. 2 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4572200216

FOOT,LH

ﾌｯﾄ

1

-

CR-A4572200816

FOOT,RH

ﾌｯﾄ

1

2

CR-A4572231541

HOOK,REAR

ﾌｯｸ

1

3

CR-A4572230641

HOOK,FRONT

ﾌｯｸ

1

4

CR-N910105016013

BOLT

ﾎﾞﾙﾄ

2

5

CR-N910105012013

BOLT

ﾎﾞﾙﾄ

2

-

CR-N910105012013

BOLT

ﾎﾞﾙﾄ

2

6

CR-N000912014091

BOLT

ﾎﾞﾙﾄ

8

Remarks : serial No. 備考：実施号車

4674-

FIG. 3

OIL PAN ｵｲﾙﾊﾟﾝ

FIG. 3 Item No. 見出番号

Part No. 部品番号

1

CR-A4570142902

2 3

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

PAN,OIL

ﾊﾟﾝ

1

CR-A4570140422

GASKET

ｶﾞｽｹｯﾄ

1

CR-N000000002815

BOLT

ﾎﾞﾙﾄ

27

M8x35 M8x140

-

CR-N910105008032

BOLT

ﾎﾞﾙﾄ

2

-

CR-A0009905304

BOLT

ﾎﾞﾙﾄ

4

4

CR-A0041539428

SENDER UNIT

ｾﾝﾀﾞﾕﾆｯﾄ

1

5

CR-A4579970054

TUBE,OIL DRAIN

ﾁｭｰﾌﾞ

1

6

CR-A4571801152

MANIFOLD,INTAKE

ﾏﾆﾎｰﾙﾄﾞ

1

7

CR-A0004358382

HOSE

ﾎｰｽ

1

8

CR-N915036018200

BOLT,EYE

ﾎﾞﾙﾄ

1

9

CR-N007603022102

GASKET

ｶﾞｽｹｯﾄ

2

10

CR-N000908016008

PLUG

ﾌﾟﾗｸﾞ

1

29967INC.7

11

CR-N000000001070

RING,SEAL

ﾘﾝｸﾞ

1

12

CR-A0000183535

SEPARATOR,OIL

ｾﾊﾟﾚ-ﾀ

2

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

-

CR-A0000185835

SEPARATOR,OIL

ｾﾊﾟﾚ-ﾀ

2

13

CR-A5410180182

HOSE

ﾎｰｽ

2

14

CR-A0009974874

TEE

ﾃｨｰ

1

15

CR-N000000000668

CLAMP

ｸﾗﾝﾌﾟ

4

16

CR-A4570101364

NECK,OIL FILLER

ﾈｯｸ

1

17

CR-A1110180302

COVER

ｶﾊﾞｰ

1

18

CR-A1110180080

GASKET

ｶﾞｽｹｯﾄ

1

19

CR-A0019976671

FITTING

ﾌｨｯﾃｨﾝｸﾞ

2

20

CR-A0019889535

CAP

ｷｬｯﾌﾟ

1

INC.18

21

CR-N000912008217

+

SCREW

ｽｸﾘｭ

1

BRK TO CYL. CRANKCASE

-

CR-N000912008217

+

SCREW

ｽｸﾘｭ

1

BRK TO CYL. CRANKCASE

-

CR-N910105006024

+

SCREW

ｽｸﾘｭ

1

OIL FILLER TO BRK

22

CR-N910112006003

+

NUT

ﾅｯﾄ

1

OIL FILLER TO BRK

23

CR-A4570181240

BRACKET

ﾌﾞﾗｹｯﾄ

1

OIL FILLER PIPE

24

CR-A4570104472

DIPSTICK,OIL

ﾃﾞｨｯﾌﾟｽﾃｨｯｸ

1

INC.25,26

25

CR-A0149974148

RING,SEAL

ﾘﾝｸﾞ

1

OIL DIPSTICK

26

CR-A3660180106

CAP

ｷｬｯﾌﾟ

1

OIL DIPSTICK

27

CR-A4570100866

TUBE,GUIDE

ﾁｭｰﾌﾞ

1

INC.28 OIL DIPSTICK

28

CR-A8339970081

GROMMET

ｸﾞﾛﾒｯﾄ

1

OIL DIPSTICK

29

CR-A4220140076

WASHER

ﾜｯｼｬ

2

GUIDE TUBE TO OIL PAN

FIG. 4

CRANKCASE ｸﾗﾝｸｹｰｽ

FIG. 4 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A4600100908

CRANKCASE

ｸﾗﾝｸｹｰｽ

1

INC.2-21

2

CR-N000007008205

PIN,BRG CAP,CRANK

ﾋﾟﾝ

14

REPLACEABLE WITH EACH OTHER

-

CR-A4769910062

PIN,BRG CAP,CRANK

ﾋﾟﾝ

14

REPLACEABLE WITH EACH OTHER

3

CR-A4220110071

SCREW,BRG CAP TO CYL

ｽｸﾘｭ

14

REPLACEABLE WITH EACH OTHER

-

CR-A4470110071

SCREW,BRG CAP TO CYL

ｽｸﾘｭ

14

REPLACEABLE WITH EACH OTHER

4

CR-A4570511510

BEARING,CAMSHAFT

ﾍﾞｱﾘﾝｸﾞ

1

5

CR-A4570510310

BEARING,CAMSHAFT

ﾍﾞｱﾘﾝｸﾞ

5

STD

6

CR-A4079975032

PLUG,OIL DUCT

ﾌﾟﾗｸﾞ

1

FLYWHEEL INSIDE

7

CR-A4039970620

PLUG,DUCT

ﾌﾟﾗｸﾞ

1

OIL FILLER

-

CR-A4039970620

PLUG,OIL DUCT

ﾌﾟﾗｸﾞ

1

69997-

8

CR-A4039970620

PLUG,OIL DUCT

ﾌﾟﾗｸﾞ

1

69997-

FLYWHEEL OUTSIDE OIL PUMP M24x1.5 9

CR-A4039970620

PLUG,OIL DUCT

ﾌﾟﾗｸﾞ

1

69997FAN SIDE

10

CR-A4079975120

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

4

COOLING WATER DUCT

11

CR-N000908018011

PLUG

ﾌﾟﾗｸﾞ

1

COOLING WATER DUCT COOLING WATER DUCT

-

CR-N000908014009

PLUG

ﾌﾟﾗｸﾞ

1

12

CR-N000000001071

RING,SEAL

ﾘﾝｸﾞ

1

COOLING WATER DUCT

-

CR-N000000001069

RING,SEAL

ﾘﾝｸﾞ

1

COOLING WATER DUCT

13

CR-N005401308501

BALL

ﾎﾞｰﾙ

1

AIR COMP. OIL BORE,FRONT SIDE

-

CR-N005401999031

BALL

ﾎﾞｰﾙ

1

FASTENER FUEL BOR ON FLYWHEEL END

-

CR-N005401999011

BALL

ﾎﾞｰﾙ

1

FASTENER FUEL BORE FAN SIDE

-

CR-N005401307000

BALL

ﾎﾞｰﾙ

1

FUEL BORE COVER, PUMP SIDE

-

CR-N005401307000

BALL

ﾎﾞｰﾙ

2

PTO BORE HOLES COVER

-

CR-N005401311000

BALL

ﾎﾞｰﾙ

2

FUEL BORE COVER,PUMP SIDE

14

CR-A4030110026

NOZZLE,OIL

ﾉｽﾞﾙ

1

PTO BORE HOLES COVER

15

CR-N000000001071

RING,SEAL

ﾘﾝｸﾞ

1

PTO BORE HOLES COVER

16

CR-A4179970019

PIN,SCREW

ﾋﾟﾝ

1

TAPPED HOLE FOR AIR COMP.

17

CR-N005401311000

BALL,OIL DUCT

ﾎﾞｰﾙ

1

PUSHROD LUBIRI. FLYWHEEL SIDE

-

CR-N005401311000

BALL,OIL DUCT

ﾎﾞｰﾙ

1

PUSHROD LUBIRI. FAN SIDE

18

CR-N000908014001

PLUG,LOCK

ﾌﾟﾗｸﾞ

1

OIL SUPPLY UNIT PUMP

19

CR-N000000001069

RING,SEAL,LOCK

ﾘﾝｸﾞ

1

OIL SUPPLY UNIT PUMP

20

CR-N000000001674

PIN

ﾋﾟﾝ

12

CYLINDER HEAD FIXING

21

CR-A9060110057

THROTTLE

ｽﾛｯﾄﾙ

1

FUEL BORE COVER,UNIT PUMP SIDE

22

CR-N000443034002

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

1

COOLING WATER DUCT

23

CR-N007604016108

PLUG,OIL DUCT

ﾌﾟﾗｸﾞ

1

OIL COOLER SIDE

24

CR-N000000001070

RING,SEAL,OIL DUCT

ﾘﾝｸﾞ

1

OIL COOLER SIDE

25

CR-N000007016210

PIN

ﾋﾟﾝ

2

TIMING CASE FIXING

26

CR-A4601800443

NOZZLE,OIL

ﾉｽﾞﾙ

6

INC.28 PISTON COOLING

27

CR-A4571801843

NOZZLE,OIL

ﾉｽﾞﾙ

6

INC.28 CAM LUBRI.

28

CR-N000007003114

PIN

ﾋﾟﾝ

12

3x8

29

CR-N915036006202

BOLT,EYE

ﾎﾞﾙﾄ

6

CAM LUBRI.

-

CR-A4609900063

BOLT,EYE

ﾎﾞﾙﾄ

6

PISTON COOLING

30

CR-A0041534328

SENDER,FUEL TEMP

ｾﾝﾀﾞ

1

REPLACEABLE WITH EACH OTHER

-

CR-A0041534228

SENDER,FUEL TEMP

ｾﾝﾀﾞ

1

REPLACEABLE WITH EACH OTHER

31

CR-N000000001069

RING,SEAL

ﾘﾝｸﾞ

3

FIG. 4 Item No. 見出番号

Part No. 部品番号

32

CR-A4571310021

33 34

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

COVER

ｶﾊﾞｰ

1

AIR COMP. OPENING

CR-A4600110207

COVER

ｶﾊﾞｰ

1

CRANKCASE FRONT

CR-N000007008210

PIN

ﾋﾟﾝ

2

CRANKCASE FRONT

35

CR-A0149974647

RING,SEAL,CRANKSHAFT

ﾘﾝｸﾞ

1

I.D.=105mm

-

CR-A0259973947

RING,SEAL,CRANKSHAFT

ﾘﾝｸﾞ

1

NORMAL REPAIR

36

CR-A5410110180

GASKET,CRANKCASE

ｶﾞｽｹｯﾄ

1

REPLACEABLE WITH EACH OTHER

-

CR-A4600110180

GASKET,CRANKCASE

ｶﾞｽｹｯﾄ

1

REPLACEABLE WITH EACH OTHER

37

CR-A4571310080

GASKET,CRANKCASE

ｶﾞｽｹｯﾄ

1

38

CR-A4579970045

RING,SEAL,CRANKCASE

ﾘﾝｸﾞ

1

39

CR-N910105008005

BOLT

ﾎﾞﾙﾄ

8

M8x25

40

CR-N910105010001

BOLT

ﾎﾞﾙﾄ

3

41

CR-A4570110807

COVER,CAMSHAFT

ｶﾊﾞｰ

1

-32014 32015-

-

CR-A4570111607

COVER,CAMSHAFT

ｶﾊﾞｰ

1

42

CR-A4570110880

GASKET

ｶﾞｽｹｯﾄ

1

43

CR-N910105010009

BOLT

ﾎﾞﾙﾄ

4

M10x25

-

CR-N910105010011

BOLT

ﾎﾞﾙﾄ

3

M10x40

-

CR-N910105010002

BOLT

ﾎﾞﾙﾄ

1

44

CR-A4572030339

FLANGE

ﾌﾗﾝｼﾞ

1

HEATING CONNECTION LOCK

45

CR-A4572000056

FITTING

ﾌｨｯﾃｨﾝｸﾞ

1

HEATING CONNECTION LOCK

46

CR-A4572010180

GASKET

ｶﾞｽｹｯﾄ

2

REPLACEABLE WITH EACH OTHER

-

CR-A4602010080

GASKET

ｶﾞｽｹｯﾄ

2

REPLACEABLE WITH EACH OTHER

47

CR-A3028320496

+

GROMMET

ｸﾞﾛﾒｯﾄ

1

HEATING CONNECTION LOCK

48

CR-N000000000668

+

CLAMP

ｸﾗﾝﾌﾟ

1

HEATING CONNECTION LOCK

49

CR-N910105008005

BOLT

ﾎﾞﾙﾄ

3

M10x20

-

CR-N910105008011

BOLT

ﾎﾞﾙﾄ

3

M10x20

50

CR-A4570100335

COVER

ｶﾊﾞｰ

1

CRANKCASE BREATHING

51

CR-A0000180980

GASKET

ｶﾞｽｹｯﾄ

1

52

CR-N910105008005

BOLT

ﾎﾞﾙﾄ

2

MEMO

FIG. 5

CRANKSHAFT & FLYWHEEL ｸﾗﾝｸｼｬﾌﾄ&ﾌﾗｲﾎｲｰﾙ

FIG. 5 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A4600300101

CRANKSHAFT

ｸﾗﾝｸｼｬﾌﾄ

1

2

CR-A4420310027

RACE

ﾚｰｽ

1

CRANKSHAFT,FRONT

3

CR-A4570500203

GEAR,OIL PUMP

ｷﾞﾔｰ

1

INC.4

4

CR-N000007008217

PIN

ﾋﾟﾝ

1

5

CR-A4030310332

COVER

ｶﾊﾞｰ

1

6

CR-A4600300203

PULLEY

ﾌﾟｰﾘ

1

7

CR-A4220350071

BOLT

ﾎﾞﾙﾄ

8

8

CR-A4570300140

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

STD

-

CR-A4570300240

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.10mm

-

CR-A4570300940

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.25mm

-

CR-A4570301040

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.50mm

-

CR-A4570301140

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.75mm

-

CR-A4570301240

KIT,BEARING,MAIN

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=1.00mm

9

CR-A4570301445

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

STD

-

CR-A4570301545

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

FITTING SIZE=0.10mm

-

CR-A4570301645

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

FITTING SIZE=0.25mm

-

CR-A4570301745

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

FITTING SIZE=0.50mm

-

CR-A4570301845

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

FITTING SIZE=0.75mm

-

CR-A4570301945

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

FITTING SIZE=1.00mm

10

CR-A5420301760

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

STD

-

CR-A5420301860

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.10mm

-

CR-A5420301960

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.25mm

-

CR-A5420302060

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.50mm

-

CR-A5420302160

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=0.75mm

-

CR-A5420302260

KIT,BEARING,CON ROD

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

6

FITTING SIZE=1.00mm

11

CR-A4570301105

FLYWHEEL

ﾌﾗｲﾎｲｰﾙ

1

INC.12

12

CR-A4030320305

GEAR,RING

ｷﾞﾔｰ

1

13

CR-A0000320049

SLEEVE

ｽﾘｰﾌﾞ

1

14

CR-A0000320009

RING,SEAL

ﾘﾝｸﾞ

1

CRANKSHAFT,REAR

15

CR-A4220320271

BOLT

ﾎﾞﾙﾄ

10

FLYWHEEL TO CRANKSHAFT

FIG. 6

PISTON & CONNECTING ROD ﾋﾟｽﾄﾝ&ｺﾈｸﾃｨﾝｸﾞﾛｯﾄﾞ

FIG. 6 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4600300020

ROD,CONNECTING

ﾛｯﾄﾞ

6

2

CR-A4420380071

SCREW

ｽｸﾘｭ

12

3

CR-A4600301837

PISTON

ﾋﾟｽﾄﾝ

6

4

CR-A5410370320

PIN,PISTON

ﾋﾟﾝ

6

5

CR-A5419940037

RING,SNAP

ﾘﾝｸﾞ

6

-

CR-A5419940037

RING,SNAP

ﾘﾝｸﾞ

6

6

CR-A4600300324

KIT,RING,PISTON

ﾘﾝｸﾞｷｯﾄ

6

7

CR-A4570110259

RING,SEAL

ﾘﾝｸﾞ

6

8

CR-A4579970545

RING,SEAL

ﾘﾝｸﾞ

12

9

CR-A4600110059

RING,SEAL

ﾘﾝｸﾞ

6

Remarks : serial No. 備考：実施号車 INC.2 INC.4-6

FIG. 7

TIMING CASE ﾀｲﾐﾝｸﾞｹｰｽ

FIG. 7 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A4600151502

CASE,TIMING

ｹｰｽ

1

2

CR-N000835012041

STUD,STARTER MOUNT

ｽﾀｯﾄﾞ

2

M12x1.5x35

-

CR-A4579900105

STUD,STARTER MOUNT

ｽﾀｯﾄﾞ

1

M12x1.5x30

3

CR-A4030150109

COVER

ｶﾊﾞｰ

1

REPLACEABLE WITH EACH OTHER

-

CR-A4750157009

COVER

ｶﾊﾞｰ

1

REPLACEABLE WITH EACH OTHER

4

CR-A4420150380

GASKET

ｶﾞｽｹｯﾄ

1

5

CR-N910105008008

BOLT

ﾎﾞﾙﾄ

2

6

CR-A0089973047

RING,SEAL

ﾘﾝｸﾞ

1

7

CR-A4570150180

GASKET

ｶﾞｽｹｯﾄ

1

8

CR-A4039900304

BOLT

ﾎﾞﾙﾄ

10

-

CR-A4579900104

BOLT

ﾎﾞﾙﾄ

1

9

CR-A0009974820

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

1

O.D.=42mm

-

CR-N000443018000

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

1

O.D.=18mm

FIG. 8

P.T.O. PTO

FIG. 8 Item No. 見出番号

Part No. 部品番号

1

CR-A4072340420

Mark 記号

Description 部品名称 HOUSING

Req'd 個数 ﾊｳｼﾞﾝｸﾞ

Remarks : serial No. 備考：実施号車

1

2

CR-A4032300325

SHAFT

ｼｬﾌﾄ

1

3

CR-N000000001051

SCREW

ｽｸﾘｭ

1

4

CR-A4032340953

SPACER

ｽﾍﾟｰｻ

1

5

CR-A4242340053

SPACER

ｽﾍﾟｰｻ

1

6

CR-A4032341053

SPACER

ｽﾍﾟｰｻ

1

7

CR-N005412200005

BEARING

ﾍﾞｱﾘﾝｸﾞ

1

8

CR-N000625006208

BEARING

ﾍﾞｱﾘﾝｸﾞ

1

9

CR-N000988063009

WASHER

ﾜｯｼｬ

AR

t=1.0mm

-

CR-N000988063013

WASHER

ﾜｯｼｬ

AR

t=1.2mm

-

CR-N000988063005

WASHER

ﾜｯｼｬ

AR

t=1.4mm

-

CR-N000988063006

WASHER

ﾜｯｼｬ

AR

t=1.6mm t=1.8mm

-

CR-N000988063007

WASHER

ﾜｯｼｬ

AR

10

CR-A0009974848

RING,SEAL

ﾘﾝｸﾞ

1

11

CR-A0119976245

RING,SEAL

ﾘﾝｸﾞ

1

-

CR-A0089976145

RING,SEAL

ﾘﾝｸﾞ

1

12

CR-A5422340033

COVER

ｶﾊﾞｰ

1

13

CR-A4272360345

FLANGE

ﾌﾗﾝｼﾞ

1

14

CR-A5422340080

GASKET

ｶﾞｽｹｯﾄ

1

15

CR-A4572360713

GEAR

ｷﾞﾔｰ

1

16

CR-A4032340172

NUT

ﾅｯﾄ

1

17

CR-N000000001966

BOLT

ﾎﾞﾙﾄ

2

18

CR-N910105008005

BOLT

ﾎﾞﾙﾄ

5

19

CR-N910105010010

BOLT

ﾎﾞﾙﾄ

5

INC.3

FIG. 9

CYLINDER HEAD ｼﾘﾝﾀﾞﾍｯﾄﾞ

FIG. 9 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4570108720

HEAD,CYLINDER

ﾍｯﾄﾞ

6

2

CR-A0009974320

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

AR

-

CR-A0009974820

PLUG,EXPANSION

ﾌﾟﾗｸﾞ

AR

3

CR-N005401305500

BALL,FUEL LEAK

ﾎﾞｰﾙ

6

4

CR-A9060170488

SLEEVE

ｽﾘｰﾌﾞ

6

Remarks : serial No. 備考：実施号車 INC.2-14

REPLACEABLE WITH EACH OTHER

5

CR-A5419970345

RING,SEAL

ﾘﾝｸﾞ

6

-

CR-A5419970745

RING,SEAL

ﾘﾝｸﾞ

6

REPLACEABLE WITH EACH OTHER

6

CR-A4570531230

GUIDE,VALVE

ｶﾞｲﾄﾞ

24

STD FITTING SIZE=15.20mm

-

CR-A4570531330

GUIDE,VALVE

ｶﾞｲﾄﾞ

24

7

CR-A0179972248

RING,SEAL

ﾘﾝｸﾞ

24

8

CR-A4570531332

SEAT,VALVE

ｼｰﾄ

12

STD

-

CR-A4570531432

SEAT,VALVE

ｼｰﾄ

12

FITTING SIZE=43.29mm

9

CR-A5410530101

VALVE,INTAKE

ﾊﾞﾙﾌﾞ

12

10

CR-A4570500327

VALVE,EXHAUST

ﾊﾞﾙﾌﾞ

12

11

CR-A5410530020

SPRING,VALVE

ｽﾌﾟﾘﾝｸﾞ

24

12

CR-A3669900240

WASHER

ﾜｯｼｬ

24

13

CR-A5410530225

RETAINER,SPRING

ﾘﾃｰﾅ

24

14

CR-A0000533558

HOLDER,SEAL

ﾎﾙﾀﾞ

24

REPLACEABLE WITH EACH OTHER

-

CR-A0000534958

HOLDER,SEAL

ﾎﾙﾀﾞ

24

REPLACEABLE WITH EACH OTHER

15

CR-A5410500836

BRACKET,BEARING

ﾌﾞﾗｹｯﾄ

6

-12376 INC.16,17

-

CR-A5410501236

BRACKET,BEARING

ﾌﾞﾗｹｯﾄ

6

12377INC.16,17

16

CR-A5410550075

PIN,DOWEL

ﾋﾟﾝ

6

17

CR-N005401999012

BALL

ﾎﾞｰﾙ

18

18

CR-A5410500633

LEVER,INTAKE

ﾚﾊﾞｰ

6

-7080 INC.20

-

CR-A5410500733

LEVER,INTAKE

ﾚﾊﾞｰ

6

7081-12376 INC.20

-

CR-A5410500833

LEVER,INTAKE

ﾚﾊﾞｰ

6

12377-14891 INC.20

-

CR-A5410500933

LEVER,INTAKE

ﾚﾊﾞｰ

6

14892INC.20

19

CR-A5410500534

LEVER,EXHAUST

ﾚﾊﾞｰ

6

-7080

-

CR-A5410500634

LEVER,EXHAUST

ﾚﾊﾞｰ

6

7081-12376

-

CR-A5410500734

LEVER,EXHAUST

ﾚﾊﾞｰ

6

12377-14891

-

CR-A5410500834

LEVER,EXHAUST

ﾚﾊﾞｰ

6

14892-

20

CR-A5410550450

BUSHING,INTAKE

ﾌﾞｯｼﾝｸﾞ

6

-7080

INC.21 INC.21 INC.21 INC.21 -

CR-A5410550750

BUSHING,INTAKE

ﾌﾞｯｼﾝｸﾞ

6

7081-

21

CR-A5410550550

BUSHING,EXHAUST

ﾌﾞｯｼﾝｸﾞ

6

-7080 7081-

-

CR-A5410550650

BUSHING,EXHAUST

ﾌﾞｯｼﾝｸﾞ

6

22

CR-A5410550620

SCREW,SET

ｽｸﾘｭ

12

23

CR-A4229900051

NUT

ﾅｯﾄ

12

24

CR-A0019908240

WASHER

ﾜｯｼｬ

12

25

CR-N000471024000

RING,LOCK

ﾘﾝｸﾞ

12

26

CR-A5419900304

BOLT

ﾎﾞﾙﾄ

12

FIG. 9 Item No. 見出番号

Part No. 部品番号

27

CR-A5410550606

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

BRIDGE

ﾌﾞﾘｯｼﾞ

12

-7997 7998-

-

CR-A5410550806

BRIDGE

ﾌﾞﾘｯｼﾞ

12

28

CR-A4570540205

PUSHROD

ﾌﾟｯｼｭﾛｯﾄﾞ

12

29

CR-A4570161220

GASKET

ｶﾞｽｹｯﾄ

6

30

CR-A4579900201

BOLT

ﾎﾞﾙﾄ

24

REPLACEABLE WITH EACH OTHER

-

CR-A4579900501

BOLT

ﾎﾞﾙﾄ

24

REPLACEABLE WITH EACH OTHER

31

CR-A0020107051

HOLDER,NOZZLE

ﾎﾙﾀﾞ

6

INC.32,33

32

CR-A5419970545

RING,SEAL

ﾘﾝｸﾞ

6

33

CR-A9060170860

RING,SEAL

ﾘﾝｸﾞ

6

34

CR-A5410170324

SOCKET,PIPE

ｿｹｯﾄ

6

INC.35

-

CR-A9060170424

SOCKET,PIPE

ｿｹｯﾄ

6

INC.35

35

CR-A5419970645

RING,SEAL

ﾘﾝｸﾞ

6

36

CR-A5410170171

SCREW

ｽｸﾘｭ

6

REPLACEABLE WITH EACH OTHER

-

CR-A5410170071

SCREW

ｽｸﾘｭ

6

REPLACEABLE WITH EACH OTHER

37

CR-A4572000558

TUBE,BREATHER

ﾁｭｰﾌﾞ

1

38

CR-A3649900063

BOLT,EYE

ﾎﾞﾙﾄ

6

39

CR-N007603014106

GASKET

ｶﾞｽｹｯﾄ

12

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

MEMO

FIG. 10

CAMSHAFT ｶﾑｼｬﾌﾄ

FIG. 10 Item No. 見出番号

Part No. 部品番号

1

CR-A4570503601

Mark 記号

Description 部品名称 CAMSHAFT

Req'd 個数 ｶﾑｼｬﾌﾄ

1

Remarks : serial No. 備考：実施号車 INC.2

2

CR-N910105010009

BOLT

ﾎﾞﾙﾄ

4

3

CR-A5410500722

TAPPET,ROLLER

ﾀﾍﾟｯﾄ

12

STD

-

CR-A5410500822

TAPPET,ROLLER

ﾀﾍﾟｯﾄ

12

D=30.48mm

-

CR-A5410500922

TAPPET,ROLLER

ﾀﾍﾟｯﾄ

12

STD

-

CR-A5410501022

TAPPET,ROLLER

ﾀﾍﾟｯﾄ

12

D=33.00mm

4

CR-A4570910720

GEAR,FUEL PUMP DRIVE

ｷﾞﾔｰ

1

-28534

-

CR-A4570911020

GEAR,FUEL PUMP DRIVE

ｷﾞﾔｰ

1

28535-

5

CR-N910105010006

BOLT

ﾎﾞﾙﾄ

6

D=29.98mm

D=32.50mm

FIG. 11

INTAKE MANIFOLD ｲﾝﾃｰｸﾏﾆﾎｰﾙﾄﾞ

FIG. 11 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4570981515

MANIFOLD,INTAKE

ﾏﾆﾎｰﾙﾄﾞ

1

2

CR-N900421010002

INSERT,THREADED

ｲﾝｻｰﾄ

4

3

CR-A4571410080

GASKET

ｶﾞｽｹｯﾄ

6

4

CR-N910105008007

BOLT

ﾎﾞﾙﾄ

12

5

CR-A4570981307

PIPE,CHARGER

ﾊﾟｲﾌﾟ

1

6

CR-A4570981007

PIPE,AIR INTAKE

ﾊﾟｲﾌﾟ

1

7

CR-A4570980080

GASKET

ｶﾞｽｹｯﾄ

1

8

CR-A0269973848

RING,SEAL

ﾘﾝｸﾞ

1

9

CR-A0019955565

CLAMP

ｸﾗﾝﾌﾟ

1

10

CR-N000000000428

BOLT

ﾎﾞﾙﾄ

4

11

CR-A0041537028

SENSOR,AIR BOOST

ｾﾝｻ

1

Remarks : serial No. 備考：実施号車 INC.2

INC.12 REPLACEABLE WITH EACH OTHER

-

CR-A0041537628

SENSOR,AIR BOOST

ｾﾝｻ

1

INC.12 REPLACEABLE WITH EACH OTHER

12

CR-A1408320699

RING

ﾘﾝｸﾞ

1

13

CR-N910105006024

BOLT

ﾎﾞﾙﾄ

2

14

CR-N007604022102

PLUG

ﾌﾟﾗｸﾞ

1

9850-

15

CR-N000000001085

GASKET

ｶﾞｽｹｯﾄ

1

9850-

FIG. 12

EXHAUST MANIFOLD ｴｷｿﾞｰｽﾄﾏﾆﾎｰﾙﾄﾞ

FIG. 12 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

1

CR-A4601420101

MANIFOLD,EXHAUST

-

CR-A4571420901

2

CR-A5411420180

Req'd 個数

Remarks : serial No. 備考：実施号車

ﾏﾆﾎｰﾙﾄﾞ

1

-11335

MANIFOLD,EXHAUST

ﾏﾆﾎｰﾙﾄﾞ

1

11336-

GASKET

ｶﾞｽｹｯﾄ

6

REPLACEABLE WITH EACH OTHER

-

CR-A5411420280

GASKET

ｶﾞｽｹｯﾄ

6

REPLACEABLE WITH EACH OTHER

3

CR-A4579901301

BOLT

ﾎﾞﾙﾄ

12

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

-

CR-A4579902001

BOLT

ﾎﾞﾙﾄ

12

4

CR-A4231420112

SPACER

ｽﾍﾟｰｻ

12

5

CR-A4601420020

COVER

ｶﾊﾞｰ

1

-24993

-

CR-A4571400034

COVER

ｶﾊﾞｰ

1

24994-

6

CR-A4601420120

COVER

ｶﾊﾞｰ

1

-24993

-

CR-A4571400134

COVER

ｶﾊﾞｰ

1

24994-

7

CR-A0109902201

BOLT

ﾎﾞﾙﾄ

6

-

CR-A0109902201

BOLT

ﾎﾞﾙﾄ

3

-

CR-N910143006000

BOLT

ﾎﾞﾙﾄ

3

FIG. 13

TURBO CHARGER ﾀｰﾎﾞﾁｬｰｼﾞｬ

FIG. 13 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A0090963499

TURBO CHARGER

ﾀｰﾎﾞﾁｬｰｼﾞｬ

1

2

CR-A4570980034

COVER

ｶﾊﾞｰ

1

3

CR-A0019904205

STUD

ｽﾀｯﾄﾞ

6

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

-

CR-A0019904605

STUD

ｽﾀｯﾄﾞ

6

4

CR-A4571421080

GASKET

ｶﾞｽｹｯﾄ

1

5

CR-A0019904605

STUD

ｽﾀｯﾄﾞ

2

REPLACEABLE WITH EACH OTHER

-

CR-A0019902005

STUD

ｽﾀｯﾄﾞ

2

REPLACEABLE WITH EACH OTHER

-

CR-A0019904305

STUD

ｽﾀｯﾄﾞ

2

REPLACEABLE WITH EACH OTHER

6

CR-A0109902201

SCREW

ｽｸﾘｭ

3

7

CR-A0009902852

NUT

ﾅｯﾄ

4

8

CR-A0069901801

SCREW

ｽｸﾘｭ

3

FIG. 14

OIL PIPING ｵｲﾙﾊﾟｲﾋﾟﾝｸﾞ

FIG. 14 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4601800720

TUBE

ﾁｭｰﾌﾞ

1

2

CR-A4571801222

PIPE,RETURN

ﾊﾟｲﾌﾟ

1

3

CR-A5411870080

GASKET

ｶﾞｽｹｯﾄ

1

4

CR-N910105008005

BOLT

ﾎﾞﾙﾄ

2

5

CR-N915013020002

FITTING

ﾌｨｯﾃｨﾝｸﾞ

1

6

CR-N915036012101

BOLT,EYE

ﾎﾞﾙﾄ

1

7

CR-A3649900063

BOLT,EYE

ﾎﾞﾙﾄ

1

8

CR-N000000001069

GASKET

ｶﾞｽｹｯﾄ

2

9

CR-N000000001070

GASKET

ｶﾞｽｹｯﾄ

2

10

CR-N000000001073

GASKET

ｶﾞｽｹｯﾄ

1

11

CR-A4572030140

BRACKET

ﾌﾞﾗｹｯﾄ

1

12

CR-N910105008008

BOLT

ﾎﾞﾙﾄ

1

13

CR-N913023008002

NUT

ﾅｯﾄ

1

14

CR-N916016012205

CLAMP

ｸﾗﾝﾌﾟ

1

Remarks : serial No. 備考：実施号車

FIG. 15

OIL PUMP ｵｲﾙﾎﾟﾝﾌﾟ

FIG. 15 Item No. 見出番号

Part No. 部品番号

1

CR-A4571800801

Mark 記号

Description 部品名称 PUMP,OIL

Req'd 個数 ﾎﾟﾝﾌﾟ

1

2

CR-N304017008055

BOLT

ﾎﾞﾙﾄ

4

3

CR-N000000001635

PIN

ﾋﾟﾝ

1

Remarks : serial No. 備考：実施号車 INC.2,3

4

CR-N910105008020

BOLT

ﾎﾞﾙﾄ

1

5

CR-A4221800315

VALVE,RELIEF

ﾊﾞﾙﾌﾞ

1

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

-

CR-A5411800715

VALVE,RELIEF

ﾊﾞﾙﾌﾞ

1

6

CR-A4049885235

CAP

ｷｬｯﾌﾟ

1

7

CR-N000912008208

BOLT

ﾎﾞﾙﾄ

2

8

CR-A4571802852

PIPE,SUCTION

ﾊﾟｲﾌﾟ

1

9

CR-N917003036003

GASKET

ｶﾞｽｹｯﾄ

1

10

CR-N910105008019

BOLT

ﾎﾞﾙﾄ

2

11

CR-N000000000276

BOLT

ﾎﾞﾙﾄ

2

12

CR-N913023008002

NUT

ﾅｯﾄ

1

13

CR-A4571860340

BRACKET

ﾌﾞﾗｹｯﾄ

1

14

CR-A4571860440

BRACKET

ﾌﾞﾗｹｯﾄ

1

FIG. 16

OIL FILTER & OIL COOLER ｵｲﾙﾌｨﾙﾀ&ｵｲﾙｸｰﾗ

FIG. 16 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

1

CR-A4571802210

FILTER,OIL

ﾌｨﾙﾀ

1

2

CR-N917003026003

GASKET

ｶﾞｽｹｯﾄ

2

3

CR-N910105008035

BOLT

ﾎﾞﾙﾄ

4

4

CR-N000908024011

PLUG

ﾌﾟﾗｸﾞ

1

-

CR-N000908033004

PLUG

ﾌﾟﾗｸﾞ

2

5

CR-N007604014110

PLUG

ﾌﾟﾗｸﾞ

1

6

CR-N000000001103

RING,SEAL

ﾘﾝｸﾞ

2

-

CR-N000000001069

RING,SEAL

ﾘﾝｸﾞ

1

-

CR-N000000001086

RING,SEAL

ﾘﾝｸﾞ

1

7

CR-A5411840208

COVER

ｶﾊﾞｰ

1

8

CR-A0019907212

BOLT

ﾎﾞﾙﾄ

2

9

CR-A0149978745

RING,SEAL

ﾘﾝｸﾞ

1

10

CR-A0021887901

COOLER,OIL

ｸｰﾗ

1

11

CR-A0041532028

SENDER UNIT

ｾﾝﾀﾞﾕﾆｯﾄ

1

12

CR-A4571590140

BRACKET

ﾌﾞﾗｹｯﾄ

1

13

CR-N000000003853

BOLT

ﾎﾞﾙﾄ

1

14

CR-A0001802909

ELEMENT

ｴﾚﾒﾝﾄ

1

15

CR-A4571880280

GASKET

ｶﾞｽｹｯﾄ

1

16

CR-N000000000428

BOLT

ﾎﾞﾙﾄ

5

-

CR-N910105010025

BOLT

ﾎﾞﾙﾄ

2

-

CR-A0019909404

BOLT

ﾎﾞﾙﾄ

4

Remarks : serial No. 備考：実施号車 INC.2-13

INC.9

FIG. 17

WATER PUMP ｳｫｰﾀﾎﾟﾝﾌﾟ

FIG. 17 Item No. 見出番号

Part No. 部品番号

A

CR-A4572000601

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

WATER PUMP ASSY

ｳｫｰﾀﾎﾟﾝﾌﾟｱｯｾﾝ

1

INC.1-4,6,11,13

901

NO PART NO.

K1

KIT,IMPELLER

ｲﾝﾍﾟﾗｷｯﾄ

1

INC.2,3,6,11,13

902

NO PART NO.

K2

KIT,GASKET

ｶﾞｽｹｯﾄｷｯﾄ

1

INC.3,6,11,13

1

NO PART NO.

PUMP,WATER

ﾎﾟﾝﾌﾟ

1

2

CR-A4032001902

＊

SHAFT

ｼｬﾌﾄ

1

-25248

-

CR-A4032001802

＊

SHAFT

ｼｬﾌﾄ

1

REPLACEABLE WITH EACH OTHER

-

CR-A4422000102

＊

SHAFT

ｼｬﾌﾄ

1

REPLACEABLE WITH EACH OTHER

-

CR-A0002000002

SHAFT

ｼｬﾌﾄ

1

REPLACEABLE WITH EACH OTHER

3

CR-A0012011919

＊

GASKET

ｶﾞｽｹｯﾄ

1

-

CR-A0012011919

＊

GASKET

ｶﾞｽｹｯﾄ

1

4

CR-N000472055000

RING,LOCK

ﾘﾝｸﾞ

1

5

CR-A5422020114

HUB

ﾊﾌﾞ

1

6

CR-A4572010080

GASKET

ｶﾞｽｹｯﾄ

1

7

CR-N910105008035

BOLT

ﾎﾞﾙﾄ

9

8

CR-A0052032675

THERMOSTAT

ｻｰﾓｽﾀｯﾄ

2

REPLACEABLE WITH EACH OTHER

-

CR-A0042038375

THERMOSTAT

ｻｰﾓｽﾀｯﾄ

2

REPLACEABLE WITH EACH OTHER

＊

9

CR-A5412020110

PULLEY

ﾌﾟｰﾘ

1

10

CR-N000000000436

BOLT

ﾎﾞﾙﾄ

6

11

CR-A0249972848

12

CR-A4572030630

13

CR-A0002010980

＊ ＊

RING,SEAL

ﾘﾝｸﾞ

2

INLET,WATER

ｲﾝﾚｯﾄ

1

GASKET

ｶﾞｽｹｯﾄ

1

14

CR-N910105010003

BOLT

ﾎﾞﾙﾄ

1

M10x60

-

CR-N910105010001

BOLT

ﾎﾞﾙﾄ

2

M10x30

15

CR-N910105010004

BOLT

ﾎﾞﾙﾄ

1

16

CR-A4572010231

OUTLET,WATER

ｱｳﾄﾚｯﾄ

1

17

CR-N910105008009

BOLT

ﾎﾞﾙﾄ

1

M8x60

-

CR-A3529904601

BOLT

ﾎﾞﾙﾄ

2

M8x45

FIG. 18

INJECTION PUMP & FUEL PUMP ｲﾝｼﾞｪｸｼｮﾝﾎﾟﾝﾌﾟ&ﾌｭｰｴﾙﾎﾟﾝﾌﾟ

FIG. 18 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

901

CR-A0120740001

K1

KIT,REPAIR

ﾘﾍﾟｱｷｯﾄ

6

1

CR-A0280745902

PUMP,INJECTION

ﾎﾟﾝﾌﾟ

6

2

CR-A0239976448

＊

RING,SEAL

ﾘﾝｸﾞ

6

3

CR-A0239976548

＊

RING,SEAL

ﾘﾝｸﾞ

6

4

CR-A5419900301

＊

SCREW

ｽｸﾘｭ

12

-

CR-A0169973445

＊

RING,SEAL

ﾘﾝｸﾞ

1

-

CR-A0009909903

＊

SCREW

ｽｸﾘｭ

4

-

CR-A0009907917

＊

SCREW

ｽｸﾘｭ

1

5

CR-A4570910401

PUMP,FUEL

ﾎﾟﾝﾌﾟ

1

6

CR-A4570910520

GEAR

ｷﾞﾔｰ

1

7

CR-A0009812206

BEARING

ﾍﾞｱﾘﾝｸﾞ

1

-

CR-A0009812206

BEARING

ﾍﾞｱﾘﾝｸﾞ

1

Remarks : serial No. 備考：実施号車 INC.2-4

8

CR-N910105008005

SCREW

ｽｸﾘｭ

1

9

CR-N000472047000

RING,SNAP

ﾘﾝｸﾞ

2

REPLACEABLE WITH EACH OTHER

-

CR-N000472047001

RING,SNAP

ﾘﾝｸﾞ

2

REPLACEABLE WITH EACH OTHER

10

CR-A4570910080

GASKET

ｶﾞｽｹｯﾄ

1

REPLACEABLE WITH EACH OTHER REPLACEABLE WITH EACH OTHER

-

CR-A4570910180

GASKET

ｶﾞｽｹｯﾄ

1

11

CR-N000912008201

SCREW

ｽｸﾘｭ

3

12

CR-A4570700246

VALVE

ﾊﾞﾙﾌﾞ

1

13

CR-N000000001070

RING,SEAL

ﾘﾝｸﾞ

3

FIG. 19

FUEL PIPING ﾌｭｰｴﾙﾊﾟｲﾋﾟﾝｸﾞ

FIG. 19 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A4570700933

TUBE

ﾁｭｰﾌﾞ

6

-6499 6500-

-

CR-A4570701533

TUBE

ﾁｭｰﾌﾞ

6

2

CR-A4570700438

TUBE

ﾁｭｰﾌﾞ

1

3

CR-A4570703732

TUBE

ﾁｭｰﾌﾞ

1

4

CR-A4570701332

TUBE

ﾁｭｰﾌﾞ

1

5

CR-A4570703332

TUBE

ﾁｭｰﾌﾞ

1

6

CR-A4570703232

TUBE

ﾁｭｰﾌﾞ

1

7

CR-N915047012203

BOLT,EYE

ﾎﾞﾙﾄ

AR

D=16mm

8

CR-N915036012101

BOLT,EYE

ﾎﾞﾙﾄ

AR

D=16mm

9

CR-A3269900163

BOLT,EYE

ﾎﾞﾙﾄ

1

D=8mm

-

CR-A3269900163

BOLT,EYE

ﾎﾞﾙﾄ

1

D=8mm

-

CR-N915036012101

BOLT,EYE

ﾎﾞﾙﾄ

2

D=16mm

10

CR-N000000001070

GASKET

ｶﾞｽｹｯﾄ

AR

D=16mm

-

CR-N000000001066

GASKET

ｶﾞｽｹｯﾄ

AR

D=8mm

11

CR-N916016012205

CLAMP

ｸﾗﾝﾌﾟ

3

12

CR-N000912008217

SCREW

ｽｸﾘｭ

3

-

CR-A0019908178

PIECE

ﾋﾟｰｽ

2

-

CR-N915017012200

NUT

ﾅｯﾄ

2

13

CR-A9040980057

VALVE

ﾊﾞﾙﾌﾞ

1

REPLACEABLE WITH EACH OTHER

-

CR-A5410980557

VALVE

ﾊﾞﾙﾌﾞ

1

REPLACEABLE WITH EACH OTHER

-

CR-A4570980057

VALVE

ﾊﾞﾙﾌﾞ

1

REPLACEABLE WITH EACH OTHER

FIG. 20

FUEL FILTER & SEPARATOR ﾌｭｰｴﾙﾌｨﾙﾀ&ｾﾊﾟﾚｰﾀ

FIG. 20 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

1

CR-A5410900452

FILTER,FUEL

ﾌｨﾙﾀ

1

-14616

-

CR-A5410900852

FILTER,FUEL

ﾌｨﾙﾀ

1

14617-

2

CR-A0000925208

HEAD

ﾍｯﾄﾞ

1

INC.2-4 INC.2-4 3

CR-A5410900151

ELEMENT

ｴﾚﾒﾝﾄ

1

INC.4

-

CR-A4570900051

ELEMENT

ｴﾚﾒﾝﾄ

1

INC.4

4

CR-A0229978948

RING,SEAL

ﾘﾝｸﾞ

1

5

CR-N910105010009

BOLT

ﾎﾞﾙﾄ

2

-14616

-

CR-N910105010001

BOLT

ﾎﾞﾙﾄ

2

1461714617-

-

CR-N910105010007

BOLT

ﾎﾞﾙﾄ

1

6

CR-N913023010002

NUT

ﾅｯﾄ

2

7

CR-A4570920840

BRACKET

ﾌﾞﾗｹｯﾄ

1

8

CR-N910105012013

SCREW

ｽｸﾘｭ

2

9

CR-A4570980357

VALVE

ﾊﾞﾙﾌﾞ

1

10

CR-A0009909363

BOLT,EYE

ﾎﾞﾙﾄ

1

11

CR-N000000001070

GASKET

ｶﾞｽｹｯﾄ

2

12

CR-A0004700469

SEPARATOR,WATER

ｾﾊﾟﾚｰﾀ

1

13

CR-A0004772516

BOTTOM

ﾎﾞﾄﾑ

1

14

CR-A0004771302

FILTER

ﾌｨﾙﾀ

1

INC.13,14

FIG. 21

ALTERNATOR (FITTING PARTS) ｵﾙﾀﾈｰﾀ(ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ)

FIG. 21 Item No. 見出番号

Part No. 部品番号

1

CR-A4571551535

Mark 記号

Description 部品名称 SUPPORT,ALTERNATOR

Req'd 個数 ｻﾎﾟｰﾄ

Remarks : serial No. 備考：実施号車

1

2

CR-N910105010011

BOLT

ﾎﾞﾙﾄ

3

3

CR-N910105012020

BOLT

ﾎﾞﾙﾄ

1

-

CR-A0049904804

BOLT

ﾎﾞﾙﾄ

1

4

CR-A0019932796

V BELT

Vﾍﾞﾙﾄ

1

5

CR-A4572002970

TIGHTENER,BELT

ﾀｲﾄﾅ

1

6

CR-A0005501633

PULLEY,TIGHTENER

ﾌﾟｰﾘ

1

-

CR-A4572001070

PULLEY,TIGHTENER

ﾌﾟｰﾘ

1

7

CR-A4572050640

BRACKET

ﾌﾞﾗｹｯﾄ

1

8

CR-N910105014012

BOLT

ﾎﾞﾙﾄ

1

M14x1.5x30

-

CR-N910143010000

BOLT

ﾎﾞﾙﾄ

1

M10x45

-

CR-N000000000428

BOLT

ﾎﾞﾙﾄ

3

M10x35

9

CR-N000912010224

BOLT

ﾎﾞﾙﾄ

1

3456-

FIG. 22

ALTERNATOR INNER PARTS) ｵﾙﾀﾈｰﾀ(ｲﾝﾅﾊﾟｰﾂ)

FIG. 22 Item No. 見出番号

Part No. 部品番号

Mark 記号

Description 部品名称

Req'd 個数

Remarks : serial No. 備考：実施号車

A1

CR-A0131542802

ALTERNATOR ASSY

ｵﾙﾀﾈｰﾀｱｯｾﾝ

1

-35282

-

CR-A0131547802

ALTERNATOR ASSY

ｵﾙﾀﾈｰﾀｱｯｾﾝ

1

35283-

1

CR-A0001500749

BUSHING

ﾌﾞｯｼﾝｸﾞ

1

2

CR-A0009805315

KIT,BEARING

ﾍﾞｱﾘﾝｸﾞｷｯﾄ

1

3

CR-A0001542705

REGULATOR

ﾚｷﾞｭﾚｰﾀ

1

4

CR-A0019905521

KIT,SCREW

ｽｸﾘｭｷｯﾄ

1

5

CR-A0019905421

KIT,SCREW

ｽｸﾘｭｷｯﾄ

1

-

CR-A0009905899

KIT,ATTACHMENT

ｱﾀｯﾁﾒﾝﾄｷｯﾄ

1

6

CR-A0001544104

COVER

ｶﾊﾞｰ

1

7

CR-A0001500060

PULLEY

ﾌﾟｰﾘ

1

-35282

-

CR-A0011554615

PULLEY

ﾌﾟｰﾘ

1

35283-

8

CR-A0009905348

WASHER

ﾜｯｼｬ

1

35283-

NUT

ﾅｯﾄ

1

35283-

BOOT

ﾌﾞｰﾂ

1

INC.1-7,10 INC.1-10

9

CR-A0059904151

10

CR-A0009982123

+

FIG. 23

STARTER (FITTING PARTS) ｽﾀｰﾀ(ﾌｨｯﾃｨﾝﾝｸﾞﾊﾟｰﾂ)

FIG. 23 Item No. 見出番号

Part No. 部品番号

1

CR-A0061513801

Mark 記号

Description 部品名称 STARTER

Req'd 個数 ｽﾀｰﾀ

1

Remarks : serial No. 備考：実施号車

FIG. 24

ELECTRICAL PARTS ｴﾚｸﾄﾘｶﾙﾊﾟｰﾂ

FIG. 24 Item No. 見出番号

Part No. 部品番号

1

CR-A0000700879

2 3

Mark 記号

Description 部品名称

Req'd 個数

COOLER

ｸｰﾗ

1

CR-A0001530181

RING,RUBBER

ﾘﾝｸﾞ

6

CR-N910143008018

SCREW

ｽｸﾘｭ

3

4

CR-A3555420273

BUSHING

ﾌﾞｯｼﾝｸﾞ

1

5

CR-A0229979548

RING,SEAL

ﾘﾝｸﾞ

1

6

CR-A0001539832

SWITCH,PRESSURE

ｽｲｯﾁ

1

7

CR-N910105008008

SCREW

ｽｸﾘｭ

1

8

CR-A0089973790

TIE,CABLE

ﾀｲ

AR

9

CR-A9455402135

CABLE

ｹｰﾌﾞﾙ

1

Remarks : serial No. 備考：実施号車

PARTS NUMBER INDEX 部品番号索引表 PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

CR-A0000100250 CR-A0000180980 CR-A0000183535 CR-A0000185835 CR-A0000320009 CR-A0000320049 CR-A0000533558 CR-A0000534958 CR-A0000700879 CR-A0000925208

1 4 3 3 5 5 9 9 24 20

CR-A0021887901 CR-A0041532028 CR-A0041534228 CR-A0041534328 CR-A0041537028 CR-A0041537628 CR-A0041539428 CR-A0042038375 CR-A0049904804 CR-A0052032675

16 16 4 4 11 11 3 17 21 17

CR-A4039970620 CR-A4039970620 CR-A4039970620 CR-A4039970620 CR-A4049885235 CR-A4072340420 CR-A4079975032 CR-A4079975120 CR-A4179970019 CR-A4220110071

4 4 4 4 15 8 4 4 4 4

CR-A4570700246 CR-A4570700438 CR-A4570700933 CR-A4570701332 CR-A4570701533 CR-A4570703232 CR-A4570703332 CR-A4570703732 CR-A4570900051 CR-A4570910080

18 19 19 19 19 19 19 19 20 18

CR-A0001500060 CR-A0001500749 CR-A0001530181 CR-A0001539832 CR-A0001542705 CR-A0001544104 CR-A0001802909 CR-A0002000002 CR-A0002010980 CR-A0004358382

22 22 24 24 22 22 16 17 17 3

CR-A0059904151 CR-A0061513801 CR-A0069901801 CR-A0089973047 CR-A0089973790 CR-A0089976145 CR-A0090963499 CR-A0109902201 CR-A0109902201 CR-A0109902201

22 24 13 7 24 8 13 12 12 13

CR-A4220140076 CR-A4220320271 CR-A4220350071 CR-A4221800315 CR-A4229900051 CR-A4231420112 CR-A4242340053 CR-A4272360345 CR-A4420150380 CR-A4420310027

3 5 5 15 9 12 8 8 7 5

CR-A4570910180 CR-A4570910401 CR-A4570910520 CR-A4570910720 CR-A4570911020 CR-A4570920840 CR-A4570980034 CR-A4570980057 CR-A4570980080 CR-A4570980357

18 18 18 10 10 20 13 19 11 20

CR-A0004700469 CR-A0004771302 CR-A0004772516 CR-A0005501633 CR-A0009805315 CR-A0009812206 CR-A0009812206 CR-A0009902852 CR-A0009905304 CR-A0009905348

20 20 20 21 22 18 18 13 3 22

CR-A0119976245 CR-A0120740001 CR-A0131542802 CR-A0131547802 CR-A0149974148 CR-A0149974647 CR-A0149978745 CR-A0169973445 CR-A0179972248 CR-A0229978948

8 18 22 22 3 4 16 18 9 20

CR-A4420380071 CR-A4422000102 CR-A4470110071 CR-A4570100335 CR-A4570100866 CR-A4570101364 CR-A4570104472 CR-A4570108720 CR-A4570110259 CR-A4570110807

6 17 4 4 3 3 3 9 6 4

CR-A4570981007 CR-A4570981307 CR-A4570981515 CR-A4571310021 CR-A4571310080 CR-A4571400034 CR-A4571400134 CR-A4571410080 CR-A4571420901 CR-A4571421080

11 11 11 4 4 12 12 11 12 13

CR-A0009905899 CR-A0009907917 CR-A0009909363 CR-A0009909903 CR-A0009974320 CR-A0009974820 CR-A0009974820 CR-A0009974848 CR-A0009974874 CR-A0009982123

22 18 20 18 9 7 9 8 3 22

CR-A0229979548 CR-A0239976448 CR-A0239976548 CR-A0249972848 CR-A0259973947 CR-A0269973848 CR-A0280745902 CR-A1110180080 CR-A1110180302 CR-A1408320699

24 18 18 17 4 11 18 3 3 11

CR-A4570110880 CR-A4570111607 CR-A4570140422 CR-A4570142902 CR-A4570150180 CR-A4570161220 CR-A4570181240 CR-A4570300140 CR-A4570300240 CR-A4570300940

4 4 3 3 7 9 3 5 5 5

CR-A4571551535 CR-A4571590140 CR-A4571800801 CR-A4571801152 CR-A4571801222 CR-A4571801843 CR-A4571802210 CR-A4571802852 CR-A4571860340 CR-A4571860440

21 16 15 3 14 4 16 15 15 15

CR-A0011554615 CR-A0012011919 CR-A0012011919 CR-A0019889535 CR-A0019902005 CR-A0019904205 CR-A0019904305 CR-A0019904605 CR-A0019904605 CR-A0019905421

22 17 17 3 13 13 13 13 13 22

CR-A3028320496 CR-A3269900163 CR-A3269900163 CR-A3529904601 CR-A3555420273 CR-A3649900063 CR-A3649900063 CR-A3660180106 CR-A3669900240 CR-A4030110026

4 19 19 17 24 9 14 3 9 4

CR-A4570301040 CR-A4570301105 CR-A4570301140 CR-A4570301240 CR-A4570301445 CR-A4570301545 CR-A4570301645 CR-A4570301745 CR-A4570301845 CR-A4570301945

5 5 5 5 5 5 5 5 5 5

CR-A4571880280 CR-A4572000056 CR-A4572000558 CR-A4572000601 CR-A4572001070 CR-A4572002970 CR-A4572010080 CR-A4572010180 CR-A4572010231 CR-A4572030140

16 4 9 17 21 21 17 4 17 14

CR-A0019905521 CR-A0019907212 CR-A0019908178 CR-A0019908240 CR-A0019909404 CR-A0019932796 CR-A0019955565 CR-A0019976671 CR-A0020106500 CR-A0020107051

22 16 19 9 16 21 11 3 1 9

CR-A4030150109 CR-A4030310332 CR-A4030320305 CR-A4032001802 CR-A4032001902 CR-A4032300325 CR-A4032340172 CR-A4032340953 CR-A4032341053 CR-A4039900304

7 5 5 17 17 8 8 8 8 7

CR-A4570500203 CR-A4570500327 CR-A4570503601 CR-A4570510310 CR-A4570511510 CR-A4570531230 CR-A4570531330 CR-A4570531332 CR-A4570531432 CR-A4570540205

5 9 10 4 4 9 9 9 9 9

CR-A4572030339 CR-A4572030630 CR-A4572050640 CR-A4572200216 CR-A4572200816 CR-A4572230641 CR-A4572231541 CR-A4572360713 CR-A4579900104 CR-A4579900105

4 17 21 2 2 2 2 8 7 7

1

PARTS NUMBER INDEX 部品番号索引表 PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

PART No. 部品番号

FIG.NO. 図 番 号

CR-A4579900201 CR-A4579900501 CR-A4579901301 CR-A4579902001 CR-A4579970045 CR-A4579970054 CR-A4579970545 CR-A4600100908 CR-A4600110059 CR-A4600110180

9 9 12 12 4 3 6 4 6 4

CR-A5410980557 CR-A5411420180 CR-A5411420280 CR-A5411800715 CR-A5411840208 CR-A5411870080 CR-A5412020110 CR-A5419900301 CR-A5419900304 CR-A5419940037

19 12 12 15 16 14 17 18 9 6

CR-N000000002815 CR-N000000003853 CR-N000007003114 CR-N000007008205 CR-N000007008210 CR-N000007008217 CR-N000007016210 CR-N000443018000 CR-N000443034002 CR-N000471024000

3 16 4 4 4 5 4 7 4 9

CR-N910105008008 CR-N910105008008 CR-N910105008008 CR-N910105008009 CR-N910105008011 CR-N910105008019 CR-N910105008020 CR-N910105008032 CR-N910105008035 CR-N910105008035

7 14 24 17 4 15 15 3 16 17

CR-A4600110207 CR-A4600151502 CR-A4600300020 CR-A4600300101 CR-A4600300203 CR-A4600300324 CR-A4600301837 CR-A4601420020 CR-A4601420101 CR-A4601420120

4 7 6 5 5 6 6 12 12 12

CR-A5419940037 CR-A5419970345 CR-A5419970545 CR-A5419970645 CR-A5419970745 CR-A5420301760 CR-A5420301860 CR-A5420301960 CR-A5420302060 CR-A5420302160

6 9 9 9 9 5 5 5 5 5

CR-N000472047000 CR-N000472047001 CR-N000472055000 CR-N000625006208 CR-N000835012041 CR-N000908014001 CR-N000908014009 CR-N000908016008 CR-N000908018011 CR-N000908024011

18 18 17 8 7 4 4 3 4 16

CR-N910105010001 CR-N910105010001 CR-N910105010001 CR-N910105010002 CR-N910105010003 CR-N910105010004 CR-N910105010006 CR-N910105010007 CR-N910105010009 CR-N910105010009

4 17 20 4 17 17 10 20 4 10

CR-A4601800443 CR-A4601800720 CR-A4602010080 CR-A4609900063 CR-A4750157009 CR-A4769910062 CR-A5410110180 CR-A5410170071 CR-A5410170171 CR-A5410170324

4 14 4 4 7 4 4 9 9 9

CR-A5420302260 CR-A5422020114 CR-A5422340033 CR-A5422340080 CR-A8339970081 CR-A9040980057 CR-A9060110057 CR-A9060170424 CR-A9060170488 CR-A9060170860

5 17 8 8 3 19 4 9 9 9

CR-N000908033004 CR-N000912008201 CR-N000912008208 CR-N000912008217 CR-N000912008217 CR-N000912008217 CR-N000912010224 CR-N000912014091 CR-N000988063005 CR-N000988063006

16 18 15 3 3 19 21 2 8 8

CR-N910105010009 CR-N910105010010 CR-N910105010011 CR-N910105010011 CR-N910105010025 CR-N910105012013 CR-N910105012013 CR-N910105012013 CR-N910105012020 CR-N910105014012

20 8 4 21 16 2 2 20 21 21

CR-A5410180182 CR-A5410370320 CR-A5410500534 CR-A5410500633 CR-A5410500634 CR-A5410500722 CR-A5410500733 CR-A5410500734 CR-A5410500822 CR-A5410500833

3 6 9 9 9 10 9 9 10 9

CR-A9455402135 CR-N000000000276 CR-N000000000428 CR-N000000000428 CR-N000000000428 CR-N000000000436 CR-N000000000668 CR-N000000000668 CR-N000000001051 CR-N000000001066

24 15 11 16 21 17 3 4 8 19

CR-N000988063007 CR-N000988063009 CR-N000988063013 CR-N005401305500 CR-N005401307000 CR-N005401307000 CR-N005401308501 CR-N005401311000 CR-N005401311000 CR-N005401311000

8 8 8 9 4 4 4 4 4 4

CR-N910105016013 CR-N910112006003 CR-N910143006000 CR-N910143008018 CR-N910143010000 CR-N913023008002 CR-N913023008002 CR-N913023010002 CR-N915013020002 CR-N915017012200

2 3 12 24 21 14 15 20 14 19

CR-A5410500834 CR-A5410500836 CR-A5410500922 CR-A5410500933 CR-A5410501022 CR-A5410501236 CR-A5410530020 CR-A5410530101 CR-A5410530225 CR-A5410550075

9 9 10 9 10 9 9 9 9 9

CR-N000000001069 CR-N000000001069 CR-N000000001069 CR-N000000001069 CR-N000000001069 CR-N000000001070 CR-N000000001070 CR-N000000001070 CR-N000000001070 CR-N000000001070

4 4 4 14 16 3 4 14 18 19

CR-N005401999011 CR-N005401999012 CR-N005401999031 CR-N005412200005 CR-N007603014106 CR-N007603022102 CR-N007604014110 CR-N007604016108 CR-N007604022102 CR-N304017008055

4 9 4 8 9 3 16 4 11 15

CR-N915036006202 CR-N915036012101 CR-N915036012101 CR-N915036012101 CR-N915036018200 CR-N915047012203 CR-N916016012205 CR-N916016012205 CR-N917003026003 CR-N917003036003

4 14 19 19 3 19 14 19 16 15

CR-A5410550450 CR-A5410550550 CR-A5410550606 CR-A5410550620 CR-A5410550650 CR-A5410550750 CR-A5410550806 CR-A5410900151 CR-A5410900452 CR-A5410900852

9 9 9 9 9 9 9 20 20 20

CR-N000000001070 CR-N000000001071 CR-N000000001071 CR-N000000001073 CR-N000000001085 CR-N000000001086 CR-N000000001103 CR-N000000001635 CR-N000000001674 CR-N000000001966

20 4 4 14 11 16 16 15 4 8

CR-N900421010002 CR-N910105006024 CR-N910105006024 CR-N910105008005 CR-N910105008005 CR-N910105008005 CR-N910105008005 CR-N910105008005 CR-N910105008005 CR-N910105008007

11 3 11 4 4 4 8 14 18 11

2

No.PE-OM460LA

2006年 8 月

発行

本 発

行

社

大阪市西区京町堀１−１５−１０

ＴＣＭテクノ株式会社 〜

ISSUED : August, 2006

CORPORATION INTERNATIONAL MARKETING DIVISION:

無断で転載・複製を禁ず All rights reserved.

1-15-5, Nishi-shimbashi, Minato-ku, Tokyo 105-0003, Japan FAX: Japan +81-3-35918152, 3-35918153 I-0608001(H) Printed in Japan
