Functions of and How to Use Us er Mode (GT-250C-1/GT-350C-1)

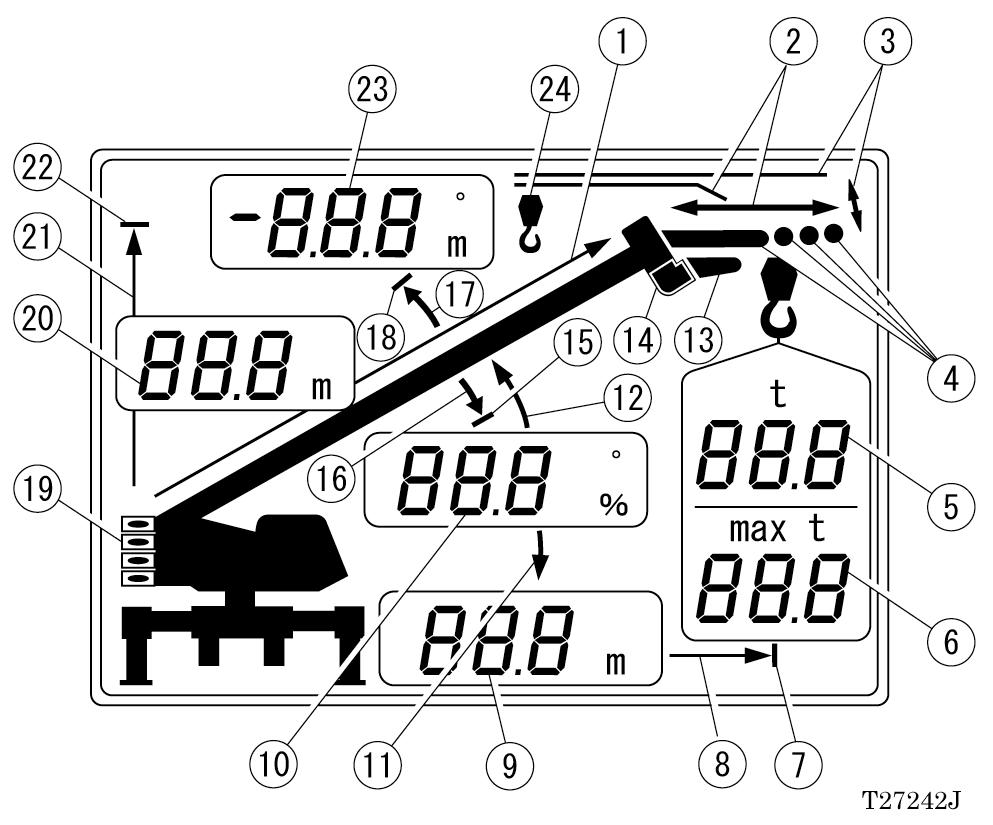

B. Display panel 1

1. Boom length symbol

This symbol indicates that the boom length display 20 is showing the boom length.

2. Jib length symbol

Not used in this machine.

3. Jib angle symbol

This symbol indicates that the jib angle display 23 is showing the jib offset angle.

4. Jib lift symbol

This symbol indicates that the jib lift is selected. It also indicates the condition of the jib.

5. Actual load display Displays the actual load.

6. Rated lifting capacity display Displays the rated lifting capacity.

7. Load radius limit symbol

This symbol indicates that the load radius display 9 is showing the registered load radius limit value. The load radius symbol 8 is also lit at the same time when this symbol is lit.

8. Load radius symbol

This symbol indicates that the load radius display 9 is showing the load radius.

9. Load radius display

Normally displays the crane’s load radius. When the load radius limit function is activated, the registered load radius limit value is displayed while the set key is pressed.

10. Boom angle display

Normally displays the boom angle. When the lower limit function of boom angle is activated, the registered limit value is displayed while the set key is pressed.

11, 12. Boom angle symbols

This symbol indicates that the boom angle display 10 is showing the boom angle.

13. Single top lift symbol

This symbol indicates that the single top performance is selected.

14. Boom lift symbol

This symbol indicates that the boom lift is selected.

15, 16. Lower boom angle limit symbols

This symbol indicates that the boom angle display 10 is showing the registered lower boom angle limit value.

17, 18. Upper boom angle limit symbols

This symbol indicates that the jib angle display 23 is showing the registered upper boom angle limit value.

19. Counterweight condition symbol

Not used in this machine.

20. Boom length display

Normally displays the boom length. Displays the lifting height while the display alteration key is pressed. When the lifting height limit function is activated, the registered limit value is displayed while the set key is pressed.

21. Lifting height symbol

This symbol indicates that the boom length display 20 is showing the lifting height.

22. Lifting height limit symbol

This symbol indicates that the boom length display 20 is showing the registered lifting height limit value. The lifting height symbol 21 is lit at the same time when this symbol is lit.
