Functions of and How to Use Us er Mode (GT-250C-1/GT-350C-1)

Registration of Number of Part Lines [NOTICE]

When the registered number of part lines is smaller than the standard number of part lines, the maximum lifting capacity is restricted by the registered number of part lines. However, when the number of part lines is registered as "0," the standard number of part lines will be applied.

When the registered number of part lines is larger than the standard number of part lines, or when no number of part lines matches the data of any crane model, the standard number of part lines will be applied.

When the power supply is turned on (PTO switch: ON), the standard number of part lines (initial value) that corresponds to the operation status will be set.

To register the number of part lines, use the number of part-lines selector key and set key.

 When the increase key or decrease key is kept pressing, the number of part lines is increased or decreased continuously.

3. When the desired number of part lines is obtained, press the set key and register it. The number of part-lines symbol will go out, and the jib angle display will return to the normal status.

When pressing the display alteration key, you can check the number of part lines.

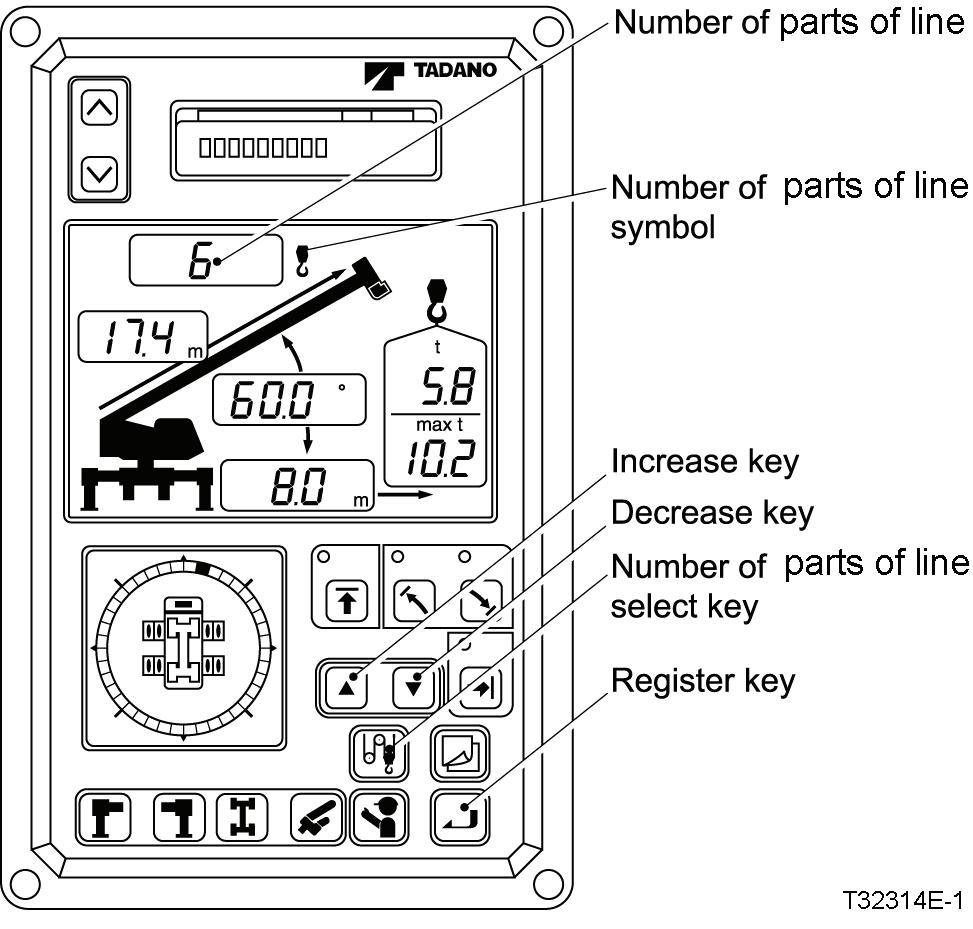

Number of part lines

Number of part lines

Number of part-lines symbol

Number of part-lines selector key Set key

1. Press the number of part-lines selector key. The number of part-lines symbol flashes, and the number of part lines is displayed on the jib angle display and flashes.

2. Press the increase key or decrease key to obtain the desired number of part lines.

When the increase key or decrease key is pressed, the numeral of the number of part lines changes from "flashing" to "being lit," and the numeral is increased or decreased.
