Functions of and How to Use User Mode (TR- 150-4/GR-150-1)

Selecting Operational Status

Should the operational status be incorrectly registered, the crane may overturn or be damaged, leading to a serious accident. Prior to every operation, check that the registered status corresponds to the actual status of the crane.

Selecting Outrigger Status

[NOTICE]

The "on-rubber stationary" status is the default status and is automatically selected when the power supply is turned on (the PTO switch is placed in the "ON" position).

Turning the power off (PTO switch: OFF) automatically erases all the previous settings stored in memory after approximately 2 hours. To resume the operation more than 2 hours after the power has been last turned off, enter the settings all over again.

Register the outrigger status using the outrigger mode select key and the register key.

(1) On-outrigger operation

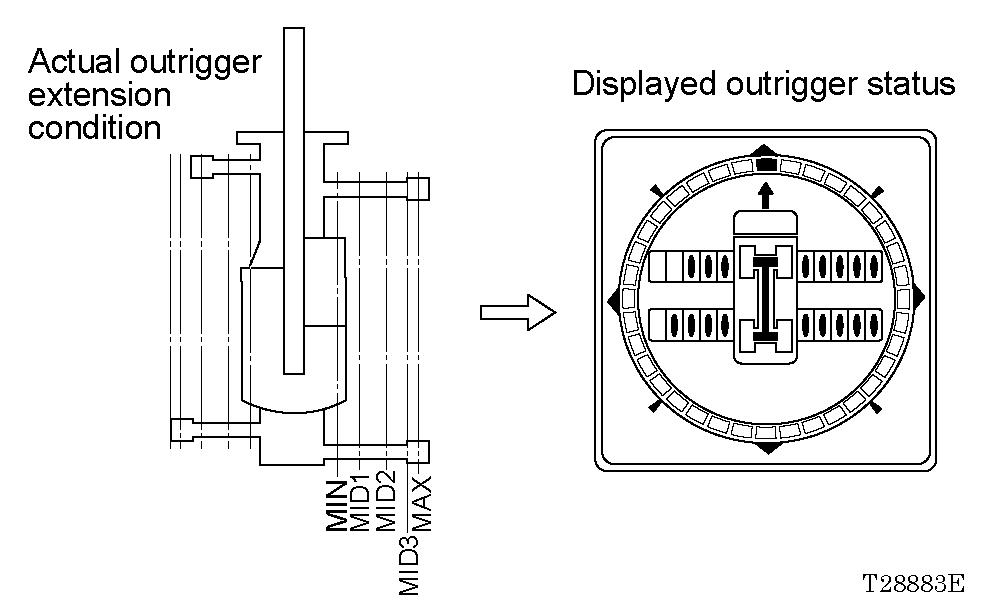

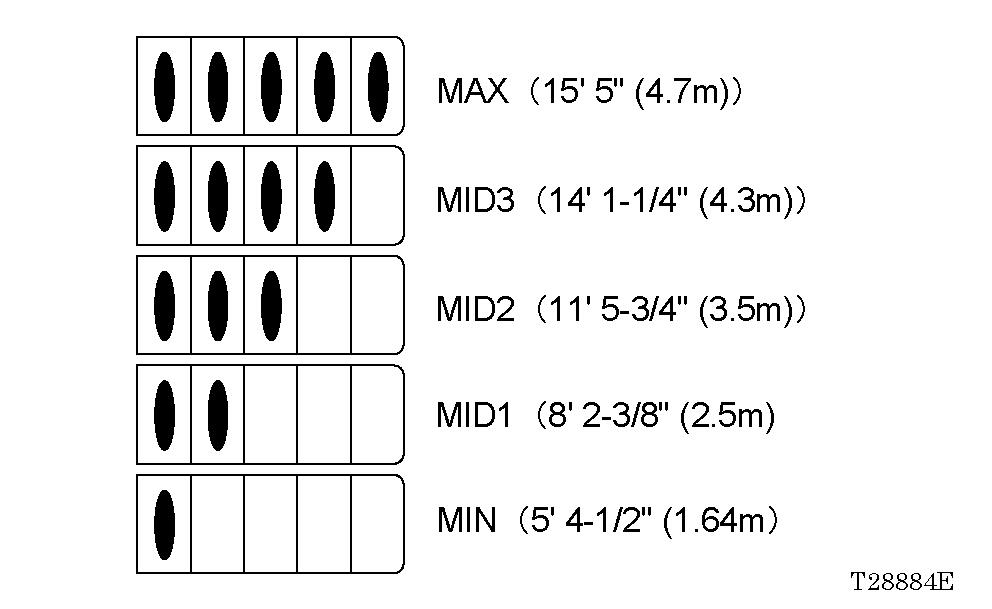

When the outrigger mode select key is pressed, the outrigger state symbols flash in accordance with the status that the AML detects. After making sure that the display conforms to the actual outrigger conditions, press the register key. The outrigger state symbols will change from flashing to continuous lighting, and the moment display, rated lifting capacity display and actual load display will return to normal display conditions, meaning that the state has been registered.

Functions of and How to Use User Mode (TR- 150-4/GR-150-1)

(2) On-rubber operation

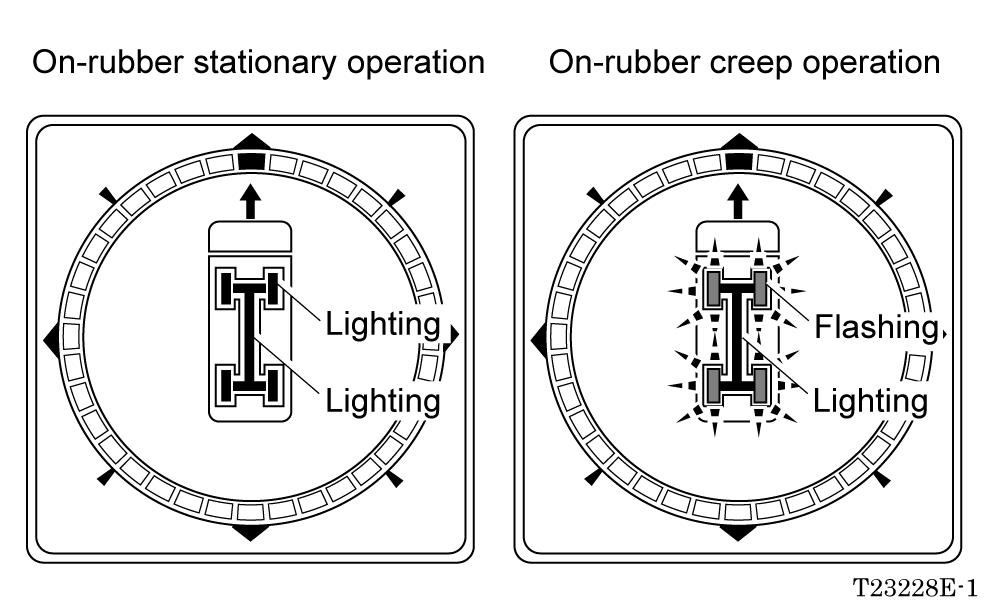

Press the outrigger mode select key repeatedly until the display conforms to the actual condition (on-rubber stationary operation or on-rubber creep operation). Then press the register key. The moment display, rated lifting capacity display and actual load display will return to normal display conditions, meaning that the on-rubber state has been registered.

[NOTICE]

The outrigger status automatically changes to on-rubber creep status when an operation is made for stowing the outrigger after the registration of the outrigger status. Be sure to again register the outrigger status, when necessary.

Functions of and How to Use User Mode (TR- 150-4/GR-150-1)

Selecting Lift Status

[NOTICE]

The boom lift status is the default status and is automatically selected (the boom lift symbol lights up) when the power supply is turned on (the PTO switch is placed in the ON position).

Turning the power off (PTO switch: OFF) automatically erases all the previous settings stored in memory after approximately 2 hours. To resume the operation more than 2 hours after the power has been last turned off, enter the settings all over again.

Register the lift status using the lift mode select key and the register key.

(When the jib set status is selected, the jib lift symbol will remain flashing.)

Select the boom lift status when lifting a load on the boom with the jib mounted.

Select the jib lift status when lifting a single load using both the boom and jib.

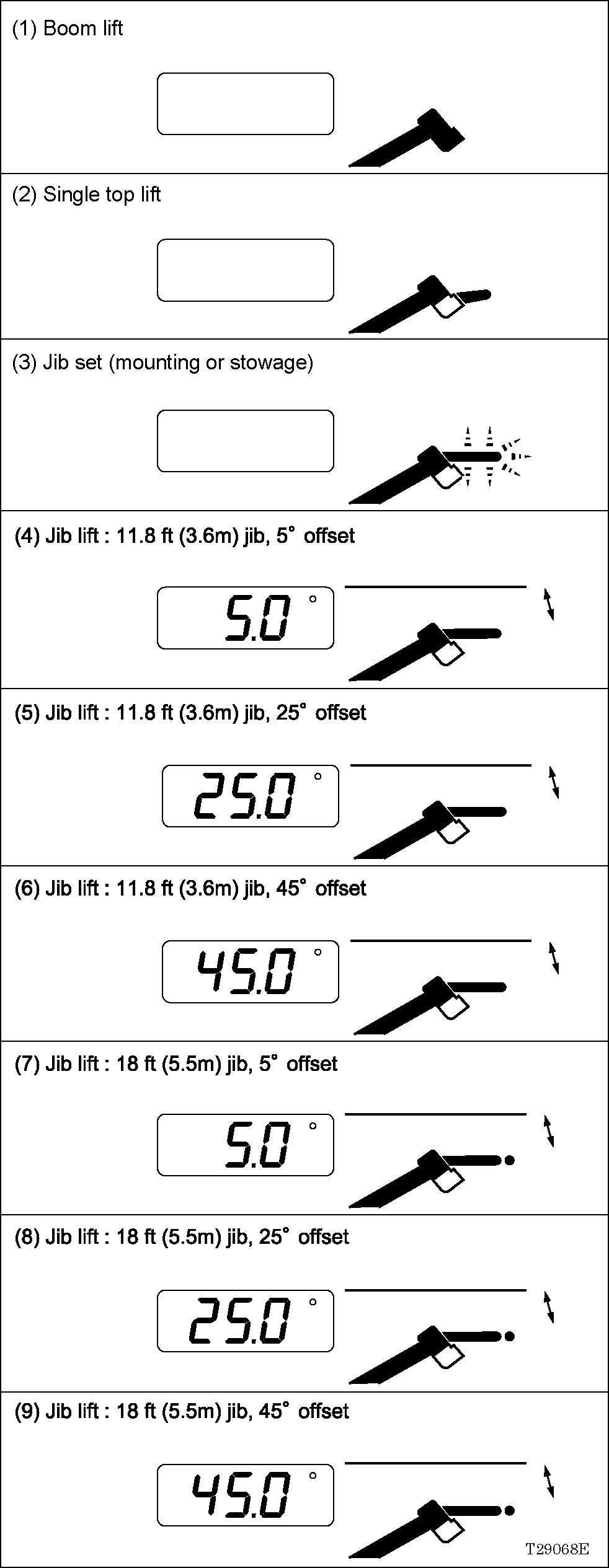

Each time the lift mode select key is pressed, the mode changes in numerical sequence, from (1) to (9). The display returns to (1) if you press the switch while the status (9) is displayed on the screen. Select the status that corresponds to the actual lift status.

[NOTICE]

After selecting the intended lift status, press the register key to register the status. The corresponding lift symbols will change from flashing to lighting and the moment display, rated lifting capacity display and actual load display will return to normal display conditions, meaning that the state has been registered.

Functions of and How to Use User Mode (TR- 150-4/GR-150-1)

Selecting Number of Parts of line

[NOTICE]

If the registered number of parts of line is smaller than the standard number, a maximum allowable lifting load is limited, depending on the registered number. If zero(0) is registered, however, the AML performs as if the standard number were registered. Similarly, the AML works on the basis of the standard number of parts of line if the registered number is larger than the standard number, or other than the values specified for your model.

When the power supply is turned on (i.e. PTO switch ON), the standard number of parts of line corresponding to the work condition is selected.

Register the number of parts of line by use of the number of parts of line select key and the register key, as follows:

1. Press the number of parts of line select key. The number of parts of line symbol will flash, and the number of parts of line will be shown on the jib angle display in a flashing mode.

2. Press the increase or the decrease key to set the number to the actual number of parts of line.

[NOTICE]

When the increase or the decrease key is pressed, a numeral showing the number of parts of line changes from flashing to lighting, and increases or decreases.

When the increase or the decrease key is kept pressed, the number of parts of line continuously increases or decreases.

3. Once the intended number of parts of line is set, press the register key to register the number. Then, the number of parts of line symbol will be turned off and the jib angle display will return to a normal status.

[NOTICE]

The number of parts of line can be confirmed by pressing the display alteration key.
