Functions of and How to Use User Mode (GR-600-1/ GR-800-1)
How to Use the Working Range Limit Function
[NOTICE]
If the selected working range limits allow the crane to approach too close to an obstruction, the crane may be contacted or hit, depending on the operational status and the manner in which the load is handled. When selecting limits, allow sufficient clearance.
The working range restricting function makes the boom automatically stop at the previously registered boom angles (upper and lower), lifting height, load radius and swing angle, The function is useful for handling a load in a confined place because it defines the area in which the boom can operate.
[NOTICE]
Turning the power off (PTO switch: OFF) automatically erases all the previous settings stored in memory after approximately 2 hours. To resume the operation more than 2 hours after the power was last turned off, enter the settings all over again. IW301-0131E70
Boom Angle Limit
Raise or lower the boom to the desired angle, and press the upper or lower boom angle limit restriction key. The corresponding limit restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit boom angle has been stored in the memory. When the boom is moved back to an angle within the set limit, the limit restriction indicator lamp stops flashing and stays lit and the buzzer stops.
Thereafter, the upper or lower boom angle limit restriction indicator lamp flashes and the buzzer sounds continuously whenever the upper or lower limit previously registered is reached. To cancel the boom angle limit function, press the boom angle limit restriction key again. The corresponding boom angle limit restriction indicator lamp will go off.
Upper boom angle limit restriction indicator lamp
Lower boom angle limit restriction indicator lamp
Lower boom angle limit restriction key
Upper boom angle limit restriction key
IW301-0131E71
Functions of and How to Use User Mode (GR-600-1/ GR-800-1)
Lifting Height Limit
Move the boom to the desired height, and press the lifting height restriction key. The lifting height restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit height has been stored in the memory. When the boom is moved back to a height within the set limit, the lifting height restriction indicator lamp stops flashing and stays lit and the buzzer stops. Thereafter, the lifting height restriction indicator lamp flashes and the buzzer sounds continuously whenever the height limit previously registered is reached.
To cancel the height limit function, press the lifting height restriction key again. The corresponding lifting height restriction indicator lamp will go off.
Swing Limit
Swing the boom to the desired position, and press a swing restriction key. The corresponding swing restriction indicator will flash and the buzzer will sound continuously, indicating that the swing angle limit has been registered in the memory. When the boom is swing back to an angle within the set limit, the swing restriction lamp stops flashing and stays lit and the buzzer stops. Thereafter, a swing restriction indicator lamp will flash and the buzzer will sound whenever the limit previously registered is reached. (The swinging boom stops automatically.)
To cancel the restriction function, press the corresponding swing restriction key again. The corresponding swing restriction indicator lamp will go out.
[NOTICE]
When registering the swing angle limit, register both the right and left boom swinging restriction positions. Registering only one side cannot fulfill this working range limit function nor make the alarm buzzer sound.
Lifting height restriction key
While the swing stop cancel switch is set to OFF, the automatic stop does not work even if the boom is swung to the limit. In this case, the corresponding swing restriction indicator lamp flashes, a message appears and the AML buzzer beeps for three seconds. Take care when swinging the boom.
IW301-0131E72
Left swing restriction indicator lamp
Right swing restriction indicator lamp
Right swing restriction key
Left swing restriction key
IW301-0131E73
Functions of and How to Use User Mode (GR-600-1/ GR-800-1)
Load Radius Limit
Move the boom to the desired load radius, and press the load radius restriction key. The load radius restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit load radius has been stored in the memory. When the boom is moved back toward the non-critical side, the load radius restriction indicator lamp stops flashing, and stays lit and the buzzer stops.
The load radius restriction indicator lamp flashes and the buzzer sounds continuously whenever the limit previously registered is reached. To cancel the load radius limit function, press the load radius restriction key again. The corresponding load radius restriction indicator lamp will go off.
Load radius restriction indicator lamp
Load radius restriction key
IW301-0131E74
Functions of and How to Use User Mode (GR-600-1/ GR-800-1)
Display of Working Range Restriction Values
Press in the register key while working range restricting functions are registered. While the key is being pressed in, the registered working range restriction values are displayed. On the moment display will be displayed a message "Working range".
[NOTICE]
This display is not available when preoperational AML check is made and when working state is registered.
When working range restricting functions are not registered, the message " " will be displayed.
Upper boom angle limit restriction values
Lifting height restriction values
Working range
Lower boom angle limit restriction values
Load radius restriction values
Boom position indicator
Swing limit restriction values
Register key
IW301-0131E75
Functions of and How to Use User Mode (GR-600-1/ GR-800-1)
Display Alteration
Displays on the moment display and the display panel 1 can be altered, as shown below in the figures, while the display alteration key is being pushed. The indicative symbols are displayed, too. Moment
IW301-0131E76
Display Panel 1
[NOTICE]
Displays on the real load display and the rated load display do not alter even when the display alteration key is pressed in.
IW301-0131E77
Functions of and How to Use User Mode (GT-900-1)
Functions of and How to Use User Mode (GT-900-1)
Mode Structure
The AML device has three modes and AML functions are allotted for these models.
2. Maintenance Mode:
Used to make functional checks of AML. See the “ADJUSTMENT AND MAINTENANCE” section.
3. Adjustment Mode:
Used to make detector adjustment. See the “ADJUSTMENT AND MAINTENANCE” section.
IW301-0233E01
1. User Mode:
Used to indicate moment ratio or to perform AML pre-opetational inspection (Normally used).
In normal use, turn ON the protect switch mounted on the adjustment window on the top of AML. AML will go to the user mode when the power turns on.
The abnormality display LED lights when the AML is in abnormal conditions (to indicate that the CPU is faulty).
Functions of and How to Use User Mode (GT-900-1)
Configuration and Functions of the AML System
The AML system is a safety device provided to prevent overloading of the crane which may cause it to overturn or be damaged. The AML system has various kinds of functions, including the following typical functions. Based on the registered work conditions by operator selection and the signals from various sensors, the crane operations are controlled.
(1) Automatic stop function for overloading
The AML calculates and compares the working and rated moment values and displays them as a percentage. When the working moment exceeds the rated moment (100% or more), failure message is shown, alarm buzzer sounds, and the crane operation toward the critical side stops.
(2) Automatic stop function at backward instability
When the outriggers are extended minimum, the backward stability might be insufficient depending on the work condition. For preventing the overturning to backward, if the backward stability is reduced, message and alarm are output and the crane operation toward the cirtical side (boom raising and boom retracting) stops.
(3) Working range limit functions
When any working range limit is registered to the AML, the crane is controlled so that the crane work posture does not exceed this registered working range limit. When the boom reaches the previously registered restriction, buzzer sounds, and the crane operation stops.
(4) Slow stop function
In the following cases, the boom elevation speed or the boom swing speed gradually decreases to stop before the boom reaches the stoppage position.
• When the automatic stop is caused by overloading (Boom lowering will stop.)
• When the elevating cylinder reaches its stroke end (Boom raising/lowering will stop.)
• When the automatic stop is caused by working range limit function (Boom raising/lowering will stop.)
• When the automatic stop is caused by backward stability (Boom raising will stop.)
The situation of automatic stop due to automatic stop function and working range limit function is as listed below, depending on the working condition.
Automatic stop by overloading
Stop by backward instability
Hoisting up
Boom lowering
Boom extension
Swing
Boom raising
Boom retraction
Stop at stroke endBoom raising/lowering
Stop by working range restriction
Boom raising/lowering
Boom extension
Swing :Slow stop :Stop
Functions of and How to Use User Mode (GT-900-1)
Functions of and How to Use User Mode (GT-900-1)
Automatic Stop Functions
•
• Two-blocking
• AML system error
• Hoisting up
• Boom lowering
• Boom extension
Alarm Functions
Condition
Alarm
•
• Swing toward critical side Upper boom angle restricted
•
•
• Boom raising
• Boom extension
•
•
• Swing
A control is moved toward critical side (hoist up, boom lowering or boom extension) while two-blocking condition exists.
Moment display: Displays [Warning:0024].
•
(*1): For the boom lift with the jib mounted, automatic stop will work when the moment exceeds 85%.
(*2): The backward instability varies depending on the boom length and counterweight state.
Buzzer: Sounds continuously. Anti-twoblock function is deactivated while two- blocking condition exists.
Moment display: Displays [Warning:0015].
External warning lamps: Red lamp is lit.
Buzzer: Sounds continuously. Moment ratio exceeds 90%
Moment display: Yellow segment is lit.
External warning lamps: Orange lamp is lit.
Buzzer: Sounds intermittently. A control is moved toward critical side while moment ratio exceeds 100%
Moment display: Displays [Warning:0023].
External warning lamps : Red lamp is lit.
Buzzer: Sounds continuously. AML system error Moment display: Displays failure messages.
AML buzzer: Sounds 3 seconds. Working range limit function activated. Moment display: Displays failure messages.
Associated restriction indicator lamp flashes.
Buzzer: Sounds continuously.
AML buzzer: Sounds 3 seconds. Operated to cirtical side when backward stability control activoted.
Moment display: Displays [Warning:0025]
Buzzer: Sounds 3 seconds. Slow stop control Moment display: Displays [Warning:0081] or [0082]
AML Buzzer: Sounds 3 seconds. Boom lift with jib mounted on boom*
(1) Moment ratio is between 75% and 85%. Moment display: Corresponding segment is lit. External warning lamps Orange lamp is lit.
Buzzer: Sounds intermittently.
(1) Moment ratio exceeds 85% Moment display: Displays [Warning:0088].
External warning lamps: Red lamp is lit.
Buzzer: Sounds continuously.
[NOTICE]
In the above table, "Buzzer" is the device outside the AML unit, outputting buzzing sound.
"AML buzzer" is the device inside the AML unit, outputting beeping sound.
The AML buzzer sounds for 3 seconds every time a message appears. It outputs long sounds when slow stop control is activated and outputs short sounds when other controls are activated.
Functions of and How to Use User Mode (GT-900-1)
Names and Functions of AML Main Unit Parts
Functions of and How to Use User Mode (GT-900-1)

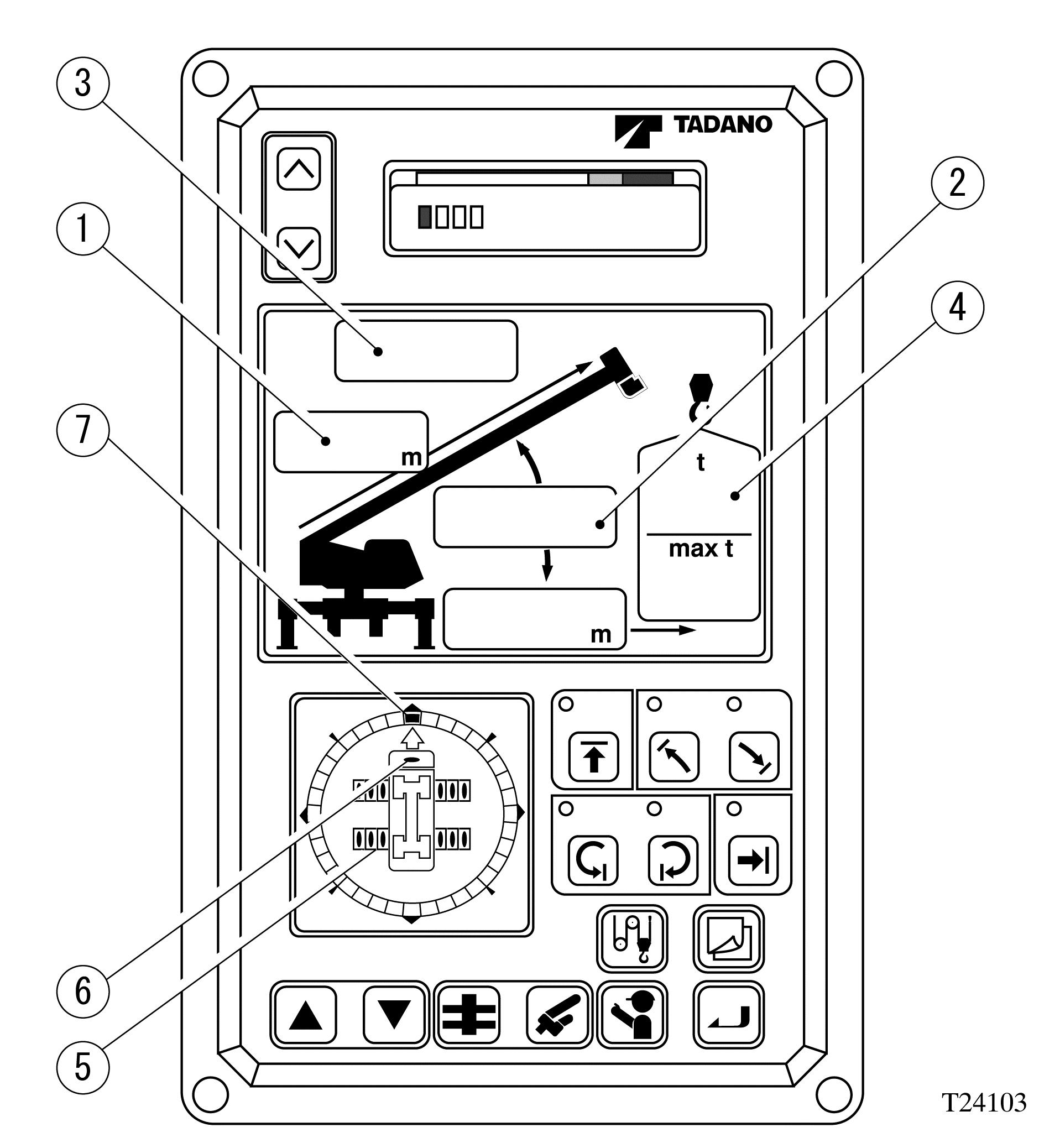

1. Moment ratio mark
The moment ratios on the bargraph are color coded as follows: safe (green), notice (yellow) and limit (red).
2. Moment display
Normally displays a moment ratio on a bargraph. Displays the main-circuit pressure when the display alteration key is held down. Also displays error messages when the load moment indicator or any of its associated devices fails.
3. Scroll-up key
Used to see the previous lines of message displayed on the moment display.
4. Scroll-down key
Used to see the next lines of messages displayed on the moment display.
Functions of and How to Use User Mode (GT-900-1)
1. Jib angle display
When jib lift is selected, the jib angle offset is displayed. When the number of parts of line select key is pressed, or the display alteration key is held down, the number of parts of lines is displayed. Also, when the upper boom angle restriction function is registered, the registered upper boom angle restricted value is displayed as long as the register key is pressed on.
2. Number of part-lines of indicative symbol
This symbol shows that the jib angle display (1) indicates the number of parts of line.
3. Boom length indicative symbol
This symbol, while marked up, means the value in the boom length display (13) is a boom length value.
5. Jib angle indicative symbol
This symbol, while marked up, means the value shown in the jib angle display (1) represents the offset angle.
6. Jib lift indicative symbol
Is marked up when the jib lift is selected, indicating the condition of the jib.
7. Real load display
Displays the real load.
8. Rated lifting capacity display
Displays the rated lifting capacity.
9. Load radius limit restriction indicative symbol
This symbol, while marked up, means the value shown in the load radius display (11) represents the load radius limit. Note that the load radius indicative symbol (10) is also displayed at the same time.
10.Load radius indicative symbol
This symbol, while marked up, means the value shown in the load radius display (11) represents the load radius.
11. Load radius display
Normally displays the crane's load radius. Displays the boom swing angle while the display alteration key is held down. When the load radius limit restriction function is activated, the load radius limit restriction value is displayed while the register key is held down.
12. Counterweight state indicative symbol
Marked up when the operation with the counterweight mounted is selected, indicating its mounting state.
Functions of and How to Use User Mode (GT-900-1)
13.Boom length display
Usually displays boom length. Displays the lifting height while the display alteration key is pressed. When the lifting height restriction function is effective, this displays lifting height restriction value while the register key is being pressed.
14.Lifting height indicative symbol
This symbol, while marked up, means the value in the boom length display (13) is a lifting height.
15.Lifting height restriction symbol
This symbol, while marked up, means the value in the boom length display (13) is a lifting height restriction value.
The lifting height symbol (14) is marked up simultaneously.
16.Upper boom angle limit restriction symbol
Indicates that the jib angle display (1) displays the registered boom angle upper restricted value.
17.Boom angle indicative symbol
Indicates that the boom angle display (19) displays the boom angle.
18.Lower boom angle limit restriction symbol
This symbol, while marked up, means the boom angle display (19) displays the registered lower boom angle restricted value.
19.Boom angle display
Normally displays the boom angle. Displays the moment % when the display alteration key is held down. When the restriction function is activated, the lower boom angle limit restriction value is displayed while the register key is held down.
20.Boom lift indicative symbol
Is marked up when the boom lift is selected.
21.Single-top lift indicative symbol
Is marked up when the single-top lift is selected.
1. Increase key Used to increase the selected value.
2. Decrease key Used to decrease the selected value.
3. Outrigger mode select key Used to select the outrigger status.
4. Lift mode select key Used to select the lift status.
5. Check key Used to check the AML system functions.
6. Register key Used to register a selected state.
7. Display alteration key Used to alternate the displays on display panel 1.
8. Load radius restriction key Used to activate and release the load radius limiting function.
9. Load radius restriction indicator lamp Lights up when the load radius limiting function is activated.
10.Lower boom angle limit restriction key
Used to activate and release the lower most boom angle limiting function.
11. Lower boom angle limit restriction indicator lamp Lights up when the lower most boom angle limiting function is activated.
12.Upper boom angle limit restriction key
Used to activate and release the upper most boom angle limiting function.
13.Upper boom angle limit restriction indicator lamp Lights up when the upper most boom angle limiting function is activated.
14.Lifting height restriction key
Used to activate and release the lifting height limiting function.
15.Lifting height restriction indicator lamp Lights up when lifting height limiting function is activated.
16.Right swing restriction key
Used to activate and release the right swing limiting function.
17.Right swing restriction indicator lamp Lights up when the right swing limiting function is activated.
18.Left swing restriction key
Used to activate and release the left swing limiting function.
Functions of and How to Use User Mode (GT-900-1)
19.Left swing restriction indicator lamp Lights up when the left swing limiting function is activated.
20.Number of parts of line select key
Used to register a number of parts of line.
1. Front jack symbol
Indicates that the front jack is used.
2. Outrigger state indicative symbol
Displays the way the outriggers are extended. Flashes while an outrigger state is being selected and marked up while it registered.
3. "On-rubber" (Outrigger-not-in-use) state indicative symbol
Comes on when the starter switch in the crane operator’s cab is turned “ON”.
4. Boom position indicator
Displays the boom position in 10° increments.
Functions of and How to Use User Mode (GT-900-1)
Selecting Operational Status
WARNING
Should the operational status be incorrectly registered, the crane might overturn or be damaged, leading to a serious accident. Prior to every operation, check that the registered status corresponds to the actual status of the crane.
Selecting Outrigger and Counterweight Status
Before turning on the load moment indicator, make sure that the switches below are in the following positions:
• In carrier driver’s cab: Key-actuated switch “chassis-superstructure”… “2” Rocker switch “PTO”…………………………… “ON”
• In crane operator’s cab: Starter switch…………………………………… “ON”
All of the switches above must satisfy the above conditions to turn on the power supply.
[NOTICE]
The "on-rubber stationary" status is the default status and is automatically selected when the power supply is turned on (The outrigger state indicative symbols and front jack symbol remain off.) Turning the power off automatically erases all the previous settings stored in memory. To resume the operation, enter the settings all over again. Register the outrigger state using the outrigger mode select key and the register key.
When the outrigger mode select key is pressed, the outrigger state indicative symbol, front jack symbol and counterweight state indicative symbol flash in accordance with the status that the AML detects on. After making sure that the display conforms to the actual crane conditions, press the register key. The outrigger state indicative symbol, front jack symbol and counterweitht state indicative symbol will change from flashing into being marked up continuously and the moment display, rated lifting capacity display and real load display will return to normal display conditions, meaning that the state has been registered.
[NOTICE]
If an outrigger or the front jack is stowed after registration of outrigger status, the registered status is erased. In this case, register the outrigger status again before starting crane operation. Outrigger state indicative symbol is marked up as shown below:
Fully extended (23' 7 1/2'' (7.2m))
Mid. extended (15' 9''(4.8m))
Min. extended (6' 9 7/8"(2.08m))
IW301-0232E06
Functions of and How to Use User Mode (GT-900-1)
[NOTICE]
Counterweight state indicative symbol is marked up as shown below:
Functions of and How to Use User Mode (GT-900-1)
Selecting Lift Status [NOTICE]
The boom lift status is the default status and is automatically selected (the boom lift indicative symbol is marked up) when the power supply is turned on (the PTO switch is placed in the ON position).
Turning the power off (PTO switch: OFF) automatically erases all the previous settings stored in memory after approximately 2 hours. To resume the operation more than 2 hours after the power has been last turned off, enter the settings all over again.
Register the lift status using the lift mode select key and the register key.
meaning that the state has been registered. (When the jib set status is selected, the jib lift indicative symbol will remain flashing.)
Select the boom lift status when lifting a load on the boom with the jib mounted.
Select the jib lift status when lifting a single load using both the boom and jib.
Each time the lift mode select key is pressed, the mode changes in numerical sequence, from (1) to (9). The display returns to (1) if you press the switch while the status (9) is displayed on the screen. Select the status that corresponds to the actual lift status.
[NOTICE]
After selecting the intended lift status, press the register key to register the status.
The corresponding indicative symbols will stop flashing and become marked up and the moment display, rated lifting capacity display and real load display will return to normal display conditions,
Functions of and How to Use User Mode (GT-900-1)
Selecting Number of parts of Line
[NOTICE]
If the registered number of parts of line is smaller than the standard number, a maximum allowable lifting load is limited, depending on the registered number. In case the number is registered as ‘0’, however, a process takes place as if the standard number were registered. Similarly, a process takes place on the basis of the standard number of parts of line if the registered number is larger than the standard number.
When the power supply is turned on (i.e. PTO switch ON), the standard number of parts of line corresponding to a work condition is selected.
Register the number of parts of line using the number of parts of line select key and the register key.
Number of parts
1. Press the number of parts of line select key. The number of parts of line symbol will flash, and the number of parts of line will be shown on the jib angle display in a flashing mode.
2. Press the increase or the decrease key to set the number of parts of line at a desired value.
[NOTICE]
When the increase or the decrease key is pressed, a numeral showing the number of rope stops flashing and becomes continuously marked up, showing a fixed value for the increase or decrease. When the increase or the decrease key is kept pressed, the number of rope continuously increases or decreases.
Number of parts of line symbol
Number of parts of line select key Register key
IW301-0134E04
3. Once the intended number of parts of line is set, press the register key and register the number. Then, the number of parts of line symbol will be turned off and the jib angle display will return to a normal status.
[NOTICE]
The number of parts of line can be confirmed by pressing the display alteration key.
Functions of and How to Use User Mode ( GT-900-1 )
Selecting Winch Condition
Warning
Select the correct winch according to the actual crane condition; otherwise the AML will show wrong moment ratio, leading you to damage or overturn the crane.
The lifting capacities vary depending on the operating condition. Register the winch selection using the winch selector switch so that the winch selection indicator lamp is as shown in the table below according to the operating condition.
When main winch is employed When auxiliary winch is employed
: Main Winch : Auxiliary Winch
Selecting Jib Mounted Condition
Warning
If the jib mounting/dismounting state is set improperly, the AML can not detect the actual load precisely. The crane operation in this condition could create hazard.
The jib can be dismounted from the crane body when it is not used. The reduced mass of the crane body after jib removal will influence the precision of the AML. Use this switch to set the jib mounting /dismounting state to the AML.
[NOTICE]
The key can be inserted in/removed from either “REMOVED” or “EQUIPPED” position.
Winch selector switch
: Main Winch : Auxiliary Winch
IW301-0231E16
(1) “REMOVED” Select this position when the jib is dismounted. The jib removed indicator lamp will light up.
(2) “EQUIPPED” Select this position when the jib is mounted. The jib removed indicator lamp will go off.
IW301-0231E17
The winch selection alternates between main winch and auxiliary winch each time the winch selector switch is pressed. When auxiliary winch is selected, the winch selection indicator lamp lights up.
[NOTICE]
For boom lift, always employ the main winch.
Functions of and How to Use User Mode ( GT-900-1 )
AML Pre-operational Inspection
Operating the crane with a malfunctioning AML could cause the crane to overturn or be damaged. Be sure to perform the pre-operational inspection on the load moment indicator system and start the crane only after ensuring that the system is operating properly.
Before starting operation, check that the AML works in good condition, as follows:
1. Press the check key and make sure that the AML is in the following conditions:
• Moment display……All segments are marked up.
• Display panel (1 and 2)
………………………All segments are marked up.
• Working range restriction indicator lamp ………………………………All six lamps light up.
• Alarm buzzer………………Sounds continuously.
• Movement toward critical sides ………………………………Automatically halted IW301-0131E68
2. Press either the set key, display alteration key or check key to return the display to the normal condition.
3. Make sure that the display on the display panels conforms to the actual crane conditions.
(1) Boom length
(2) Boom angle
(3) Jib angle……shown while jib lift is selected
(4) Real load……Make sure that the approximately mass of the hook block while no load is on the hook block
[NOTICE]
The real load is not shown correctly if the lift status is not registered correctly.
(5) Outrigger state indicative symbol
(6) Front jack state indicator symbol
(7) Boom position indicator
Functions of and How to Use User Mode ( GT-900-1 )
How to Use the Working Range Limit Function
[NOTICE]
If the selected working range limits allow the crane to approach too close to an obstruction, the crane may be contacted or hit, depending on the operational status and the manner in which the load is handled. When selecting limits, allow sufficient clearance.
The working range restricting function makes the boom automatically stop at the previously registered boom angles (upper and lower), lifting height, load radius and swing angle.
The function is useful for handling a load in a confined place because it defines the area in which the boom can operate.
[NOTICE]
Turning the power off (PTO switch: OFF) automatically erases all the previous settings stored in memory after approximately 2 hours. To resume the operation more than 2 hours after the power was last turned off, enter the settings all over again.
Boom Angle Limit
Raise or lower the boom to the desired angle, and press the upper or lower boom angle limit restriction key. The corresponding limit restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit boom angle has been stored in the memory. When the boom is moved back to an angle within the set limit, the limit restriction indicator lamp stops flashing and stays lit and the buzzer stops.
Thereafter, the upper or lower boom angle limit restriction indicator lamp flashes and the buzzer sounds continuously whenever the upper or lower limit previously registered is reached. To cancel the boom angle limit function, press the boom angle limit restriction key again. The corresponding boom angle limit restriction indicator lamp will go off.
Upper boom angle limit restriction indicator lamp
Lower boom angle limit restriction indicator lamp
Lower boom angle limit restriction key
Upper boom angle limit restriction key
IW301-0131E71
IW301-0131E70
Functions of and How to Use User Mode ( GT-900-1 )
Lifting Height Limit
Move the boom to the desired height, and press the lifting height restriction key. The lifting height restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit height has been stored in the memory. When the boom is moved back to a height within the set limit, the lifting height restriction indicator lamp stops flashing and stays lit and the buzzer stops. Thereafter, the lifting height restriction indicator lamp flashes and the buzzer sounds continuously whenever the height limit previously registered is reached.
To cancel the height limit function, press the lifting height restriction key again. The corresponding lifting height restriction indicator lamp will go off.
Swing Limit
Swing the boom to the desired position, and press a swing restriction key. The corresponding swing restriction indicator will flash and the buzzer will sound continuously, indicating that the swing angle limit has been registered in the memory. When the boom is swing back to an angle within the set limit, the swing restriction lamp stops flashing and stays lit and the buzzer stops. Thereafter, a swing restriction indicator lamp will flash and the buzzer will sound whenever the limit previously registered is reached. (The swinging boom stops automatically.)
To cancel the restriction function, press the corresponding swing restriction key again. The corresponding swing restriction indicator lamp will go out.
[NOTICE]
When registering the swing angle limit, register both the right and left boom swinging restriction positions. Registering only one side cannot fulfill this working range limit function nor make the alarm buzzer sound.
Lifting height restriction indicator lamp
Lifting height restriction key
IW301-0131E72
Left swing restriction indicator lamp
Right swing restriction indicator lamp
Right swing restriction key
Left swing restriction key
IW301-0131E73
Functions of and How to Use User Mode ( GT-900-1 )
Load Radius Limit
Move the boom to the desired load radius, and press the load radius restriction key. The load radius restriction indicator lamp will flash and the buzzer will sound continuously, indicating that the limit load radius has been stored in the memory. When the boom is moved back toward the non-critical side, the load radius restriction indicator lamp stops flashing, and stays lit and the buzzer stops.
The load radius restriction indicator lamp flashes and the buzzer sounds continuously whenever the limit previously registered is reached.
To cancel the load radius limit function, press the load radius restriction key again. The corresponding load radius restriction indicator lamp will go off.
Load radius restriction indicator lamp
Load radius restriction key
IW301-0131E74
Functions of and How to Use User Mode ( GT-900-1 )
Display of Working Range Restriction Values
Press in the register key while working range restricting functions are registered. While the key is being pressed in, the registered working range restriction values are displayed. On the moment display will be displayed a message "Working range".
[NOTICE]
This display is not available when preoperational load moment indicator check is made and when working state is registered. When working range restricting functions are not registered, the message " " will be displayed.
Upper boom angle limit restriction values
Lifting height restriction values
Working range
Lower boom angle limit restriction values
Load radius restriction values
Boom position indicator
Swing limit restriction values
Register key
IW301-0131E75
Functions of and How to Use User Mode ( GT-900-1 )
Display Alteration
Displays on the moment display and the display panel 1 can be altered, as shown below in the figures, while the display alteration key is being pushed. The indicative symbols are displayed, too.
IW301-0131E76
Display Panel 1
[NOTICE]
Displays on the real load display and the rated load display do not alter even when the display alteration key is pressed in.
IW301-0131E77
General: Adjustment M ode and Maintenance Mode
[ADJUSTMENT AND MAINTENANCE]
General: Adjustment M ode and Maintenance Mode
1. Keys and Switches for Adjustment and Maintenance
1. Scroll-up key
Used to see the previous lines of message displayed on the moment display.
2. Scroll-down key
Used to see the next lines of messages displayed on the moment display.
3. Register key
Used to register the selected state and write the adjustment value in EEPROM.
4. Increase key
Used to increase the adjustment value.
5. Decrease key Used to decrease the adjustment value.
6. Display alteration key
Used to change the display to the upper menu.
7. Check key
Used for ”Do Check” and ”Ao Check” functions in the maintenance mode.
8. Moment input short-circuit switch
Not used for this machine.
9. Protect switch
Set this switch to OFF when changing the mode from user mode to adjustment mode. With this switch OFF, data in the EEPROM becomes rewritable.
10.Moment zero adjuster
This adjuster is for adjustment by the AML manufacturer’s service personnel. Do not tamper.
11.Abnormality display LED
Lights when the AML is in abnormal conditions or when the AML adjustment is initialized.
General: Adjustment M ode and Maintenance Mode
2. Mode Structure and Menu
The AML device has three modes and AML functions are allotted for these models.
2. Maintenance Mode:
Used to make functional checks of AML. This mode has the following menus:
[• Maintenance]
[• Adjust clock]
[: Prog. version]
[: Data ID. number]
[: Di check]
[: Ai check]
[: Disp ELEV PRES]
[: Do check]
[: MDT Monitor]
[: Key SW check]
[: Display check]
[: Disp. err data]
[: Erase err data]
1. User Mode:
Used to indicate moment ratio or to perform AML pre-opetational inspection (Normally used).
In normal use, turn ON the protect switch mounted on the adjustment window on the top of AML. AML will go to the user mode when the power turns on.
[: Disp. O/L data]
[: Erase O/L data]
[: OP board check]
[: Ao check]
[: Sio check]
[: Adjust Monitor]
General: Adjustment M ode and Maintenance Mode
3. Adjustment Mode:
Used to make detector adjustment. This mode has the following menus:
[• Adjust]
[: Adjust L & A]
*Boom length zero-point adjustment
*Boom length span-point adjustment
*Boom angle zero-point adjustment
*Boom angle span-point adjustment
*Swing angle zero-point adjustment
*Swing angle span-point adjustment
*Outrigger length zero-point adjustment
*Outrigger length span-point adjustment
[• Adjust CNT dat]
[: Adj. work rad]
[: Adjust MMT]
[: Adj. ELV speed]
*Load radius span adjustment
*Moment zero-point adjustment
*Moment span-point adjustment
[Adjust ELV UP]
[Correct ELV UP]
[Adjust ELV DN]
[Correct ELV DN]
[• Adjust AO]
[• Initialize L & A]
[: Reset ELV data]
[: Adjust AO Ofs.]
[: Reset AO Ofs.]
[: Reset DEF. FCT]
[• Initialize MMT] [: Reset zero. span]
[• Disp. O/L data] [: Reset PCSN] (*1)
[• Erase O/L data]
[• Adjust PCSN] (*1)
[• Reg. Capac.]
[: Head-OFF Capac]
[• Language] [: Jib Select]]
[: S/T Select]
[: Winch drum PSN]
(*1) : This menu is prohibited to be used.
General: Adjustment M ode and Maintenance Mode
3. Method of Shifting Modes
1. “User mode” → “Maintenance mode”
Press the scroll-up key, scroll-down key, and register key at the same time. Then, the moment display changes from the bargraph to [• Maintenance]. This display denotes the “Maintenance mode”.
2. “Maintenance mode” → “User mode”
Press the display alteration key. When the bargraph shows up on the moment display, AML goes back to the “User mode”.
3. “User mode” → “Adjustment mode”
Turn OFF the protect switch at the adjustment window on the top of AML. Then, the moment display will change to [•Adjust], and will denote “Adjustment mode”.
4. “Adjustment mode” → “User mode”
While the main menu of the adjustment mode is displayed, turn ON the protect switch. Then AML will go back to “User mode” and bargraph will be displayed on the moment display.
5. “Maintenance mode” → “Adjustment mode”
While the main menu of the maintenance mode is displayed, turn OFF the protect switch. The moment display will change to [•Adjust], and will denote “Adjustment mode”.
General: Adjustment M ode and Maintenance Mode
4. Method of Menu Selection
1. When AML is in “Maintenance mode” or “Adjustment mode”, the main menu is displayed on the moment display of bargraph display portion. Displayed menu changes by means of the scroll-up or scroll-down key. Press the register key to select the displayed item.
2. If the selected item in the main menu has any sub-menus, the sub-menus are displayed on the moment display of bargraph display portion. You can select the sub-menu in the same way sa main menu selection.
3. By pressing the display alteration key, the display changes to the upper menu.
4. The following marks displayed in the menu: “•”, “:” and “ ”.
When a main menu is displayed, the mark “•” stands before the menu name. (Ex. “•Adjust ”)
When a sub-menu is displayed, the mark “:” stands before the menu name.
(Ex. “:Adjust MMT”)
The “ ” mark after the menu name indicates that the depression of the scroll-down key calls for another menu.
Required Adjustment After AM L System Parts Replacement
Required Adjustment After AM L System Parts Replacement [NOTICE]
EEPROM stores the adjustment values for each specification number. When replacing the CPU board, remove the EEPROM after removing it from the broken CPU board to dispense with adjustment work other than clock adjustment. Visually check that the value displays such as boom length and boom angle and symbol display on the display panels 1 and 2 on the AML conform the actual crane condition.
Boom length detector
Boom angle detector
Swing angle detector
Replaced part
Outrigger extension width detector
Pressure sensor for moment detection
Display board
CPU board only (When reusing EEPROM removed from the broken CPU board)
CPU board (When EEPROM is not to be reused)
Required adjustment
Boom length adjustment
Boom angle adjustment
Swing angle adjustment
Outrigger extension width adjustment
Moment adjustment
None
Clock adjustment
AML unit
Proportional control valve for Slow stop
CPU board ROM None
EEPROM
Perform adjustment initialization and take every step of adjustment. For adjustment items and procedure, see “Adjustment Procedures” on the subsequent page in the “Function of and How to Use Adjustment Mode” section.
Analog board Boom length adjustment Boom angle adjustment Swing angle adjustment
Power board
Current output board (Option board) Adjustment of swing output Adjustment of elevation output
Connector board None
Right swing proportional control valve
Left swing proportional control valve
Boom raising proportional control valve
Boom lowering proportional control valve
Adjustment of swing output
Adjustment of elevation output
Functions of and How to Use Ad j ustment Mode
Functions of and How to Use Adjustment Mode
[NOTICE]
For how to shift to the adjustment mode and select from the adjustment menu, refer to “Method of Shifting Modes” and “Method of Menu Selection” in “General: Adjustment Mode and Maintenance Mode”.
Adjustment Procedures
Before making an adjustment, extend the outriggers fully and set the crane on firm ground for safety.
[NOTICE]
You can adjust boom length, boom angle, swing angle, and outrigger extension width in random order.
You can adjust swing output and elevation output in random order.
After all adjustment is completed, erase-protect the overload history, referring to “Erasing the Overload History” in the “Functions of How to Use Adjustment Mode” section.
The adjustment items and procedures are as follows:
Erasing the Overload History
Functions of and How to Use Ad j ustment Mode
1. Adjustment Initialization [NOTICE]
Adjustment initialization should be performed only when EEPROM is replaced. If the EEPROM removed from the faulty CPU board is reused when the CPU board is replaced, adjustment initialization is not required. By the adjustment initialization, the conversion factors (standard values specified for each specification) stored within the AML program that convert detected voltage input from the detectors into physical volumes is read out from the P-ROM and written onto the EEPROM.
Perform the initialization only once before the first adjustment takes place. If this initialization is done while adjustments are being made, you must restart the adjustment from the very beginning.
For adjustment initialization, you have to execute the following two menus.
[• Initialize L&A] : Initialize the conversion factors for boom length, angle, and deflection.
[• Initialize MMT] : Initialize the conversion factors for moment.
1.1 Procedure of Conversion Factors Resetting
1. Select the main menu [ • Initialize L&A ] in the adjustment mode, and press the register key to select the menu.
2. When [: Reset DEF. FCT ] appears, reset the deflection factor by pressing the register key.
3. When the message [Done] appears, the deflection factor resetting is completed. Press the display alteration key to return to the main menu.
4. Press the register key again to select the main menu [•Initialize L&A ] in the adjustment mode.
5. When [: Reset DEF. FCT ] appears, press the scroll-down key to display [：Reset zero. span], and then press the register key to reset the zero span factor.
6. When the message [Done] appears, the zero span factor resetting is completed. Press the display alteration key to return to the main menu.
1.2 Procedures of Moment Adjustment Resetting
1. Select the main menu [• Initialize MMT ] in the adjustment mode, and press the register key to select the menu.
2. When [Reset MMT] appears, reset the moment factor by pressing the register key.
3. When the message [Done] appears, the moment adjustment resetting is completed. Press the display alteration key to return to the main menu.
Functions of and How to Use Ad j ustment Mode
2. Capacity Setting
[NOTICE]
Check the specification number of “Adjustment Value Table” in the INFORMATION AND DATA section whether your crane needs to perform this setting. For the models other than TR-450XL-4, TR-500XL-4, TR-300XL-4, TR-150XL-4, TR-600XXL-4, TR-800XXL-4 refer to the Service Manual specified for each crane model.
The crane capacity data is stored in the ROM. This setting is performed to partially change the crane capacity data in the ROM.
The crane capacity data normally does not need this setting.
For the capacity setting, select one of the four sub-menus indicated below.
[: Head-Off Capac] : Used to set the maximum rated lifting capacity to the specified value.
[: Jib Select] : Used to change the capacity for jib-mounted condition to the capacity for jib-unmounted condition.
[: S/T Select] : Used to change the capacity for single-top-mounted condition to the capacity for single-top unmounted condition.
[: Winch drum PSN] : Used to specify the mounting position of winch drum for capacity adjustment.
2.1 Procedure of Head-off Capacity Setting
[NOTICE]
A head-off capacity value defined with this function is compared with the capacity (rated lifting capacity) data stored in the ROM, and the value whichever smaller is set as the capacity. Note that if the head-off capacity value is zero, the capacity data stored in the ROM is used.
1. Select the main menu [• Reg. Capac. ] in the adjustment mode, and press the register key to select the menu.
2. Press the scroll-up or scroll-down key to display [: Head-Off Capac ], and then press the register key to select the menu.
3. The currently registered head-off capacity value is indicated on the moment display. Display example: [Capacity 99.2 kp] (TR-450XL-4)
4. Press the increase or decrease key to adjust the head-off capacity value as desired. Every time you press the increase or decreace key, the head-off capacity value increases or decreases in steps of 0.1 klbs. If the key is held down, the value increases or decreases in steps of 10klbs.
5. When the desired head-off capacity value is reached, press the register key to save it.
6. Press the display alteration key to exit the menu.
Functions of and How to Use Ad j ustment Mode
2.2 Procedure of Jib Selection [NOTICE]
When the jib-unmounted (detached) condition is selected, the jib capacity data stored in the ROM becomes unusable and also the jib mass is excluded from capacity calculation.
1. Select the main menu [• Reg. Capac. ] in the adjustment mode, and press the register key to select the menu.
2. Press the scroll-up or scroll-down key to display [: Jib Select ], and then press the register key to select the menu.
3. The currently registered jib capacity condition is indicated on the moment display. Using the scroll-up or scroll-down key, adjust it to the desired condition .
Display example:
[Jib = Mounted ]
Press the scroll-up key. [Jib : Not Mounted]
When “ = ” is indicated, it means that the displayed condition is registered currently.
4. When the desired condition is displayed, press the register key for confirmation. When the setting is completed, “:” in the Jib condition display changes to “ = ”.
Display example: [Jib：Not Mounted]
Press the register key. [Jib = Not Mounted]
5. Press the display alteration key to exit the menu.
2.3 Procedure of Single Top Selection [NOTICE]
When the single-top-unmounted (detached) condition is selected, the single top capacity data stored in the ROM becomes unusable and also the single top mass is excluded from capacity calculation.
1. Select the main menu [• Reg. Capac. ] in the adjustment mode, and press the register key to select the menu.
2. Press the scroll-up or scroll-down key to display [: S/T Select ], and then press the register key to select the menu.
3. The currently registered single top capacity condition is indicated on the moment display. Using the scroll-up or scroll-down key, adjust it to the desired condition.
Display example:
[S/T=Mounted ]
Press the scroll-up key.
[S/T : Not Mounted]
When “ = ” is indicated, it means that the displayed condition is registered currently.
4. When the desired condition is displayed, press the register key for confirmation. When the setting is completed, “:” in the single top condition display changes to “ = ”.
Display example：
[S/T : Not Mounted]
Press the register key.
[S/T = Not Mounted]
5. Press the display alteration key to exit the menu.
Functions of and How to Use Ad j ustment Mode
2.4 Procedure of Winch Drum Position Setting [NOTICE]
The center of gravity of winch drum can be changed by adjusting the winch drum position. The calculation is performed according to the winch drum position setting by this function.
1. Select the main menu [• Reg. Capac. ] in the adjustment mode, and press the register key to select the menu.
2. Press the scroll-up or scroll-down key to display [: Winch drum PSN], and then press the register key to select the menu.
3. The currently registered jib capacity condition is indicated on the moment display. Using the scroll-up or scroll-down key, adjust it to the desired condition.
Display example:
[Winch drum = FR ]
Press the scroll-up key.
[Winch drum : F ]
Press the scroll-up key.
[Winch drum : R]
In the above examples, “F” means the condition with single winch mounted at the front. “R” means the condition with single winch mounted at the rear. “FR” means the condition with double winches mounted at the front and rear. The conditions with “ = ” is the currently registered condition.
4. When the desired condition is displayed, press the register key for confirmation. When the setting has been completed, “:” in the winch drum condition display changes to “ = ”.
Display example:
[Winch drum : F ]
Press the register key.
[Winch drum = F ]
5. Press the display alteration key to exit the menu.
Functions of and How to Use Ad j ustment Mode
3. Boom Length Adjustment
Before making an adjustment, extend the outriggers fully and set the crane on firm ground for safety.
[NOTICE]
Refer to “Adjustment Value Table” in the INFORMATION AND DATA section since the conditions and values for boom length adjustment vary depending on the specification number. For the models other than TR-450XL-4, TR-500XL-4, TR-300XL-4, TR-150XL-4, TR-600XXL-4, TR-800XXL-4 refer to the Service Manual specified for each crane model.
When the length detector has only been installed and its cord has not yet been unwound on the drum, set the code wound naturally on the boom through the entire length during the boom telescopic operation.
1. Select the main menu [• Adjust ] in the adjustment mode, and press the register key to select the menu.
2. When [: Adjust L&A ] is displayed, press the register key to select the menu.
9. Press the scroll-up key until the boom length zero-point adjustment display [Boom Lz] appears.
10.Has the boom length zero-point adjustment display [Boom Lz] become the zero-point adjustment value in “Adjustment Value Table” ?
11.Press the display alteration key to exit the menu.
3. Fully retract the boom.
4. Press the increase or decrease key so that the value of boom length zero-point adjustment display [Boom Lz] becomes the zero-point adjustment value in “Adjustment Value Table”. Press the register key for registration.
5. Fully extend the boom.
6. Press the scroll-down key until the boom length span adjustment display [Boom Ls] appears.
7. Press the increase or decrease key so that the value of boom length span adjustment display [Boom Ls] becomes the span adjustment value in “Adjustment Value Table”. Press the register key for registration.
8. Fully retract the boom again.
Functions of and How to Use Ad j ustment Mode
4. Boom Angle Adjustment
Warning
Before making an adjustment, extend the outriggers fully and set the crane on firm ground for safety.
[NOTICE]
Refer to “Adjustment Value Table” in the INFORMATION AND DATA section since the conditions and values for boom angle adjustment vary depending on the specification number. For the models other than TR-450XL-4, TR-500XL-4, TR-300XL-4, TR-150XL-4, TR-600XXL-4, TR-800XXL-4 refer to the Service Manual specified for each crane model.
Always perform the boom lowering operation when adjusting the boom angle to the adjustment condition. Measure the boom angle with a level angle meter.
1. Select the main menu [• Adjust ] in the adjustment mode, and press the register key to select the menu.
2. When [: Adjust L&A ] is displayed, press the register key to select the menu.
8. Press the increase or decrease key so that the value of boom angle span adjustment display [Boom As] becomes the span adjustment value in “Adjustment Value Table”. Press the register key for registration.
9. Bring the actual boom angle to the zero-point adjustment value in “Adjustment Value Table” again.
10.Press the scroll-up or scroll-down key until the boom angle zero-point adjustment display [Boom Az] appears.
11.Has the value of boom angle zero-point adjustment display [Boom Az] become the zero-point adjustment value in “Adjustment Value Table” ?
3. Set the actual boom angle to the condition of the zero-point adjustment specified in “Adjustment Value Table” by lowering the boom.
4. Press the scroll-up or scroll-down key until the boom angle zero-point adjustment display [Boom Az] appears.
5. Press the increase or decrease key so that the value of boom angle zero-point adjustment display [Boom Az] becomes the zero-point adjustment value in “Adjustment Value Table”. Press the register key for registration.
6. Raise the boom to just before the upper stroke end, and then adjust the actual boom angle to the condition of the span-point adjustment specified in “Adjustment Value Table” by lowering the boom.
7. Press the scroll-up or scroll-down key until the boom angle span adjustment display [Boom As] appears.
12.Press the display alteration key to exit the menu.
Functions of and How to Use Ad j ustment Mode
5. Swing Angle Adjustment
Warning
Before making an adjustment, extend the outriggers fully and set the crane on firm ground for safety.
[NOTICE]
Since the swing angles involve a hysteresis, always make adjustment after a stop from rightward movement.
1. Select the main menu [• Adjust ] in the adjustment mode, and press the register key to select the menu.
2. When [: Adjust L&A ] is displayed, press the register key to select the menu.
10.Press the increase or decrease key so that the value of swing angle 1 span-point adjustment display [SW AG 1s] will become 180 ± 0.3°. Press the register key for registration.
11.With the swing position unchanged, press the scroll-up or scroll-down key until the swing angle 2 span-point adjustment display [SW AG 2s] appears.
12.Press the increase or decrease key so that the value of swing angle 2 span-point adjustment display [SW AG 2s] will become 180 ± 0.3°. Press the register key for registration.
13.Set the boom again to the zero-point adjustment reference position (on the front centerline) by swinging it clockwise.
3. Set the boom to the zero-point adjustment reference position (on the front centerline) by swinging it rightward.
4. Press the scroll-up or scroll-down key until the swing angle 1 zero-point adjustment display [SW AG 1z] appears.
5. Adjust the increase or decrease key so that the value of swing angle 1 zero-point adjustment display [SW AG 1z] will become 0 ± 0.3°. Press the register key for registrarion.
6. With the swing position unchanged, press the scroll-up or scroll-down key until the swing angle 2 zero-point adjustment display [SW AG 2z] appears.
7. Adjust the increase or decrease key so that the value of swing angle 2 zero-point adjustment display [SW AG 2z] will become 360 ± 0.3°. Press the register key for registration.
8. Set the boom to the span- point adjustment reference position (on the rear centerline) by swinging it rightward.
9. Press the scroll-up or scroll-down key until the swing angle 1 span-point adjustment display [SW AG 1s] appears.
14.Check the swing angle 1 and 2 zero-point adjustment displays [SW AG 1z] and [SW AG 2z] by pressing the scroll-up or scroll-down key. Does each display indicate the angle below?
SW AG 1z：0 ± 0.6°
SW AG 2z：360 ± 0.6°
15.Press the display alteration key to exit the menu.
Functions of and How to Use Ad j ustment Mode
6. Outrigger Extension Width Adjustment [NOTICE]
Refer to “Adjustment Value Table” in the INFORMATION AND DATA section since the conditions and values for outrigger extension width adjustment vary depending on the specification number. For the models other than TR-450XL-4, TR-500XL-4, TR-300XL-4, TR-150XL-4, TR-600XXL-4, TR-800XXL-4 refer to the Service Manual specified for each crane model.
1. Select the main manu [• Adjust ] in the adjustment mode, and press the register key to select the menu.
2. When [: Adjust L&A ] is displayed, press the register key to select the menu.
3. Fully retract all the outrigger beams.
4. Press the scroll-up or scroll-down key until the right-front outrigger extension width zero-point adjustment display [RFO/R Lz] appears.
5. Press the increase or decrease key so that the value of the right-front outrigger extension width zero-point adjustment display [RFO/R Lz] conforms to the zero-point adjustment value in “Adjustment Value Table”. Press the register key for registration.
6. Adjust and register the values of the right-rear, left-front and left-rear outrigger extension width zero-point adjustment in the same manner as the one of the right-front outrigger extension width zero-point adjustment.
Right-rear outrigger : Adjust [RRO/R Lz] display
Left-front outrigger : Adjust [LFO/R Lz] display
Left-rear outrigger : Adjust [LRO/R Lz] display
7. Fully extend all the outrigger beams.
8. Press the scroll-up or scroll-down key until the right-front outrigger extension width span adjustment display [RFO/R Ls] appears.
9. Press the increase or decrease key so that value of the right-front outrigger extension width span adjustment display [RFO/R Ls] conforms to span adjustment value in “Adjustment Value Table”. Press the register key for registration.
10.Adjust and register the values of the right-rear, left-front and left-rear outriggers extension width span adjustment in the same manner as the one of the right-front outrigger extension width span adjustment.
Right-rear outrigger : Adjust [RRO/R Ls] display
Left-front outrigger : Adjust [LFO/R Ls] display
Left-rear outrigger : Adjust [LRO/R Ls] display
11.Fully retract all the outrigger beams again.
12.Press the scroll-up or scroll-down key until the right-front outrigger extension width zero-point adjustment display [RFO/R Lz] appears.
13.Does the right-front outrigger extension width zero-point adjustment display [RFO/R Lz] conform to the zero-point adjustment value in “Adjustment Value Table” ? And does each display for the right-rear outrigger [RRO/R Lz], for the left-front outrigger [LFO/R Lz], and for the left-rear outrigger [LRO/R Lz] conform to the zero-point adjustment value in “Adjustment Value Table” ?
14.Press the display alteration key to exit the menu.
