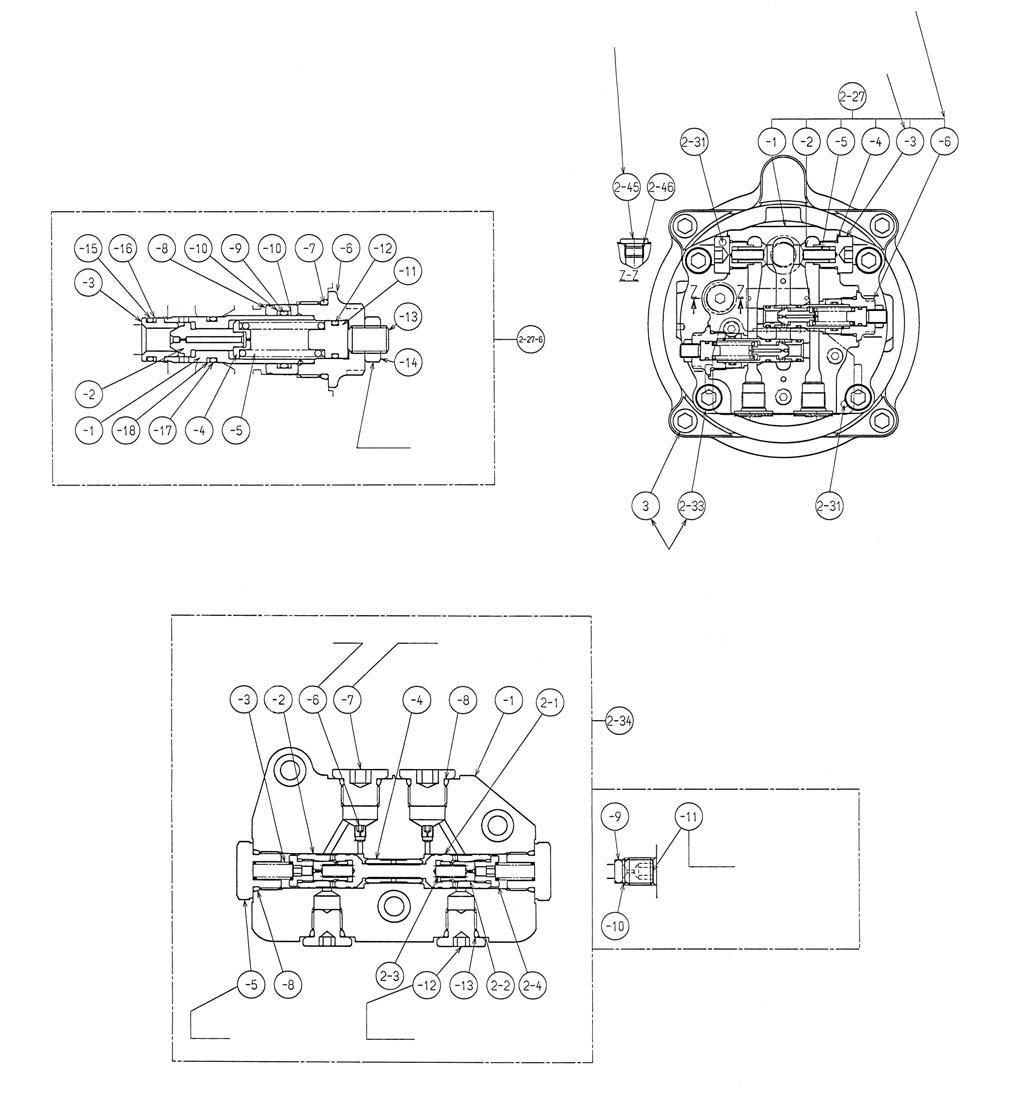

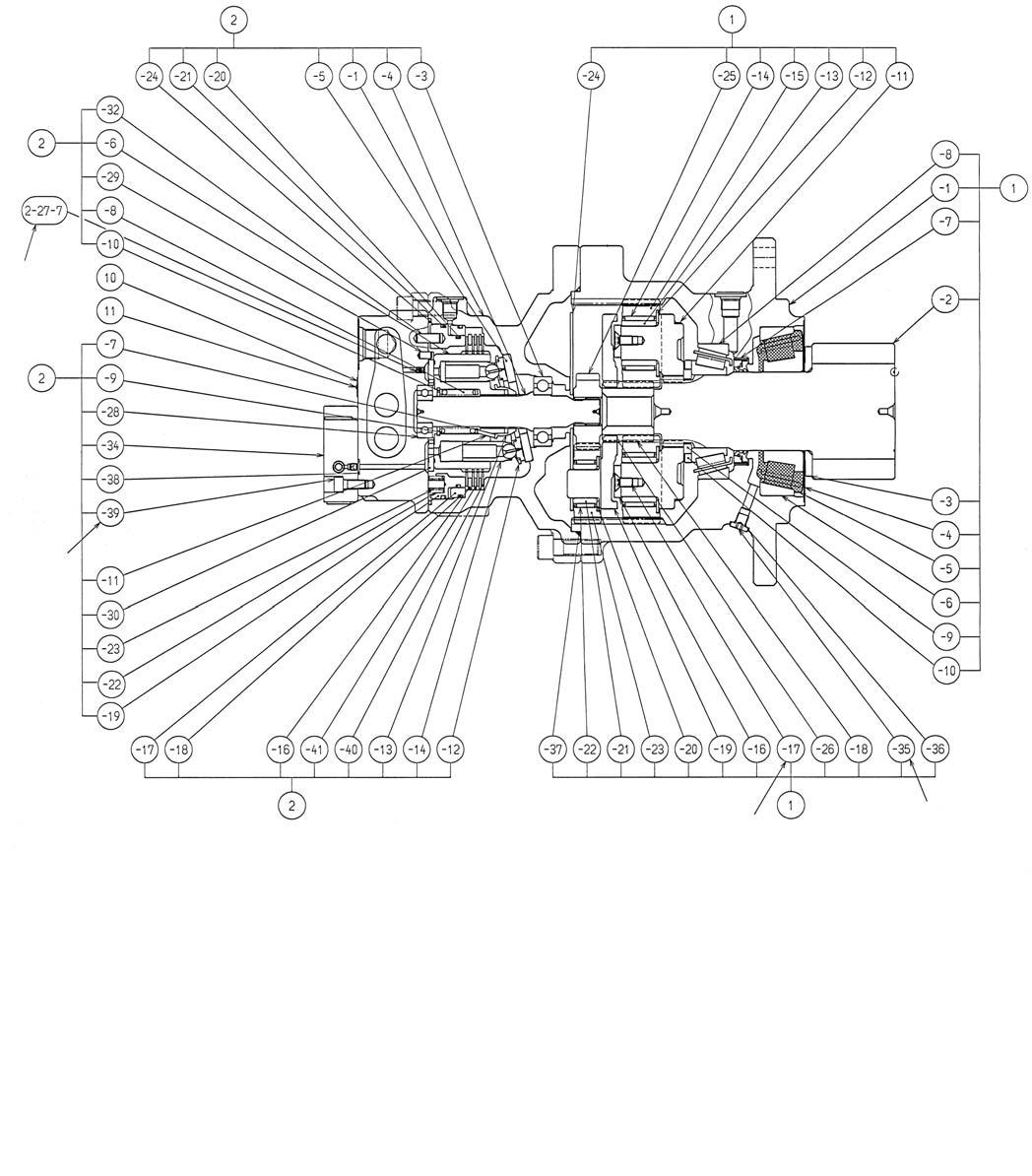

8. Configuration Diagram

8.Configuration Diagram

1 Tightening torque: 70 ± 1.0 N•m (PF3/8) (hexagon socket diameter: 8 mm) 8 Tightening torque: 15.7 ± 0.8 N•m (PF1/8) (hexagon socket diameter: 5 mm) 2 Tightening torque: 157 ± 10 N•m [M24 × 1.5] [hexagon socket diameter: 12 mm] 9 Tightening torque: 2.45 ± 0.49 N•m [hexagon socket diameter: 2.5 mm] 3 Tightening torque: 373 ± 20 N•m (1-5/16-12UNF) [hexagon diameter: 27 mm] 10 Tightening torque: 61.8 ± 2.9 N•m [hexagon socket diameter: 8 mm] 4 Tightening torque: 177 ± 10 N•m [M14 × 2] [hexagon socket diameter: 12 mm] 11 Tightening torque: 61.8 ± 2.9 N•m [hexagon diameter: 22 mm] 5 Tightening torque: 2.45 ± 0.49 N•m [M8 × 0.8] [hexagon socket diameter: 2.5 mm] 12 Tightening torque: 39.2 ± 2.0 N•m [hexagon socket diameter: 6 mm] 6 Tightening torque: 32.4 ± 2.0 N•m [M8 × 1.25] [hexagon socket diameter: 6 mm] 13 Tightening torque: 4.9 ± 1.0 N•m [hexagon socket diameter: 3 mm] 7 Tightening torque: 24.5 ± 4.9 N•m [M8 × 1.25] [hexagon socket diameter: 5 mm] 14 Tightening torque: 39.2 ± 4.9 N•m [hexagon diameter: 17 mm]

Code Part name Q'ty 1 Reduction gear 1 1-1 Housing 1 1-2 Pinion shaft 1 1-3 Collar 1 1-4 Plate 1 1-5 Plate 1 1-6 Tapered roller bearing 1 1-7 Plate 1 1-8 Collar 1 1-9 Plate 1 1-10 Collar 1 1-11 Holder 1 1-12 Thrust washer 4 1-13 Inner race 4 1-14 Needle bearing 4 1-15 Planetary gear 4 1-16 Thrust plate 1 1-17 Screw 4 1-18 Sun gear 1 1-19 Holder 1 1-20 Thrust washer 3 1-21 Inner race 3 1-22 Needle bearing 3 1-23 Planetary gear 3 1-24 Thrust plate 1 1-25 Drive gear 1 1-26 Snap ring 1 1-35 Plug 1 1-36 O-ring 1 1-37 O-ring 1 2 Piston motor 1 2-1 Case 1 2-3 Ball bearing 1 2-4 Shaft 1 2-5 Thrust plate 1 2-6 Cylinder block 1 2-7 Collar 1 2-8 Spring 1 2-9 Collar 1 2-10 Snap ring 1 2-11 Pin 3 2-12 Retainer plate 1 2-13 Retainer holder 1 2-14 Piston assembly 9 2-16 Friction plate 1 2-17 Collar 1 2-18 O-ring 1 2-19 Brake piston 1 2-20 O-ring 1 2-21 O-ring 1 2-22 Spring 12 2-23 Spring 8 2-24 O-ring 1 2-27-1 Cover 1 2-27-2 Poppet 2 Code 2-27-3 Plug 2-27-4 O-ring Part name Q'ty 2 2

2-27-5 Spring 2-27-6 Relief valve assembly 2 1

2-27-6-1 Relief housing 1

2-27-6-2 Poppet 1

2-27-6-3 Poppet seat 2-27-6-4 Spring seat 2-27-6-5 Spring 2-27-6-6 Plug 2-27-6-7 O-ring 2-27-6-8 Piston 1 1 1 1 1 1

2-27-6-9 O-ring 2-27-6-10Backup ring 2-27-6-11Spring guide 2-27-6-12O-ring 2-27-6-13Set screw 1 2 1 1 1

2-27-6-14Nut 2-27-6-15O-ring 2-27-6-16Backup ring 2-27-6-17O-ring 2-27-6-18Backup ring 2-27-7 Orifice 1 1 1 1 1 1

2-28 Ball bearing 2-29 Pin 1 1

2-30 Valve plate 2-31 Pin

1 2 2-32 Pin 2 2-33 Hexagon socket head bolt 4 2-34 Valve assembly 1 2-34-1 Body 1 2-34-2 Check valve assembly 2 2-34-2-1 Check valve 1 2-34-2-2 Valve 1 2-34-2-3 Spring 1 2-34-2-4 Plug 1 2-34-3 Spring 2 2-34-4 Sleeve 1 2-34-5 Plug 2 2-34-6 Orifice 2 2-34-7 Plug 2 2-34-8 O-ring 4 2-34-9 Filter 1 2-34-10 Washer 1 2-34-11 Orifice 1 2-34-12 Plug 2 2-34-13 O-ring 2 2-38 O-ring 3 2-39 Hexagon socket head bolt 3 2-40 Disk 4 2-41 Friction plate 2 2-45 Plug 1 2-46 O-ring 1 3 Hexagon socket head bolt 4
