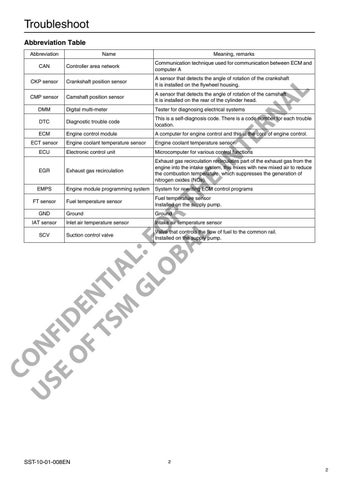

Troubleshoot Abbreviation Table Abbreviation
Name
Meaning, remarks Communication technique used for communication between ECM and computer A
CKP sensor
Crankshaft position sensor
A sensor that detects the angle of rotation of the crankshaft It is installed on the flywheel housing.
CMP sensor
Camshaft position sensor
A sensor that detects the angle of rotation of the camshaft It is installed on the rear of the cylinder head.
DMM
Digital multi-meter
Tester for diagnosing electrical systems
DTC
Diagnostic trouble code
This is a self-diagnosis code. There is a code number for each trouble location.
ECM
Engine control module
A computer for engine control and this is the core of engine control.
Engine coolant temperature sensor
Engine coolant temperature sensor
Electronic control unit
Microcomputer for various control functions
Exhaust gas recirculation
Exhaust gas recirculation recirculates part of the exhaust gas from the engine into the intake system, this mixes with new mixed air to reduce the combustion temperature, which suppresses the generation of nitrogen oxides (NOx).
CO US N F E ID O E F N TS TI M AL GL : F O OR BA T L H
E
EGR
TE RN
ECU
IN
ECT sensor
AL
Controller area network
CAN
EMPS
FT sensor GND
IAT sensor SCV
Engine module programming system
System for rewriting ECM control programs
Fuel temperature sensor
Fuel temperature sensor Installed on the supply pump.
Ground
Ground
Inlet air temperature sensor
Intake air temperature sensor
Suction control valve
Valve that controls the flow of fuel to the common rail. Installed on the supply pump.
