Hydraulic Equipment

• Early Machines: “Eaton 350 Series Pump Service Manual” [Manitou part # 50940040].

Hydrostatic Pump Swash Plates

Swash Plate Sensors

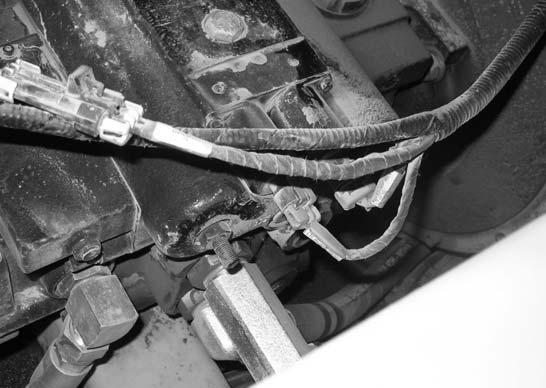

Swash plate sensors (X & Y, Fig. 494) on the hydrostatic pump sense the position of the swash plates in relation to the positions of the joysticks.

Travel Motor Gearbox Oil

Refer to "Travel Motor Gearbox Oil" on page 135 for gearbox oil maintenance information.

Hydrostatic Drive Pump

A hydrostatic tandem pump assembly coupled to the engine drives two fixed-displacement hydrostatic drive motors. The motors move the tracks on both sides of the machine. The pumps and motors are controlled individually, allowing complete flexibility in forward, reverse, gradual, pivot and spin turns.

For detailed information on pump internal repairs, refer to the following Manitou service manuals:

• Later Machines: “Eaton 72400 Back-to-Back Pump Service Manual” [Manitou part # 50940605].

Test the swash plate sensor electronics using the electronics diagnostic tool (see “Electronics Diagnostic Kit” on page311).

•Supply voltage (between outer supply and outer return wires in connector): 4.75V - 5.25V
