Models 1750RT/2100RT Tier 4 Engine Removal/Installation

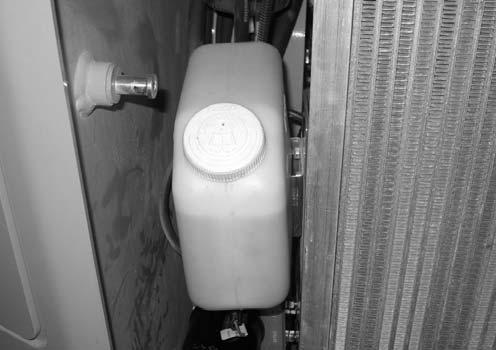

13.Plug the washer pump and hose into reservoir (S, Fig. 363) and install reseveroir onto the mounting bracket on the left side of the radiator shroud.

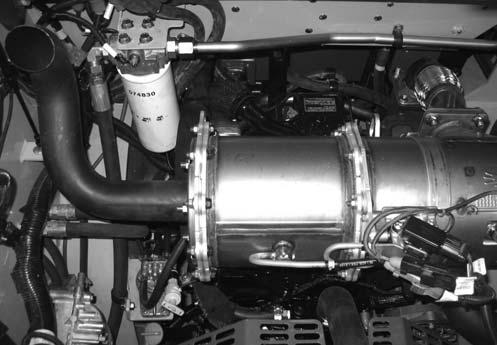

15.Secure hydraulic filter and filter head (G, Fig. 365) to bracket using fasteners (F). Tighten securely.

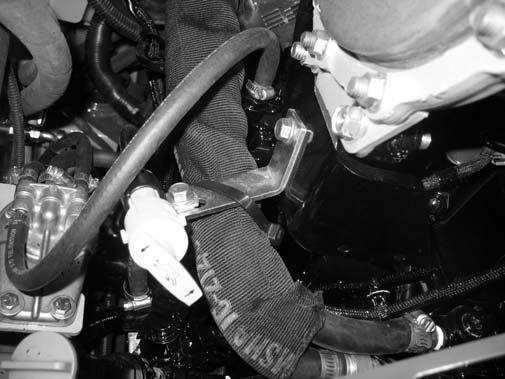

14.Remove caps from fuel lines and connect fuel lines to engine and secure with hose clamps (H, Fig. 364).

16.Connect hydraulic hose (D) to hydraulic oil filter head. Tighten securely. Secure hydraulic hose (D) using clamp (E).

17.Connect hydraulic tube (O) to hydraulic oil filter head. Tighten securely. Secure tube (O) using clamp (C).

18.Connect upper radiator/coolant hose (J, Fig. 366) to the radiator and secure using clamp (I). Tighten securely.

19.Connect overflow hose (N) to the radiator filler neck and secure using clamp (M). Tighten securely.
