Model 2500RT Engine Removal/Installation

Engine Installation – Model 2500RT

IMPORTANT: Always verify electrical connections are sound and strain relieved when static and to accommodate moving components and machine operation. Route, tie and clamp all wires and connections to avoid pinching, chaffing and damage consistent with factory design and practice.

1.Lift engine (A, Fig. 270) into place using an engine hoist or other appropriate lifting device.

Warning

Keep hands and feet clear when positioning the engine in the machine. Severe pinching/ crushing injury can occur.

NOTE: Install new screws (A, Fig. 270) for installation. Refer to the parts manuals for ordering information.

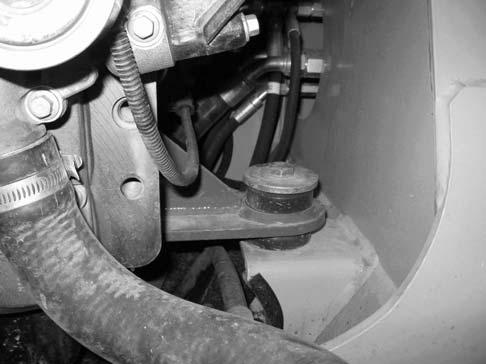

2.Install screw (A, Fig. 270) and washer (B) in the left front motor mount.

NOTE: Install new screws (C, Fig. 271) for installation. Refer to the parts manuals for ordering information.

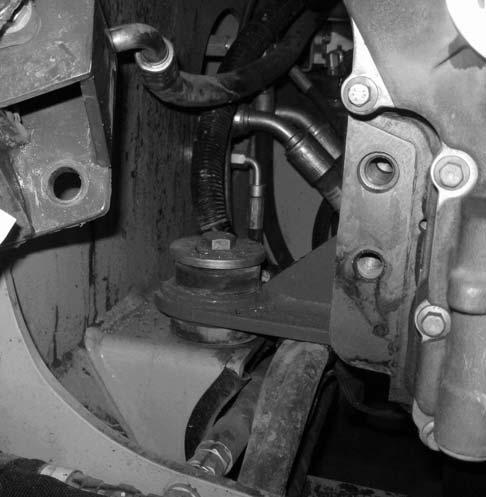

3.Install screw (C, Fig. 271) and washer (D) in the right front motor mount.

4.Torque screws (A, Fig. 270) and (C, Fig. 271) to 298 Nm (220 lb.-ft.).

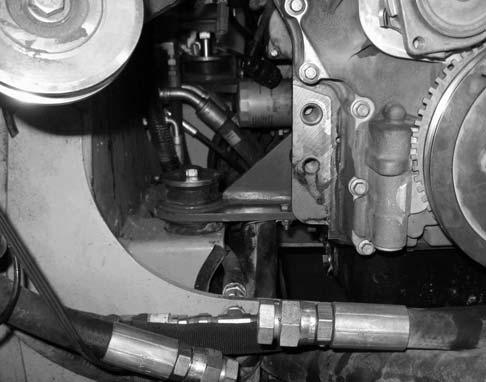

5.Install the hose retainer on the left motor mount using screw (E, Fig. 272) and nut (F).
