Lift Arm and ROPS/FOPS

29.Lift ROPS/FOPS (F, Fig. 204) several inches using an appropriate lifting device.

30.On both sides of the ROPS/FOPS, remove 2 rubber washers (E, Fig. 203).

31.Remove ROPS/FOPS (F, Fig. 204) from the machine using an appropriate lifting device.

ROPS/FOPS Installation

IMPORTANT: Always verify electrical connections are sound and strain relieved when static and to accommodate moving components and machine operation. Route, tie and clamp all wires and connections to avoid pinching, chaffing and damage consistent with factory design and practice.

NOTE: An assistant may be required for steps 1–3.

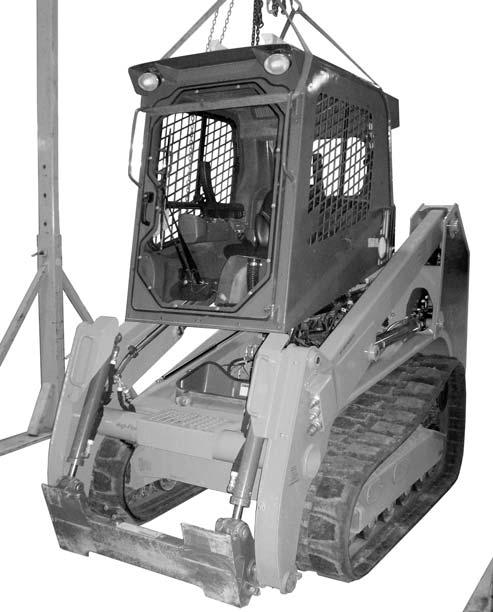

1.Using an overhead hoist or other appropriate lifting device, lift ROPS/FOPS (A, Fig. 205) and position ROPS/FOPS (A) several inches over the frame.
