Hydraulics — 2-Spool Control Valve Removal

STEP 5

Quickly read the pressure reading and slightly return the steering so it is not against the stop.

IMPORTANT: Hydraulic oil temperature rises sharply when steering is dead-headed against the stop. Do not keep the steering in the dead-headed position against the stop for long periods or damage to hydraulic components can result.

Steering pressure should be 195 ± 5 bar (2825 ± 70 psi)

2-Spool Control Valve Removal

400 Series 41250 and Up 500 Series 51242 and Up

STEP 1

Tilt the platform. See “Tilting the Platform” on page61.

STEP 2

Remove the battery. See “Battery Removal” on page183.

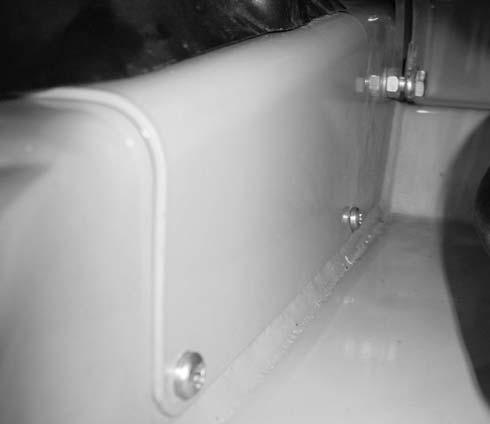

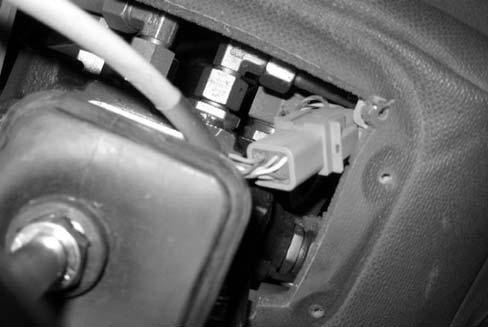

NOTE: Remove the battery to allow better access to the 2-spool control valve hydraulic hoses.

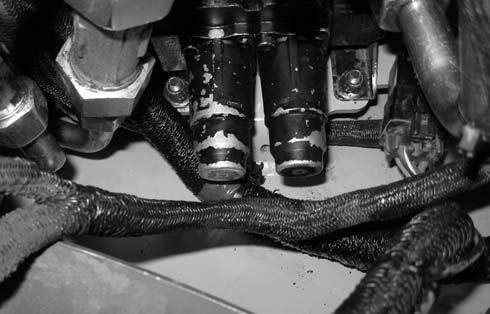

STEP 3
