Chassis — Lift Arm Installation

Step 5

Install the attachment plate hydraulic system. See “Attachment Plate Hydraulics Installation” on page78.

Step 6

Start the machine and bleed air out of the tilt cylinder by cycling the cylinder through full extension and retraction three times.

Step 7

Check the hydraulic fluid level and fill as required. See “Fluid Capacities/Lubricants” on page11.

Chassis — Attachment Plate Hydraulics Removal

Attachment Plate Hydraulics Removal

STEP 1

STEP 3

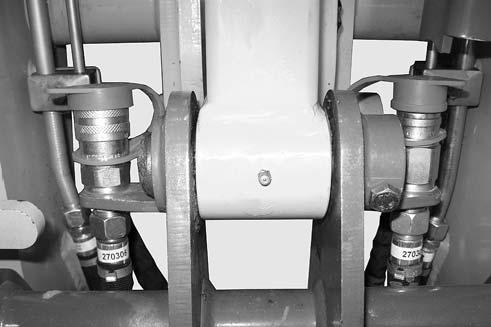

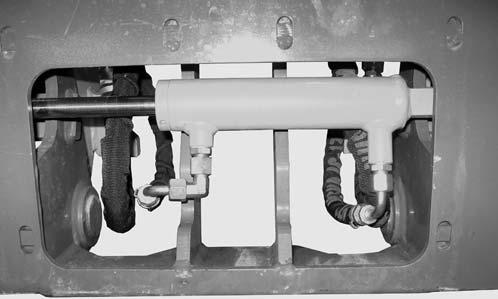

Disconnect attachment plate cylinder hoses (1). Cap and plug all fittings.

STEP 2

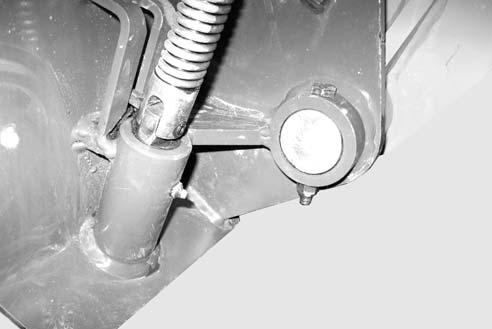

Remove bolts and nuts (4).

STEP 4

Warning

Securely, safely and carefully support the hitch plate to prevent it from falling when the upper attachment plate pin is removed. The attachment plate if very heavy and can cause serious injury if it is allowed to fall.

Remove
