OIL SUPPLY, LUBRICATION AND WATER SUPPLY LIST

System Capacities

Lubrication Table

Lithium or aluminium complex type grease with high viscosity base oil,

Grease approved for the NL GI certification make GC-LB are recommended.

OIL SUPPLY, OIL LEVEL CHECK, GREASE SUPPLY, FILTERS CHANGE

OIL SUPPLY, OIL LEVEL CHECK, GREASE SUPPLY

LUBRICATION/MAINTENANCE

HOOD How To Open / Close The Hood

Warning

Be sure to support hood with other hand while locking/unlocking the prop-rod. Otherwise, it could cause an accident.

Opening the Hood

1. Pull the lever to release the hood.

Closing the Hood

1. To close the hood, hold the hood and release the prop-rod by pushing its.

Hood Lever Label

2. Lift the hood upwards by holding its bottom with both hands until the proprod is fixed securely.

2. In closing the hood, use both hands and operate slowly.

3. Press the hood downwards with both hands until it locks securely.

Service Hour Interval

Service your tractor at the intervals and locations given on the Lubrication and Service Chart.

When you service your tractor, use only high quality lubricants.

Engine Hour meter

Engine Hour Meter

Service After First 50 Hours

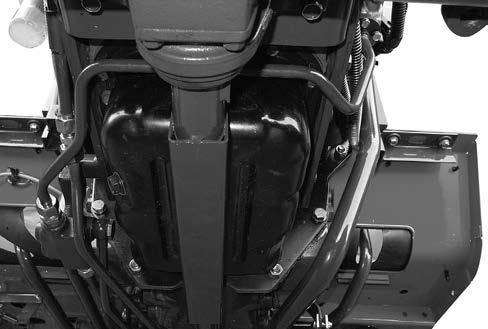

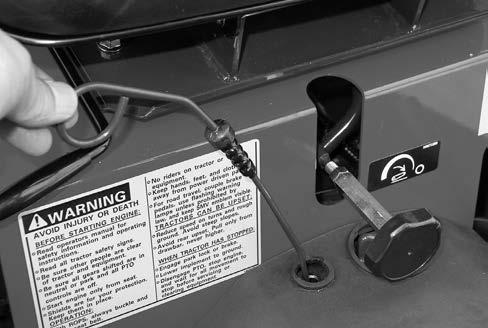

1. Engine Oil

Drain all the oil from the crankcase while the engine is warm and refill with new oil to the upper Notch (full) on the engine oil dipstick. See Engine Oil Change in this manual.

2. Engine Oil Filter

Replace the engine oil filter. See Engine Oil Filter in this manual.

3. Transmission & Hydraulic System

(1) Transmission Oil

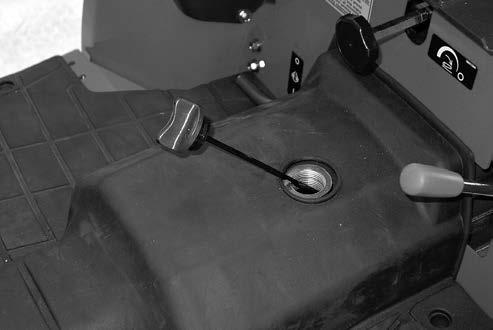

Check the level of the transmission oil. Add the specified fluid as needed to maintain proper level. See Transmission Oil Level (Gear Drive) or Transmission Oil Level (Hydrostatic Drive) in this manual.

The engine hour meter shows the total amount of actual engine operated hours of the tractor. The first number to the right side displays added one by one every six minutes and is a black number on a white surface. The remaining numbers are displays added one by one every one hour and is a white number on a black surface. Use the hour meter along with the Lubrication Chart to service your tractor at the correct time periods.

(2) Hydrostatic System Filter (Hydrostatic Drive)

Replace the filter with a new one. See Hydrostatic System Filter in this manual.

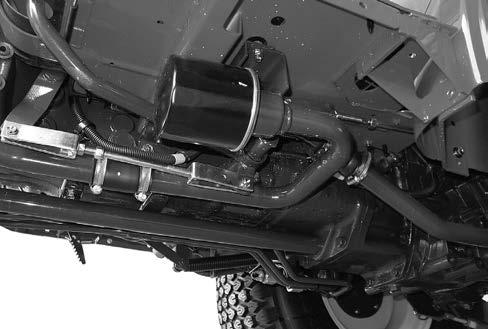

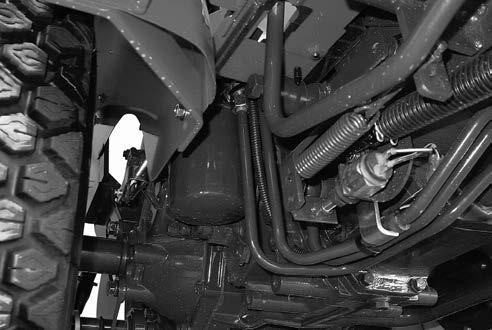

(3) Hydraulic Filter

Replace filter with a new one. See Hydraulic Filter in this manual.

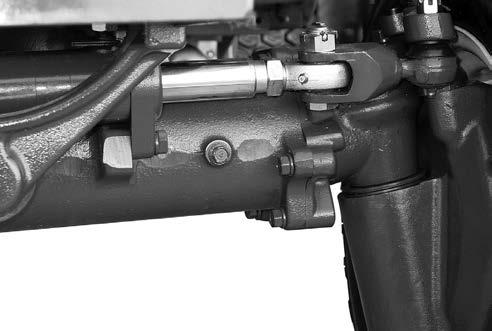

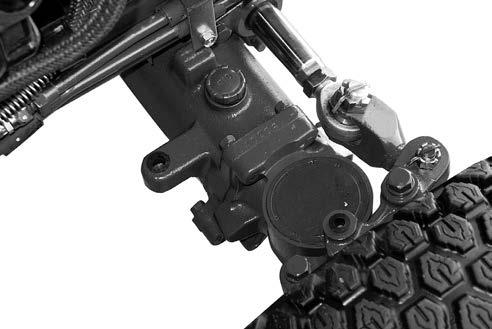

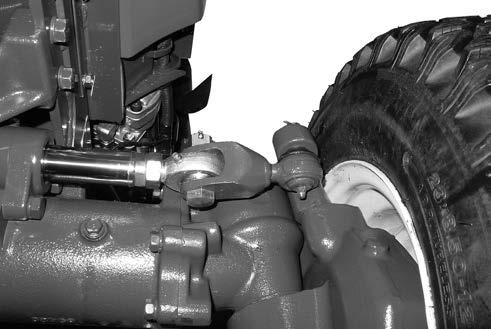

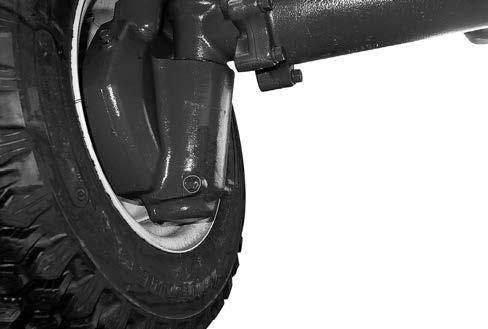

4. Front Axle Lubricant (MFD)

Change the oil. See FRONT AXLE LUBRICATION (MFD) in this manual.

5. Radiator Core

Inspect the radiator core and clean if necessary. See COOLING SYSTEM in this manual.
