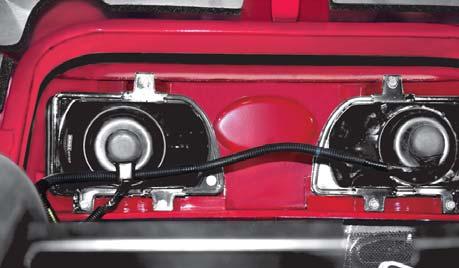

Head lamp adjustment

1.Open the hood.

2.Tighten screws (1), (2) & (3) fully.

3.Turning screw (1) in anticlockwise direction will raise the Beam.

4.Turning screw (2) & (3) in anticlockwise direction will lower the Beam.

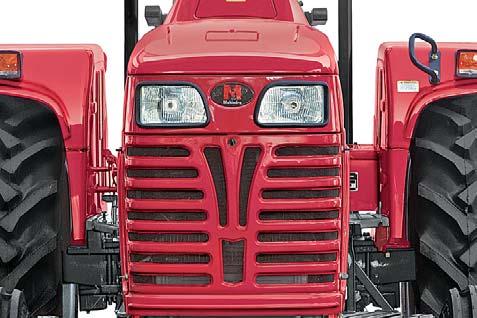

1.Park tractor on level ground, with lights 9.8 ft. (3m) from a wall.

2.Measure centre of headlamp to ground height (A). Place a strip of masking tape (B) on the wall at the same height.

3.Place a piece of tape, folded in the middle to make a point, on the top front center of the hood.

4.Using the tape on hood as a guide, sight across steering wheel and hood to locate tractor centerline. Mark tractor centerline (C) on wall.

5.From tractor centerline (C), mark a point (D) 6” (152.4 mm) out in each direction.

6.Turn light switch to dim position.

7.Locate point (E) of bright light projected by each lamp by adjusting screws (1), (2), (3) and (4) as required. Cover other lamps, if necessary.
