Diagnostics

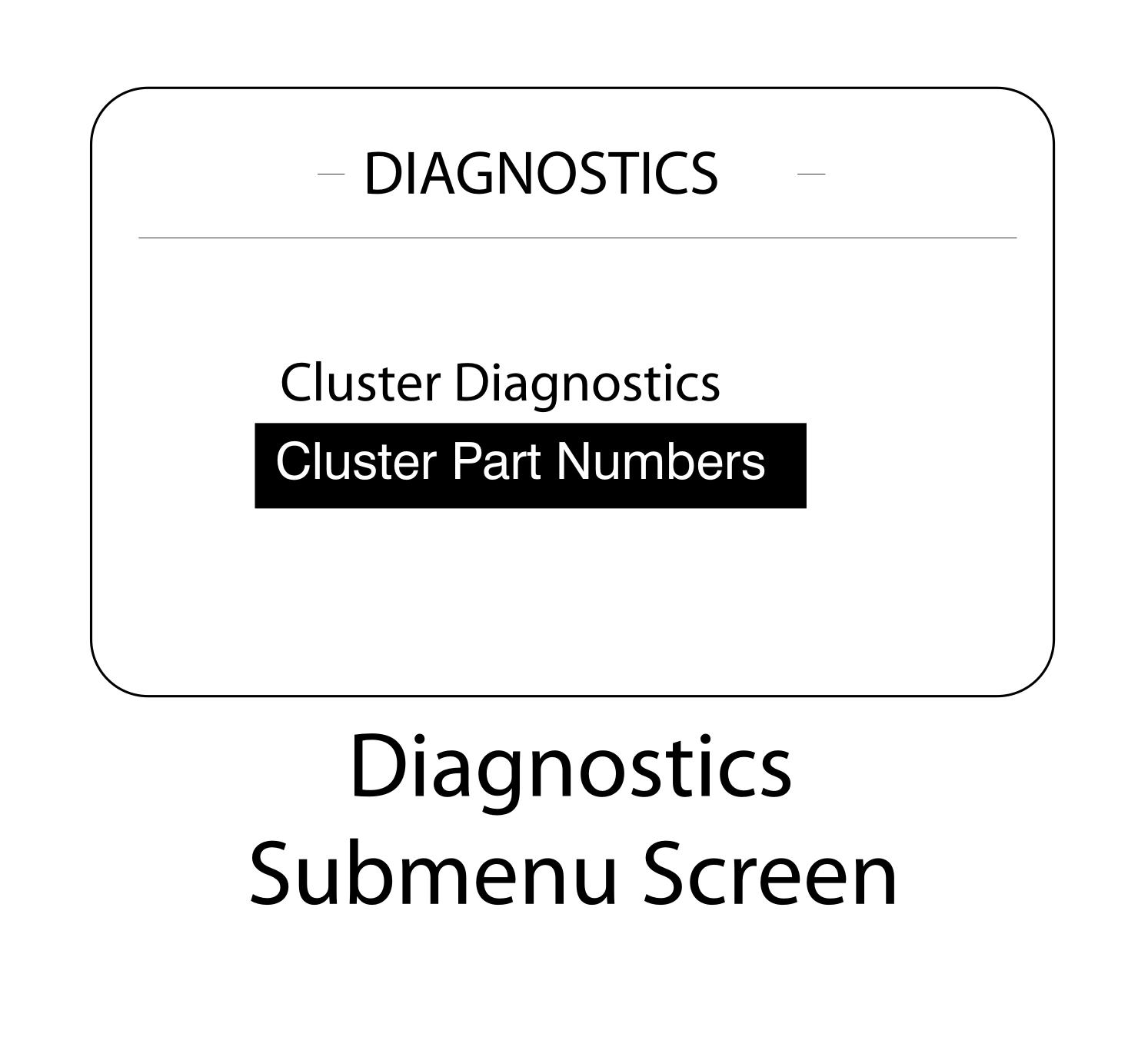

The Diagnostics submenu screen accessed from the stationary MAIN MENU 2 (see). T o view the screens the DIAGNOSTICS submenu, highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the

The DIAGNOSTICS submenu screen contains the following main screens:

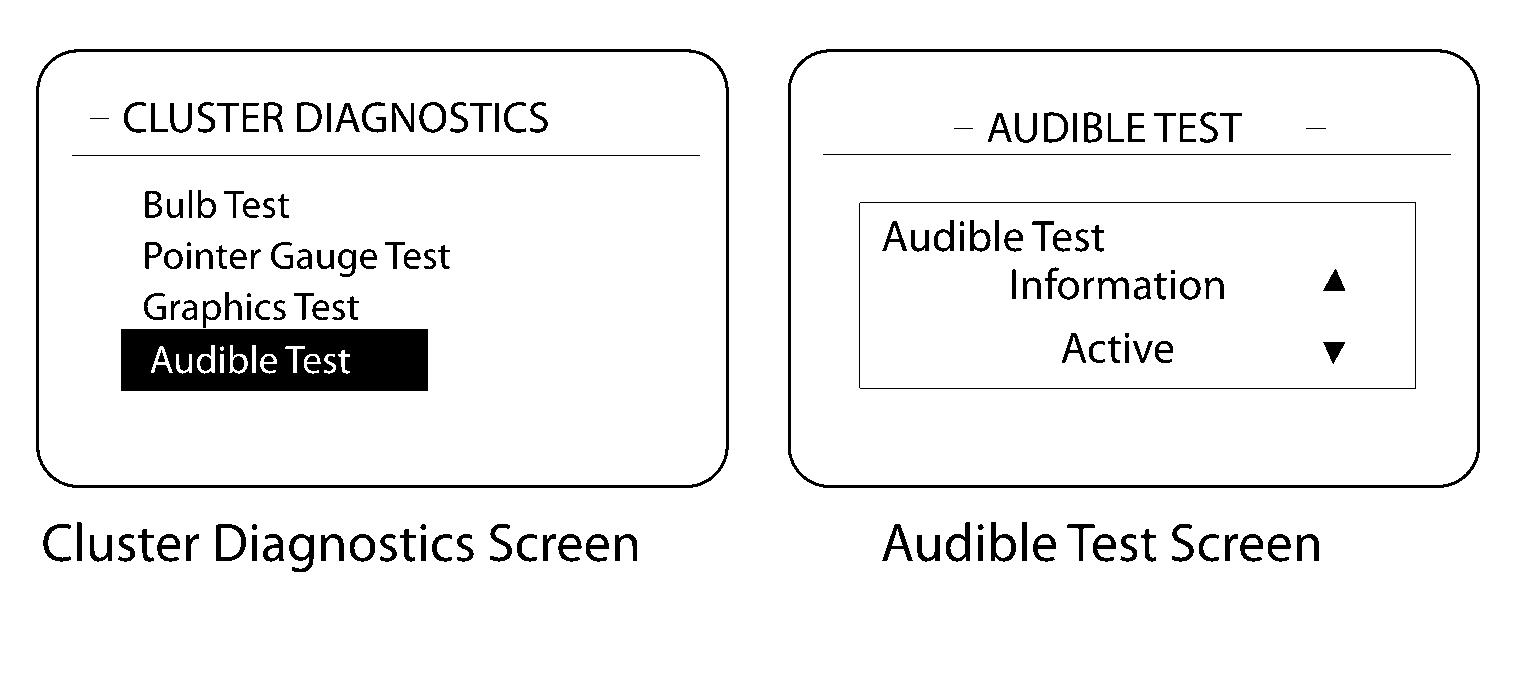

• Cluster Diagnostics Allows the user test bulbs, pointers gauges, graphics and alarms associated with the cluster .

• Hardwar e/Softwar e Part Numbers Allows the user view the hardware and software part numbers the engine control module anti - lock braking system (ABS) electronic control unit instrument cluster and vehicle

W3075371

Maintenance

The MAINTENANCE submenu screen accessed from the stationary MAIN MENU 2 screen (see) . T o view the screens the MAINTENANCE submenu, highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the

The MAINTENANCE submenu screen contains the following main screens: Displays the maintenance schedule for various maintenance such engine oil and coolant Maintenance items are displayed the screen one a time shown Maintenance when enabled VCADS can reset after maintenance has been maintenance has not been resetting the maintenance item will

Maintenance Monitor

C0035402

Figur e

Maintenance Scr eens

GuardDog™ (optional; must enabled)

GuardDog™, active maintenance monitoring uses sensor readings show the status routine maintenance the vehicle equipped with the GuardDog™ - Pilot will display GuardDog™ related maintenance items under the following conditions:

• When the vehicle started

• During driving individual maintenance items become due

• Manually through the GuardDog™ Status screen

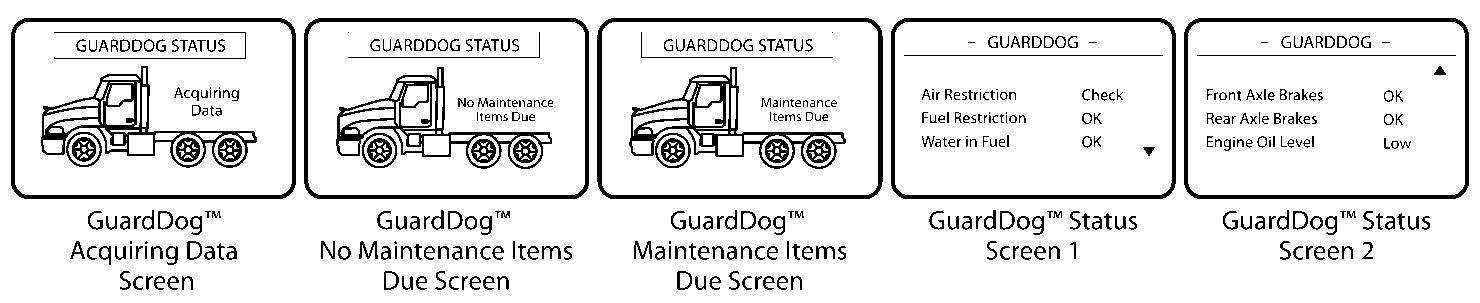

After power - initiation and the MACK LOGO screen appearance, the - Pilot will display the ACQUIRING T A screen. After activation this screen, maintenance item due, the GUARDDOG™ MAINTENANCE ITEMS DUE screen will appear . However , more than one maintenance item requires service, the GUARDDOG™ MAINTENANCE interrupt screen (see) will appear . T o view the due maintenance items, select the GUARDDOG™ A TUS screen.

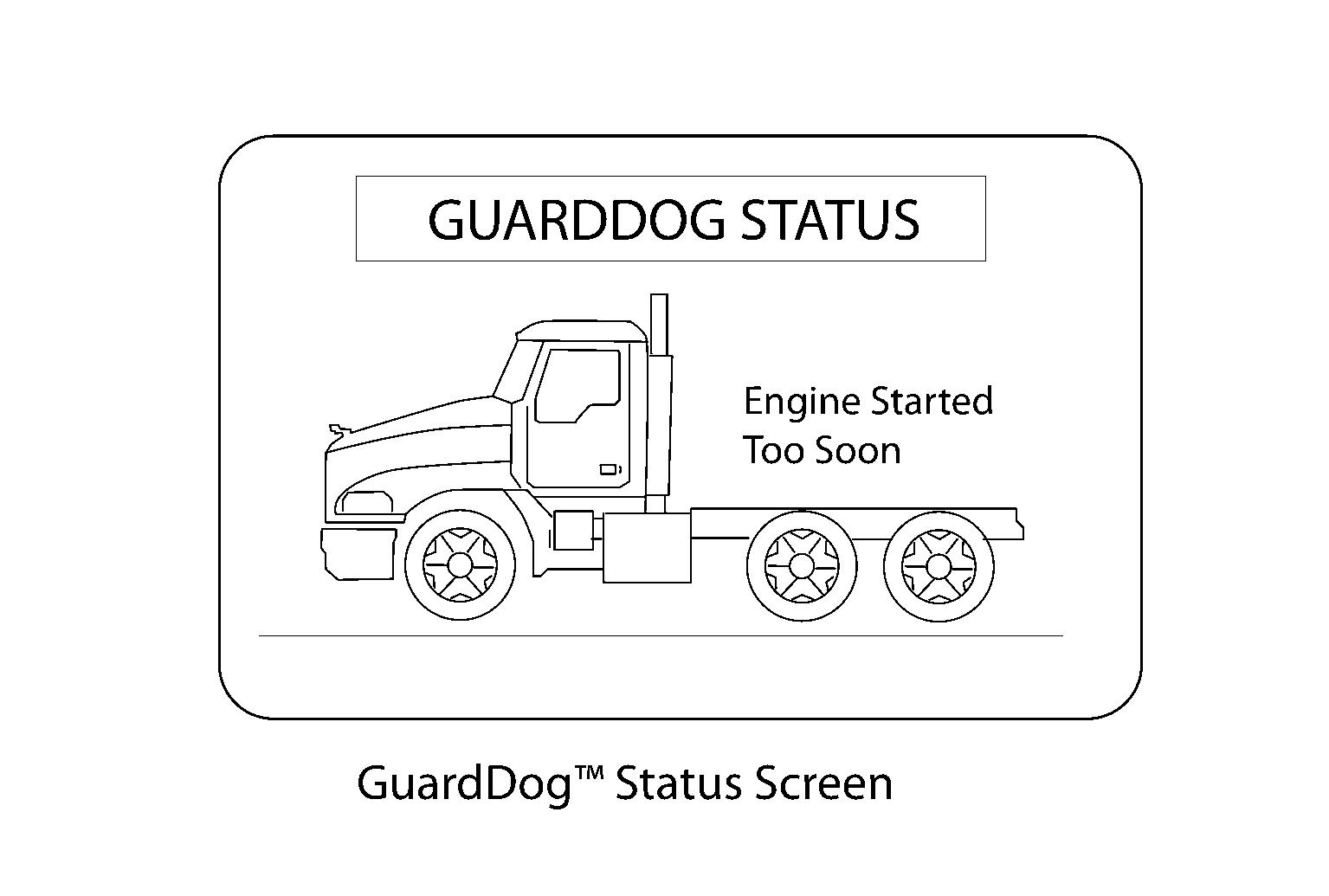

The GUARDDOG™ A TUS screen will display a list GuardDog™ items and the corresponding condition will shown “check,” “OK.”

Note : The oil level indicator takes between and seconds provide data. the engine started within this time period with valid oil level the - Pilot will display the message, obtain the oil level Engine started too soon.”

Note : GuardDog™ not installed, all GuardDog™ menu selections will unavailable.

W

ater-in-Fuel (WIF) [if equipped]

Allows the user send a command the EMS module. the W ater Fuel sensor detects liquid the water - separator bowl, the WIF indicator the instrument cluster will illuminate notify the driver .

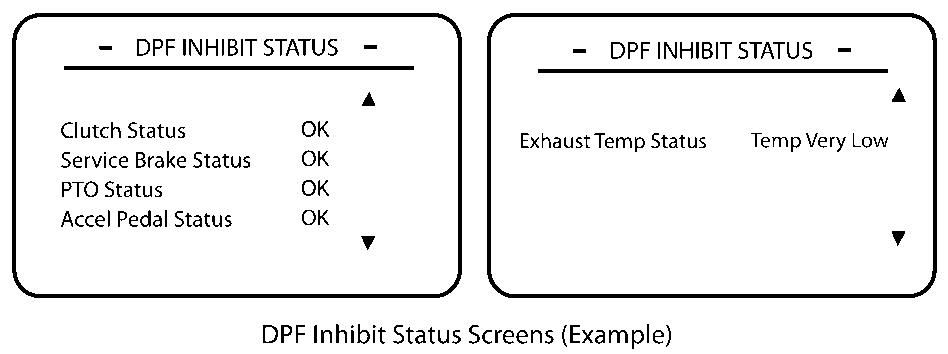

DPF Inhibit Status

Indicates why the aftertreatment diesel particulate filter (DPF) regeneration was not T o view the DPF Inhibit Status list the MAINTENANCE highlight “DPF Inhibit with the stalk switch & Down button and the press the Enter ( ↵ ↵ ) button view
