T rip Information

• The TRIP INFORMA TION submenu screen displayed selecting T rip Info from the moving MAIN MENU screen (see) from the stationary MAIN MENU 1 screen (see) and then pressing the Enter ( ↵ ↵ ↵ ) button.

W3036614

The TRIP INFORMA TION submenu screen contains the following screens:

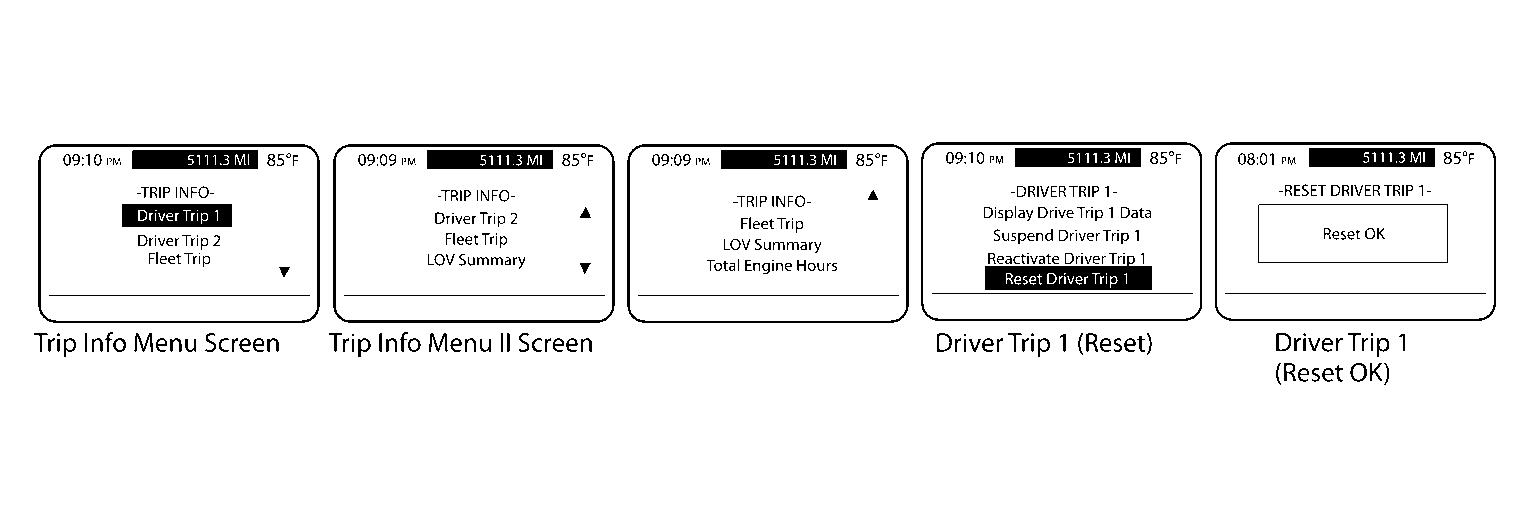

• Driver T rip 1 and Driver T rip 2 Displays information such date and time, distance, maximum RPM and mi/h, average mi/h and MPG, idle time, cruise time and time spent spot,” engine brake time and power takeof f (PT time. These screens also allow the current driver trip information reset desired, suspend and activate a current driver trip. When two drivers are driving a scheduled trip, and driver 1 has completed the trip segment, the Driver T rip 1 segment must ended. T o end the trip, the first driver should select OK” from the Driver T rip 1 screen (see). When Driver 2 ready begin his trip segment, should select OK” from the Driver T rip 2 screen (see).

• Fleet T rip Displays trip number , driver Bill Lading number , start date and total date and total distance and maximum RPM and average mi/h and idle cruise time and time spent spot,” engine brake time and O

• Life V ehicle (LOV) T rip Summary Displays the life vehicle trip information.

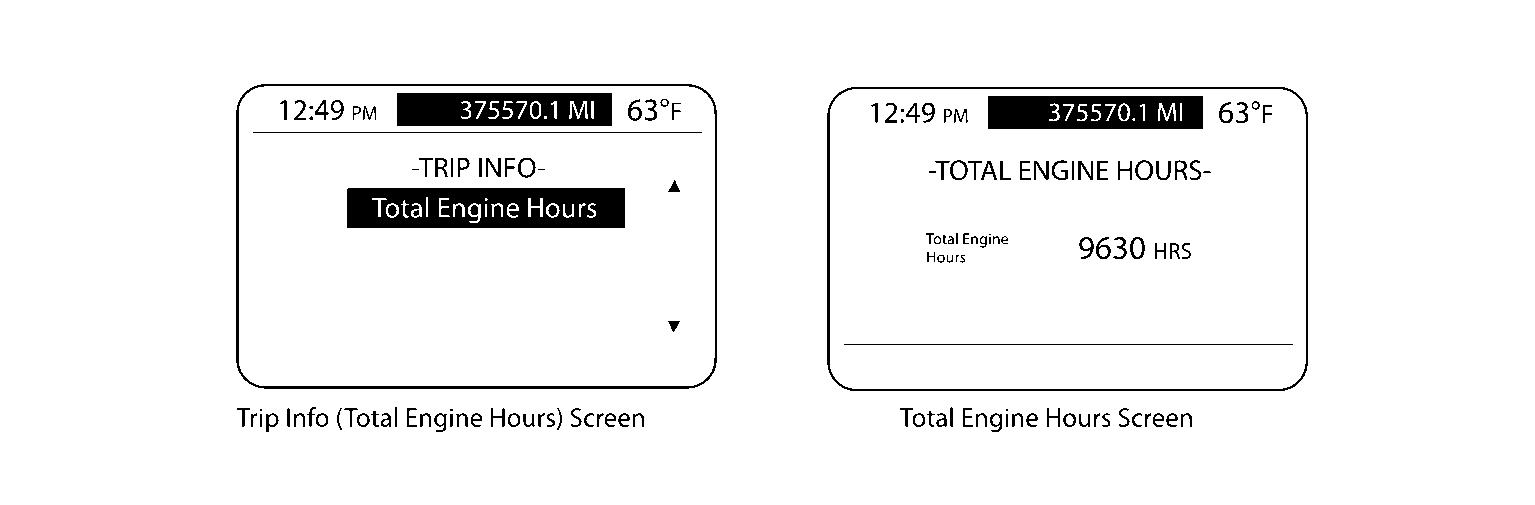

• T otal Engine Hours Displays the total engine hours for the

The following table displays the available LOV trip information.

Gauges

The GAUGES submenu screen, selected from the moving MAIN MENU screen (see) from the stationary MAIN MENU 1 screen (see) provides the speedometer value and sensor information. T o view the screens the Gauges submenu, highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the screen.

The GAUGES submenu screen contains the following screens:

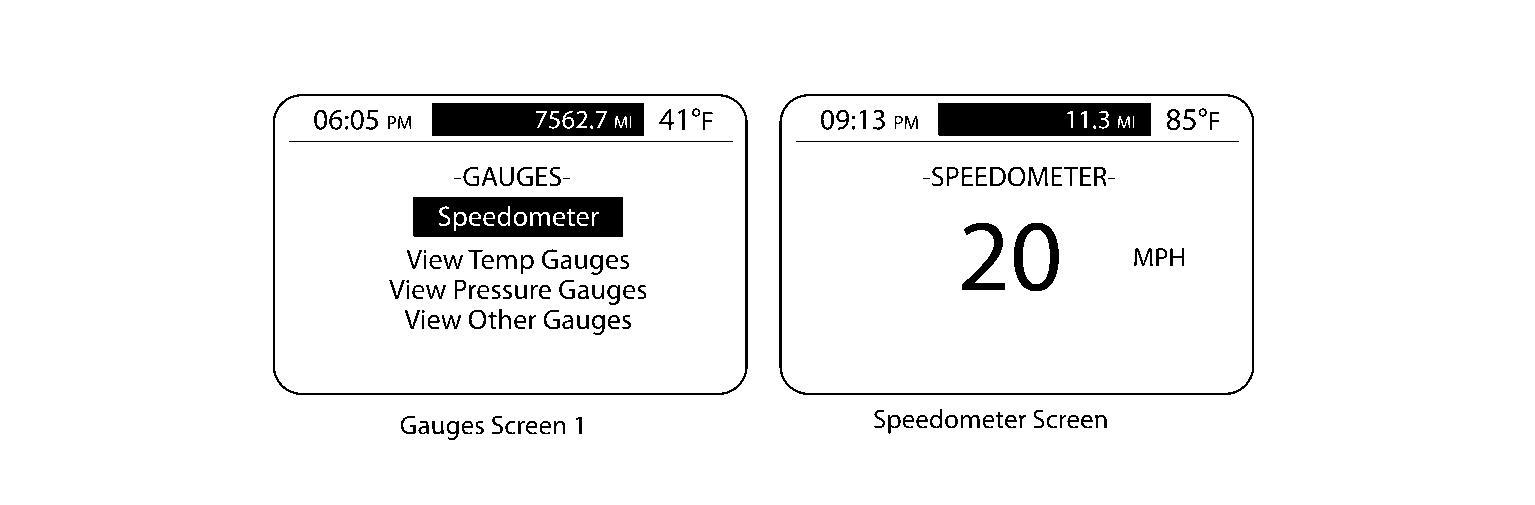

• Speedometer Allows the user view the current speedometer

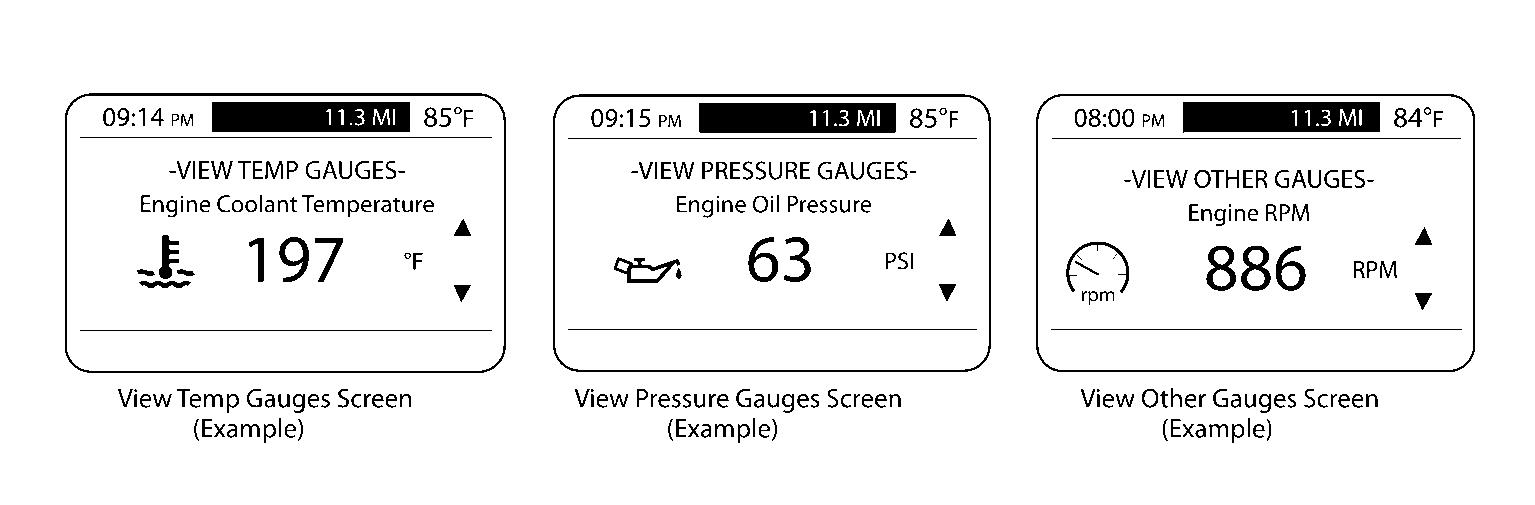

• V iew T emp Gauges Displays engine coolant temperature (ECT), engine oil temperature (EOT), engine exhaust gas temperature (EGT), transmission oil temperature, rear front axle temperature, and rear axle temperature sensor information.

• V iew essur e Gauges Displays engine oil pressure intake manifold pressure and air suspension pressure sensor

• V iew Other Gauges Displays engine RPM, engine load percent and throttle position percent sensor information.

Note : Sensors that are not standard and have not been ordered will not appear the

Black Panel

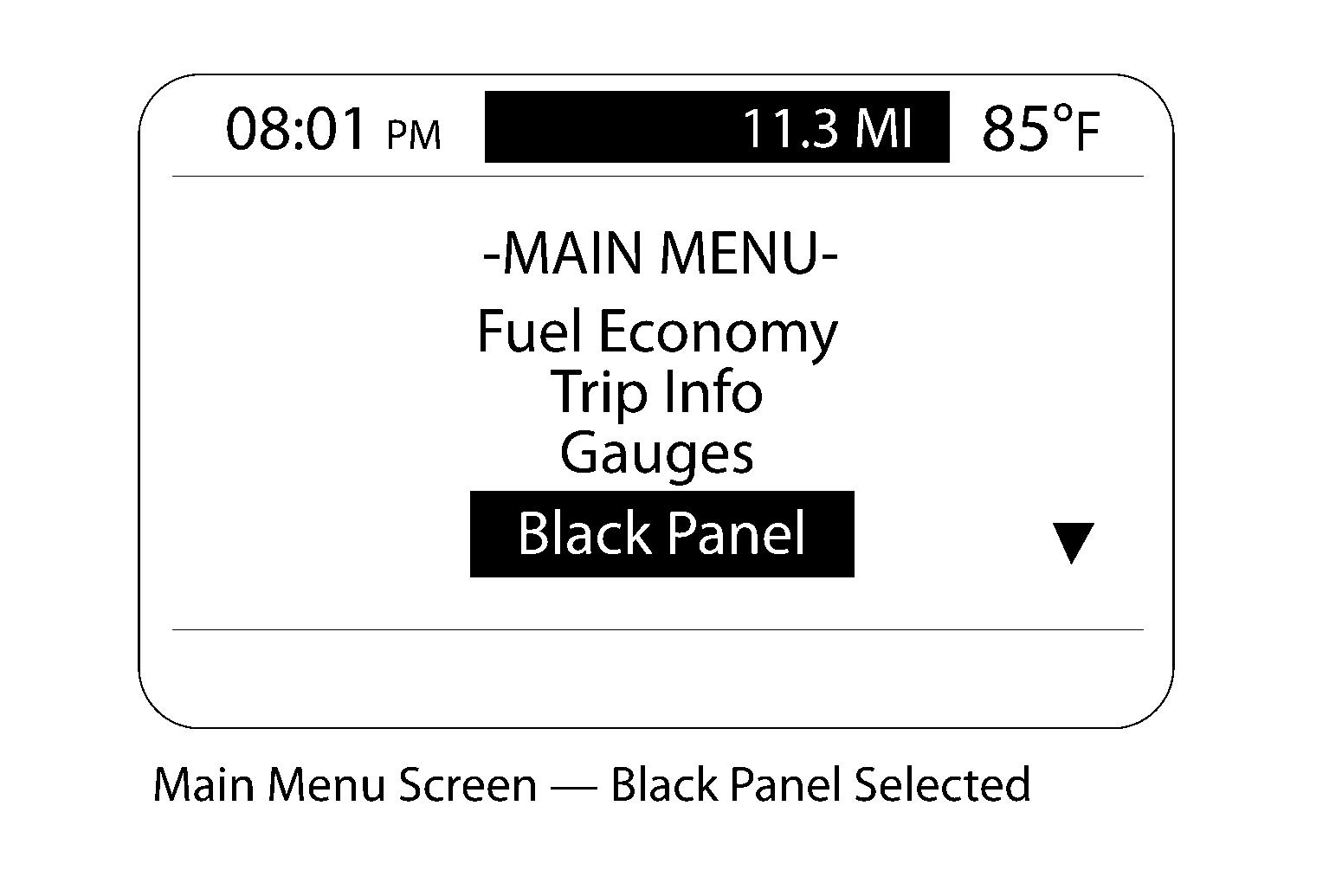

• The BLACK P ANEL screen used black out the - Pilot® display . Highlight from the moving MAIN MENU screen stationary MAIN MENU 1 screen, and then press the stalk switch Enter ( ↵ ↵ ↵ ) button select it.

• T o restore the - Pilot® display , press the Enter ( ↵ ↵ ↵ ) button W3036626
