CO-PILOT® OPTIONAL SYSTEMS SCREENS

The vehicle management and control - MAC) system provides optional functions that the driver can access through the - Pilot (if available and The - Pilot Optional Systems screens include the following main screens:

• Integrated T emp - AStart™ (for future support)

• Hours Service (for future support; information not available time printing)

• Road Connect (optional)

• Accuload (for future support; information not available time printing)

T o navigate through the remember the following:

• Use the stalk switch & Down button scroll and highlight item, scroll the next screen, enter a value.

• Use the Enter ( ↵ ↵ ↵ ) button select a enter a accept a change return the previous

• Use the ESC button return the previous screen.

Integrated T (For Future Support)

Integrated T emp - AStart™ ( i T AS™) saves fuel reducing the amount time spent idling keep the batteries char ged, the engine warm and the cab sleeper comfortable. Once the optional i T AS™ feature activated via a dash switch, the system will automatically start and stop the engine. Safety overrides prevent the system from activation the transmission gear , the hood the parking brake AS™ voltage and temperatur e tar get settings e fully ogrammable thr ough either VCADS softwar e , via the - Pilot display

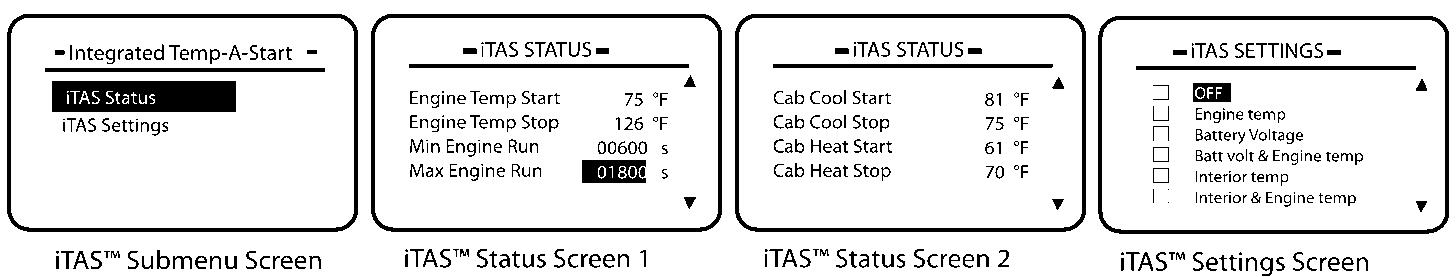

The i T AS™ submenu screen selected from the stationary MAIN MENU 2

T o view the screens the i T AS™ highlight “ i T AS” with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the

The i T AS™ submenu screen contains the following screens:

• i T Status Allows the user view the current status the i T system and turn turn f some the status items.

• i T Settings Allows the user set what conditions need C0035416

Road Connect* (if A vailable)

Road Connect* advanced fleet management system that uses satellite communication and the Internet provide uninterrupted truck The Road Connect system provides the following main services depending package

• Diagnostic T rouble Code (DTC) Monitoring

• Fuel T axes Online

• Mileage Guide

• Locations

• Notifications

• T - W Messaging

• V ehicle Information

• V ehicle T racking

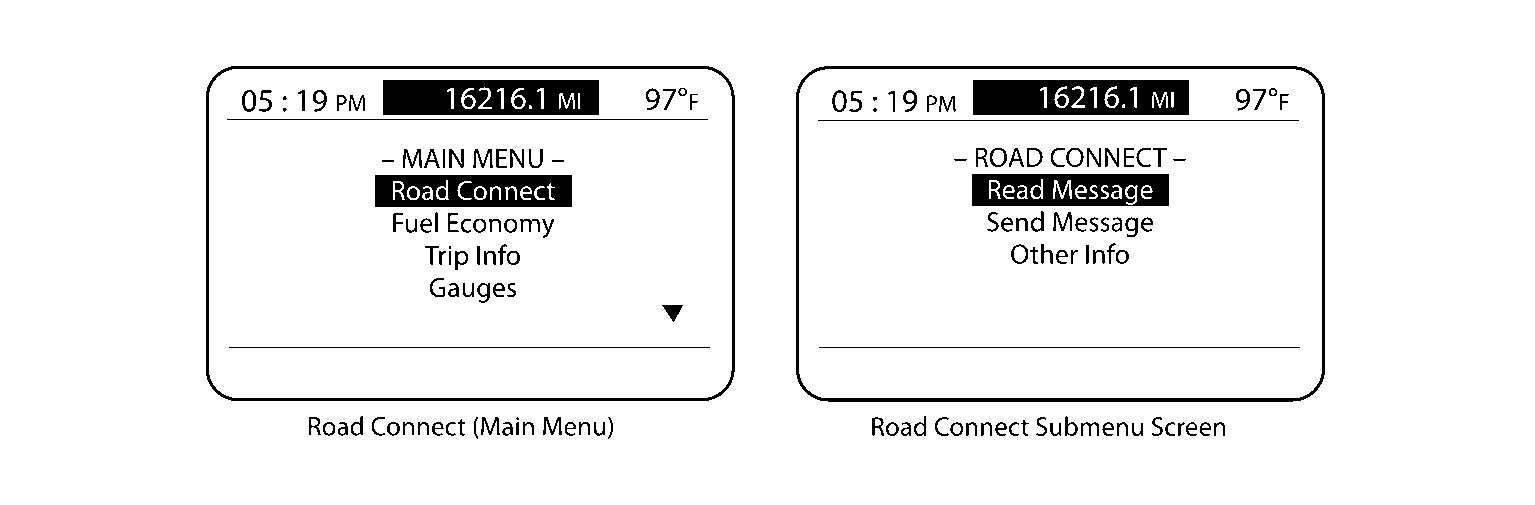

The Road Connect submenu screen selected from the anytime MAIN MENU 1 screen T o view the screens Road highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the

The Road Connect submenu screen contains the following screens:

• Read Message Allows the user view received messages when the vehicle stationary

• Send Allows the user send e - defined messages text messages when the vehicle stationary .

• Other Info Displays general operational information about the Road Connect

W3036663

For more information about Road please refer the Road Connect Driver's Handbook (when

*ROAD CONNECT a service mark owned First Advantage T Consulting First Advantage fers a complementary line fleet management Contact First Advantage www for additional
