INSTRUMENTS AND CONTROLS

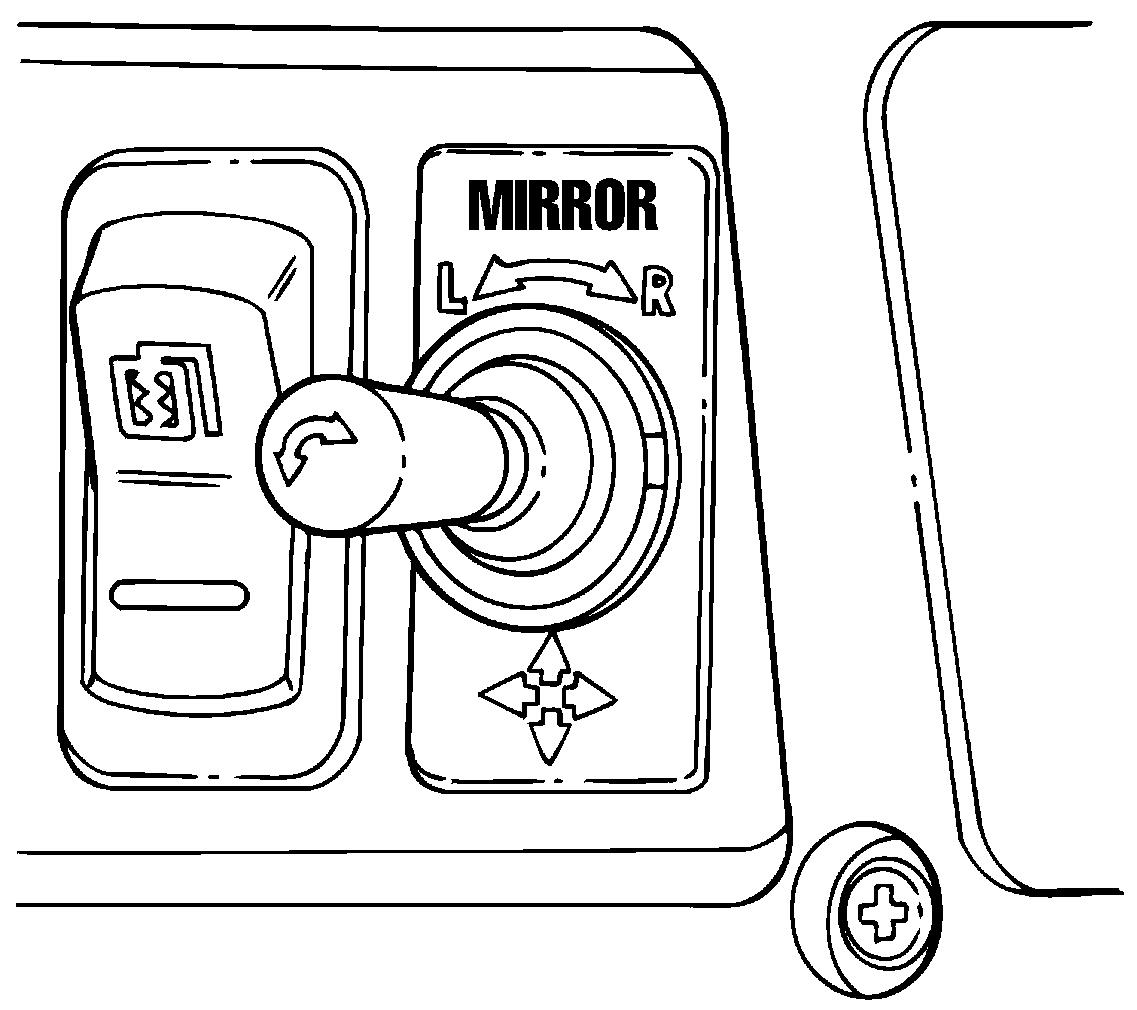

• Motorized - Mirror Joy Stick – This control designed like a stick." ROT A the stick the right control the right mirror ROT A the stick the left control the left mirror PUSH the stick up, left correctly position the selected mirror

C0029215

• Power Divider Lockout Switch – See "Inter - Axle Power Divider Lockout (If the OPERA TION section this manual.

• Power T ake - Off Control Switch Push the top turn the O Push the bottom turn

• Push Axle Up/Down Switch The operator controls the raise and lower functions with the instrument panel - mounted auxiliary axle switch(es), and axle loading controlled the air regulators which are located inside the cab between the driver and the rider seats. There one regulator for each axle.

Note: T o prevent frame damage, the auxiliary axle(s) will automatically raise when the transmission shifted into

C0029216

Instruments And Controls

• QUAL COMM Panic Button your vehicle equipped with this refer the QUAL COMM literature provided with the

• Right - Hand Only Door Lock — Push the top lock the right - hand door .

• Right - Hand Only W indow Lift Push the top the button raise the right - hand window . Push bottom button lower right - hand window .

• Shutdown Override Switch Pressing this switch shortly after the vehicle sounds the engine shutdown allows additional seconds The process can repeated several times safely park the

Caution

Continuously overriding the shutdown system may r esult sever e engine

• Snow Plow Lamps Switch Push the top the button turn the snow plow lamps

• Spin Light Switch — Push the top the button activate the rotating beacon light. Push the bottom turn light

• Strobe Switch Push the top the button turn the strobe light on. Push the bottom the button turn light

• T elma Rear Axle Mounted Retarder Indicator Lamp (If Equipped) The T elma does not have a disable always and will operate dif ferent levels depending application service The indicator will show you the level you are retarding the vehicle: 80%

Note: The T elma retarder disabled there ABS C0029217

• V ent Fan Switch Push button turn vent fan on. Push button down turn vent fan

• W indshield Defrost Switch Push button and release defrost front https://www.truck-manuals.net/
