2.Swing Motor

Section B

Section B, machine main unit driven side frame

Machine main unit driven side frame should be chamfered by C3 or more.

Like wheel type machines, a machine where the working position of load of the driven section significantly diverged is not applicable

Setting up the bearing in the position appropriate for the motor

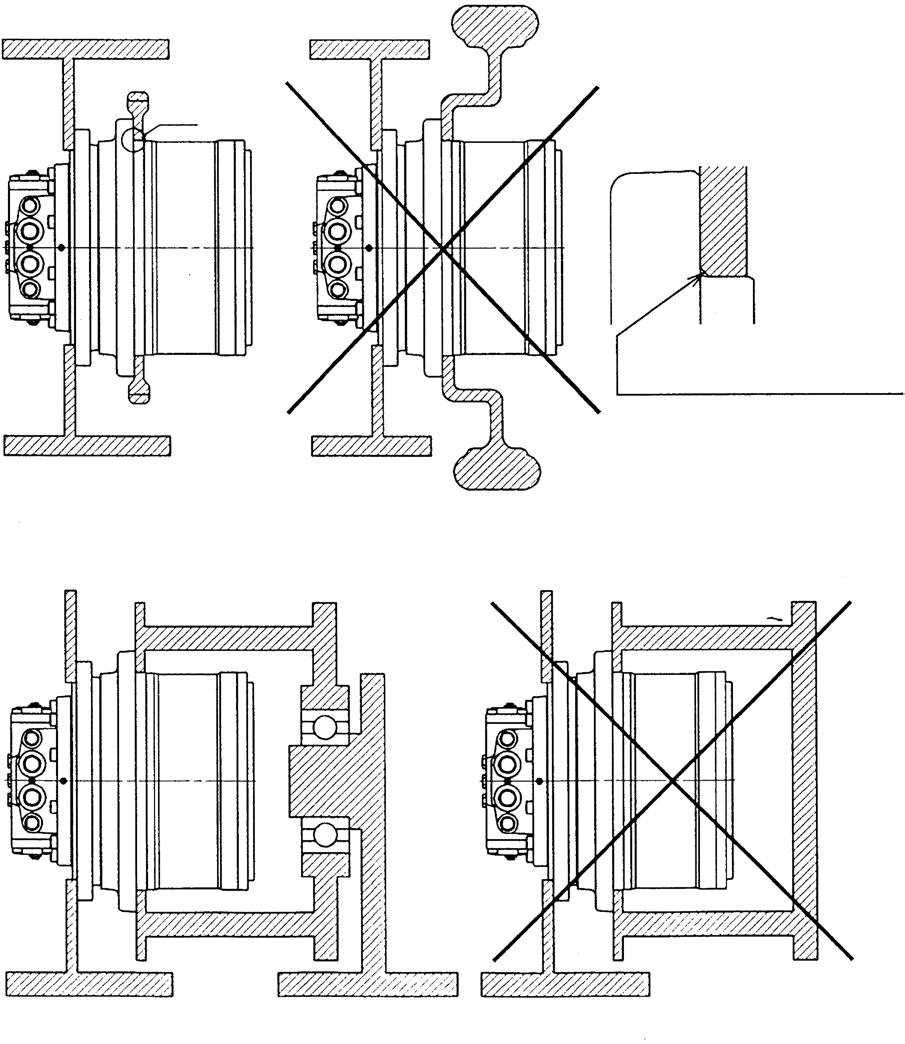

Figure 25. Installation of the machine main unit driven section
