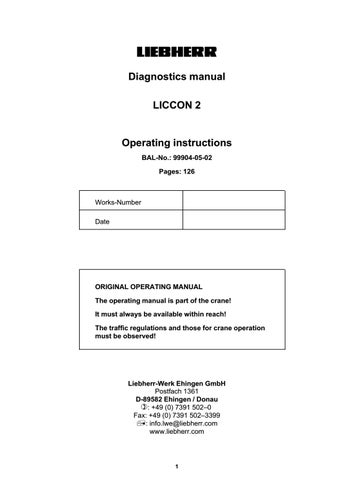

LIEBHERR Diagnostics manual LICCON 2

Operating instructions BAL-No.: 99904-05-02 Pages: 126

Works-Number Date

ORIGINAL OPERATING MANUAL The operating manual is part of the crane!

It must always be available within reach!

The traffic regulations and those for crane operation must be observed!

Liebherr-Werk Ehingen GmbH Postfach 1361 D-89582 Ehingen / Donau : +49 (0) 7391 502–0 Fax: +49 (0) 7391 502–3399 : info.lwe@liebherr.com www.liebherr.com

1

Foreword General This crane was built according to the state of technology and recognized safety technical regulations.

Despite that, dangers to body and life for the user and / or third persons or damage to the crane and / or other material assets can occur.

This crane may only be used: – in impeccable technical condition.

– for destined use.

– by trained personnel, which acts in a safety and danger conscious way.

– when no safety relevant problems are present.

– when no modifications were made on the crane.

Any problems, which could affect safety must be fixed immediately.

Modifications on the crane may only be made with written approval by Liebherr-Werk Ehingen GmbH. Safety and warning notes Safety and warning notes are directed to all persons who work with the crane.

The terms DANGER, WARNING, CAUTION and NOTICE used in the crane documentation are intended to point out certain rules of conduct to all persons working with the crane.

Warn-

Signal

ing

word

Explanation

signs DANGER

Designates a dangerous situation which will lead to death or serious injury if it is not prevented. 1)

WARNING

Designates a dangerous situation, which can lead to death or serious injury if it is not prevented.1)

CAUTION

Designates a dangerous situation, which can lead to slight or medium-grade injuries if it is not prevented.1)

NOTICE

Designates a dangerous situation, which can lead to property damage if it is not prevented.

1)

This could also result in property damage.

Additional notes The term Note is used in the crane documentation to make all persons working with the crane aware of useful information and tips.

2

LIEBHERR

0.01 Foreword

Sign

027296-07

Signal

Explanation

word Note

Designates useful information and tips.

Crane documentation The crane documentation is comprised of: – all supplied documents on paper and in digital form.

– all supplied programs and applications.

– all subsequently supplied information, updates and addenda for the crane documentation.

The crane documentation: – makes it possible for you to operate the crane safely.

– supports you to utilize the permissible application possibilities of the crane.

– provides you with information about the functionality of important components and systems.

Note Terminology in the crane documentation.

Certain expressions are used in the crane documentation.

In order to avoid misunderstandings, the same expressions should always be used.

Translations from the German version of the crane documentation: The crane documentation has been translated to be best of one’s knowledge. Liebherr-Werk Ehingen GmbH assumes no liability for translation errors. The German version of the crane documentation is solely applicable for factual accuracy. If you find any errors or if any misunderstandings arise when reading the crane documentation, please contact Liebherr-Werk Ehingen GmbH immediately.

WARNING Danger of accident due to incorrect operation of the crane!

Incorrect operation of the crane can lead to accidents!

Personnel can be killed or seriously injured!

This could result in property damage!

Only authorized and trained expert personnel are permitted to work on the crane.

The crane documentation is part of the crane and must be accessible on the crane.

The crane documentation and on-site regulations and specifications (such as accident prevention regulations) must be observed.

Using the crane documentation: – makes it easier to become familiar with the crane.

– avoids problems due to improper operation.

Observing the crane documentation: – increases reliability in use.

– extends the service life of the crane.

– minimizes repair costs and downtime.

Place the crane documentation accessible in the driver's cab or in the crane cab.

0.01

LIEBHERR

3

027296-07

0.01 Foreword

WARNING Outdated version of crane documentation!

If subsequently supplied information, updates and addenda to the crane documentation are not observed and added, there is a danger of accidents!

Personnel can be killed or seriously injured!

This could result in property damage!

Observe and add all subsequently supplied information, updates and addenda for the crane documentation.

Make sure that all affected persons always know and understand the latest version of the crane documentation.

WARNING Crane documentation is not understood!

If parts of the crane documentation are not understood and the tasks are carried out on or with the crane, then there is a danger of accidents!

Personnel can be killed or seriously injured!

This could result in property damage!

Clear up open questions regarding the crane documentation with Liebherr Service before carrying out the respective task.

This documentation may not be reproduced or duplicated, distributed or used for purposes of competition, neither in part nor in excerpts. All rights are expressly reserved in accordance with copyright laws.

All accident prevention guidelines, operating instructions, load charts etc. are based on destined use of the crane.

4

LIEBHERR

0.01

0.01 Foreword

027296-07

blank page!

0.01

LIEBHERR

5

027296-07

0.01 Foreword

B110001

6

LIEBHERR

0.01

0.01 Foreword

027296-07

CE marking The CE marking is a mark according to EU laws: – Cranes with CE-marking according to the European machinery directive 2006/42/EC and the EN 13000! Data tag Crane with CE-marking, see illustration 1.

– Cranes which are operated outside the respective area of application do not require a CE marking.

Data tag Crane without CE marking, see illustration 2.

– It is prohibited to market and operate cranes without CE marking, which do not meet the product-specific regulations valid in Europe, when a CE marking is specified for the country.

– It is prohibited to operate cranes with a tipping load utilization of 85 % which are programmed according to ASME B30.5 within the European Union or in countries which permit a lower stationary stability utilization (for example ISO 4305)! The national regulations apply. These cranes may not have a CE marking!

Destined use The destined use of the crane consists solely in vertical lifting and lowering of free and non-adhered loads, whose weight and center of gravity are known.

To do so, a hook or hook block approved by Liebherr must be reeved on the hoist rope and it may only be operated within the permissible crane configurations.

Driving with the crane, with or without an attached load is only permissible if a corresponding driving or load chart is available. The set up configurations intended for it and the safety conditions must be observed according to the corresponding crane documentation.

Any other use or any other exceeding utilization is not destined use.

Destined use also includes the adherence of the required safety guidelines, conditions, prerequisites, set up conditions and working steps in the crane documentation (for example: Operating instructions, load charts, erection and take down charts, job planner).

The manufacturer is not liable for damages, which are caused by non-destined use or improper use of the crane. Any associated risk it is carried solely by the owner, the operator and the user of the crane.

0.01

LIEBHERR

7

027296-07

0.01 Foreword

Non-destined use Non -destined use is: – Working outside the permissible set up configurations according to the load chart.

– Working outside the permissible boom radii and slewing ranges according to the load chart.

– Selecting load charts, which do not correspond to the actual set up configuration.

– Selection of a set up configuration via code or via manual entry, which does not correspond to the actual set up configuration.

– Working with bypassed / deactivated safety devices, for example bypassed load moment limitation or with bypassed hoist limit switch.

– Increasing the radius of the lifted load after a LMB shut off, for example by diagonally pulling the load.

– Using the support pressure display as a safety function against tipping over.

– Use of equipment parts which are not approved for the crane.

– Using the crane at sports and recreational events, especially for "Bungee" jumps and / or "Dinner in the sky".

– Driving on a public road in non-permissible driving condition (axle load, dimension).

– Driving with the equipment in place in a non-permissible driving condition.

– Pushing, pulling or lifting loads with the leveling regulation, the sliding beams or the support cylinders.

– Pushing, pulling or lifting loads by actuating the slewing gear, the luffing gear or the telescoping gear.

– Ripping stuck objects loose with the crane.

– Utilizing the crane for a longer period of time for material handling tasks.

– Releasing the crane suddenly (grapple or dumping operation).

– Utilizing the crane when the weight of the load, which is suspended on the crane is changed, for example by filling a container suspended on the load hook, except: • The load moment limiter was checked before for function with a known load.

• The crane cab is occupied.

• The crane is operational.

• The container size is selected in such a way that an overload of the crane with full load is eliminated within the valid used load chart.

The crane may not be used for: – Attaching a stuck load for which the weight and center of gravity are not known and which is released only by flame cutting, for example.

– Letting persons drive along outside the driver's cab.

– Transporting personnel in the crane cab while driving.

– Transporting personnel with the lifting equipment and on the load.

– Transporting of persons with work baskets (cherry pickers), if the national regulations of the responsible work safety organization are not observed.

– Transporting loads on the chassis.

– Two hook operation without auxiliary equipment.

– Extended material handling operation.

– Crane operation on a barge if the conditions are not determined and the written release by Liebherr Werk Ehingen GmbH is not present.

The crane documentation must be read and used by all persons who are involved in use, operation, assembly and maintenance of the crane.

Safety systems Special attention must be paid to the safety systems built into the crane. The safety systems must constantly be checked for functionality. The crane may not be operated if the safety systems are not working or not working correctly.

8

LIEBHERR

0.01

0.01 Foreword

027296-07

Note Your motto must always be: Safety first!

The crane has been built in accordance with the applicable crane operation and driving regulations and has been approved by the relevant authorities.

Equipment and spare parts WARNING Danger to life if original equipment parts are not used!

If the crane is operated with equipment parts, which are not original, then the crane can fail and cause fatal accidents!

Crane components can be damaged!

Operate the crane only with original equipment parts!

Crane operation with equipment parts, which do not belong to the crane is prohibited!

If there is any doubt about the origin of equipment parts, contact Liebherr Service!

WARNING The crane permit and the manufacturer's warranty will become void!

If any original installed parts are modified, manipulated or replaced (e.g. removal of parts, installation of non-original Liebherr parts), both the crane permit and the manufacturer's warranty will become void.

Leave installed original parts unchanged!

Do not remove installed original parts!

Use only Original Liebherr spare parts!

If there is any doubt about the origin of spare parts, contact Liebherr Service!

For ordering equipment and spare parts, always keep the crane number handy and provide it.

Definition of directional data for mobile cranes Driving forwards: Driving with the driver's cab on the front.

Driving in reverse: Driving with the taillights of the crane chassis on the front.

Front, rear, right, left in the driver’s cab refer to the crane chassis. The driver’s cab is always in the front.

Front, rear, right, left in the crane operator’s cab refer to the superstructure. Front is always in direction of the placed down boom.

Definition of directional data for crawler cranes Driving forwards: Driving forward from the view of the crane operator seated in the crane cab.

Turntable in 0° or 180° position.

Driving in reverse: Driving backward from the view of the crane operator seated in the crane cab.

Turntable in 0° or 180° position.

Front, rear, right, left always orient themselves on the crawler track from the position of the chain tension devices. The chain tension devices on the crawler track are always on the front.

Front, rear, right, left refer to the direction of view of the crane operator seated in the crane cab.

Front is always in direction of the placed down boom.

Optional equipment and functions The equipment marked with * and the functions are optionally available and are not part of the standard crane (optional equipment).

0.01

LIEBHERR

9

Contents

10

LIEBHERR

Contents

Contents

20 Diagnostics

13

20.01 Procedure in case of problems

14

1 Procedure to follow in case of a problem

15

2 Error diagnostics in LICCON computer system

21

3 Measures in clear problem cases

29

4 Measures for defective components

45

5 Avert an emergency situation: Ending a load lift

51

20.04 Overview Bus system

52

1 LIEBHERR System Bus

53

2 Overview of terms / abbreviations in the LIEBHERR system bus

53

20.09 Test system Bluetooth™ Terminal (BTT)

56

1 The BTT test system

57

2 Function determination in the BTT test system

58

3 Error information in the BTT test system

67

4 Settings in the BTT test system

69

5 Transferring error messages from the BTT test system to the BSE test system

71

6 Problems on the operating elements of the BTT and radio remote control (BTT-E)

75

20.10 Test system BSE

80

1 The BSE test system

81

2 Settings in the BSE test system

81

3 Areas of the BSE test system

87

4 Procedure in case of error messages in the BSE test system 20.15 Remote diagnostics

101 114

1 The LWE remote diagnostics device 20.20 Diagnostics – disk brake pads 1 The diagnostics - disk brake pads

Index

115 120 121

125

LIEBHERR

11

12

LIEBHERR

20.01 Procedure in case of problems

20 Diagnostics

LIEBHERR

13

029458-00

20.01 Procedure in case of problems

B197077

14

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

1 Procedure to follow in case of a problem This chapter answers the following questions: – Which displays and component groups are relevant for error diagnostics?

– How to carry out an error diagnostics?

– Which data is important for communication with Liebherr Service?

– Which measures are to be taken in clear problem cases?

– Which measures are to be taken for defective components?

WARNING Erroneous or insufficient repair!

If a crane is not properly or insufficiently repaired, then his can result in accidents!

Personnel can be killed or seriously injured!

This could result in property damage!

The crane may only be repaired by authorized and trained expert personnel!

WARNING Measures without the help of Liebherr Service!

Measures in case of a problem, which are carried out without consulting Liebherr Service can cause damage to the crane!

Personnel can be killed or seriously injured!

This could result in property damage!

If problems remain or in case of error messages, contact Liebherr Service to determine the cause of the problem and further procedure.

WARNING Problems with raised load!

If a crane is checked, diagnosed or repaired with a raised load, then there is a danger of accidents!

During accidents, personnel could be killed or seriously injured!

This could result in property damage!

If possible, set the load down!

If possible, telescope in / place down the boom system!

If the load cannot be set down and / or the boom system cannot be telescoped in / placed down, secure a wide-ranging danger zone!

Note The display illustrations in this chapter are only examples. Values and icons in the illustrations in this chapter can deviate from the displays on the LICCON monitor in normal operation.

20.01

LIEBHERR

15

029458-00

20.01 Procedure in case of problems

B116613

16

LIEBHERR

20.01

20.01 Procedure in case of problems

1.1

029458-00

Overview of displays and component groups for error diagnostics Various displays and component groups allow the crane driver: – To localize error messages.

– To prepare quicker and more precise communication with Liebherr Service.

– To diagnose and remedy errors with the help of the “Diagnostics manual”.

Note Displays and components in the driver's cab are only relevant for cranes with Liebherr crane chassis!

If separate Operating instructions have been provided by the supplier as part of the scope of delivery for the crane, then it must be observed!

Position 10

Fuses in driver's cab

17

Display unit

24

Ignition switch Driver's cab

Position

EMERGENCY STOP switch (location and number depending on crane type)

60

EMERGENCY STOP switch Chassis*

350

EMERGENCY STOP switch Crane superstructure*

651

EMERGENCY STOP switch in BKE

Position

20.01

Driver's cab (only Liebherr LTM chassis)

Crane operator's cab

20

Fuses in crane operator's cab

324

LICCON monitor

F8

Function key

LED

LED supply voltage

326

Ignition switch

430

Left touch display

460

Right touch display

650

Operating and control unit (BKE)

652

Indicator lights BKE

LIEBHERR

17

029458-00

20.01 Procedure in case of problems

B116613

18

LIEBHERR

20.01

20.01 Procedure in case of problems

Position 4

Bluetooth™ Terminal (abbreviated BTT) BTT

550

Indicator light transmission signal

552

Indicator light charge condition

Position

Battery box (sample illustration - location and number depending on crane type)

50

Battery box

51

Battery master switch

52

Main fuses

Position 700

1.2

029458-00

Ignition switch on frame Ignition switch (only certain crane types)

Causes and responsibility for problems Cause

Responsible for error remedy

Operating errors

Crane operator

System errors in LICCON computer system

Crane operator / Liebherr Service

Errors on mechanics / components

Crane operator / Liebherr Service

Combination of error sources

Crane operator / Liebherr Service Causes and responsibility for problems

20.01

LIEBHERR

19

029458-00

20.01 Procedure in case of problems

B197077

20

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

2 Error diagnostics in LICCON computer system WARNING Danger of accident!

When carrying out the error diagnostics, there is a danger of accidents!

During accidents, personnel could be killed or seriously injured!

This could result in property damage!

Before error diagnostics take the crane out of service!

In case of safety defects, secure the crane to prevent continued operation!

The crane may only be inspected, diagnosed and repaired at a standstill and in shut down condition!

Inspections, error diagnostics and repairs, for which the crane must be in operation are only permissible with extreme caution and constant visual and voice contact between all associated personnel!

Inspections, error diagnostics and repairs may only be carried out by expert or trained personnel!

For inspections, error diagnostics and repairs of electrical devices on the crane, power must be turned off and ensured to remain so for the duration of the work!

Test operation after a repair must be made by the crane operator or in his presence!

This section allows the crane operator: – to localize and call up error messages.

– to carry out error diagnostics without the help of Liebherr Service.

– to carry out error diagnostics with the help of Liebherr Service by phone.

– to carry out remote diagnostics with the help of Liebherr Service.

20.01

LIEBHERR

21

029458-00

20.01 Procedure in case of problems

B116614

2.1

Error messages in the LICCON computer system The LICCON computer system monitors the crane for operating and system errors.

If errors occur, error messages are issued and / or indicator lights light up.

Note The “LICCON-Error-Code Manual” (LICCON error code list) contains all error codes (LECs).

The LICCON computer system saves error codes and error messages in the error memory (error stack).

22

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

Note Deletion of the error memory (error stack)!

When the LICCON computer system (with ignition off) is turned off, then the error memory is deleted.

Active errors are recognized again then the LICCON computer system is booted up.

Inactive errors are only recognized again when they occur again.

If necessary: Before shutting the LICCON computer system off, note the required LICCON error code and the associated time data.

Note Sporadically occurring errors!

If errors occur sporadically, it can be helpful not to change anything on the crane.

Sporadically occurring errors are not automatically deleted as long as the LICCON computer system is running.

If possible, do not shut the LICCON computer system down or operate it in stand-by mode and contact Liebherr Service immediately.

Errors in the operating screens signal problems and errors: – LICCON-Error-Code on the LICCON monitor, see illustration 1 – Error markers on the BTT display, see illustration 2

Marker in LICCON-Error-

Meaning

Cause

B

Operating errors

Crane is operated incorrectly

E

System error

Internal error in LICCON computer system

+

Active error

Errors which are present permanently, for

Code

example broken wire, defective sensor -

Inactive errors

Errors which occur only for a short time, for example loose connection

Basic markers in LICCON-Error-Code Note Always observe error messages and illuminated indicator lights!

For overview of indicator lights on the crane chassis, see Crane operating instructions, chapter 3.01.

For overview of indicator lights on the crane superstructure, see Crane operating instructions, chapter 4.01.

20.01

LIEBHERR

23

029458-00

20.01 Procedure in case of problems

B116617

24

LIEBHERR

20.01

20.01 Procedure in case of problems

2.2

029458-00

Calling up error messages The crane operator can determine occurring errors with the aid of the BTT test system and the BSE test system.

With the description of the errors in the error determination screens, the error can be quickly localized and remedied in many cases.

Differentiation of error determination screens: – Current error message is shown in the error determination screen (module).

– All saved error messages are shown in the error determination screen (overall system).

Note The display possibility for error messages in the operating screens is limited.

To get a detailed description of the errors, call up the error determination screens.

Note Description of BTT test system, see Diagnostics Manual, chapter 20.09 Description of BSE test system, see Diagnostics Manual, chapter 20.10

2.2.1

Calling up the current error message on the LICCON monitor When the monitor screen is incorrect or the LED LED does not light up, the follow the instructions, see section “Problems on the LICCON monitor / TE display”.

When an acoustic signal is issued from the LICCON monitor, then press the function key F8.

When an error is reported in the respective operating screen, then press the function key F8.

Result: – The error determination screen (module) is visible on the LICCON monitor, see illustration 3.

Check the current error messages from additional modules, see Diagnostics manual, chapter 20.10.

2.2.2

Calling up saved error messages on the LICCON monitor Error messages are saved in the error stack of the BSE test system.

Call up the error determination screen (overall system), see Diagnostics manual, chapter 20.10.

2.2.3

Calling up current error message on the Bluetooth™ Terminal (BTT) Note This section applies only for cranes with Bluetooth™ Terminal (BTT).

When an error marker is reported in the respective operating screen: Press the function key F10.

Result: – The error determination screen (module) is visible on the BTT display, see illustration 4.

Check the current error messages from additional modules, see Diagnostics manual, chapter 20.09.

2.2.4

Calling up saved error messages on the Bluetooth™ Terminal (BTT) Error messages are saved in the error stack of the BTT test system.

Call up the error determination screen (overall system), see Diagnostics manual, chapter 20.09.

20.01

LIEBHERR

25

029458-00

2.3

20.01 Procedure in case of problems

Error diagnostics without the help of Liebherr Service WARNING Acting on your own authority!

If measures are carried out on your own authority in case of a problem, then this can result in damage to the crane!

Damage on the crane can cause erroneous functions and accidents!

Personnel can be severely injured or killed!

This could result in property damage!

Observe and adhere to the notes and instructions in this chapter.

Observe the Diagnostics manual.

In case of lack of clarity, contact Liebherr Service.

If problems remain or in case of error messages, contact Liebherr Service to determine the cause of the problem and further procedure.

Make sure that the following prerequisites are met: – Crane operator clearly identifies the error.

– Crane operator is able to remedy the error.

Follow the instructions, see section “Measures in clear problem cases”.

2.4

Error diagnostics with the help of Liebherr Service Note Liebherr Service can be contacted at any time.

Make sure that the following prerequisites are met: – The crane operator needs help to identify the error.

– The crane operator needs help to remedy the error.

2.4.1

Which data is required by Liebherr Service?

If the assistance of Liebherr Service is required, provide the following information: – Crane type – Crane number – Complete error number and any error message displayed on the LICCON monitor – Complete error number and any error message displayed on the BTT display – Application conditions of crane – Action during which the error occurs – Possibly frequency of error

2.4.2

Carrying out error diagnostics by phone Liebherr Service determines the cause of the error and subsequent procedure.

Contact Liebherr Service.

Observe and adhere to the notes and instructions given by Liebherr Service.

2.4.3

Carrying out remote diagnostics* The remote diagnostics makes it possible for Liebherr Service to check Liebherr cranes from a remote location in case of problems.

Make sure that the following prerequisite is met: – The crane is equipped with the optional Remote diagnostics*.

Contact Liebherr service by phone.

Follow the instructions given by Liebherr Service to set up the Remote diagnostics*.

Keep the phone connection to Liebherr Service up during the Remote diagnostics*.

26

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

Note Description of error diagnostics, see Diagnostics manual, chapter 20.15.

20.01

LIEBHERR

27

029458-00

20.01 Procedure in case of problems

B112953

28

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

3 Measures in clear problem cases Note If a problem occurs, which is not described in this chapter: Contact Liebherr Service to determine the cause of the problem and further procedure.

3.1

Temporary errors during system start Note While the LICCON computer system starts, temporary error messages 1 can occur, see illustration 1.

Errors, which occur temporarily, can have various causes, for example: – Fluctuations in the power supply – Error message can be a subsequent error.

Turn the LICCON computer system off and restart it after waiting for at least 5 s.

Repeat this procedure up to three times (wait 2 min after 3 start attempts).

If the same error image appears several times: Call up the BSE-Test system, see Diagnostics manual.

Contact Liebherr Service to determine the cause of the problem and further procedure.

3.2

Dysfunction of monitoring function Note For a detailed description of monitoring functions, see Crane operating instructions, chapter 4.02.

NOTICE Danger of severe engine damage!

If the monitoring functions report a problem and / or warning occurrence, then you must react immediately and remedy the problem!

React to problems and / or warning occurrences immediately and remedy the problem!

If necessary, stop crane operation and turn the engine off!

The following alarm functions are indicated by blinking icons on the LICCON monitor: – Advance warning - engine 44 – Engine stop 46 If an “Advance warning - engine” 44 or an “Engine stop” 46 is triggered, react immediately.

In case of an Engine stop 46, stop crane operation and turn the engine off.

Find the cause and remedy it.

20.01

LIEBHERR

29

029458-00

20.01 Procedure in case of problems

B116613

30

LIEBHERR

20.01

20.01 Procedure in case of problems

3.3

029458-00

Engine does not start Make sure that: – There is sufficient fuel in the fuel tanks.

– There is sufficient voltage in the batteries.

3.3.1

Cranes with one engine Make sure that no EMERGENCY STOP switch is actuated: – EMERGENCY STOP switch 60 Chassis* – EMERGENCY STOP switch 350 Crane superstructure* – EMERGENCY STOP switch 651 on the BKE* 650 The engine does not start from the driver's cab No EMERGENCY STOP switch is actuated: Turn the ignition off.

Start the engine again.

When the engine does not start: Check the indicator lights on the display unit 17.

Note For problem remedy, see Crane operating instructions, chapter 3.04.

If the error cannot be remedied: Contact Liebherr Service to determine the cause of the problem and further procedure.

The engine does not start from the crane operator's cab No EMERGENCY STOP switch is actuated: Turn the ignition off.

Start the engine again.

When the engine does not start: Watch the indicator lights 652 on the BKE 650.

Note For problem remedy, see Crane operating instructions, chapter 4.03.

If the error cannot be remedied: Contact Liebherr Service to determine the cause of the problem and further procedure.

20.01

LIEBHERR

31

029458-00

20.01 Procedure in case of problems

B116613

32

LIEBHERR

20.01

20.01 Procedure in case of problems

3.3.2

029458-00

Cranes with two engines Make sure that no EMERGENCY STOP switch is actuated: – EMERGENCY STOP switch 60 Chassis* – EMERGENCY STOP switch 350 Crane superstructure* – EMERGENCY STOP switch 651 on the BKE* 650 The engine in the crane chassis does not start No EMERGENCY STOP switch is actuated: Turn the ignition off.

Start the engine again.

If the engine still cannot be started: Check the indicator lights on the display unit 17.

Note For problem remedy, see Crane operating instructions, chapter 3.04.

If the error cannot be remedied: Contact Liebherr Service to determine the cause of the problem and further procedure.

The engine in the crane superstructure does not start No EMERGENCY STOP switch is actuated: Turn the ignition off.

Start the engine again.

If the engine still cannot be started: Watch the indicator lights 652 on the BKE 650.

Note For problem remedy, see Crane operating instructions, chapter 4.03.

If the error cannot be remedied: Contact Liebherr Service to determine the cause of the problem and further procedure.

20.01

LIEBHERR

33

029458-00

20.01 Procedure in case of problems

B112952

34

LIEBHERR

20.01

20.01 Procedure in case of problems

3.4 3.4.1

029458-00

Problem on Bluetooth™ Terminal The BTT display remains dark Note Indicator light Charge condition 552 shows the charge condition.

Indicator light Transmission signal 550 shows the quality of the radio contact connection.

When the indicator light charge condition 552 does not light up or lights up red: Plug the BTT 4 into the charging module 22.

When the LED 552 does not light up with the BTT 4 plugged in or the BTT 4 cannot be turned on: Contact Liebherr Service to determine the cause of the problem and further procedure.

3.4.2

Radio connection is faulty If the radio contact connection to the BTT 4 is faulty or interrupted (Indicator light Transmission signal 550 lights up red), then it can be bypassed with line 20.

The radio connection to the BTT 4 can become faulty or interrupted through the following occurrences: – By interference signals from a nearby radio tower.

– The radio module on the BTT 4 or on the BTB is defective.

– The rechargeable battery in the BTT 4 is discharged.

– Due to bad selection of the placement location by the operator.

Bypassing the radio connection Make sure that the following prerequisites are met: – The line 20 to bypass the radio contact connection has been removed from the switch cabinet of the crane cab.

– The BTT 4 has been removed from the charging module 22 and is turned on.

– The caps on the plug connection 23 and the plug connection 29 have been removed.

Screw the line 20 on the charging module 22 onto the plug connection 23.

Screw the line 20 on the BTT 4 onto the plug connection 29.

Result: – The radio contact connection is bypassed.

Note If the BTT 4 does not turn on, even though the line 20 is connected with the charging module 22, then the rechargeable battery may be defective!

Contact Liebherr Service to determine the cause of the problem and further procedure.

20.01

LIEBHERR

35

029458-00

20.01 Procedure in case of problems

B116615

3.5

Problem on LICCON monitor / TE display Monitor errors: – Can indicate a defective monitor when turning on the control.

– Can be caused by missing supply voltage.

Note After starting the LICCON computer system, the LED LED on the LICCON-Monitor will light up and the LICCON computer system is booted up. The supply voltage (24 V) of the LICCON monitor is available.

3.5.1

LICCON monitor shows no screen LED does not light up When the LED LED does not light up, then the supply voltage is interrupted or defective.

Check the supply voltage (V) on the monitor connection plug (nominal value: 18 V - 6 V, nominal: 24 V).

When the crane operator cannot clearly determine the error: Contact Liebherr Service.

36

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

LED lights up When the LED LED lights up, then the following causes for the error are present: – Monitor has turned off the screen at ambient temperatures of lees than -20 °C and more than 70 °C. When the ambient temperature is too low or too high: Preheat or cool the cab.

Result: If the error cannot be remedied: – Monitor is defective.

3.5.2

TE display shows no screen Touch display 430 or touch display 460 do not turn on.

Check if an error message is present.

If the problem cannot be remedied, contact Liebherr Service.

3.5.3

LICCON monitor / TE display: Screen is frozen For example of frozen screens on the LICCON monitor, see illustration 3.

For example of frozen start screen on the TE display, see illustration 4.

When the LICCON monitor screen / TE display is frozen, then an error in the control software of the digital signal processors (DSP) is present.

Turn ignition off and wait 1 min.

Turn the ignition on.

Troubleshooting The LICCON computer system still does not boot up?

Contact Liebherr Service.

3.5.4

LICCON monitor shows defects The following indicators point to a defect monitor: – Monitor horn is defective – Keyboard is defective – Brightness control is defective – Key switch is defective – Icon elements are incorrect or missing Contact Liebherr Service and have the defective monitor replaced with a new monitor or a functioning spare monitor.

20.01

LIEBHERR

37

029458-00

20.01 Procedure in case of problems

B197077

38

LIEBHERR

20.01

20.01 Procedure in case of problems

3.6

029458-00

Error message due to UEA-Module Error in reference to the UEA-Module is shown: – In the BSE Test system – In the LICCON-Error-Code: Error description of error determination screen Note Depending on crane type, there is a spare module in the switch cabinet. The spare module can be installed and configured by Liebherr Service via the remote diagnostics*.

Check if the red LED on the front panel of the UEA-Module (plug side) lights up.

Troubleshooting The red LED on the front panel of the UEA-Module does not light up?

Bus connection is not available. Possibly the UEA-Module is defective.

Contact Liebherr Service.

20.01

LIEBHERR

39

029458-00

20.01 Procedure in case of problems

B116616

40

LIEBHERR

20.01

20.01 Procedure in case of problems

3.7

029458-00

Question marks visible on the LICCON monitor (crane geometry and load) When the displays 1 for crane geometry and load show several “?”, then a sensor error may be present.

Note Observe the measures for defective components, see section “Sensor defective: Replace”.

Check if a LICCON-Error-Code is shown. or

Check the displays on the LICCON monitor according to the following chart.

Display boom

Display radius 4

Illustration

Problem

length 5 Value available

“?” present

5

Length sensor defective or without connection

“?” present

Value available

6

Angle sensor defective or without connection

Value available

Value available

7

Pressure sensor defective or without connection

Sensor defects depending on LICCON displays Make sure that all plug connections of the affected sensor are connected, see Electric wiring diagram.

Start the LICCON computer system again.

If the problem reoccurs, contact Liebherr Service.

20.01

LIEBHERR

41

029458-00

20.01 Procedure in case of problems

B112954

42

LIEBHERR

20.01

20.01 Procedure in case of problems

3.8

029458-00

Alarm function on LICCON monitor In case of an alarm function, an error message 3 with LICCON error code appears at the same time.

The following alarm functions are indicated by blinking icons on the LICCON monitor: – Boom limitation 41 – Hoist top limit switch 42 – Advance warning 43 – LMB Stop 45 The limit ranges of the crane movements are monitored by: – Hoist limit switch – Angle sensors – Pressure sensors – Length sensors – Wind sensor – Inductive sensors If the limit ranges for these sensors are exceeded, the crane movements are turned off (LMB-STOP).

Note For a detailed description of alarm functions, see Crane operating instructions, chapter 4.02.

For procedure of shut off of crane movement, see Crane operating instructions, chapter 4.20.

Correct the operating error.

3.9

Problem during telescoping –

Telescoping is not functioning.

Possible causes: – An operating error has occurred.

– A system error has occurred.

– The valves are mechanically defective.

– The electrical connection is interrupted.

Note If the crane is equipped with the optional “Hydraulic emergency control* ”, then the crane can be taken down in case of failure of the crane hydraulic, crane electric and crane engine.

Hydraulic emergency control, see Crane operating instructions, chapter 6.05.

3.9.1

Problem on telescopic boom system Telematic If an operating error is present: Correct the operating error.

If no operating error is present: WARNING Increased danger of accidents in case of defective telescoping lock!

There is an increased risk of accident if the following danger notes are not observed!

“Emergency control telescoping” may only be carried out by authorized expert personnel trained on Liebherr-Werk Ehingen mobile cranes, who know the dangers of emergency operation!

Contact the next Liebherr Service location or Liebherr-Werk Ehingen!

All crane movements must be carried out with extreme caution!

Telescoping must be constantly monitored by a second person!

20.01

LIEBHERR

43

029458-00

20.01 Procedure in case of problems If the cause of the problem is unclear: Contact Liebherr Service to determine the cause of the problem and further procedure.

3.9.2

Problem on telescopic boom with rope mechanism If an operating error is present: Correct the operating error.

If no operating error is present: If the cause of the problem is unclear: Contact Liebherr Service to determine the cause of the problem and further procedure.

3.10

Component / component group no longer reacts If a component / component group no longer reacts, then the electrical connection may be interrupted.

Check the error messages.

Check the plug connections.

Check the electrical connections visually.

Troubleshooting The erection of the crane, for example after assembly on a new job site or with another equipment configuration, is not possible due to an error message?

Make sure that all electrical connections are established.

Check if all sensors or dummy plugs with integrated electronic are connected.

Determine the damage and remedy it properly by using original spare parts. or

Observe the Diagnostics manual.

or

3.11

If the defect cannot be remedied, contact Liebherr Service.

Hydraulic, electric or engine failed Note If the crane is equipped with the optional “Hydraulic emergency control* ”, then the crane can be taken down in case of failure of the crane hydraulic, crane electric or crane engine.

Hydraulic emergency control, see Crane operating instructions, chapter 6.05.

Take the crane down with the hydraulic emergency control* and repair it, contact Liebherr Service if necessary. or If the crane has no “Hydraulic emergency control* ”: Secure the crane and danger zone wide-ranging.

3.12

Problem on mechanics / components of the crane Determine the damage and remedy it properly by using original spare parts.

44

LIEBHERR

20.01

20.01 Procedure in case of problems

3.13

029458-00

Problem on pipes / hoses Supply lines, return lines and control lines handle various media: – Pneumatic pipes / hoses – Hydraulic pipes / hoses – Pipes / hoses for fluids and gases Determine the damage and remedy it properly by using original spare parts.

4 Measures for defective components WARNING Impairment of crane safety!

When using non-original spare parts, crane safety can be impaired!

Changed or manipulated components can fail!

Safety relevant components can malfunction!

The crane license as well as the manufacturer's warranty will become void!

Risk of accident!

Personnel can be severely injured or killed!

This could result in property damage!

Use only original spare parts or spare parts approved by Liebherr-Werk Ehingen!

Leave installed original parts unchanged!

Make sure that the following prerequisites are met: – Error diagnostics has been carried out.

– Defective component has been determined.

20.01

LIEBHERR

45

029458-00

20.01 Procedure in case of problems

B116613

46

LIEBHERR

20.01

20.01 Procedure in case of problems

4.1

029458-00

Fuse defective: Replace If a fuse is defective, then it must be replaced.

Make sure that the following prerequisites are met: – All battery master switches 51 are in position 0.

– All ignition switches 24/328/700 are in position 0.

– A spare fuse of the same size and strength is available.

Fuses are located: – In the fuse box in the driver's cab. 10 – In the fuse box in the crane operator's cab. 20 – In the battery box 50 ( Main fuses 52) – Directly on the individual components Replace a defective fuse.

Check the function.

Troubleshooting The same fuse fails again?

Continue troubleshooting, contact Liebherr Service if necessary.

Never bypass a defective fuse or replace it with a stronger fuse.

4.2

Module defective: Replace Note Depending on crane type, there is a spare module in the switch cabinet. The spare module can be installed and configured by Liebherr Service via the remote diagnostics*.

Contact Liebherr Service.

4.3

Sensor defective: Replace Certain crane functions are also monitored with two sets of sensors.

Depending on the classification of the sensor, crane operation with defective sensor: – Can be continued without restriction.

– Can be continued with restriction.

– Can be continued only in LMB emergency operation.

Ensure that the following prerequisite is met: – Defective sensor has been determined, see section “Measures in clear problem cases”.

WARNING Limited warning functions!

If there is a defect on a participating sensor (LMB) and the crane is continued to be operated by bypassing the sensor other otherwise, then the warning functions and the shut offs of the LICCON overload protection are deactivated / limited.

If there is a defect on a participating sensor (LMB), then the crane may be operated further only in emergency cases.

Fix / replace the sensor before starting crane operation again.

Contact Liebherr Service.

20.01

LIEBHERR

47

029458-00

4.4

20.01 Procedure in case of problems

Limit switch defective: Replace Depending on the classification of the limit switch, crane operation with defective limit switch: – Can be continued without restriction.

– Can be continued with restriction.

– Can be continued only in LMB emergency operation.

Certain crane functions are monitored with two sets of limit switches.

WARNING Limited warning functions!

If one of the double version limit switches is not ok and the crane is continued to be operated, then the warning functions of the LICCON overload protection are limited.

The crane can only be operated in an emergency after failure of a double version limit switch.

If a defective limit switch is shown: Replace / repair the defective limit switch. or

4.5

Contact Liebherr Service.

Overload protection failed When a component of the overload protection fails, then bring the crane in a safe condition.

To bring the crane in a safe condition it may be necessary to bypass the overload protection.

DANGER Bypassing the overload protection!

If the overload protection is bypassed, there is no further protection against crane overload.

In the event of deliberate improper use, the crane could collapse, the boom can break off or the crane can topple over.

Personnel can be killed or seriously injured.

This could result in property damage.

The bypass of the overload protection is only permitted in emergency cases.

The bypass may only be carried out by persons who are aware of the effects of their acts regarding the bypass of the overload protection.

Bypassing the overload protection requires the presence of an authorized person and must be performed with utmost caution.

Missing values must be monitored manually and must match the load chart.

Crane operation with bypassed overload protection is prohibited.

WARNING Bypassed overload protection!

If the overload protection is bypassed, crane movements are no longer monitored!

The crane can be overloaded and collapse!

Personnel can be killed or seriously injured!

This could result in property damage!

Only carry out crane movements within the range of the load chart as well as the erection / take down charts!

As a rule, all specifications in the load chart must be adhered to strictly: – The exact weight of the load, including load suspension equipment, must be known.

– The boom status and the boom geometry must be known.

– The boom length and boom radius must be measured manually.

– It must be ensured that the telescopic boom has been pinned accordingly (Telescopic boom system Telematic).

– All values must match the values in the respective load chart.

48

LIEBHERR

20.01

20.01 Procedure in case of problems

4.5.1

029458-00

Overload protection failed: Bypass Note Does not apply for cranes with CE-mark and configuration according to EN 13000:2010.

For description of set up button D, see Crane operating instructions, chapter 4.02.

B112955

Press the set up button D: Result: – The overload protection is bypassed.

– The crane is emergency operation.

To turn the bypass of overload protection off: Press the set up button D again.

Result: – The bypass of the overload protection is turned off.

4.5.2

Overload protection failed: Bypass (according to EN 13000:2010) Note Applies only apply for cranes with configuration according to EN 13000:2010!

For location and detailed description of the bypass device outside the crane operator's cab, see Crane operating instructions, chapter 4.01 and chapter 4.02.

20.01

LIEBHERR

49

029458-00

20.01 Procedure in case of problems

B112956

The bypass of the overload protection can be carried out with the restriction, that: – The bypass is automatically reset when the engine is turned off.

– The bypass is automatically reset after no later than 30 minutes.

– The bypass of the overload protection limits the working speed to no more than maximum 15 %.

The bypass is made, depending on crane type, either: – With the respective key switch S or – via the sensor 47 through the transponder 48.

Note Actuation of sensor 47.

To actuate the sensor 47, the transponder 48 must be placed momentarily and then removed again.

If the transponder 48 remains too long or permanently on the sensor 47, then the bypass is not active and an error message is issued.

Actuate the key switch S. or

Actuate the sensor 47 through the transponder 48.

Result: – The overload protection is bypassed.

– The crane is emergency operation.

To turn the bypass of overload protection off: Actuate the key switch S again. or

Actuate the sensor 47 through the transponder 48 again.

Result: – The bypass of the overload protection is turned off.

50

LIEBHERR

20.01

20.01 Procedure in case of problems

029458-00

5 Avert an emergency situation: Ending a load lift When the crane movements must be carried out manually (for example with the optional “Hydraulic emergency control* ”).

WARNING Crane operation without overload protection!

If the LICCON overload protection is no longer functioning properly because of one or more errors, then there is a danger of accidents if crane operation is continued!

Due to operation of the crane with failed LICCON overload protection, the crane can be overloaded and collapse!

Personnel can be killed or seriously injured!

This could result in property damage!

Crane operation without overload protection is only permissible in emergency cases!

Crane operation without overload protection may only be carried out by persons who know the effects of their actions regarding crane operation without overload protection!

Crane operation without overload protection requires the presence of an authorized person and must be performed with utmost caution!

Missing values must be monitored manually and must match the load chart.

Do not take up regular crane operation again until the overload protection is functioning again!

Ending the load lift to avert emergency situations: – Before continuing the load lift, contact the nearest Liebherr Service center or the Liebherr-Werk in Ehingen.

If this is not possible, then the load lift can be completed with utmost caution, as follows: – All values that are needed for the exact determination of the set up configuration and the associated load chart must be measured or manually determined.

As a rule, all specifications in the load chart must be adhered to strictly: – The exact weight of the load, including load suspension equipment, must be known.

– The boom status and the boom geometry must be known.

– The boom length and boom radius must be measured manually.

– It must be ensured that the telescopic boom has been pinned accordingly (Telescopic boom system Telematic).

– All values must match the values in the respective load chart.

20.04 Overview Bus system

20.01

LIEBHERR

51

027372-01

20.04 Overview Bus system

B114181

52

LIEBHERR

20.04

20.04 Overview Bus system

027372-01

1 LIEBHERR System Bus All important electrical and electronic components are linked via the LIEBHERR system bus, see exemplary illustration 1.

In the LIEBHERR system bus continuous self tests are carried out to monitor the important electrical and electronic components. Thus an extensive diagnostics possibility and quick error recognition is ensured.

Note The overall overview of the LIEBHERR system bus (LSB) in the electrical circuit diagram (see exemplary illustration 2) provides an overview of the configuration, the modules in use and their arrangement.

Overall overview of the LIEBHERR system bus (LSB), see separate electrical circuit diagram.

2 Overview of terms / abbreviations in the LIEBHERR system bus Explanation of terms Abbreviation Description A/D

Analog / Digital

AKG

Support force sensor

AMS

Active master switch

AWL

Application list

BKE

Operating and control unit

BSE

Operating / display and control unit (LICCON monitor)

BTB

Bluetooth™-Basis station

BTT

Bluetooth™ Terminal

BTT-E CAN CF-Card

Bluetooth™-Terminal Radio expansion Controller area network Compact Flash Card

COM

Component Objekt Model

CPU

Central Processor Unit

CRC

Cyclic Redundancy Check

DG

Turn sensor

DI

Double inductive track switch

DK

Pressure sensors

DSP

Digital Signal Processor

DSP0

Digital Signal Processor 0 Note: DSP0 comprises: LSB1 (LSBA); LSB2 (LSBB); LSB3 (LSBC); LSB4 (LSBD);

DSP1

20.04

Digital Signal Processor 1

LIEBHERR

53

027372-01

20.04 Overview Bus system

Explanation of terms Abbreviation Description Note: DSP1 comprises: LSB5 (LSBE); LSB6 (LSBF); LSB7 (LSBG); LSB8 (LSBH); I/O Electrical

Input / output module Engine Control Unit

control unit EEPROM GND

Electrically Erasable Programmable Read Only Memory Grounding

HO

Hoist limit switch

IA

Inductive sensor analog

ID

Inductive sensor digital

IP

Inductive sensor position recognition

LAN

Controller area network

LCD

Liquid Crystal Display

LEC

LIEBHERR / LICCON Error Code

LED

Light Emitting Diode

LDL

LIEBHERR Data logger

LG

Length sensors

LMB

Load moment limitation

LSB

LIEBHERR System Bus

MAS

Master station

MPC

Micro-Programmed Controller (Power PC)

MS

Master switch (MS1, MS2, ...)

Muli

Software sample list

NG

Incline sensor (5 degree test range)

NGE Superstruc-

Incline sensor expanded (25 degree test range) Superstructure

ture

54

PG

Pedal sensor

PIC

Peripheral Interface Controller

RAM

Random Access Memory

RFID

Radio-Frequency Identification

RxD

Receive Data

SD

Spindle turn sensor

SPI

Serial peripheral interface

STB

Strobe Mode

SV

Floodlight control drive

TE

Keyboard unit (Touch display)

LIEBHERR

20.04

20.04 Overview Bus system

027372-01

Explanation of terms Abbreviation Description TxD UART

Tranceive Data Universal Asynchronous Serial Receiver and Transmitter

UEA

LSB Universal input / output module

USB

Universal Serial Bus

Chassis

Chassis

WD

Winch turn sensor

WG

Angle sensors

ZM

Pull test bracket

20.09 Test system Bluetooth™ Terminal (BTT)

20.04

LIEBHERR

55

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113491

56

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

1 The BTT test system Note Applies only for cranes with Bluetooth™ Terminal (BTT).

Malfunctions in the LICCON computer system generate error messages. The created error messages can be evaluated on the BTT test system.

Note Examples of error messages and error text.

The error texts in this chapter are examples and may not match reality exactly.

The error texts in the illustrations are in English. Menu tour in English is selectable on the BTT, see section “Settings on the BTT test system”.

1.1

Function keys in the BTT test system

B113495

B113495: Assignment principle of function keys F1 F2 F3 F4 F5-F9 F10

1.2

Function key Function key Function key Function key Function key Function key

• Menu dependent • Menu dependent • Menu dependent • Menu dependent • Not assigned • Start the BTT test system

Starting the BTT test system When the icon 1 appears, the start screen of the BTT test system can be called up by pressing the function key F10, see illustration 1.

Press the function key F10.

Result: – The start screen of the BTT test system is shown, see illustration 2.

– Selection can be made among the displayed program points, see the following sections.

Note Occurring error message If an error message ( system error 1.1 / operating error 1.2) occurs, then the error is shown in the start screen of the BTT test system, see illustration 3. The display is shown in the display area 2.1 or display area 2.2.

20.09

LIEBHERR

57

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

2 Function determination in the BTT test system Malfunctions in the LICCON computer system generate error messages. The created error messages can be evaluated on the BTT test system.

Note Sporadically occurring errors If errors occur sporadically, it can be helpful for diagnostics not to change anything on the crane.

Sporadically occurring errors are not automatically deleted as long as the LICCON computer system is running.

If possible, do not shut the LICCON computer system down or operate it in stand-by mode until the diagnostics is completed.

2.1

Decoding of LICCON-Error-Code (LEC) The error code is displayed on the BTT display (error determination display in the BTT test system).

The LICCON Error Code (abbreviated as error code) describes two possible error classes: – System errors “E ”: are triggered by internal errors in the LICCON computer system.

– Operating errors “B ”: are triggered by incorrect operation of the crane.

Errors can be active as well as inactive: – Active errors Errors which are present continuously (Example: cable break, sensor defective, ...).

Marked with a “+ ” – Inactive errors Errors which only occur momentarily (Example: loose contact).

Marked with a “- ” The configuration of the LICCON error code is based on a error class description with subsequent 6-digit error number.

Every LICCON error code can be decoded in five fields:

B113488

Field

Description content

1

“+” : active error / “- ” : inactive error

2

Error class: “B” = system error / “E ” = system error

3

Device (module which generated / reported the error)

4

Error path (source of error)

5

Type of error

Note LICCON Error Code Manual (LICCON Error code list) All error numbers / LEC are listed in the “LICCON Error Code Manual” (LICCON error code list).

58

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

2.2

027553-04

Functionality of the BTT error stack All errors are displayed together with their error number and stored and documented in the error stack.

– If the error stack is filled with active system errors, a system error will be overwritten if an operating error occurs.

– If an error is active and the cause of the error is not remedied, then a new active error message is created and shown when the error is deleted. The error message appears with new time stamp (date and time).

– If an error is inactive and the cause of the error is not remedied, then no new error message is created after the error is deleted. When the error occurs again, a new error message is created and shown. The error message appears with new time stamp (date and time).

Note Applies only for cranes with ignition in crane chassis!

By turning the ignition in the crane chassis off, the error stack of the BTT test system is deleted for the most part.

Active errors are recognized again then the LICCON computer system is booted up.

Inactive errors are only recognized again when they occur again.

If necessary: Before turning the ignition in the crane chassis off, note the LICCON error code and the associated time data.

The complete deleting procedure of the error stack must be carried out with the corresponding menu function, see the following description.

Error messages can be transferred into the BSE test system, see section “Transferring error messages into the BSE test system”. In the BSE test system, a screen shot of the error message can be created, see chapter 20.10.

20.09

LIEBHERR

59

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113492

60

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

2.3

027553-04

Procedure in case of error messages in the BTT error stack Note Operating errors are shown with a delay in the error determination screen - as long as the error control is active.

Severe operating errors are shown immediately in the error determination screen.

2.3.1

Calling up the error stack BTT If a system or operating error is present, then an error message appears on the function key F10, for example E, see illustration 4.

Press the function key F10.

Result: – The start screen of the BTT test system is shown, see illustration 5.

– The existing error is shown in the display area 2.1 or display area 2.2.

– Only the most current error is shown in the start screen of the BTT test system.

– If several error messages are present, then the entire system must be called up in the error stack.

Note Assignment of function keys with start screen of the BTT test system ( illustration 5) and in selection menu ( illustration 6) By pressing the function key F1 the selection cursor 3 is moved down.

By pressing the function key F2 the selection cursor 3 is moved up.

By pressing the function key F3 the selected function of the selection cursor 3 is confirmed and selected.

Change to the previous selection level by pressing the function key F4.

When the option “Error stack” has been selected with the selection cursor 3, see illustration 5: Press the function key F3.

Result: – The selection menu is shown in the error stack, see illustration 6.

When the option “Entire system” has been selected with the selection cursor 3: Press the function key F3.

Result: – Active operating and system errors are loaded in the error stack.

20.09

LIEBHERR

61

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113493

62

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

Any existing errors are listed in the error determination screen of the entire system ( illustration 7).

In addition, the number of existing errors in the entire system is noted.

Note Two errors are shown per page.

Example: When four errors are present, two pages with two errors are generated.

B113489

– – –

Counter 4: Called up page Counter 5: Total page number Counter 6: Number of existing errors in the entire system

Note the number of existing errors in the entire system ( counter 6).

Note Assignment of function keys in the error determination screen of the entire system ( illustration 7).

The menu for error processing is called up by pressing the function key F1.

By pressing the function key F2, the error determination view is paged by one page (if present).

By pressing the function key F3, the error stack is read in again.

Change to the previous selection level by pressing the function key F4.

Select the desired page: Press the function key F2 until the desired page (display in the counter 4) is shown.

Calling up the menu for error processing: Press the function key F1.

Result: – The assignment of the function keys changes, see illustration 8.

The “error processing” can be carried out.

2.4

Error processing in the BTT error stack – – –

Errors can be deleted only in the menu for error processing ( illustration 8) and with activated error parameters ( illustration 9).

All errors are always deleted.

Individual errors cannot be deleted separately.

Note Assignment of function keys in the error processing ( illustration 8).

Change back into the error determination screen of the entire system ( illustration 7) by pressing the function key F1.

By pressing the function key F2, all errors in the entire system are deleted.

By pressing the function key F3, the error parameters ( illustration 9) are activated.

Change to the previous selection level by pressing the function key F4.

20.09

LIEBHERR

63

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113493

64

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

2.4.1

027553-04

Deleting errors Carry out deleting procedure: Press the function key F2.

Result: – All errors in the entire system are deleted.

Note Continued active errors are shown again after deletion.

2.4.2

Showing the error parameter (error information) –

Error parameters can only be activated from the menu for error processing ( illustration 8).

Press the function key F3.

Result: – When the error parameters are called up, the error description of every error is expanded, see illustration 9.

– Existing inactive errors are shown in the error stack.

Note Assignment of function keys for activated error parameters ( illustration 9) Change back into the error determination screen of the entire system ( illustration 7) by pressing the function key F1. The error parameters remain active.

By pressing the function key F2, all errors in the entire system are deleted.

Function key F3 has no function in this case.

Change to the previous selection level by pressing the function key F4.

20.09

LIEBHERR

65

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113493

66

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

3 Error information in the BTT test system The information of an error as well as the date when the error occurred is distributed to 3 lines. When calling up the sub function PARAMETER ON with the function key F3, the error text is expanded by the parameters. In addition, existing inactive errors “-E/-B ” are shown, see illustration 9.

B113490

Line

Type of error

Error text

Z1

±B: = operating error (“+” : active / “- ” : inactive)

Display area 10:

±E: = system error (“+” : active / “- ” : inactive)

Description of error

Z2

Time / error frequency When error last occurred/how often error has occurred Note: If the display 00:00 appears as error time, then the error was found while the LICCON computer system booted up!

Z3

Date (month / day / year) When the error last occurred

1

20.09

Z41

Error-specific data in hexadecimal form

Z51

Error-specific data in hexadecimal form

When function “PARAMETER ON” is selected

LIEBHERR

67

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113494

68

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

4 Settings in the BTT test system 4.1

Changing the language in the BTT test system The language of the menu texts in the test system can be changed as follows: Make sure that the following prerequisite is met: – The start view of the test system is shown on the display of the BTT, see fig. 10.

Press the function key F1.

Result: – The selection cursor 3 jumps down by one line, see illustration 11.

Press the function key F3.

Result: – The overview is shown in the text languages menu available, see fig. 12.

Move the selection cursor 3 to the desired language via the function key F1 or function key F2.

Press the function key F3.

Result: – The menu texts are shown now in the selected language.

– The language of the error texts can only be set in the BSE test system (chapter 20.10).

– The language of the error text in the BTT test system can be changed by Liebherr Service.

Note With the function key F4, one gets into the superior menu or back to the start screen of the BTT test system.

4.2

Changing the time of day / time zone / date in the BTT test system Note Settings for time of day / time zone / date can only be made by Liebherr Service.

For changes of settings for time of day / time zone / date, contact Liebherr Service.

20.09

LIEBHERR

69

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113496

70

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

5 Transferring error messages from the BTT test system to the BSE test system Error messages from the error stack of the BTT test system can be transferred into the error stack of the BSE test system. The transfer occurs automatically when the BTT test system and the BSE test system are activated simultaneously.

For crane types LR, LTC, LTF and LTR, the BTT test system and the BSE test system are always activated simultaneously.

To be able to activate the BTT test system simultaneously with the BSE test systems on crane type LTM, proceed differently, depending on crane type.

5.1

Transferring error messages: Crane with automatically activated LICCON monitor When the ignition in the chassis is turned on, the LICCON monitor starts automatically too. After a short time, the BSE start screen ( illustration 1) is shown. The BSE test system is activated.

After approx. 2 minutes, the LICCON monitor changes to stand-by operation, see illustration 2. The BSE test system cannot be activated from stand-by operation without an intermediate step.

When the BSE start screen is shown in the monitor ( illustration 1): Press the function key F2 on the LICCON monitor.

Result: – Errors from the BTT test system can be seen in the error stack of the BSE test system.

– For a more detailed description of the BSE test system, see chapter 20.10.

When the stand-by operation (illustration 2) is shown in the monitor: Turn the ignition in the crane chassis off momentarily and turn it on again within two seconds.

Result: – In the LICCON monitor the BSE start screen is shown ( illustration 1).

– The BSE start screen is only active for two minutes.

Within two minutes: Press the function key F2 on the LICCON monitor.

Result: – Errors from the BTT test system can be seen in the error stack of the BSE test system.

– For a more detailed description of the BSE test system, see chapter 20.10.

20.09

LIEBHERR

71

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B113496

72

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

5.2

027553-04

Transferring error messages: Crane without automatically activated LICCON monitor If the ignition in the chassis is turned on, the control in the crane superstructure remains off.

To transfer error messages from the BTT test system into the BSE test system, the ignition of the crane chassis must be activated from the crane superstructure.

Activate the ignition of the crane chassis from the crane superstructure: Turn the ignition in the crane chassis off.

Turn the ignition in the crane superstructure on.

Result: – The LICCON computer system starts the LICCON monitor.

When the indicator light on point P1 does not light up: Press the button 680 on the BKE. Result: – The ignition in the crane superstructure is turned on.

– The indicator light on point P1 lights up.

Press the program button P8 on the LICCON monitor.

Result: – The BSE test system is active.

Press the function key F2 on the LICCON monitor.

Result: – Errors from the BTT test system can be seen in the error stack of the BSE test system.

– For a more detailed description of the BSE test system, see chapter 20.10.

20.09

LIEBHERR

73

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B112952

74

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

027553-04

6 Problems on the operating elements of the BTT and radio remote control (BTT-E) Note Applies only for certain crane types with BTT and/or BTT-E (radio remote control)

6.1 6.1.1

Problem on Bluetooth™ Terminal (BTT) The BTT display remains dark Note Indicator light Charge condition 552 shows the charge condition.

Indicator light Transmission signal 550 shows the quality of the radio contact connection.

When the indicator light charge condition 552 does not light up or lights up red: Plug the BTT 4 into the charging module 22.

When the LED 552 does not light up with the BTT 4 plugged in or the BTT 4 cannot be turned on: Contact Liebherr Service to determine the cause of the problem and further procedure.

6.1.2

Radio connection is faulty If the radio communication to the BTT 4 is faulty or interrupted (Indicator light Transmission signal 550 lights up red), then it can be bypassed with line 20.

The radio communication to the BTT 4 can become faulty or interrupted through the following occurrences: – By interference signals from a nearby radio tower.

– The radio module on the BTT 4 or on the BTB is defective.

– The rechargeable battery in the BTT 4 is discharged.

– Due to bad selection of location by the operator.

Radio communication interrupted Make sure that the following prerequisites are met: – The line 20 to bypass the radio communication has been removed from the switch cabinet of the crane cab.

– The BTT 4 has been removed from the charging module 22 and is turned on.

– The caps on the plug connection 23 and the plug connection 29 have been removed.

Screw the line 20 on the charging module 22 onto the plug connection 23.

Screw the line 20 on the BTT 4 onto the plug connection 29.

Result: – The radio communication is bypassed.

Note If the BTT 4 does not turn on, even though the line 20 is connected with the charging module 22, then the rechargeable battery may be defective!

Contact Liebherr Service to determine the cause of the problem and further procedure.

20.09

LIEBHERR

75

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B117977

76

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

6.1.3

027553-04

BTT keys without function If the crane no longer reacts after pressing one or several keys / buttons, then a key test can be called up and carried out.

Carrying out a key test Make sure that the following prerequisite is met: – The start menu is displayed.

Press the button 553 momentarily (max. 1 second) until the system screen ( illustration 1) appears.

Note When the button 553 is pressed too long, the BTT turns off.

Press the button 554.

Result: – Key test ( illustration 2) is called up.

B117978

Example Key test for function key F2 –

–

–

illustration 3 - key is not actuated• Number value current keypress 12 is at “5” (0 to 20 is ok) • Percentage value current keypress 13 is at “0” Illustration 4 -Key is pressed down halfway• Number value current keypress 12 increases to “151” • Percentage value current keypress 13 increases to “51” • Bar diagram 14 increases to approx. half deflection illustration 5 - Key is fully pressed down• Number value current keypress 12 increases to “301” (280 to 320 is ok) • Percentage value current keypress 13 increases to “100” • Bar diagram 14 increases to full deflection

Press the keys individually and monitor the BTT display.

Result: – If the display values change according to the “Example key test for function key F2”, then the key is ok.

– If the display values change only slightly or not at all despite strong actuation, the key is defective.

Ending the key test To change back to the “System screen”: Press the button 553 briefly.

To change back to the System menu: Press the function key F1.

20.09

LIEBHERR

77

027553-04

20.09 Test system Bluetooth™ Terminal (BTT)

B117979

78

LIEBHERR

20.09

20.09 Test system Bluetooth™ Terminal (BTT)

6.2 6.2.1

027553-04

Problem on the radio remote control (BTT-E) Manual control lever of radio remote control without function If the crane no longer reacts after actuating the manual control levers, then the manual control lever test can be called up and carried out.

Carrying out the manual control lever test Make sure that the following prerequisite is met: – The start menu is displayed.

Press the button 553 momentarily (max. 1 second) until the system screen ( illustration 1) appears.

Note When the button 553 is pressed too long, the BTT turns off.

Press the button 555.

Result: – The manual control lever test ( illustration 2) is called up.

B117980

Example Manual control lever test on left manual control lever 615 –

–

–

illustration 3 - Manual control lever 615 is not actuated• 1.Reference value 15 is at “128” • 2.Reference value 16 is at “0” illustration 4 - Manual control lever 615 in X-axis to the right, half deflected• 1.Reference value 15 decreases to “63” • 2.Reference value 16 increases to “63” • Icon 17 with direction arrows in X-axis • Bar diagrams 18/19 increase to approx. half deflection illustration 5 - Manual control lever 615 in X-axis to the right, fully deflected, button 616 is actuated• 1.Reference value 15 decreases to “0” • 2.Reference value 16 increases to “128” • Icon 17 with direction arrows in X-axis and green color • Bar diagrams 18/19 increase to full deflection

Test the manual control levers and monitor the BTT display.

Result: – If the display values change according to the “Example Manual control lever test on left manual control lever 615 ”, then the manual control lever is ok – If the display values change only slightly or not at all, then the manual control lever is defective.

Ending the manual control lever test To change back to the “System screen”: Press the button 553 briefly.

To change back to the System menu: Press the function key F1.

20.10 Test system BSE

20.09

LIEBHERR

79

027370-02

20.10 Test system BSE

B113499

80

LIEBHERR

20.10

20.10 Test system BSE

027370-02

1 The BSE test system – –

The BSE test system is a diagnostic tool used to localize and rectify system errors.

On crane types with several LICCON monitors it is possible that error messages appear on several LICCON monitors at the same time.

Note Examples of error messages and error text.

The error texts in this chapter are examples and may not match reality exactly.

The error texts in the illustrations are in English. Menu tour in English can be selected in the BSE test system, see section “Changing the language settings in the BSE test system”.

2 Settings in the BSE test system Note On crane types with several LICCON monitors, all LICCON monitors must be monitored and set.

2.1

Starting the BSE Test system The BSE test system is started by pressing the program key P8.

WARNING Danger of accident!

In the BSE test system the LICCON monitor is solely used for test system functions. There are no warnings that the crane is being operated at its limits.

Accidents can result in crane operation with activated BSE test system!

Crane operation with activated BSE test system is prohibited!

Press the program key P8.

Result: – The BSE test system is started, the start screen ( illustration 1) appears.

20.10

LIEBHERR

81

027370-02

20.10 Test system BSE

B113499

82

LIEBHERR

20.10

20.10 Test system BSE

2.2

027370-02

Changing the language settings in the BSE test system The BSE test system language settings are modified in the start screen by pressing special function keys E1 and special function keys E2.

Various languages can be selected.

Note The set language is indicated by a blue border around the national flag and by the text shown underneath in the corresponding language.

Depending on crane type, various languages are available for selection. Only the languages which are shown are available.

Press the special function key E1.

Result: – The blue selection frame moves to the left.

Press the special function key E2.

Result: – The blue selection frame moves to the right.

20.10

LIEBHERR

83

027370-02

20.10 Test system BSE

B113499

84

LIEBHERR

20.10

20.10 Test system BSE

2.3

027370-02

Service levels in the BSE test system The BSE test system is structured into four service levels.

Note The current service level is shown at the upper right edge of the header on the BSE test system.

In service level 0 the header is empty.

After starting the BSE test system via the program key P8, the start screen appears and service level 0 is activated. No daily code is required for service level 0.

Note It is not possible to manipulate system- or safety-relevant parameters or functions in service level 0.

The safety-relevant parameters or functions in service levels 1, 2 and 3 are protected against access by unauthorized personnel via daily codes.

Accessing the service levels Level

Authorization

Enter CODE

0

Crane driver

no

1

Assembly personnel

yes

2

Specialists

yes

3

Supervisor

yes

In service level 0 the crane driver is authorized to: – Change the language settings.

– Display a system overview showing all modules and sensors in the BSE test system.

– Display errors in the error stack.

– Delete individual errors in the error stack.

– Delete all errors in the error stack.

– Update the display of errors in the error stack.

– Display the clock settings.

– Make / display / retrieve screen shots.

20.10

LIEBHERR

85

027370-02

20.10 Test system BSE

B113498

86

LIEBHERR

20.10

20.10 Test system BSE

027370-02

3 Areas of the BSE test system On crane types with several LICCON monitors, all LICCON monitors must be monitored. Not all areas of the BSE test system are automatically shown in all LICCON monitors.

The BSE test system monitor is divided into three areas: 1 Header 2 Display area 3 Function key line

3.1

• Assignment depends on the selected program point

Header in the BSE test system The header 1 of the start screen shows information for the implemented crane software as well as information regarding the crane.

1.1 Version number 1.2 Crane identifier 1.3 Crane number

1.4 Program counter 1.5 Current “Muli” status 1.6 Release date

• Refers to the test system software • With crane type number • Crane number (obtained by the software from the memory card) • Note: The crane number of the BSE (LICCON monitor) and the crane number of the loaded software (memory card) must be identical.

• The program counter will be counted up if the crane configuration is changed • Displays the current Muli status of the (software from the memory card) • Displays the release date for the current software

Note After calling up a secondary program point, the header 1 can change.

Note the description in the respective program point.

20.10

LIEBHERR

87

027370-02

20.10 Test system BSE

B114168

88

LIEBHERR

20.10

20.10 Test system BSE

3.2

027370-02

Display area of BSE Test system The following information is shown on the start screen of the BSE test system display area 2.

2.1 Time zone 2.2 Current time 2.3 Current date 2.4 Available languages

2.4.1 Language icon 2.4.2 2.5 2.6 2.7 2.8

20.10

Language setting Crane number Visualization software IP address Brightness setting

• Example: “MEST” • “Middle European Summer Time” • Refers to the displayed time zone 2.1 • Refers to the displayed time zone 2.1 • The desired language is selected with the special function key E1 and the special function key E2 Note: Also refer to section “Changing the language settings in the BSE test system”.

• The set language is indicated by a blue border around the country icon • Set language in text form • Additional numbering by manufacturer • Visualization software version • IP address of the computer • Current brightness setting of the LICCON monitor 2.8 • Manually adjustable in 7 stages • Press E3 (hold down) and E1: 6-stage “night design”.

• Press E3 (hold down) and E2: Brightness setting in 7 stages.

Note: The LICCON monitor has an automatic brightness adjustment.

The brightness of the LICCON monitor is automatically matched to the ambient light conditions. If the LICCON monitor is set to “medium brightness level”, then the regulating spectrum of the adjustment is optimally utilized. If the manual brightness setting of the LICCON monitor is on the “lowest” or the “highest” level, then the automatic brightness adjustment is ineffective.

LIEBHERR

89

027370-02

20.10 Test system BSE

B114171

90

LIEBHERR

20.10

20.10 Test system BSE

3.3

027370-02

Function key line of the BSE test system The function key line 3 consists of function keys F1 to F8.

The function keys are assigned to various functions which are shown in the “black fields” above the function keys.

Not all the function keys on the LICCON monitor have to be assigned to a function.

Press the function key to start the application or access the relevant menu.

F1 - not assigned F2 ERROR

F3 CLOCK

F4 SCREEN SHOTS

• Accessing errors in the error vault Note: See section “Function key F2 in start screen: ERROR” • To access the clock settings Note: Service level 0 is not authorized to change the clock settings.

The clock settings can be changed in Service level 1. To call up Service level 1 a daily code (release by Liebherr Service) is required.

Note: See section “Function key F3 in start screen: CLOCK” • Established screen shots (maximum 10) are saved in a memory and can be called up via the function key F4.

Note: See section “Function key F4 in start screen: SCREEN SHOTS”.

F5 - not assigned F6 SERVICE LEVEL

• Call up the daily code entry Note: See section “Function key F6 in start screen: SERVICE LEVEL”.

F7 - not assigned F8 - not assigned Note After pressing a function key, a program point is selected and the assignment of the function keys changes.

Pay attention to the assignment and description of functions keys in the respective program point.

20.10

LIEBHERR

91

027370-02

20.10 Test system BSE

B114174

92

LIEBHERR

20.10

20.10 Test system BSE

3.3.1

027370-02

Function key F2 in start screen: ERROR NOTICE Overlooked error messages!

Every LICCON monitor is equipped with a BSE test system.

On crane types with several LICCON monitors, do not only evaluate the BSE test system of one LICCON monitor.

If only the BSE test system of one LICCON monitor is evaluated, error messages can be overlooked.

Evaluate the BSE test system of all existing LICCON monitors at the same time.

Press function key F2 on the BSE test system start screen, illustration 5, to access the “error determination” for the entire system ( illustration 6).

Pressing function key F2 will initiate the read out and display of active errors in the display area of the BSE test system.

Note A corresponding message appears in the display area of the test system if no error is found: “No error!”

Function key line on error determination screen See illustration 6.

F1 Update

F2 Cursor down F3 Cursor up F4 Page down

F5 Delete errors individually

F6 Delete all errors

F7 Parameter on / off

F8 Back

20.10

• All active errors can be called up – for example if they were deleted – by pressing function key F1 • Active errors will be shown again with the current date • Move cursor “down” by one error • Move cursor “up” by one error.

• Note: If more error messages are present than can be shown on the screen page, the screen page is expanded downward.

• Jump down in the screen by pressing the function key F4.

• Deletes selected error • Pressing function key F5 will delete the error where the cursor is positioned • Deletes all errors in the reporting module Note: All errors in all modules will be deleted when selecting the entire system.

• Show / hide inactive errors and error specific parameters Note: The error description for active(+)/inactive(-) errors is extended from 2 to 3 lines.

In the third line, error specific parameters of the error are displayed.

• Back to the BSE start screen

LIEBHERR

93

027370-02

20.10 Test system BSE

B114175

94

LIEBHERR

20.10

20.10 Test system BSE

3.3.2

027370-02

Function key F3 in start screen: CLOCK Press function key F3 on the BSE test system start screen ( illustration 7) to access the clock settings menu ( illustration 8).

Note The clock settings cannot be modified without a daily code.

Without daily code entry there is only a “read authorization”.

Function key line in clock settings menu See illustration 8.

F1 Cursor down F2 Cursor up

• Move cursor “down” by one time zone • Move cursor “up” by one time zone

F3 Not assigned F4 Not assigned F5 Not assigned F6 Not assigned F7 Not assigned F8 Back

20.10

• Back to the BSE start screen

LIEBHERR

95

027370-02

20.10 Test system BSE

B114169

96

LIEBHERR

20.10

20.10 Test system BSE

3.3.3

027370-02

Function key F4 in start screen: SCREEN SHOTS Press function key F4 on the BSE test system start screen ( illustration 9) to access the “screen shot” display( illustration 10).

“Screen shots” are snapshots of the monitor display. This option allows the crane driver to record error conditions on the LICCON computer system (“freeze”) for reloading at a later date.

Note Pressing function key F4 displays the first saved “screen shot” on the local LICCON monitor.

To avoid confusion between “screen shots” and the original display, a text line 10 is shown in the center for approx. 1 s after the “screen shot” is displayed. This text line 10 contains the number, the date and time when the “screen shot” was made.

Use special function key E1 and special function key E2 to switch between the individual “screen shots”.

In the text line 10 is displayed: 10.1 Number screen shot 10.2 Total number of screen shots 10.3 Date of creation of screen shot 10.4 Time of creation of screen shot Function key line in “Screen Shots” menu E1 Special function key E2 Special function key F1-F8 Back

3.3.4

• Change to next screen shot in memory • Change to previous screen shot in memory • By pressing any function key F1 to F8 the program changes back to the BSE start screen

Creating screen shots Screen shots can be created from any of the programs in the LICCON computer system.

To create a screen shot, the following key combination must be held down: – SHIFT H and special function key E3 and key A12 A double beep from the monitor is emitted if the screen shot was created successfully.

Note A maximum of 10 consecutive screen shots can be made. Each additional screen shot will overwrite the oldest.

20.10

LIEBHERR

97

027370-02

20.10 Test system BSE

B114177

98

LIEBHERR

20.10

20.10 Test system BSE

3.3.5

027370-02

Function key F6 in start screen: SERVICE LEVEL Press function key F6 on the BSE test system start screen ( illustration 11) to enter the daily code ( illustration 12).

Note The daily code may only be entered by authorized persons, see section “Service levels in the BSE Test system”.

Function key line in “Service Level” menu Note To return to the BSE start screen, press any one of the function keys (F1 to F8).

20.10

LIEBHERR

99

027370-02

20.10 Test system BSE

B114178

100

LIEBHERR

20.10

20.10 Test system BSE

027370-02

4 Procedure in case of error messages in the BSE test system NOTICE Overlooked error messages!

Every LICCON monitor is equipped with a BSE test system.

On crane types with several LICCON monitors, do not only evaluate the BSE test system of one LICCON monitor.

If only the BSE test system of one LICCON monitor is evaluated, error messages can be overlooked.

Evaluate the BSE test system of all existing LICCON monitors at the same time.

Note Sporadically occurring errors If errors occur sporadically, it can be helpful for diagnostics not to change anything on the crane.

Sporadically occurring errors are not automatically deleted as long as the LICCON computer system is running.

If possible, do not shut the LICCON computer system down or operate it in stand-by mode until the diagnostics is completed.

The LICCON computer system is monitored permanently by the BSE test system.

If an error occurs, the crane operator is acoustically and optically alerted. A warning sound is issued by the LICCON monitor. In the “Horn” icon 9 the type of error (operating error or system error) and the error path are shown.

If multiple errors occur, the error type and “faulty” module having the highest priority is displayed.

4.1

Functionality of the BSE error stack All occurring errors are displayed as error message 13 with error number and stored and documented in the error stack.

– If the error stack is filled with active system errors, a system error will be overwritten if an operating error occurs.

– If an error is active and the cause of the error is not remedied, then a new active error message 13 is created and shown when the error is deleted. The error message 13 appears with the new time stamp 13.3.

– If an error is inactive and the cause of the error is not remedied, then no new error message 13 is created and shown at this time when the error is deleted. When the error occurs again, a new error message 13 is created and shown. The error message 13 appears with the new time stamp 13.3.

Note When the ignition is turned off, the error stack is deleted for the most part.

Active errors are recognized again then the LICCON computer system is booted up.

Inactive errors are only recognized again when they occur again.

Error messages 13 can be saved as screen shot, see section “Function key F4 in the start screen: SCREEN SHOTS”.

The complete deleting procedure of the error stack must be carried out with the corresponding menu function, see the following description.

20.10

LIEBHERR

101

027370-02

20.10 Test system BSE

B114178

102

LIEBHERR

20.10

20.10 Test system BSE

4.2

027370-02

Decoding of LICCON-Error-Code (LEC) The LICCON Error Code (abbreviated as error code) describes two possible error classes: – System errors “E ”: are triggered by internal errors in the LICCON computer system.

– Operating errors “B ”: are triggered by incorrect operation of the crane.

Errors can be active as well as inactive: – Active errors Errors which are present continuously (Example: cable break, sensor defective, etc.).

Marked with a “+ ” – Inactive errors Errors which only occur momentarily (Example: loose contact).

Marked with a “- ” The configuration of the LICCON error code is based on a error class description with subsequent 6-digit error number.

Every LICCON error code can be decoded in five fields:

B113488

Field

Description content

1

“+” : active error / “- ” : inactive error

2

Error class: “B” = system error / “E ” = system error

3

Device (module which generated / reported the error)

4

Error path (source of error)

5

Type of error

Note LICCON Error Code Manual (LICCON Error code list) All error numbers / LEC are listed in the “LICCON Error Code Manual” (LICCON error code list).

20.10

LIEBHERR

103

027370-02

20.10 Test system BSE

B114178

104

LIEBHERR

20.10

20.10 Test system BSE

4.3

027370-02

Error information in the BSE test system The information of an error message 13 is split into several lines. When calling up the sub function PARAMETER ON with the function key F7, the error text is expanded by the parameters. Additional data of error which occurred is shown.

Error message 13 Position

Description

13.1

LEC (LICCON-Error-Code) ±B: = operating error (“+” : active / “- ” : inactive) ±E: = system error (“+” : active / “- ” : inactive)

13.2

Error text

13.3

Time / error frequency Date (year / month / day) When error last occurred/how often error has occurred Note: If the display 00:00 / 00–00 appears, then the error was found while the LICCON computer system booted up!

13.41 1

20.10

Error-specific data in hexadecimal form

When function “PARAMETER ON” is selected

LIEBHERR

105

027370-02

20.10 Test system BSE

B114178

106

LIEBHERR

20.10

20.10 Test system BSE

4.4

027370-02

Determining errors in the BSE test system If a system error or operating error occurs, a type of error (operating error or system error) with error path appears in the “Horn” 9 icon above function key F8, for example E!DSP0.

There are two ways to determine errors: – Call up the error determination screen module, see the following description.

The module which reports the error with the highest priority is called up via the function key F8 (error per module).

–

4.4.1

Call up the error determination screen entire system, see the following description.

All modules which report errors are listed (error entire system).

Calling up the error determination screen module Example: E!DSP0 appears in the “Horn” icon When an acoustical signal sounds from the LICCON monitor: Press the function key F8.

Result: – The acoustical signal from the LICCON monitor is turned off.

Press function key F8 again.

Result: – The error determination screen of the reporting module is called up.

– The errors on the reporting module (in example DSP0) are listed in the error determination screen.

– The total number of errors in the module is shown in area 14.

– –

If error messages from additional modules are present, then it is noted in the area 14.

For several reporting modules: Switch between the reporting modules with special function key E1 and special function key E2.

In area 14 is displayed: – reporting module 14.1 – number of reporting module 14.2 – total number of reporting modules 14.3 – number of selected fields 14.4 – total number of reported errors 14.5 Pay attention to all error messages from all reporting modules.

20.10

LIEBHERR

107

027370-02

20.10 Test system BSE

B114176

108

LIEBHERR

20.10

20.10 Test system BSE

4.4.2

027370-02

Calling up the error determination screen for the entire system Press the program key P8.

Result: – The BSE test system program is called up, see illustration 16.

Press the function key “ERROR” F2.

Result: – The error determination screen for the entire system incl. all active operating and system errors is displayed, see illustration 17.

–

If additional error messages are present, then it is noted in the area 15.

In area 15 is displayed: – number of selected fields 15.1 – total number of reported errors 15.2 Pay attention to all error messages.

4.5

Error processing in the BSE test system Assignment of function keys for error processing: F1 F2 F3 F4

Update Cursor down Cursor up Page down

F5 Delete errors individually

F6 Delete all errors

F7 Parameter on / off

F8 Back

• Page is updated • Move cursor “down” by one error • Move cursor “up” by one error • Jump down in the screen by pressing the function key F4, if necessary • Deletes selected error • Pressing function key F5 will delete the error where the cursor is positioned • Deletes all errors in the reporting module Note: All errors in all modules will be deleted when selecting the entire system.

• Show / hide inactive errors and error specific parameters Note: The error description for active(+)/inactive(-) errors is extended from 2 to 3 lines.

In the third line, error specific parameters of the error are displayed.

• Back to the BSE start screen

Assignment of special function keys E1-E3 for error processing: E1 One module further E2 One module back

• Change to the next module (only error determination screen module) • Change to the previous module (only error determination screen module)

E3 - not assigned -

20.10

LIEBHERR

109

027370-02

20.10 Test system BSE

B114180

110

LIEBHERR

20.10

20.10 Test system BSE

4.5.1

027370-02

Selecting errors The cursor 11 marks the selected error.

Press the function key F2.

Result: – Cursor 11 moves down.

Press the function key F3.

Result: – Cursor 11 moves up.

If not all present errors can be shown on the page: Press the function key F4.

Result: – Jump down in the page.

Change to the next module (only in the “error determination screen module” when additional modules report errors): Press the special function key E1 or special function key E2.

Result: – Error messages for the next module are shown.

4.5.2

Deleting all errors Carry out deleting procedure: Press the function key F6.

Result: – All errors are deleted.

Note When the error determination screen module is called up, all errors in the module are deleted.

When the error determination screen for the entire system is called up, all errors in all modules are deleted.

Continued active errors are shown again after deletion.

4.5.3

Deleting individual errors Ensure that the following prerequisite is met: – The cursor 11 marks the error to be deleted.

Carry out deleting procedure: Press the function key F5.

Result: – The marked error is deleted.

Note Continued active errors are shown again after deletion.

20.10

LIEBHERR

111

027370-02

20.10 Test system BSE

B114170

112

LIEBHERR

20.10

20.10 Test system BSE

4.5.4

027370-02

Showing the error parameter (error information) Error parameters can be activated only in the error determination screen.

Press the function key F7.

Result: – When the error parameters are called up, the error description of every error is expanded by the error parameters 13.4.

4.5.5

Updating the error stack The error stack can only be updated in the error determination screen.

Press the function key F1.

Result: – The error stack is updated.

4.5.6

Creating a screen shot Screen shots of the current screen display can be created from any of the available programs in the LICCON computer system.

Press SHIFT H and special function key E3 and key A12 simultaneously.

Result: – A double beep of the monitor sounds (when a screen shot was created successfully).

– The screen shot is saved in the memory and can be called up, see section “Function key F4 in start screen: SCREEN SHOTS”

Note A maximum of 10 consecutive screen shots can be made. Each additionally created screen shot will overwrite the oldest screen shot.

4.6

Empty BSE error stack If there are no active errors in the entire system and the module-specific error stacks are empty, the following message is displayed in the error determination screen of the BSE test system: “NO ERROR!” Note The message “NO ERROR!” appears in the selected language. The message also appears when there are inactive errors in the error stacks of the entire system or in the module-specific error stacks.

4.7 4.7.1

Ending work with the BSE test system Closing the BSE test system Press the program key P1.

Press any program key of an available program (for example Set up).

Result: – The BSE test system program is closed.

– The respective program is called up.

20.15 Remote diagnostics

20.10

LIEBHERR

113

026292-02

20.15 Remote diagnostics

B114172

114

LIEBHERR

20.15

20.15 Remote diagnostics

026292-02

1 The LWE remote diagnostics device Note Sporadically occurring errors If errors occur sporadically, it can be helpful for a remote diagnostics not to change anything on the crane.

Sporadically occurring errors are not automatically deleted as long as the LICCON computer system is running.

If possible, do not shut the LICCON computer system down or operate it in stand-by mode until the remote diagnostics is completed.

The LWE remote diagnostics allows LIEBHERR cranes to be serviced remotely in the event of an error. The remote diagnostics module (GSM module) is connected to the REMOTE DIAGNOSTICS SYSTEM of the crane.

At successful GSM connection from the crane to the service location, the data of the REMOTE DIAGNOSTICS SYSTEMS is transferred per LWE-remote diagnostics to LIEBHERR Service. Any required instructions will be issued via phone connection between the LIEBHERR Service and the crane operator on site. If LIEBHERR Service received full functionality on the crane, a remote diagnostics is possible.

Make sure that the following prerequisites are met: – A GSM connection between crane and LIEBHERR Service / Service location is possible.

– A phone connection with LIEBHERR Service / Service location is established.

1.1

Design of LWE remote diagnostics device 1 Remote diagnostics module

1.1 Status LED 2 Antenna 3 LICCON monitor 4 Cable WL634 5 Power supply

6 Built-in socket

20.15

• Depending on the crane type, installed separately on a support with permanent magnet or permanently.

• The remote diagnostics module (GSM module) is equipped with a SIM card in series.

• The GSM module has a two color LED which will light / blink in the respective color, depending on the status.

• Depending on the crane type, installed separately on a support with permanent magnet or permanently.

• Connection between remote diagnostics module 1 and LICCON monitor 3 • Required voltage 24 V • only for crane types without permanently installed remote diagnostics module 1 • Power supply 24 V • located in the switch cabinet or in the crane operator's cab

LIEBHERR

115

026292-02

20.15 Remote diagnostics

B114173

116

LIEBHERR

20.15

20.15 Remote diagnostics

1.2

026292-02

Activating the remote diagnostics Note Safety device of remote diagnostics system The remote diagnostics system is protected by a safety device against unauthorized access.

The release is made by the crane operator.

Non-permanently installed remote diagnostics system: If the power supply 5 is unplugged it cannot be accessed.

Permanently installed remote diagnostics system: Without release via the function key F5 in the “REMOTE DIAGNOSTICS SYSTEM” program it cannot be accessed.

To ensure remote diagnostics without problems, certain prerequisites must be met.

WARNING Property damage!

Remote diagnostics may only be carried out by authorized persons!

Crane without permanently installed remote diagnostics module 1: The power supply 5 of the remote diagnostics module 1 may only be plugged into the 24 V built-in socket 6 as long as the “REMOTE DIAGNOSTICS SYSTEMS” is deactivated in the LICCON monitor 3.

Make sure that: – Crane without permanently installed remote diagnostics module 1: the power supply 5 of the remote diagnostics module 1 is plugged into the 24 V built-in socket 6.

– Crane without permanently installed antenna 2: Position the antenna 2 on the roof of the crane cab or on another suitable location.

Note Expiration of SIM card!

The factory installed SIM card in the remote diagnostics module 1 expires after a period of two years!

Contact LIEBHERR Service in time to be able to carry out remote diagnostics after a period of two years.

Start the REMOTE DIAGNOSTICS SYSTEM: On the LICCON monitor 3 press the SHIFT H and program key P8 simultaneously.

Result: – The REMOTE DIAGNOSTICS SYSTEM starts.

Note Turn the modem on separately.

If the text 3.1 appears in the LICCON monitor 3, the modem must be turned on by the crane operator.

If the text 3.1 appears in the LICCON monitor 3: Release remote diagnostics: Press the function key F5.

Result: – The REMOTE DIAGNOSTICS SYSTEM starts.

1.3

Status display Remote diagnostics module The GSM status display 1.1 can issue different blinker codes in yellow and red.

20.15

LIEBHERR

117

026292-02

20.15 Remote diagnostics

GSM status display 1.1 (yellow LED) Blinker code yellow LED

Meaning

Off

GSM-/GPRS modem in SLEEP or ALARM mode

0.6 s on / 0.6 s off

SIM card not inserted or network search not completed

0.1 s on / 3.0 s off

Logged in GSM network, no data connection

0.1 s on / 0.1 s off / 0.1 s on / 3.0 s off

GPRS connection active

blinking

GPRS data transfer is shown within 1.0 s by fast blinking for 0.5 s .

on

Build up of data connection, active data connection or loss of data connection

GSM status display 1.1 (red LED) Blinker code red LED blinking, about 5 times per second

1.4

Meaning GSM-/GPRS modem is turned on

Carrying out a remote diagnostics After successful build up of a connection, LIEBHERR Service has the possibility to access the “REMOTE DIAGNOSTICS SYSTEM” of the crane.

Note While LIEBHERR Service accesses the “REMOTE DIAGNOSTICS SYSTEM”, the crane operator can utilize all crane functions and crane operating screens without restrictions.

WARNING Danger of accident due to erroneous operation!

Permanent telephone contact must be maintained with the LIEBHERR Service employee during the entire remote diagnostics.

Execute all crane movements with the utmost caution, lowest possible acceleration and minimum speed and coordinate with the LIEBHERR Service employee, if necessary.

Follow all instructions given by the Service employee.

1.5

Recognizing errors via remote diagnostics The remote diagnostics system can only identify static, electrical errors which are sampled in a time frame of more than 2 seconds.

If an error only appears sporadically when working with the crane: Leave the crane turned on.

Result: – LIEBHERR Service can call up the crane via the remote diagnostics system in order to localize the error or errors.

118

LIEBHERR

20.15

20.15 Remote diagnostics

026292-02

Troubleshooting If no data connection can be established, even thought the GSM connection between the crane and LIEBHER Service / Service location is established?

The data connection has failed.

Check the remote diagnostics device with the aid of the Service employee on the phone.

20.20 Diagnostics – disk brake pads

20.15

LIEBHERR

119

026274-02

20.20 Diagnostics – disk brake pads

B114182

120

LIEBHERR

20.20

20.20 Diagnostics – disk brake pads

026274-02

1 The diagnostics - disk brake pads Note Applies only for cranes with disk brakes.

If the warning light 1 on the display unit lights up, it is a sign that at least one brake pad has reached the wear limit.

NOTICE Property damage!

If work on the electrical system of the crane is carried out without the required special expertise, then the electrical system of the crane can be damaged.

Work on the electrical system of the crane may only be carried out by trained electrical specialists.

1.1

Preparing for the diagnostics for the disk brake pads – –

Cranes with up to seven axles have only diagnostics plug -X98.B Cranes from eight axles on additionally are equipped with diagnostics plug -X298.B

Via the diagnostics plug in the center console (only LTC: switch cabinet chassis), worn brake pads can be localized.

Make sure that the following prerequisites are met: – Diagnostics plug -X98.B and - if applicable - diagnostics plug -X298.B are freely accessible – A voltage meter for 24 V is available

Diagnostics plug -X98.B Configuration

1 If

Pin

Configuration

Brake pad sound

2

1

Supply

Brake pads axle 1 right

4

3

Brake pads axle 1, left

Brake pads axle 2 right

6

5

Brake pads axle 2, left

Brake pads axle 3 right 1

8

7

Brake pads axle 3 left 1

Brake pads axle 4 right 1

10

9

Brake pads axle 4 left 1

Brake pads axle 5 right 1

12

11

Brake pads axle 5 left 1

Brake pads axle 6 right 1

14

13

Brake pads axle 6 left 1

Brake pads axle 7 right 1

16

15

Brake pads axle 7 left 1

Ground

18

17

-

axle is present

Diagnostics plug -X298.B Configuration

20.20

Pin

Configuration

Brake pads axle 8 right 1

2

1

Brake pads axle 8 left 1

Brake pads axle 9 right 1

4

3

Brake pads axle 9 left 1

-

6

5

-

LIEBHERR

121

026274-02

20.20 Diagnostics – disk brake pads

Diagnostics plug -X298.B

1 If

1.2

-

8

7

-

-

10

9

-

axle is present

Diagnostics - disk brake pads: Comparison measurement of control voltage The control voltage for “Diagnostics - disk brake pads” is listed in the supplied electrical circuit diagram of the crane.

The control voltage must be checked via a comparison measurement on the diagnostics plug -X98.B. Carry out a comparison measurement: On the diagnostics plug -X98.B measure the pin 18 against pin 1.

Troubleshooting The measured value of the control voltage deviates from the data in the supplied electrical circuit diagram of the crane.

An fault is present. Localize the fault or contact Liebherr Service.

1.3

Diagnostics - disk brake pads: Sequence for measurement For diagnostics of the disk brake pads, the pins of all axles are measured against pin 18 ( diagnostics plug -X98.B: ground).

The following sequence must be adhered to: The measurement starts for “pads alxe 1 left”, then “pads axle 1 right”, then “pads axle 2 left”, then “pads axle 2 right” and so on, if applicable.

Cranes from 8 axles: The pins of axles 8 and axle 9 ( diagnostics plug -X298.B) must also be measured against pin 18 ( diagnostics plug -X98.B: ground).

1.4

Carrying out the diagnostics for the disk brake pads Note Carry out the diagnostics for each brake pad individually.

The current determined with the multimeter provides information if the inspected brake pad is OK or if the brake pad is worn, or an electrical problem is present in the diagnostics circuit.

During the diagnostics of the disk brake pads, always check all brake pads.

Make sure that the following prerequisites are met: – Warning light 1 on the display unit lights up – the comparison measurement of the control voltage was carried out The diagnostics must be continued in the specified sequence until a fault (worn brake pads) is found.

If a fault (worn brake pads) is determined, then it must be remedied first (replace brake pads). If the warning light 1 continues to light up, then the diagnostics must be repeated and continued.

Axle 1 left, diagnostics plug -X98.B: Measure the voltage between pin 3 and pin 18 and compare with the control voltage.

Axle 1 right, diagnostics plug -X98.B: Measure the voltage between pin 4 and pin 18 and compare with the control voltage.

Axle 2 left, diagnostics plug -X98.B: Measure the voltage between pin 5 and pin 18 and compare with the control voltage.

Axle 2 right, diagnostics plug -X98.B: Measure the voltage between pin 6 and pin 18 and compare with the control voltage.

122

LIEBHERR

20.20

20.20 Diagnostics – disk brake pads

026274-02

Note The respective pins are only assigned if the crane is equipped with the respective axle.

Depending on the number of axles additionally: Axle 3 left, diagnostics plug -X98.B: Measure the voltage between pin 7 and pin 18 and compare with the control voltage.

Axle 3 right, diagnostics plug -X98.B: Measure the voltage between pin 8 and pin 18 and compare with the control voltage.

Axle 4 left, diagnostics plug -X98.B: Measure the voltage between pin 9 and pin 18 and compare with the control voltage.

Axle 4 right, diagnostics plug -X98.B: Measure the voltage between pin 10 and pin 18 and compare with the control voltage.

Axle 5 left, diagnostics plug -X98.B: Measure the voltage between pin 11 and pin 18 and compare with the control voltage.

Axle 5 right, diagnostics plug -X98.B: Measure the voltage between pin 12 and pin 18 and compare with the control voltage.

Axle 6 left, diagnostics plug -X98.B: Measure the voltage between pin 13 and pin 18 and compare with the control voltage.

Axle 6 right, diagnostics plug -X98.B: Measure the voltage between pin 14 and pin 18 and compare with the control voltage.

Axle 7 left, diagnostics plug -X98.B: Measure the voltage between pin 15 and pin 18 and compare with the control voltage.

Axle 7 right, diagnostics plug -X98.B: Measure the voltage between pin 16 and pin 18 and compare with the control voltage.

Note Diagnostics plug -X298.B is only present if the crane is equipped with at least 8 axles.

Axle 8, left: Measure the voltage between pin 1 on diagnostics plug -X298.B) and pin 18 on diagnostics plug -X98.B and compare with the control voltage.

Axle 8 right: Measure the voltage between pin 2 on diagnostics plug -X298.B) and pin 18 on diagnostics plug -X98.B and compare with the control voltage.

Axle 9, left: Measure the voltage between pin 3 on diagnostics plug -X298.B) and pin 18 on diagnostics plug -X98.B and compare with the control voltage.

Axle 9 right: Measure the voltage between pin 4 on diagnostics plug -X298.B) and pin 18 on diagnostics plug -X98.B and compare with the control voltage.

20.20

LIEBHERR

123

124

LIEBHERR

Index 20 Diagnostics 13

Function key line of the BSE test system 91 Function keys in the BTT test system 57 Fuse defective: Replace 47

A

H

Activating the remote diagnostics 117 Alarm function on LICCON monitor 43 Areas of the BSE test system 87 Avert an emergency situation: Ending a load lift 51

I

2

Header in the BSE test system 87 Hydraulic, electric or engine failed 44

Index 125

C Calling up error messages 25 Carrying out a remote diagnostics 118 Carrying out the diagnostics for the disk brake pads 122 Causes and responsibility for problems 19 Changing the language in the BTT test system 69 Changing the language settings in the BSE test system 83 Changing the time of day / time zone / date in the BTT t 69 Component / component group no longer reacts 44

D Decoding of LICCON-Error-Code (LEC) 58, 103 Design of LWE remote diagnostics device 115 Determining errors in the BSE test system 107 Diagnostics - disk brake pads: Comparison measurement of 122 Diagnostics – disk brake pads 120 Diagnostics - disk brake pads: Sequence for measurement 122 Display area of BSE Test system 89 Dysfunction of monitoring function 29
