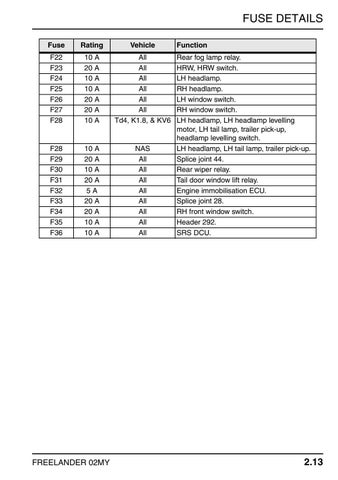

FUSE DETAILS Fuse

Rating

Vehicle

F22 F23 F24 F25 F26 F27 F28

10 A 20 A 10 A 10 A 20 A 20 A 10 A

All All All All All All Td4, K1.8, & KV6

F28 F29 F30 F31 F32 F33 F34 F35 F36

10 A 20 A 10 A 20 A 5A 20 A 20 A 10 A 10 A

NAS All All All All All All All All

FREELANDER 02MY

Function Rear fog lamp relay. HRW, HRW switch. LH headlamp. RH headlamp. LH window switch. RH window switch. LH headlamp, LH headlamp levelling motor, LH tail lamp, trailer pick-up, headlamp levelling switch. LH headlamp, LH tail lamp, trailer pick-up. Splice joint 44. Rear wiper relay. Tail door window lift relay. Engine immobilisation ECU. Splice joint 28. RH front window switch. Header 292. SRS DCU.
