Land Rover Freelander 2001 MY ON Electrical Library Manual - PDF DOWNLOAD

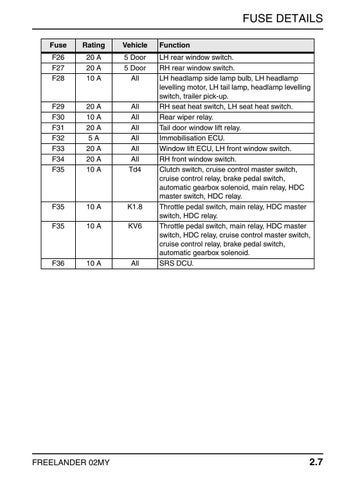

FUSE DETAILS Fuse

Rating

Vehicle

Function

F26 F27 F28

20 A 20 A 10 A

5 Door 5 Door All

F29 F30 F31 F32 F33 F34 F35

20 A 10 A 20 A 5A 20 A 20 A 10 A

All All All All All All Td4

F35

10 A

K1.8

F35

10 A

KV6

F36

10 A

All

LH rear window switch. RH rear window switch. LH headlamp side lamp bulb, LH headlamp levelling motor, LH tail lamp, headlamp levelling switch, trailer pick-up. RH seat heat switch, LH seat heat switch. Rear wiper relay. Tail door window lift relay. Immobilisation ECU. Window lift ECU, LH front window switch. RH front window switch. Clutch switch, cruise control master switch, cruise control relay, brake pedal switch, automatic gearbox solenoid, main relay, HDC master switch, HDC relay. Throttle pedal switch, main relay, HDC master switch, HDC relay. Throttle pedal switch, main relay, HDC master switch, HDC relay, cruise control master switch, cruise control relay, brake pedal switch, automatic gearbox solenoid. SRS DCU.
