[5] CHARGING SYSTEM

(1) AC Dynamo

Dynamo No-load Voltage

1.Disconnect the lead wires from the dynamo.

2.Start the engine, and check the generating voltage of the dynamo.

Factory

(2) Regulator

Continuity across Regulator's Terminals

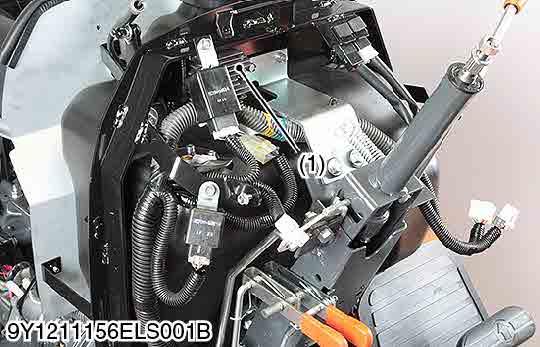

1.Remove the regulator (1).

9Y1211156ELS0025US0

2.Check with a tester whether the regulator (1) is in optimum condition or not as table below.

3.If the continuity is not measured as shown in the table below, the contacts of the regulators are damaged.

NOTE

•Use analog tester for measuring the continuity. Do not use insulation resistance tester.

•On the check table below, "ON" means that the pointer of tester is swung and "OFF" means it is not swung. The value kΩ is reference value by measuring 1 kΩ range. And this value is changed by range, measurement tools and so on.

•When measuring, remove wire harness and measure the value of regulator itself.

9Y1211156ELS0026US0
