PANEL

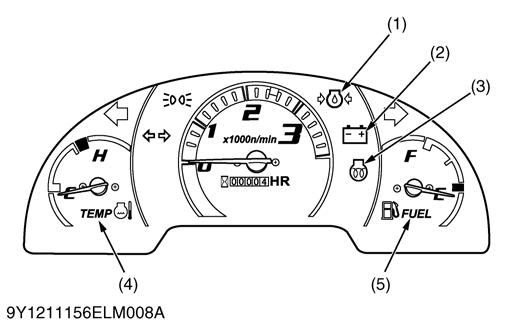

[1] EASY CHECKER™

If the warning lamps of the Easy Checker™ come on during operation, immediately stop the engine, and find the cause as shown below.

Never operate the machine while Easy Checker™ lamp is on.

 Electrical Charge Warning Indicator

If the dynamo is not charging the battery, the warning lamp in the Easy Checker™ will come on.

If this should happen during operation, check the electrical charging system.

 Glow Plug Indicator

When the key switch is in the "PREHEAT" position, the glow plug indicator illuminates.

 Engine Oil Pressure Warning Indicator

If the oil pressure in the engine goes below 49 kPa (0.5 kgf/cm2, 7 psi), the warning lamp in the Easy Checker™ will come on.

[2] SWITCHES AND SENSORS

Oil Pressure Switch

9Y1211156ELM0020US0

While oil pressure is high and the force applied to the diaphragm (2) is larger than the spring tension, the terminal contact (1) is open separated from the body contact (3). If the pressure drops below approx. 49 kPa (0.5 kgf/cm2, 7.1 psi), the contact closes.

9Y1211156ELM0021US0

Fuel Sensor

The remaining fuel quantity is detected by the fuel level sensor installed in the fuel tank and indicated on the fuel gauge. For detection, a float and a resistor are used. As the float (1) lowers, the resistance of the variable resistor (2) varies. The relation between the amount of fuel and the resistance is as follows.

9Y1211156ELM0022US0

Coolant Temperature Sensor

The coolant temperature sensor is installed to the cylinder head of engine, and its tip is in touch with the coolant. It contains a thermistor (4) whose electrical resistance decreases as the temperature increases. Current varies with changes in the coolant temperature, and the increases or decreases in the current move the pointer of gauge.

1. TROUBLESHOOTING

CHARGING SYSTEM

Charging Lamp Does Not Light When Key Switch is Turned ON

2.Wiring harness disconnected or improperly connected (between key switch AC terminal and panel board, between panel board and dynamo)

Lamp Does Not Go Off When Engine Operates

LIGHTING SYSTEM harness disconnected or improperly connected (between key switch terminal and dynamo, between panel board and dynamo) disconnected or improperly connected (between key switch AC terminal and combination switch terminal, between combination switch T terminal and tail light)
