[4] MID-PTO SECTION

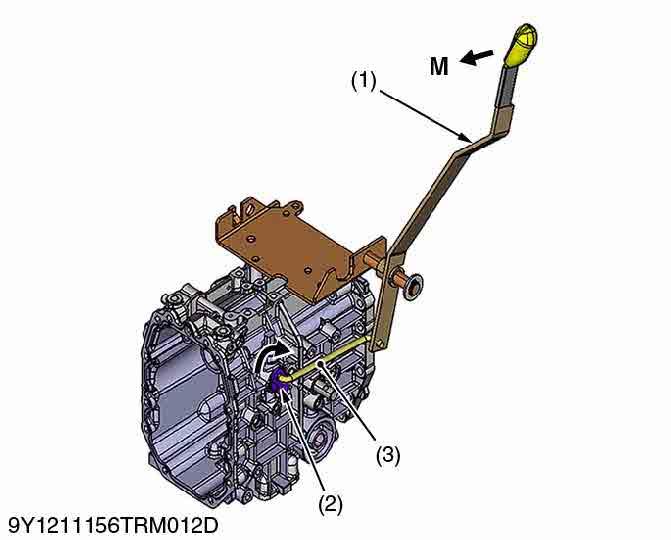

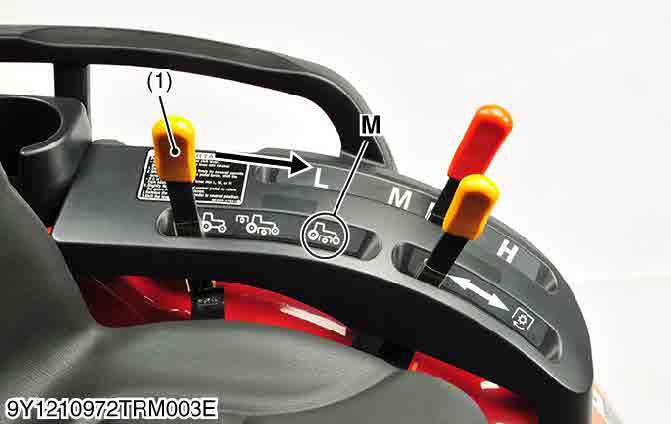

When the PTO shift lever (1) is set to "Mid PTO" (M) position, the PTO shift lever pulls the control rod (3). The control rod (3) pulls the PTO shift arm (2).

In this state, the PTO shift arm (2) shifts the PTO shifter (5) reverse. The inner spline of the PTO shifter (5) meshes the 20T Mid PTO gear spline (7).

Power is transmitted from the independent PTO clutch to the Mid PTO shaft as follows.

Independent PTO Clutch → PTO Shifter (5) → 25T

Mid Gear (6) → 26T Gear (8) → 17T-26T Mid Gear (10)

→ 30T Gear (11) → Mid PTO Shaft (12)
