A-15 Installation of additional cab lights (if equipped
Assembly process No.

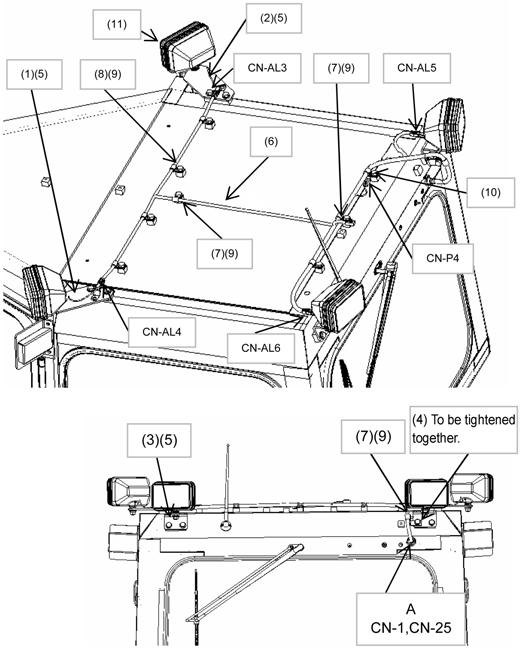

For machine without camera
1. Installation of additional lights to cab top
(1)Install brackets (1), (2), (3), and (4) to the top and rear of the cab by using bolts (5).
(2)Install wiring (6) by using clamps (7), (8), and bolts (9).
(3)Remove the cap at the rear of the cab, take out the internal wiring connectors (No. CN-1, 25) through the hole, connect them, and return them into the cab.
Put wiring grommet (A) to the hole.
(4)Tighten clip (10) together with the clamp to fix the connector (CN-P4).
(5)Install lamps (11) to the brackets and connect the connectors (CN-
AL3, AL4, AL5 and AL6).
*Adjust the light angles as necessary.
No. Part name 1 Bracket 2 Bracket 3 Bracket 4 Bracket 5 Sems bolt 6 Wiring harness 7 Clamp 8 Clamp 9 Sems bolt 10 Clip 11 Work lamp Work lamp
Part No. Q'ty Remarks 198-Z11-7830 1 For left 198-Z11-7840 1 For right 198-Z11-5490 2 For rear 207-92-51270 1 For right rear 01024-D1225 8 195-Z11-7350 1 04434-51412 7 04434-51012 4 01024-81220 9 08193-21012 1 17A-06-17931 4 Halogen 21T-06-33980 4 HID
Assembly process No.

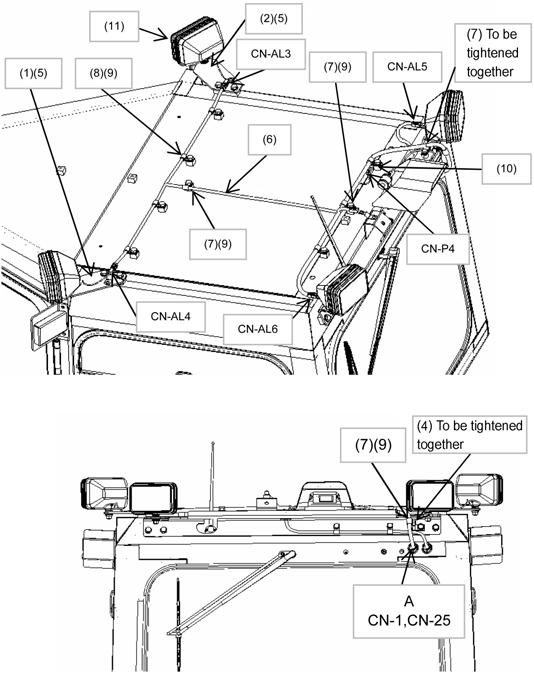

For machine with camera
1. Installation of additional lights to cab top
(1)Install brackets (1) and (2) to the top and rear of the cab by using bolts (5).
(2)Tighten bracket (4) together with the camera bracket.
(3)Install wiring (6) by using clamps (7), (8), and bolts (9).
(4)Remove the cap at the rear of the cab, take out the internal wiring connectors (No. CN-1, 25) through the hole, connect them, and return them into the cab.
Put wiring grommet (A) to the hole.
(5)Tighten clip (10) together with the clamp to fix the connector (CN-P4).
(6)Install lamps (11) to the brackets and connect the connectors (CN-
AL3, AL4, AL5 and AL6).
*Adjust the light angles as necessary.
No. Part name 1 Bracket 2 Bracket 4 Bracket 5 Sems bolt 6 Wiring harness 7 Clamp 8 Clamp 9 Sems bolt 10 Clip 11 Work lamp Work lamp
Part No. Q'ty Remarks 198-Z11-7830 1 For left 198-Z11-7840 1 For right 207-92-51270 1 For right rear 01024-D1225 4 195-Z11-7350 1 04434-51412 6 04434-51012 4 01024-81220 9 08193-21012 1 17A-06-17931 4 Halogen 21T-06-33980 4 HID
