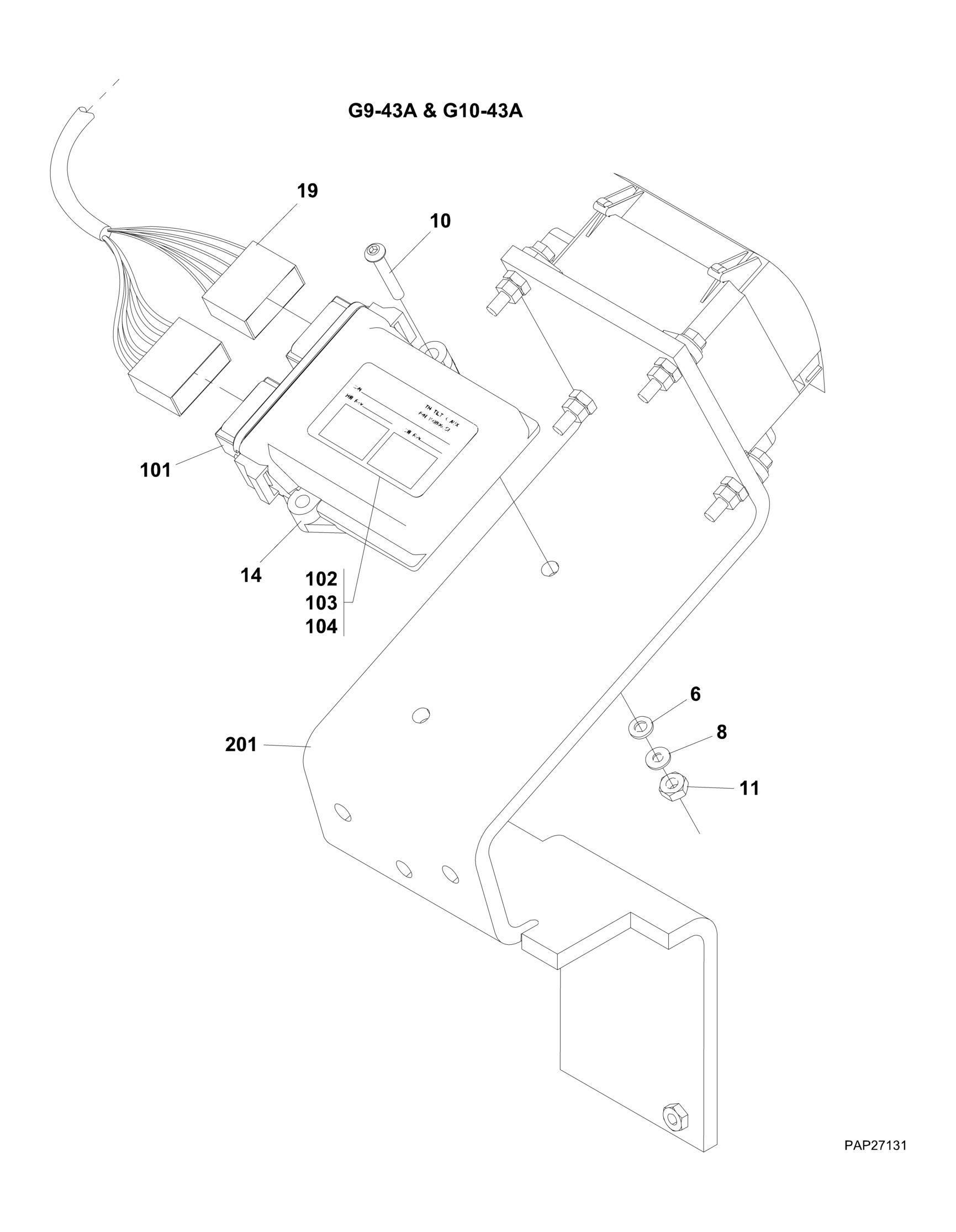

FIGURE 10 24. TILT AND AUX CONTROL MODULE
FIGURE 10-24. TILT AND AUX CONTROL MODULE
FIGURE 10-24. TILT AND AUX CONTROL MODULE
ITEM PART NUMBER QTY DESCRIPTION REV
6 4711400 2 LOCKWASHER, 1/4, (G9-43A), (if equipped with tilt on joystick) 6 4711000 2 WASHER, #10, (G10-43A), (if equipped with outrigger) 8 4761400 2 LOCKWASHER, 1/4 10 8310722 2 BUTTON HD CAPSCREW, 1/4-20X1-1/2 11 10701506 2 HEX NUT, 1/4-20 14 1001106351 1 TILT AND AUX CONTROL MODULE, (includes items 101 thru 104) E 19 Ref ACCESSORY MODULE HARNESS, (See ACCESSORY MODULE HARNESS for Breakdown) 101 1001106352 1 ACCESSORY MODULE PC BOARD 101 4460909 2 MATING CONNECTOR 101 4460928 2 TERMINAL 101 4460916 2 PLUG 102 0861493 1 CIRCUIT CARD BOX 103 1001106353 1 TILT AND AUX DECAL 104 1001106354 1 SOFTWARE 201 Ref ACCELERATOR BRACKET, (See CONTROLS SECTION for Breakdown)
