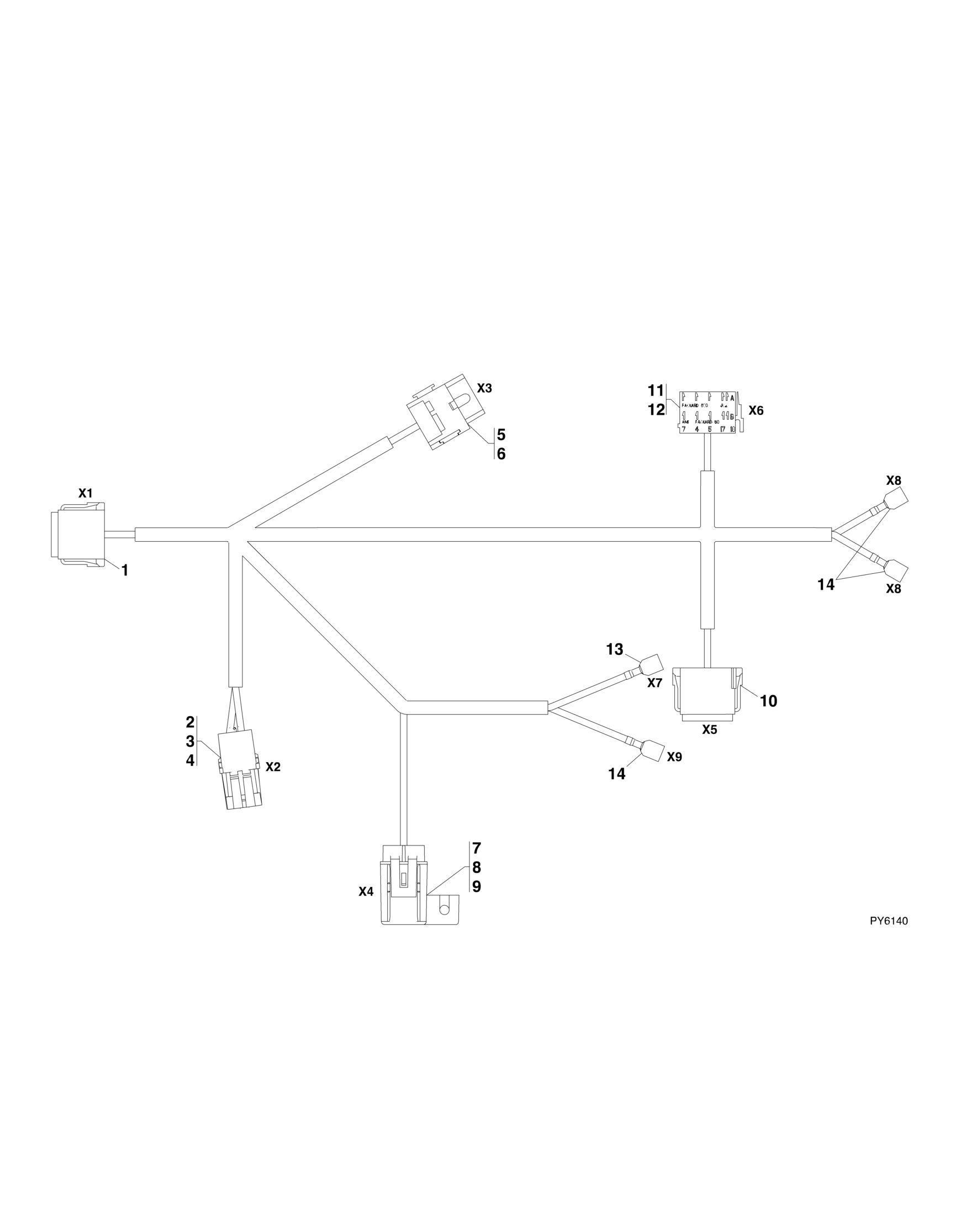

FIGURE 10 20. CAB ROAD LIGHTS HARNESS

FIGURE 10-20. CAB ROAD LIGHTS HARNESS

FIGURE 10-20. CAB ROAD LIGHTS HARNESS

ITEM PART NUMBER QTY DESCRIPTION REV

1001090509 1 CAB ROAD LIGHTS HARNESS, (if equipped), (includes all items) C 1 4460851 1 CONNECTOR 1 80604025 1 WEDGE LOCK 2 4461157 1 CONNECTOR 3 4460475 2 TERMINAL 4 8220081 1 SEAL 5 1001117058 1 CONNECTOR 6 4460419 2 TERMINAL 7 1001117018 1 CONNECTOR, (includes 15 amp fuse) 8 1001116733 2 TERMINAL 9 7029771 1 COVER 10 4460934 1 CONNECTOR 10 80604016 1 WEDGE LOCK 11 1001117079 1 CONNECTOR 12 1001118384 7 TERMINAL 13 N.S.S. 1 1/4 SPADE TERMINAL 14 N.S.S. 3 1/4 FEMALE TERMINAL
