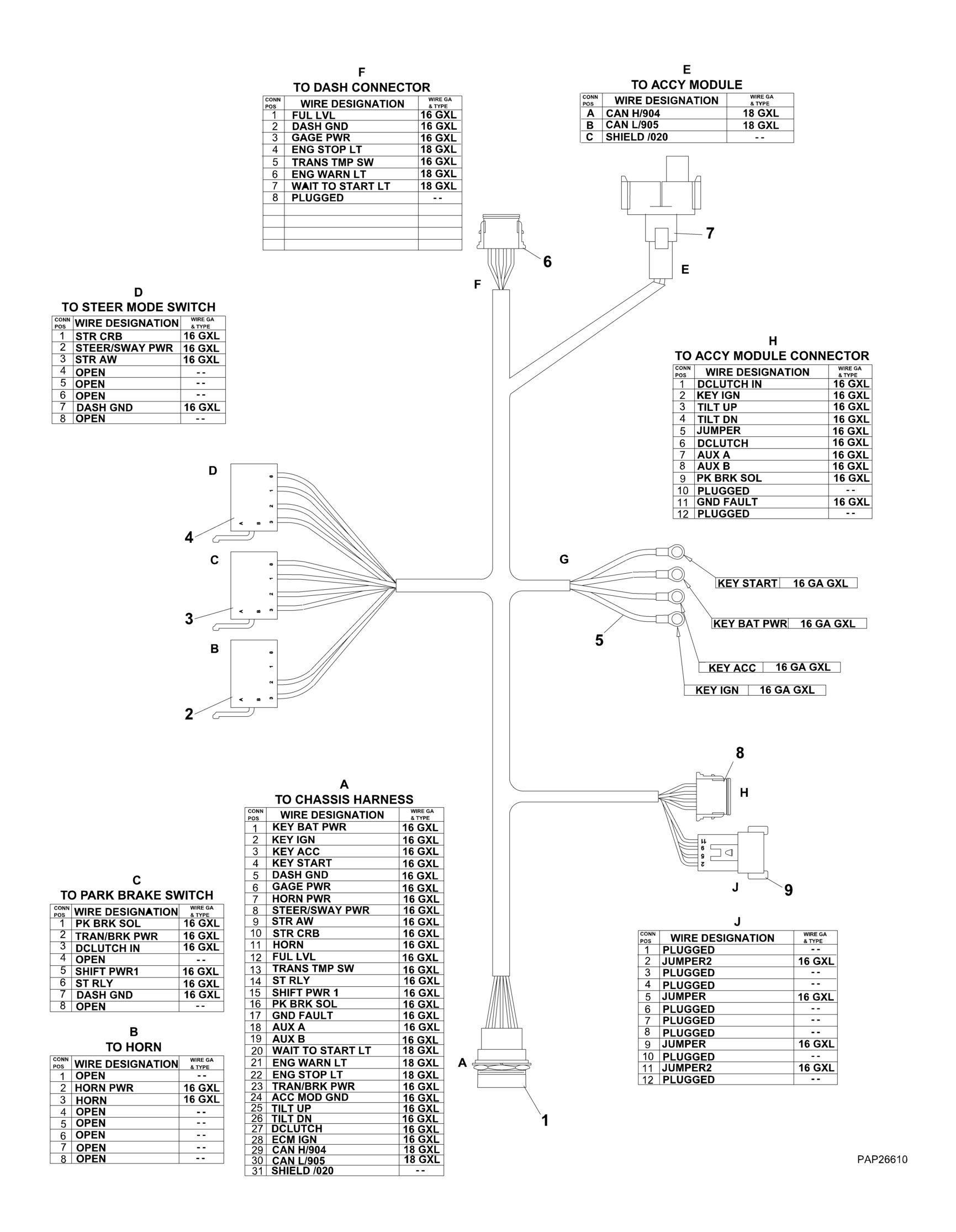

FIGURE 10 16. DASH HARNESS

FIGURE 10-16. DASH HARNESS

FIGURE 10-16. DASH HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001108841 1 DASH HARNESS, (includes all items) 1 4460500 1 CONNECTOR 1 4460465 30 TERMINAL 1 4460466 1 PLUG 1 83481286 1 NUT 1 83481285 1 LOCKWASHER 2 4460419 2 METRI-PACK CONNECTOR 3 4460419 6 METRI-PACK CONNECTOR 4 4460419 4 METRI-PACK CONNECTOR 5 80963056 1 CONNECTOR 5 4460475 1 TERMINAL 6 8220524 1 CONNECTOR 6 8220525 1 WEDGE LOCK 6 4460465 7 TERMINAL 6 4460466 1 PLUG 7 1001116912 1 CONNECTOR, (includes rear seal) 7 91554019 1 CONNECTOR LOCK 7 4460944 2 TERMINAL 7 4460945 1 CONNECTOR 7 70022224 1 CONNECTOR 7 91554019 1 CONNECTOR LOCK 8 7026425 1 CONNECTOR 8 80604016 1 CONNECTOR LOCK 8 4460465 10 TERMINAL 8 4460466 2 PLUG 9 80363178 1 CONNECTOR 9 80363179 1 CONNECTOR LOCK 9 4460465 4 TERMINAL 9 4460466 8 PLUG

REV

F
