FIGURE 10 23. VEC HARNESS

from JLG G6-42A G9-43A G10-43A Telehandler Parts Manual - PDF DOWNLOAD

FIGURE 12 1. RECOMMENDED SPARE PARTS

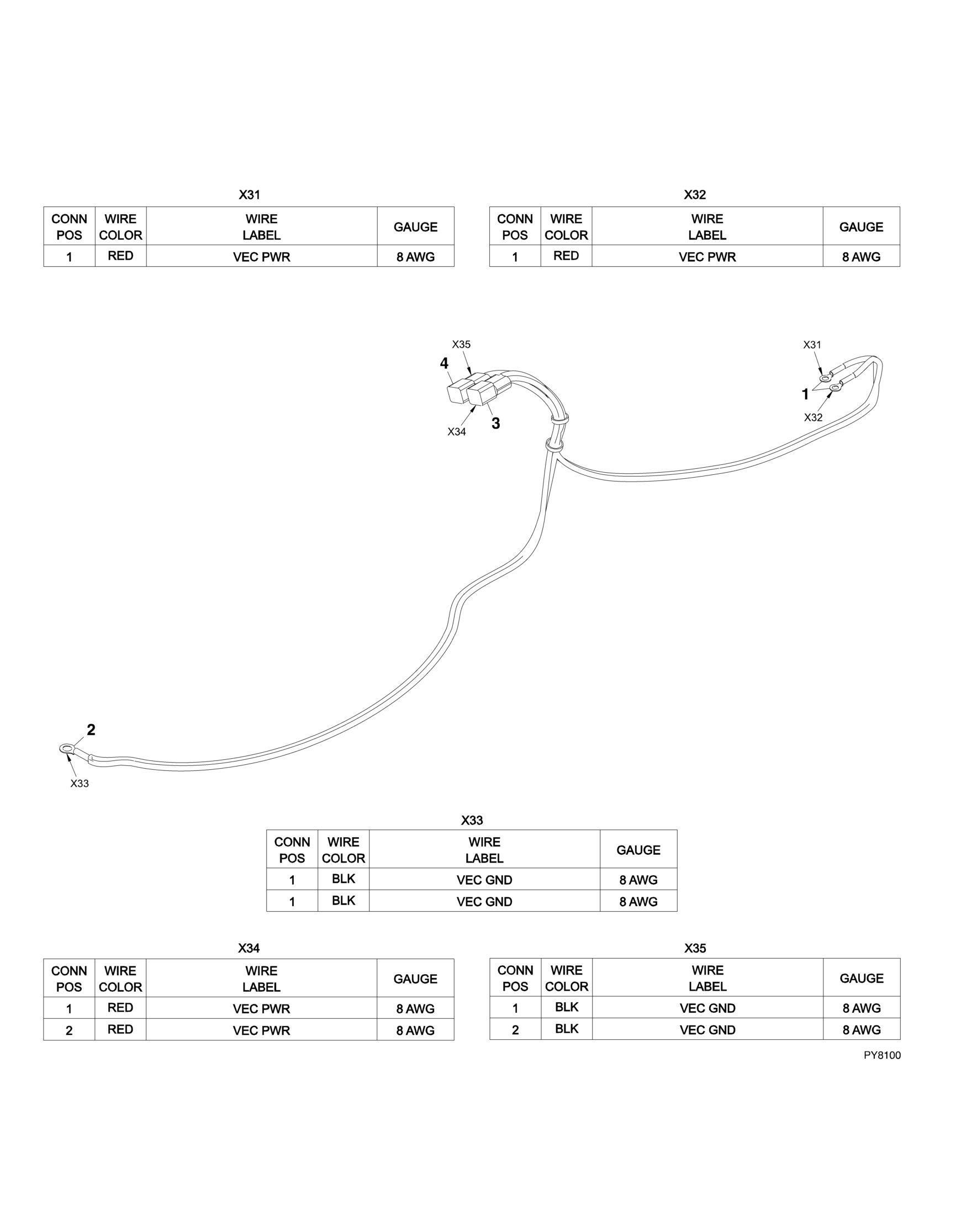

FIGURE 10-23. VEC HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001131891 1 VEC HARNESS, (includes all items) 1 1001117106 2 RING TERMINAL 2 1001117112 1 RING TERMINAL 3 1001117104 1 POSITIVE VEC CONNECTOR 4 1001117103 1 NEGATIVE VEC CONNECTOR
