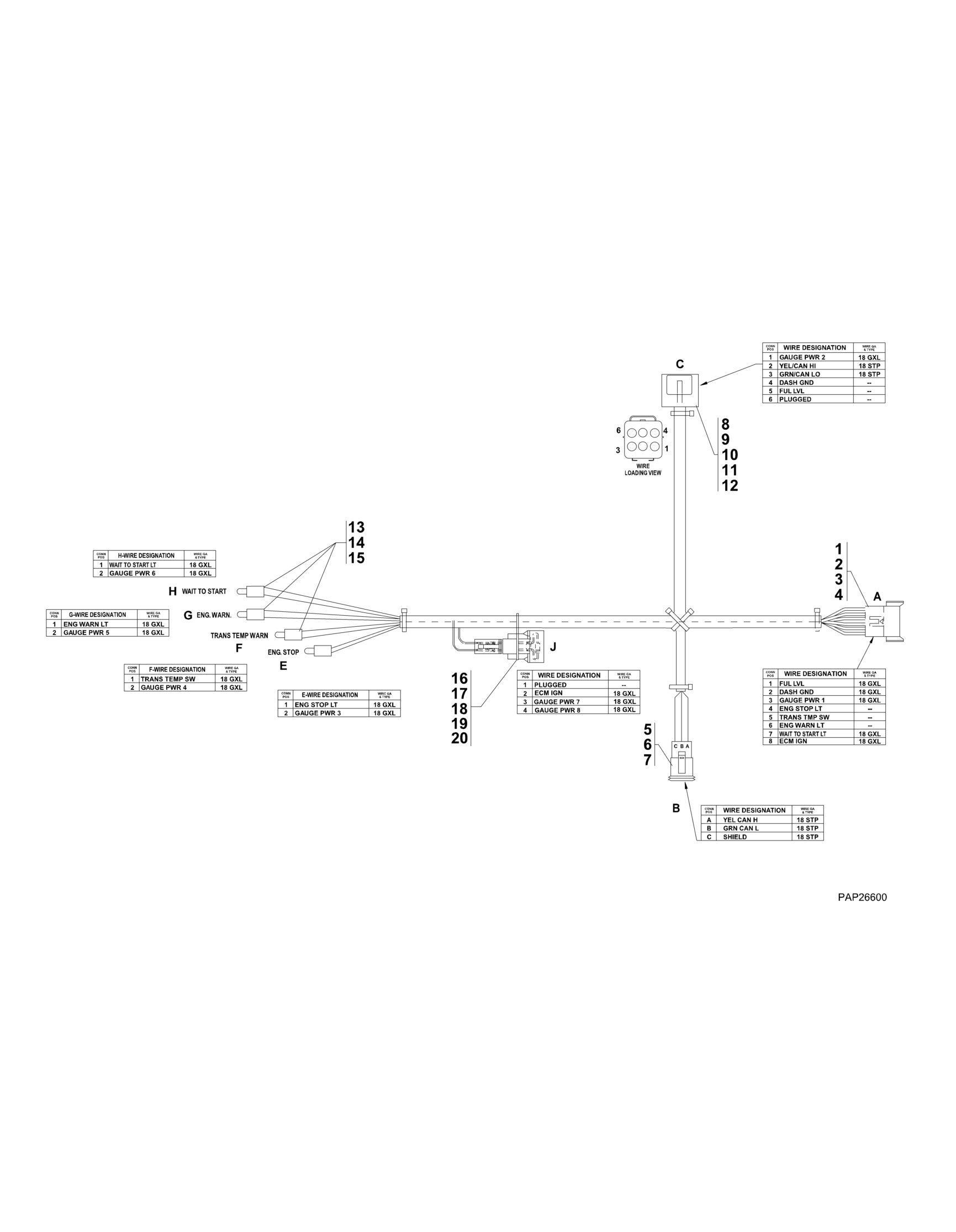

FIGURE 10 17. INSTRUMENT PANEL HARNESS

FIGURE 10-17. INSTRUMENT PANEL HARNESS

FIGURE 10-17. INSTRUMENT PANEL HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001102815 1 INSTRUMENT PANEL HARNESS, (includes all items) 1 91503105 1 8 PIN RECEPTACLE 2 91503106 1 WEDGE LOCK 3 77363228 7 TERMINAL 4 4460466 1 PLUG 5 N.S.S. 1 CONNECTOR 6 70022691 1 WEDGE LOCK 7 4460944 3 CONTACT 8 N.S.S. 1 CONNECTOR 9 N.S.S. 1 DOUBLE LOCK PLATE 10 N.S.S. 1 SOCKET 11 N.S.S. 1 WIRE SEAL 12 N.S.S. 1 PLUG 13 7026437 4 BULB BASE 14 7026438 8 TERMINAL 15 80484088 4 BULB 16 1001116816 1 DIODE 17 4460465 3 TERMINAL 18 80604021 1 WEDGE LOCK 19 4460884 1 CONNECTOR 20 4460466 1 PLUG

REV

C
