FIGURE 10 14. TRANSMISSION RELAY HARNESS

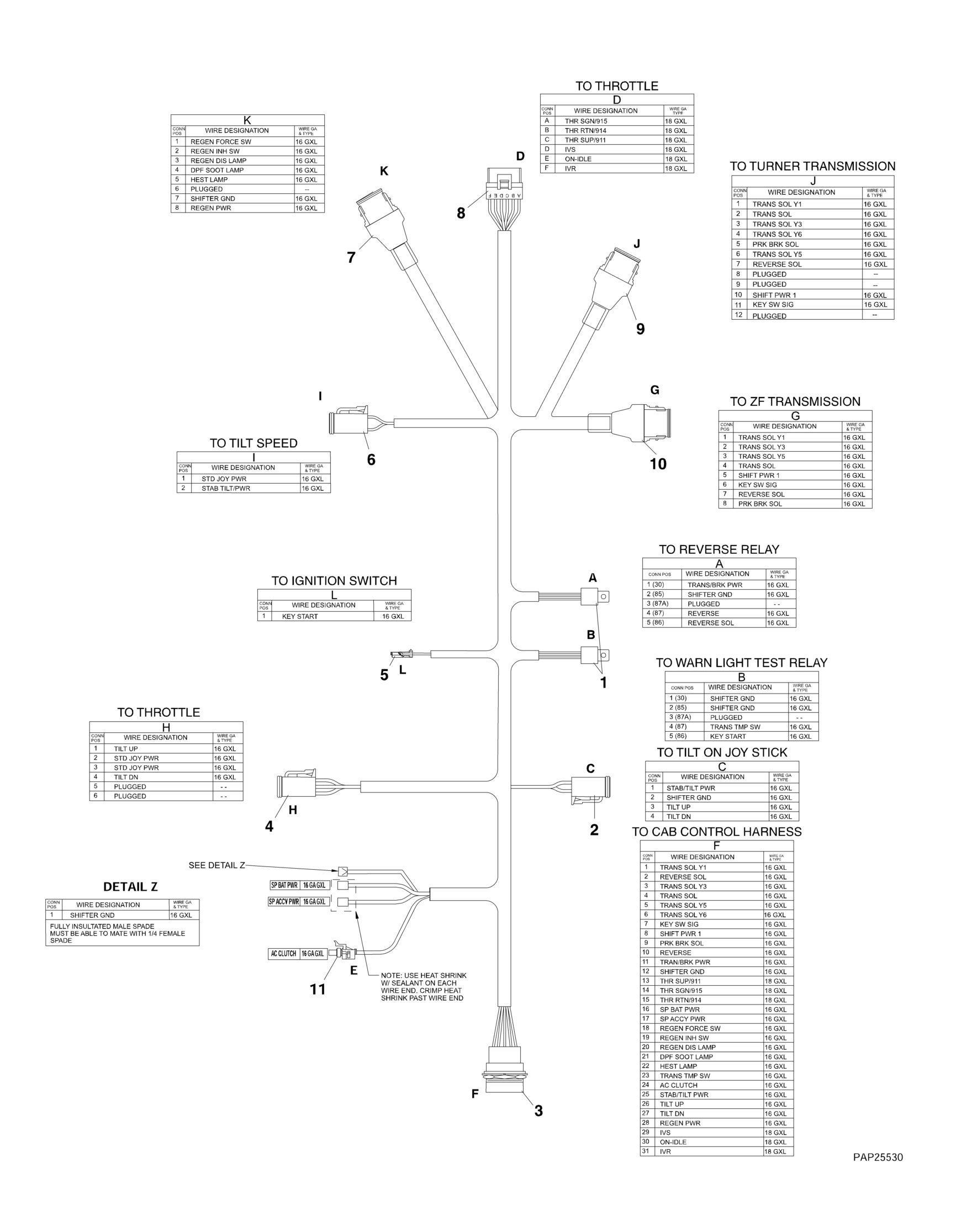

FIGURE 10-14. TRANSMISSION RELAY HARNESS

FIGURE 10-14. TRANSMISSION RELAY HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001140233 1 TRANSMISSION RELAY HARNESS, (includes all items) 1 3740080 2 RELAY 1 1001118282 1 METRI-PACK RELAY 1 1001116733 4 TERMINAL 1 1001128128 1 PLUG 2 4460884 1 CONNECTOR 2 80604021 1 CONNECTOR LOCK 2 4460465 4 TERMINAL 3 4460503 1 CONNECTOR 3 4460464 31 TERMINAL 3 83481286 1 NUT 3 83481285 1 LOCKWASHER 4 91504088 1 CONNECTOR 4 91504107 1 CONNECTOR LOCK 4 77363229 4 CONTACT 4 4460466 2 PLUG 5 80963055 1 CONNECTOR 5 4460457 1 TERMINAL 5 77394009 1 CABLE SEAL, RED 6 7026408 1 CONNECTOR 6 80604018 1 CONNECTOR LOCK 6 77363229 2 CONTACT 7 4460851 1 CONNECTOR 7 80604025 1 WEDGE LOCK 7 77363229 7 CONTACT 7 4460466 1 PLUG 7 70020870 1 BOOT 8 1001117064 1 CONNECTOR 8 91554014 6 TERMINAL 9 80604016 1 WEDGE LOCK 9 4460465 9 TERMINAL 10 4460930 1 CONNECTOR 10 80604025 1 WEDGE LOCK 10 446465 8 TERMINAL 11 80963055 1 CONNECTOR 11 80963068 1 TERMINAL 11 80963065 1 CABLE SEAL
