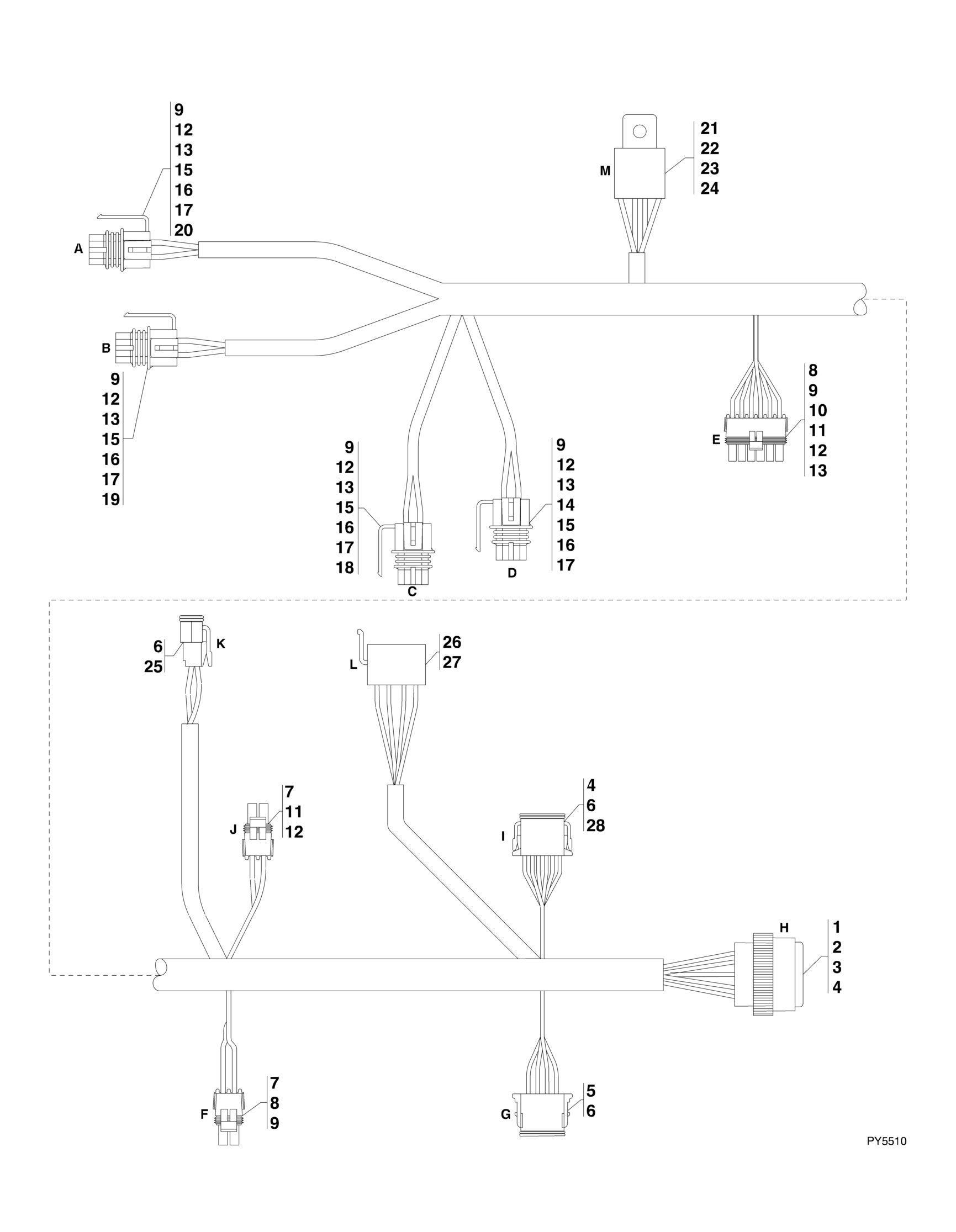

FIGURE 10 13. VEC OPTIONS HARNESS
FIGURE 10-13. VEC OPTIONS HARNESS
FIGURE 10-13. VEC OPTIONS HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001112039 1 VEC BOX HARNESS, (includes all items) 1 91504089 1 CONNECTOR 2 4460464 1 CONTACT 3 4460508 1 CONTACT 4 4460466 1 PLUG 5 4460930 1 CONNECTOR 5 80604025 1 WEDGE LOCK 6 4460465 2 TERMINAL 7 4460742 2 CONNECTOR 8 4460790 2 TERMINAL 9 8220089 6 SEAL 10 4460461 1 CONNECTOR 11 4460457 2 TERMINAL 12 4460458 4 SEAL 13 1001116727 3 PLUG 14 80484081 1 GREEN CONNECTOR 15 7026414 4 CONNECTOR LOCK 16 4460746 4 TERMINAL 17 1001116747 4 TERMINAL 18 80484084 1 BLUE CONNECTOR 19 80484085 1 GRAY CONNECTOR 20 1001121557 1 BLACK CONNECTOR 21 1001118282 1 CONNECTOR, (includes item 22) 22 3740080 1 RELAY 23 1001116733 1 TERMINAL 24 91554023 1 PLUG 25 4460891 1 CONNECTOR 25 80604018 1 WEDGE LOCK 26 7026439 1 HOUSING 27 4460419 1 TERMINAL 28 4460933 1 CONNECTOR 28 80604016 1 WEDGE LOCK
REV
E
