FIGURE 10 11. TRANSMISSION HARNESS

from JLG G6-42A G9-43A G10-43A Telehandler Parts Manual - PDF DOWNLOAD

FIGURE 10 24. TILT AND AUX CONTROL MODULE

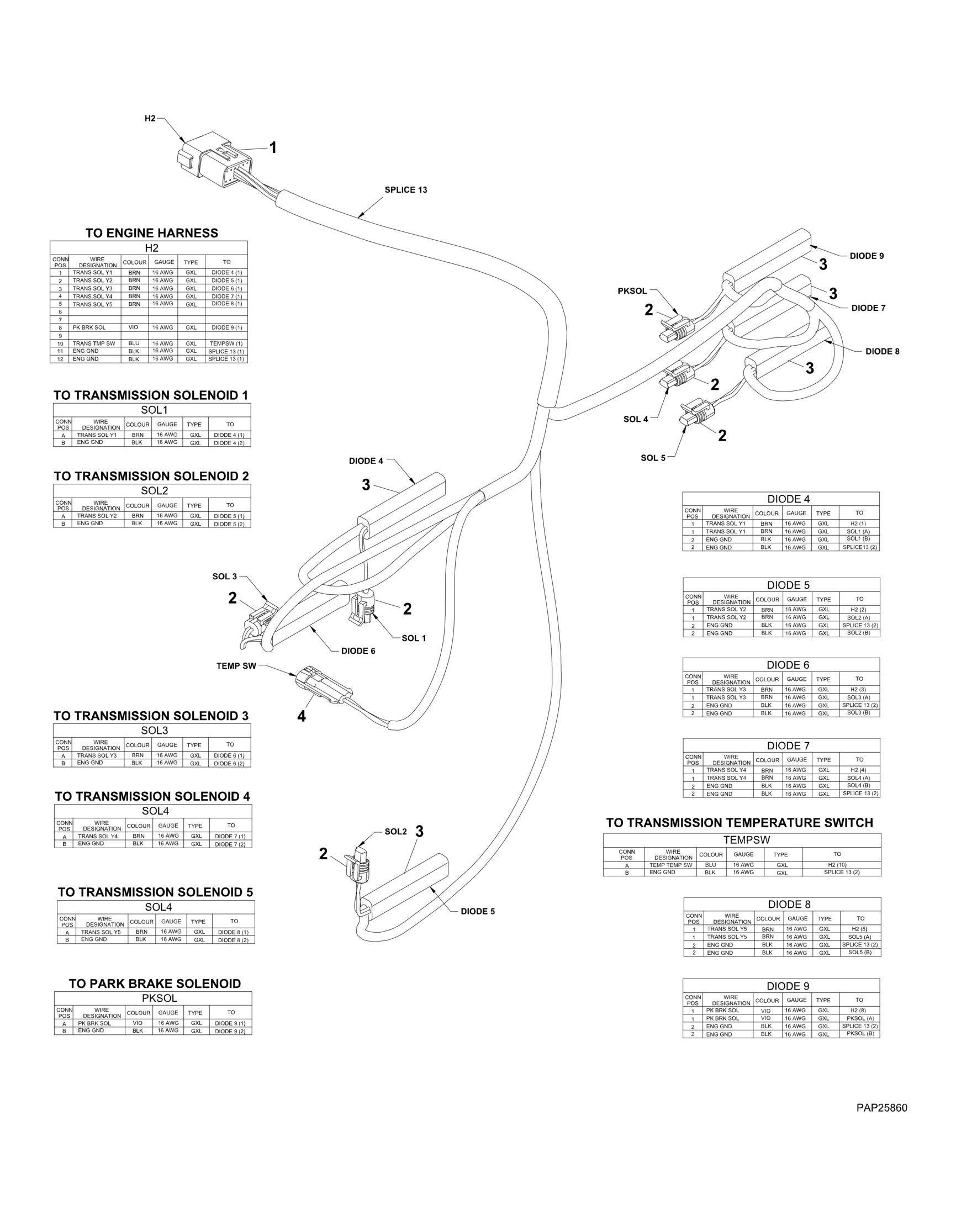

FIGURE 10-11. TRANSMISSION HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001115528 1 TRANSMISSION HARNESS, (includes all items) 1 4460970 1 FEMALE RECEPTACLE, (includes rear seal) 1 80363179 1 SECONDARY WEDGE LOCK 1 4460465 9 TERMINAL 1 4460466 3 PLUG 2 4460955 6 CONNECTOR 2 1001116748 2 TERMINAL 3 91363021 6 MOLDED DIODE 4 1001117073 1 CONNECTOR 4 70022741 1 WEDGE LOCK

FIGURE 10 11. TRANSMISSION HARNESS
