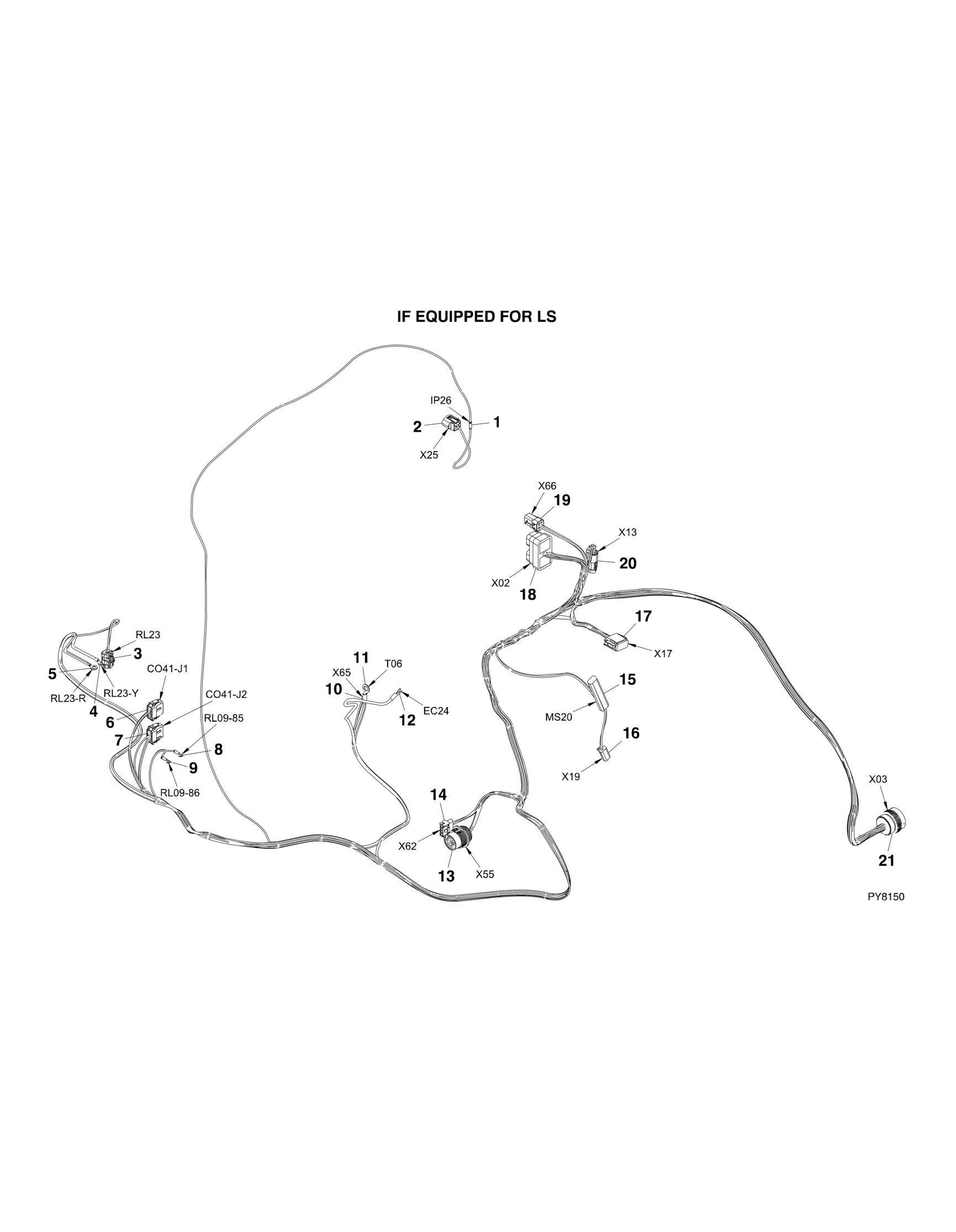

FIGURE 10 10. ENGINE HARNESS IF EQUIPPED FOR LS

FIGURE 10-10. ENGINE HARNESS IF EQUIPPED FOR LS

FIGURE 10-10. ENGINE HARNESS IF EQUIPPED FOR LS

ITEM PART NUMBER QTY DESCRIPTION REV

1001139248 1 ENGINE HARNESS, (if equipped for LS), (includes all items) G 1 91363021 1 MOLDED DIODE 2 1001125748 1 CONNECTOR 2 1001125773 3 TERMINAL 3 1001116950 1 CONNECTOR 3 4460942 2 TERMINAL 4 4460312 1 RING TERMINAL 5 4460312 1 RING TERMINAL 5 4460312 2 RING TERMINAL 6 1001116808 1 PLUG 6 4460928 3 TERMINAL 7 1001116774 1 PLUG 7 4460918 2 TERMINAL 7 4460928 2 TERMINAL 8 4460247 1 RING TERMINAL 9 4460247 1 RING TERMINAL 10 4460256 1 RING TERMINAL 11 4460019 1 RING TERMINAL 11 4460019 2 RING TERMINAL 12 1001152595 1 FORK TERMINAL 13 1001112612 1 CONNECTOR 13 1001106736 1 DUST CAP AND LANYARD 13 4460464 2 TERMINAL 13 4460943 2 TERMINAL 14 4460761 1 CONNECTOR 14 4460321 1 PLUG 14 1001143551 1 SEAL 14 4460809 1 SEAL PLUG 14 4460267 4 TERMINAL 15 91363021 1 MOLDED DIODE 16 4460891 1 PLUG 16 4460465 2 SOCKET TERMINAL 17 4460933 1 PLUG 17 4460465 10 SOCKET TERMINAL 18 1001116831 1 PLUG 18 1001119619 14 TERMINAL 19 1001116810 1 PLUG 19 4460509 4 TERMINAL 20 1001144147 1 CONNECTOR 20 4460943 2 TERMINAL 21 1001116938 1 PLUG 21 4460465 24 SOCKET TERMINAL 21 4460944 2 TERMINAL
