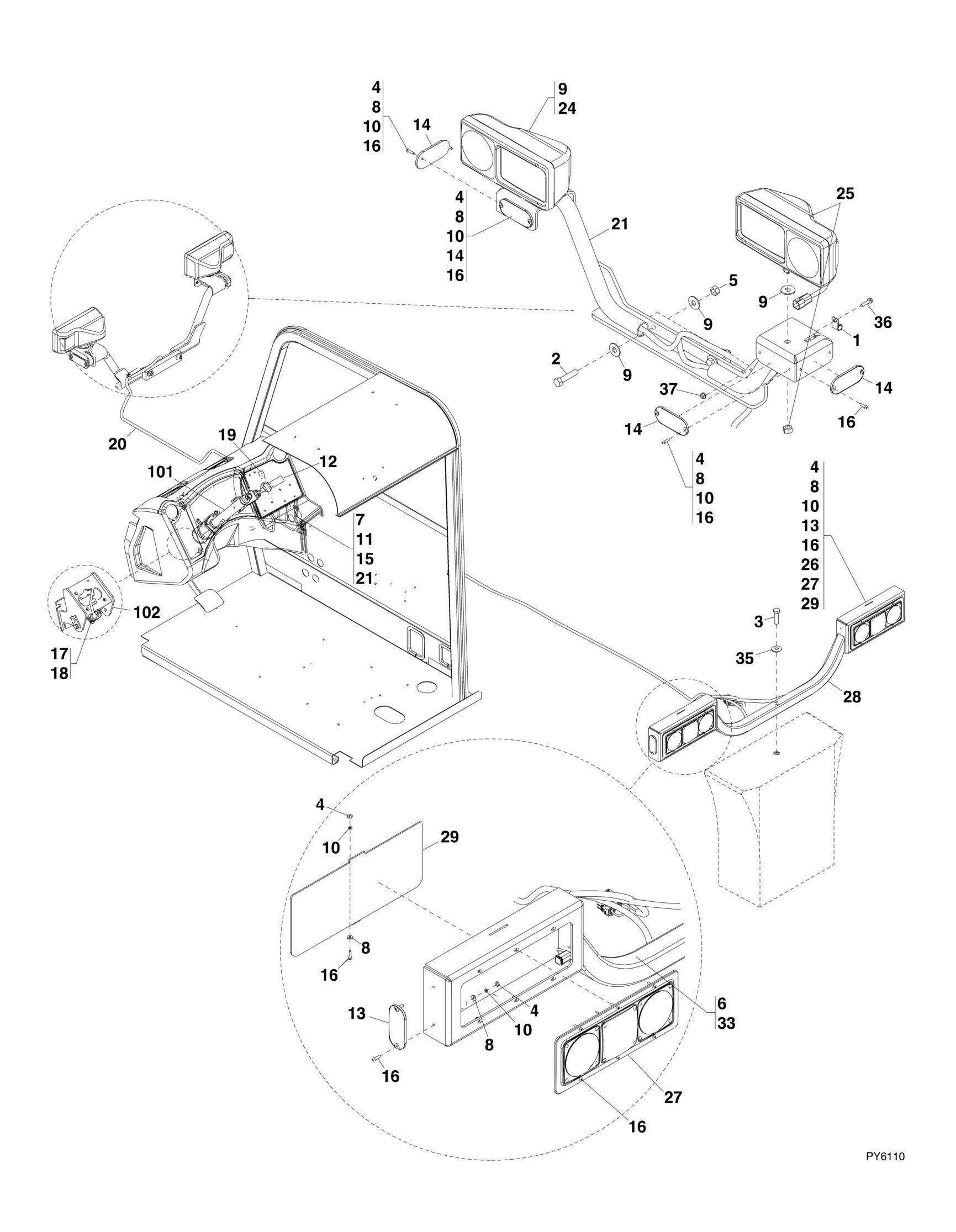

FIGURE 10 8. ROAD LIGHTS INSTALLATION

FIGURE 10-8. ROAD LIGHTS INSTALLATION

FIGURE 10-8. ROAD LIGHTS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001113091 Ref ROAD LIGHTS INSTALLATION, (if equipped), (not available to order, see items 1 thru 37 for service) 1 85941016 1 1/2IN CLAMP 2 0641818 2 HEX HD CAPSCREW, 1/2-13X2-1/4, GR5 3 0642222 1 HEX HD CAPSCREW, 3/4-10X2-3/4, GR5 4 3311001 26 HEX NUT, #10-24, GR2 5 3311805 2 HEX LOCKNUT, 1/2-13, GR2 6 3941506 2 SELF-TAPPING MACHINE SCREW, 5/16X3/4 7 4461254 1 CONNECTOR 8 4711000 28 WASHER, #10 9 4751800 6 WASHER, 1/2 10 4761000 26 LOCKWASHER, #10 11 8220050 1 CONNECTOR 12 8223073 1 TURN SIGNAL SELECTOR 13 10718991 2 RED REFLECTOR 14 10718992 4 YELLOW REFLECTOR 15 8093168 1 VARIABLE LOAD FLASHER, (mounted under right dash panel) 16 88261010 26 BUTTON HD CAPSCREW, #10-24X3/4 17 91143117 1 STOPLIGHT SWITCH 18 91511127 1 STOPLIGHT SWITCH MOUNTING TAB 19 1001090459 1 HAZARD SWITCH 20 Ref FRAME ROAD LIGHTS HARNESS, (See FRAME ROAD LIGHTS HARNESS for Breakdown) 21 Ref CAB ROAD LIGHTS HARNESS, (See CAB ROAD LIGHTS HARNESS for Breakdown) 23 1001094264 1 FRONT ROAD LIGHTS BRACKET 24 1001094390 1 RH FORWARD ROAD LIGHT ASSY, (torque to 50 lb-ft/68 Nm) 25 1001094391 1 LH FORWARD ROAD LIGHT ASSY, (torque to 50 lb-ft/68 Nm) 26 1001094392 1 RH TAIL LIGHT ASSY 27 1001094393 1 LH TAIL LIGHT ASSY 28 1001094523 1 TAIL LIGHT BRACKET 29 1001094824 2 TAIL LIGHT COVER 33 1320263 2 3/8IN CLAMP 35 4752200 1 WASHER, 3/4 36 0791408 1 SERRATED FLANGE HEX HD CAPSCREW, 1/4-20X1 37 3311408 1 FLANGE NUT, 1/4-20, GRADE F 101 Ref STEERING COLUMN, (See CONTROLS SECTION for Breakdown) 102 Ref BRAKE PEDAL INSTALLATION, (See CONTROLS SECTION for Breakdown)

REV

A, 4
