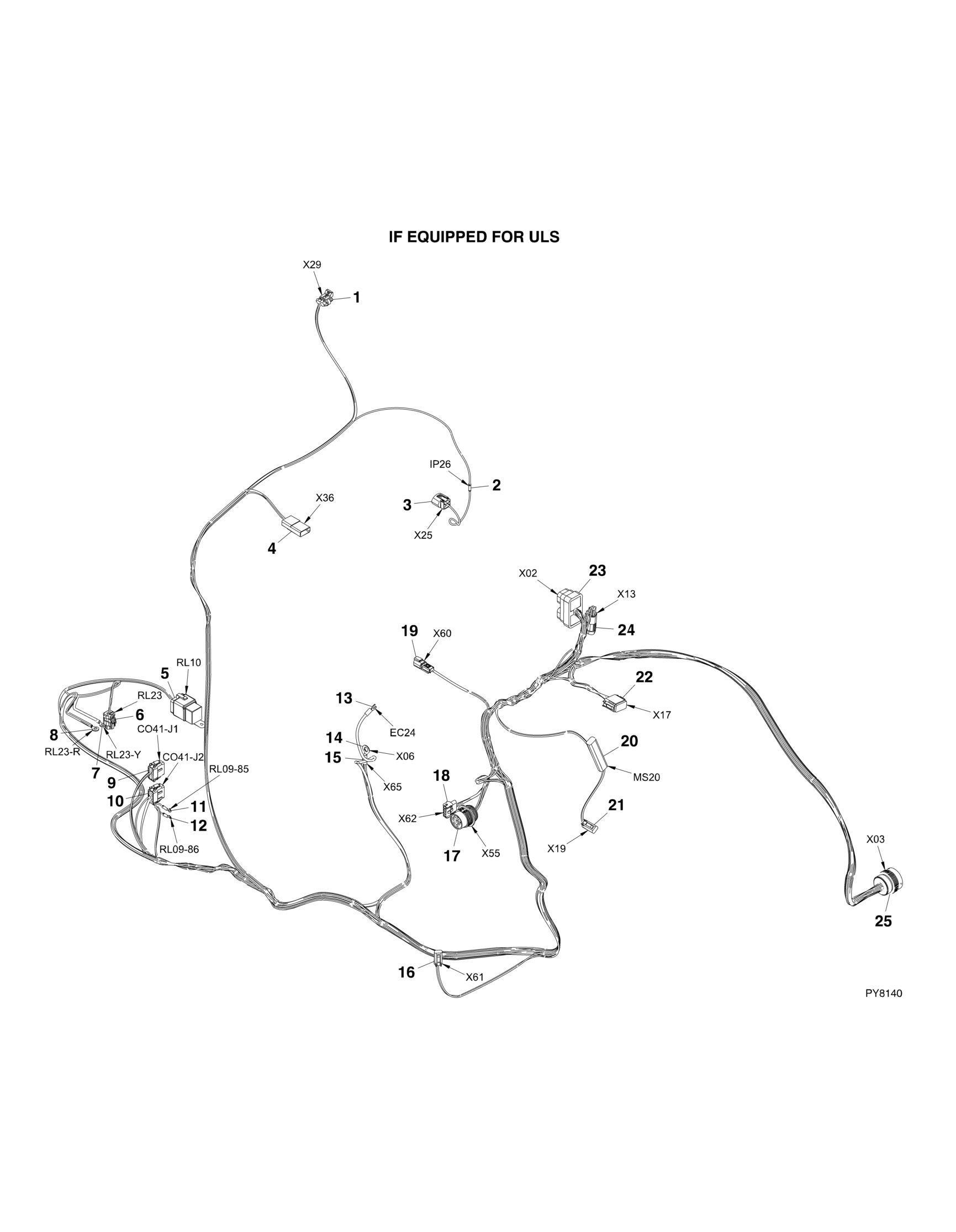

FIGURE 10 9. ENGINE HARNESS IF EQUIPPED FOR ULS

FIGURE 10-9. ENGINE HARNESS IF EQUIPPED FOR ULS

FIGURE 10-9. ENGINE HARNESS IF EQUIPPED FOR ULS

ITEM PART NUMBER QTY DESCRIPTION REV

1001136140 1 ENGINE HARNESS, (if equipped for ULS), (includes all items) H 1 1001125027 1 CONNECTOR 1 8220124 3 TERMINAL 2 91363021 1 MOLDED DIODE 3 1001125748 1 CONNECTOR 3 1001125773 1 TERMINAL 4 1001134192 1 CONNECTOR 5 1001145707 1 CONNECTOR 5 1001116733 4 TERMINAL 5 8220101 1 PLUG 6 1001116950 1 CONNECTOR 6 1001118390 2 TERMINAL 7 4460312 1 RING TERMINAL 8 1001117106 1 RING TERMINAL 9 1001116808 1 PLUG 9 4460928 3 TERMINAL 10 1001116774 1 PLUG 10 4460928 4 TERMINAL 11 4460247 1 RING TERMINAL 12 4460247 1 RING TERMINAL 13 1001117111 1 FORK TERMINAL 14 8220164 1 RING TERMINAL 15 4460256 1 RING TERMINAL 16 4460891 1 PLUG 16 4460465 2 SOCKET TERMINAL 17 1001112612 1 CONNECTOR 17 1001106736 1 DUST CAP AND LANYARD 17 4460464 2 TERMINAL 17 4460943 2 TERMINAL 18 4460761 1 CONNECTOR 18 4460321 1 PLUG 18 1001143551 2 SEAL 18 4460809 4 SEAL PLUG 18 4460267 4 TERMINAL 19 4460897 1 CONNECTOR 19 4460464 2 TERMINAL 20 91363021 1 MOLDED DIODE 21 4460891 1 PLUG 21 4460465 2 SOCKET TERMINAL 22 4460933 1 PLUG 22 4460465 10 SOCKET TERMINAL 23 1001126208 1 PLUG 23 1001126009 25 TERMINAL 24 1001144147 1 CONNECTOR 24 4460943 2 TERMINAL 25 1001116938 1 PLUG 25 4460465 30 SOCKET TERMINAL
