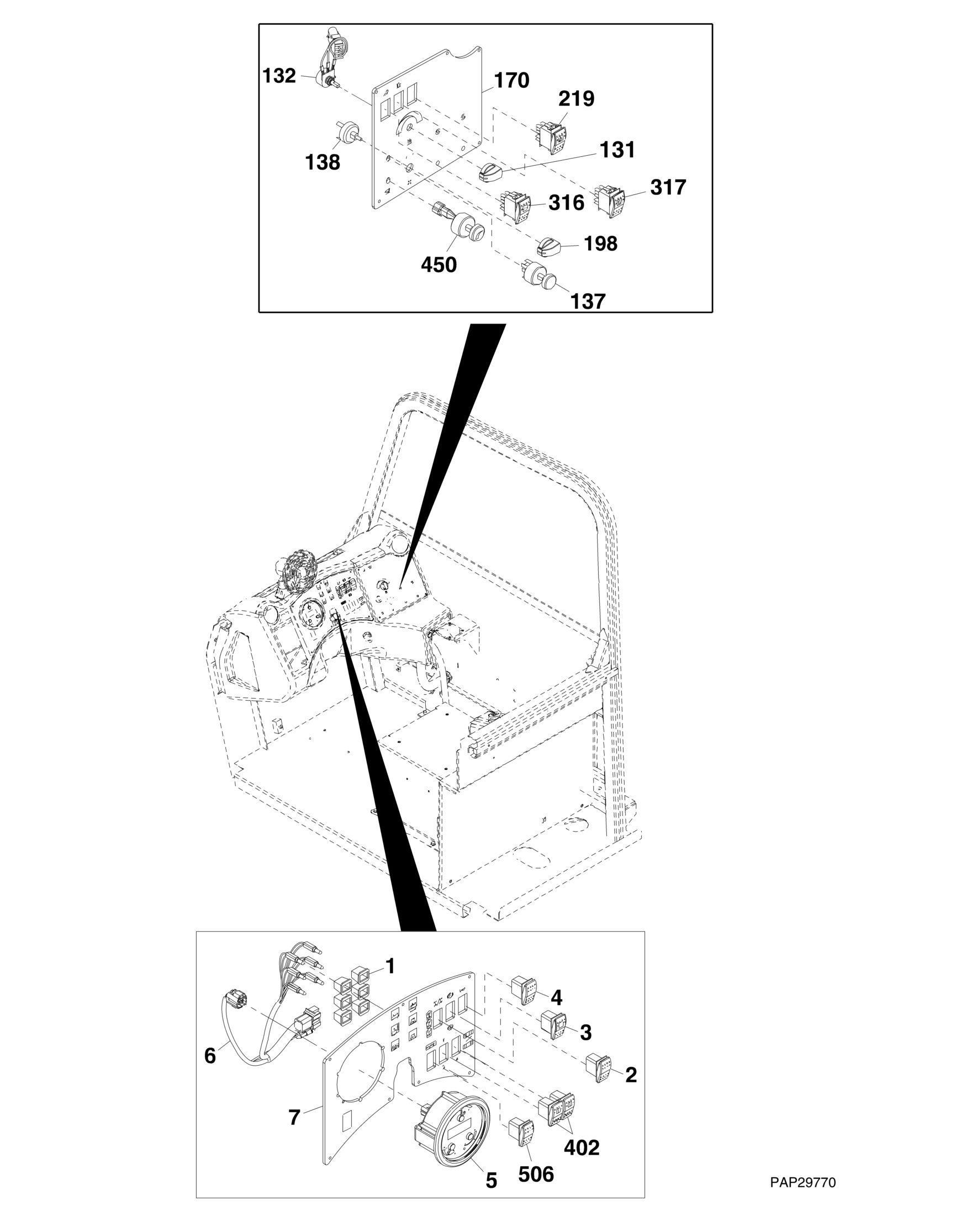

FIGURE 10 6. CAB SWITCHES

FIGURE 10-6. CAB SWITCHES

FIGURE 10-6. CAB SWITCHES

ITEM PART NUMBER QTY

DESCRIPTION

1001101666 1 INSTRUMENT PANEL, (includes items 1 thru 7) 1 N.S.S. 6 BULB HOUSING 2 91473127 1 STEER SELECT SWITCH 3 91474465 1 PARK BRAKE SWITCH 4 7026440 1 HORN SWITCH 5 1001099163 1 3-IN-1 GAUGE 6 Ref INSTRUMENT PANEL HARNESS, (See INSTRUMENT PANEL HARNESS for Breakdown) 7 1001099378 1 DASH PANEL 131 1001151847 2 KNOB, (if equipped) 132 1001151643 1 POTENTIOMETER ASSY, (if equipped) 137 80963101 1 WIPER SWITCH, (enclosed cab) 138 80964001 1 BLOWER SWITCH, (if equipped) 170 Ref RH DASH PANEL, (See CAB SECTION for Breakdown) 198 1001152326 1 KNOB HANDLE 219 1001090459 1 HAZARD SWITCH, (if equipped) 316 1001090460 1 WORK LIGHT SWITCH, (if equipped) 317 1001090461 1 BEACON LIGHT SWITCH, (if equipped) 402 91473127 2 AUXILIARY ELECTRICAL SWITCH, (if equipped) 450 1001106688 1 TILT RHEOSTAT SWITCH 506 1001001242 1 HYDRAULIC QUICK SWITCH, (if equipped)

REV

N
