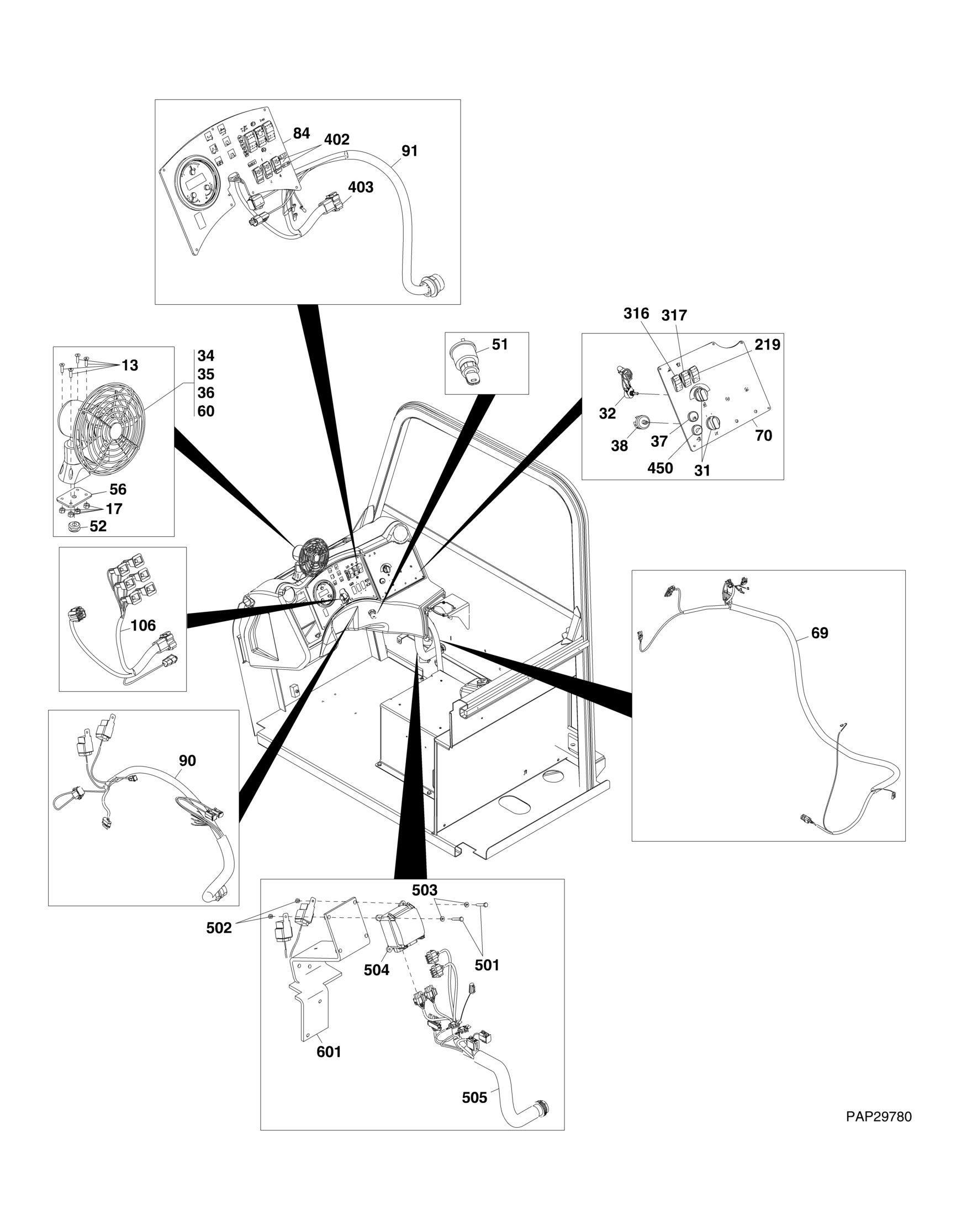

FIGURE 10 5. CAB ELECTRICAL INSTALLATION

FIGURE 10-5. CAB ELECTRICAL INSTALLATION

FIGURE 10-5. CAB ELECTRICAL INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

13 88211030 4 SOCKET HD CAPSCREW, 10-24X3/4, (enclosed cab) 17 77143017 4 WHIZ LOCKNUT, 10-24, (enclosed cab) 31 Ref KNOB, (See CAB SWITCHES for Breakdown) 32 Ref POTENTIOMETER ASSY, (See CAB SWITCHES for Breakdown) 34 80963058 1 WEATHERPACK SHROUD, (enclosed cab) 35 80963065 2 WEATHERPACK SEAL, (enclosed cab) 36 80963069 2 MALE WEATHERPACK PIN, (enclosed cab) 37 Ref WIPER SWITCH, (See CAB SWITCHES for Breakdown) 38 Ref BLOWER SWITCH, (See CAB SWITCHES for Breakdown) 51 91033317 1 IGNITION SWITCH, (includes key) 52 91033425 1 GROMMET, (enclosed cab) 56 91401443 1 PLATE, (enclosed cab) 60 91403608 1 FAN, (enclosed cab) 69 Ref ENCLOSED CAB OPTIONS HARNESS, (if equipped), (See ENCLOSED CAB OPTIONS HARNESS for Breakdown)

70 Ref RH DASH PANEL, (See CAB SECTION for Breakdown )

84 90

91 Ref INSTRUMENT PANEL, (See CAB SWITCHES for Breakdown) Ref TRANSMISSION RELAY HARNESS, (See TRANSMISSION RELAY HARNESS for Breakdown) Ref DASH HARNESS, (See DASH HARNESS for Breakdown)

106 Ref INSTRUMENT PANEL HARNESS, (See INSTRUMENT PANEL HARNESS for Breakdown)

219 316 317

Ref HAZARD SWITCH, (See CAB SWITCHES for Breakdown) Ref WORK LIGHT SWITCH, (See CAB SWITCHES for Breakdown) Ref BEACON LIGHT SWITCH, (See CAB SWITCHES for Breakdown) 402 Ref AUX ELECTRIC SWITCHES, (See CAB SWITCHES for Breakdown) 403 91563192 1 CAB AUXILIARY ELECTRICAL HARNESS 403 4460970 1 CONNECTOR 403 80363179 1 WEDGELOCK 403 4460464 9 TERMINAL 403 4460466 3 PLUG 403 4460419 14 TERMINAL 450 Ref TILT RHEOSTAT, (See CAB SWITCHES for Breakdown) 1001115891 Ref ELECTRICAL OPTIONS ASSY, (not available to order, see items 501 thru 506 for service) 501 0641412 4 HEX HD CAPSCREW, 1/4-20X1-1/2, GR5, (torque to 96 lb-ft/130 Nm) 502 3311401 4 HEX NUT, 1/4-20 503 4751200 4 WASHER, 1/2 504 1001126285 1 VEC OPTIONS BOX 505 Ref VEC OPTIONS HARNESS, (See VEC HARNESS for Breakdown) 506 4240033 2 TIE WRAP, (not shown) 601 Ref BRACKET, (See CONTROLS SECTION for Breakdown)

REV

A

B
