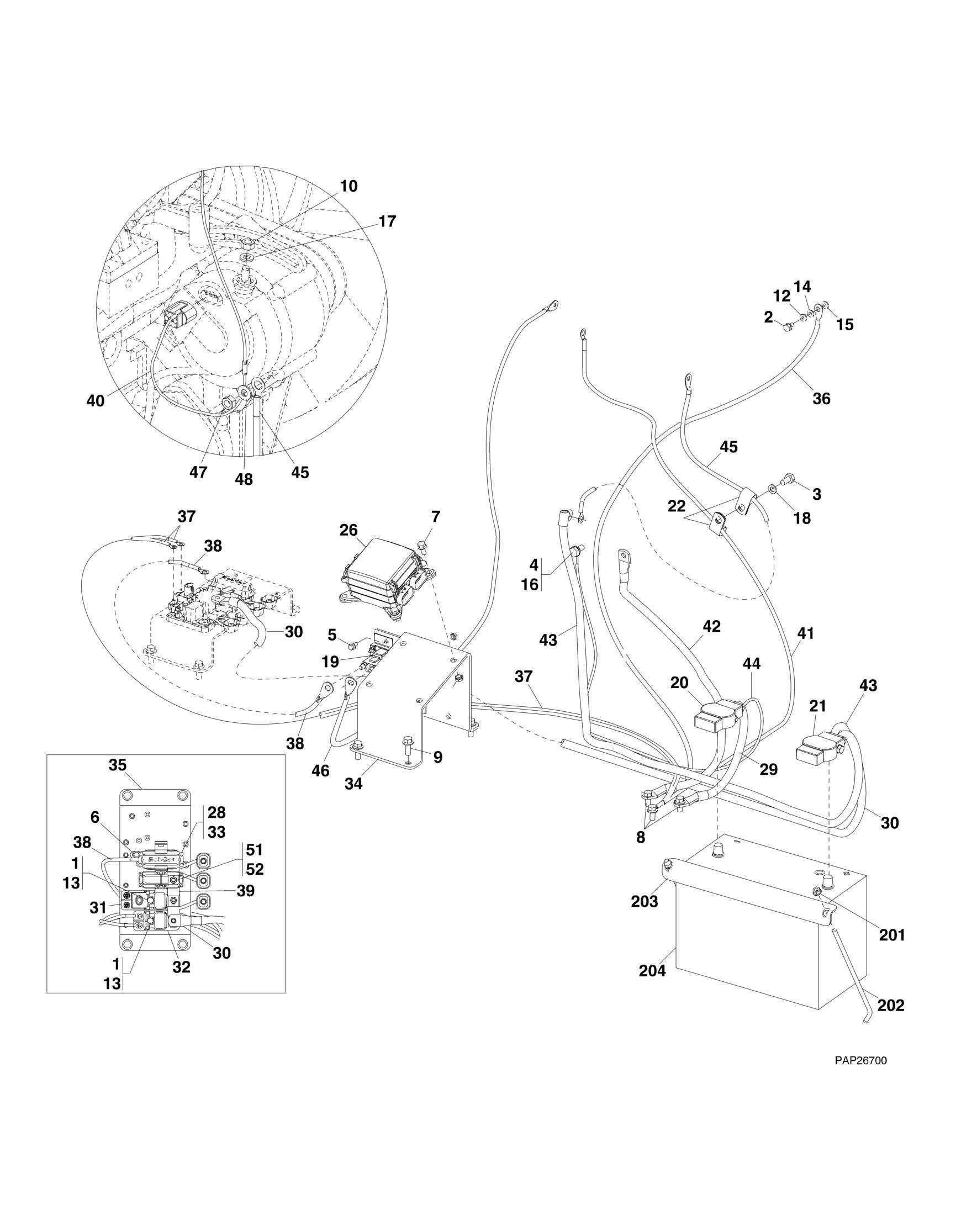

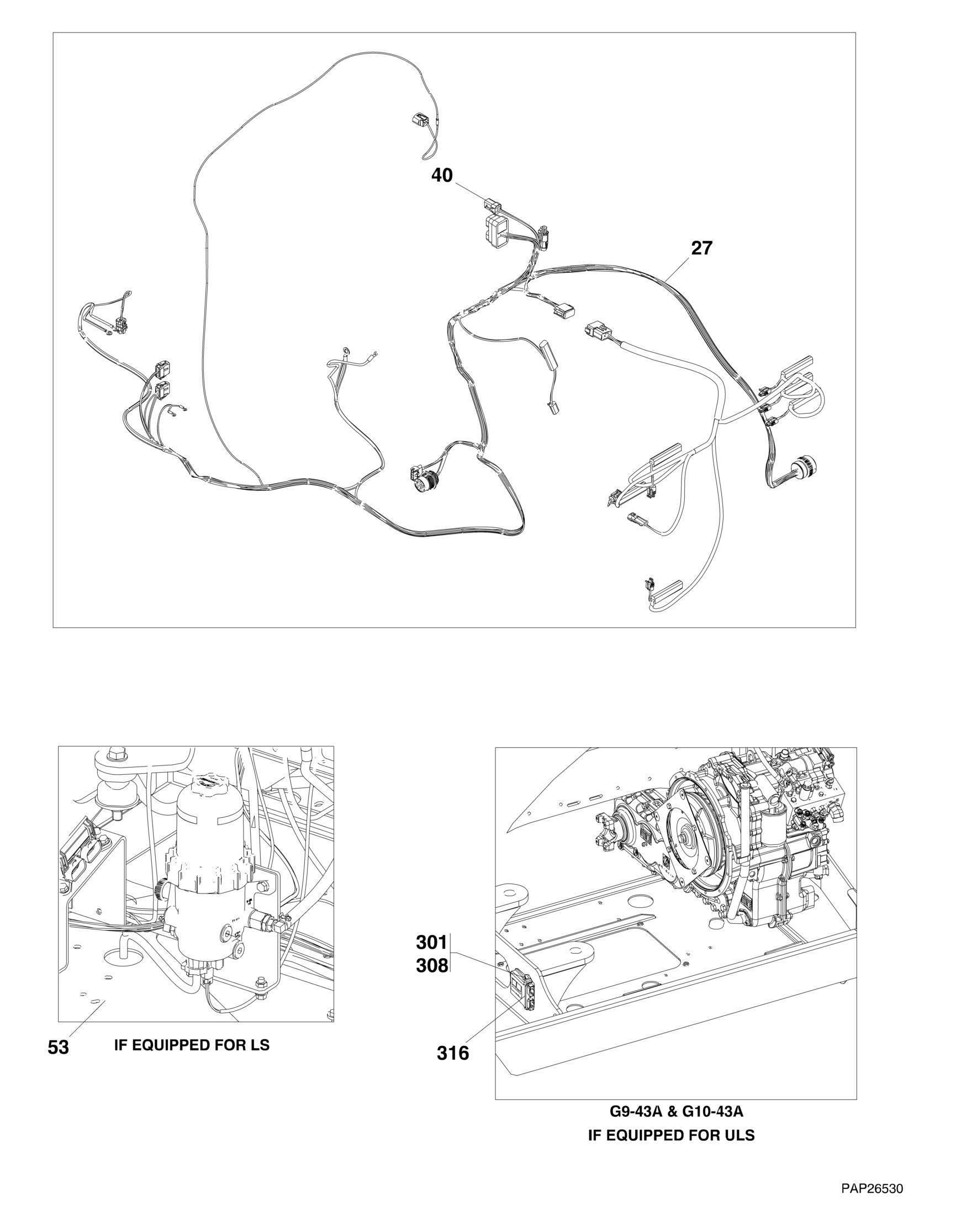

FIGURE 10 1. ENGINE COMPARTMENT ELECTRICAL INSTALLATION
FIGURE 10-1. ENGINE COMPARTMENT ELECTRICAL INSTALLATION
FIGURE 10-1. ENGINE COMPARTMENT ELECTRICAL INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
1001131821 Ref ELECTRICAL COMPONENT INSTALLATION, (if equipped for ULS), (not available to order, see items 1 thru 52 for service) 1001139438 Ref ELECTRICAL COMPONENT INSTALLATION, (if equipped for LS), (includes items 1 thru 53 for service) 1 0641415 2 HEX HD CAPSCREW, 1/4-20X1.875, GR5 2 0641504 1 HEX HD CAPSCREW, 5/16-18X1/2, GR5 3 0761010 1 HEX HD CAPSCREW, M10X20, GR8.8 4 0761012 1 HEX HD CAPSCREW, M10X25, GR8.8 5 0791404 3 SCREW, 1/4-20X1/2 6 0791406 2 SCREW, 1/4-20X3/4 7 0791506 4 SCREW, 5/16-18X3/4 8 0791606 3 SCREW, 3/8-16X3/4 9 0811608 8 SCREW, 3/8-16X1 10 3290601 1 HEX NUT, M6X1, (if equipped for ULS) 10 3290801 1 HEX NUT, M8X1.25, (if equipped for LS) 12 4711500 1 WASHER, 5/16 13 4761400 2 WASHER, 1/4 14 4761500 1 WASHER, 5/16 15 4771500 1 STAR WASHER, 5/16 16 4812000 1 WASHER, 10mm 17 4831700 1 SPRING LOCKWASHER, 6mm, (if equipped for ULS) 17 4831900 1 SPRING LOCKWASHER, 8mm, (if equipped for LS) 18 4832000 1 SPRING LOCKWASHER, 10mm 19 8225122 1 RELAY 20 1001148992 1 NEGATIVE BATTERY CLAMP 21 1001148991 1 POSITIVE BATTERY CLAMP 22 8406105 2 TUBE CLIP, 0.75 26 1001108433 1 VEC CONTROL MODULE 27 Ref TRANSMISSION HARNESS, (See TRANSMISSION HARNESS for Breakdown) 28 1001118245 1 FUSE, 250 AMP, (if equipped for ULS) 28 2400087 1 FUSE, 300 AMP, (if equipped for LS) 29 1001145301 1 CABLE 30 1001127488 1 CABLE 31 1001127694 1 RELAY 32 1001127699 1 FUSE 33 1001127700 1 FUSE HOLDER 34 1001127748 1 VEC BOX MOUNT 35 1001127756 1 ELECTRONICS MOUNT 36 1001129277 1 GROUND CABLE 37 Ref VEC HARNESS, (See VEC HARNESS for Breakdown) 38 1001134236 1 FUSE 39 1001134470 1 BUSSBAR CONNECTOR 40 Ref ENGINE HARNESS, (See ENGINE HARNESS for Breakdown) 41 1001136332 1 ALTERNATOR POWER CABLE 42 1001127489 1 STARTER GROUND CABLE 43 1001151408 1 RELAY TO STARTER POSITIVE CABLE 44 1001143377 1 ENGINE TO BATTERY NEGATIVE CABLE 45 1001134232 1 ALTERNATOR GROUND CABLE 46 1001134235 1 HEATER POWER CABLE
REV
J
D
ITEM PART NUMBER QTY
DESCRIPTION
47 3290807 1 HEX LOCKNUT, M8X1.25 48 4811900 1 WASHER, 8mm 49 90206198 2 in TRIM-LOK, (not shown) 50 90206203 9 in TRIM-LOK, (not shown) 51 8310453 1 HEX NUT, 5/16-18, GR5 52 0641506 1 HEX HD CAPSCREW, 5/16-18X0.75, GR5 53 1001127519 1 WATER IN FUEL HARNESS, (if equipped for LS) 201 3311508 2 HEX NUT, 5/16-18 202 91081640 2 BATTERY HOLD DOWN BOLT 203 91401281 1 BATTERY HOLD DOWN BRACKET 204 0400075 1 BATTERY, 12V GROUP 31, 6 EYE 301 0641412 2 HEX HD CAPSCREW, 1/4-20X1 1/2, GR5, (if equipped for ULS) 308 4761400 2 LOCK WASHER, 1/4, (if equipped for ULS) 316 1001128743 1 PUMP DISPLACEMENT CONTROLLER, (if equipped for ULS)
