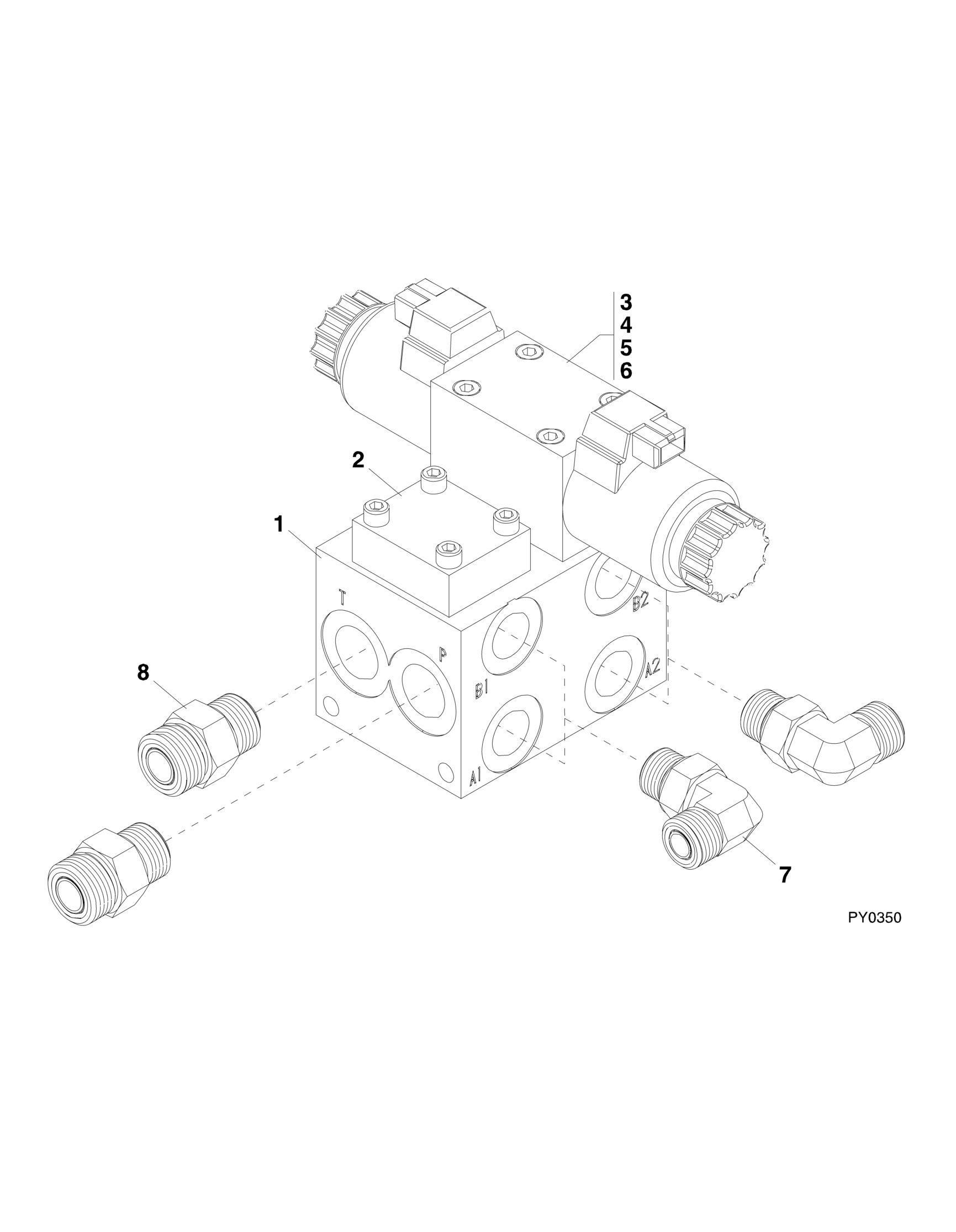

FIGURE 9 29. STEER SELECT VALVE
FIGURE 9-29. STEER SELECT VALVE
FIGURE 9-29. STEER SELECT VALVE
ITEM PART NUMBER QTY
DESCRIPTION
1001001016 1 STEERING SELECT VALVE, (includes all items) 1 7029915 1 STEERING 2 7029916 1 COVER PLATE 3 91474402 1 DIRECTIONAL CONTROL VALVE, (includes items 4 thru 6) 4 91474407 2 COIL 5 7029917 2 NUT 6 7012773 1 SEAL KIT 7 88662065 4 ADAPTER, 90, (includes o-ring) 8 88662019 2 CONNECTOR, (includes o-ring)
REV
C
